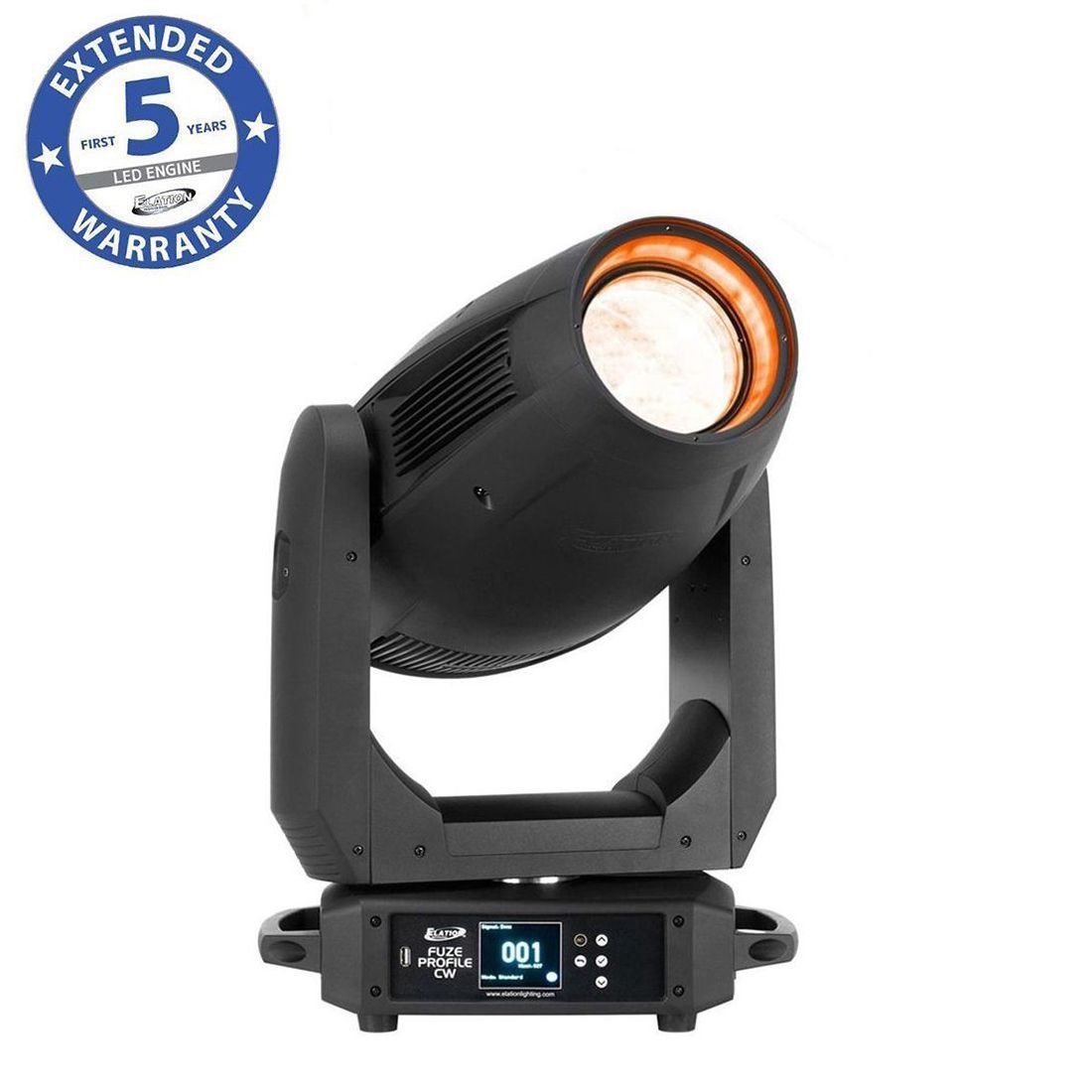

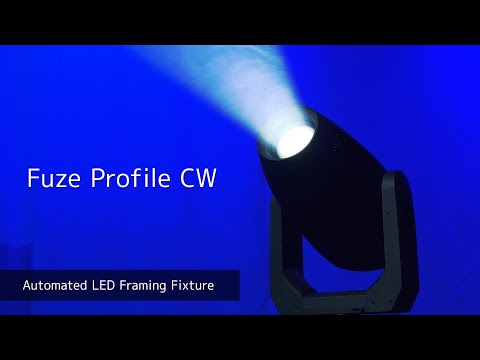

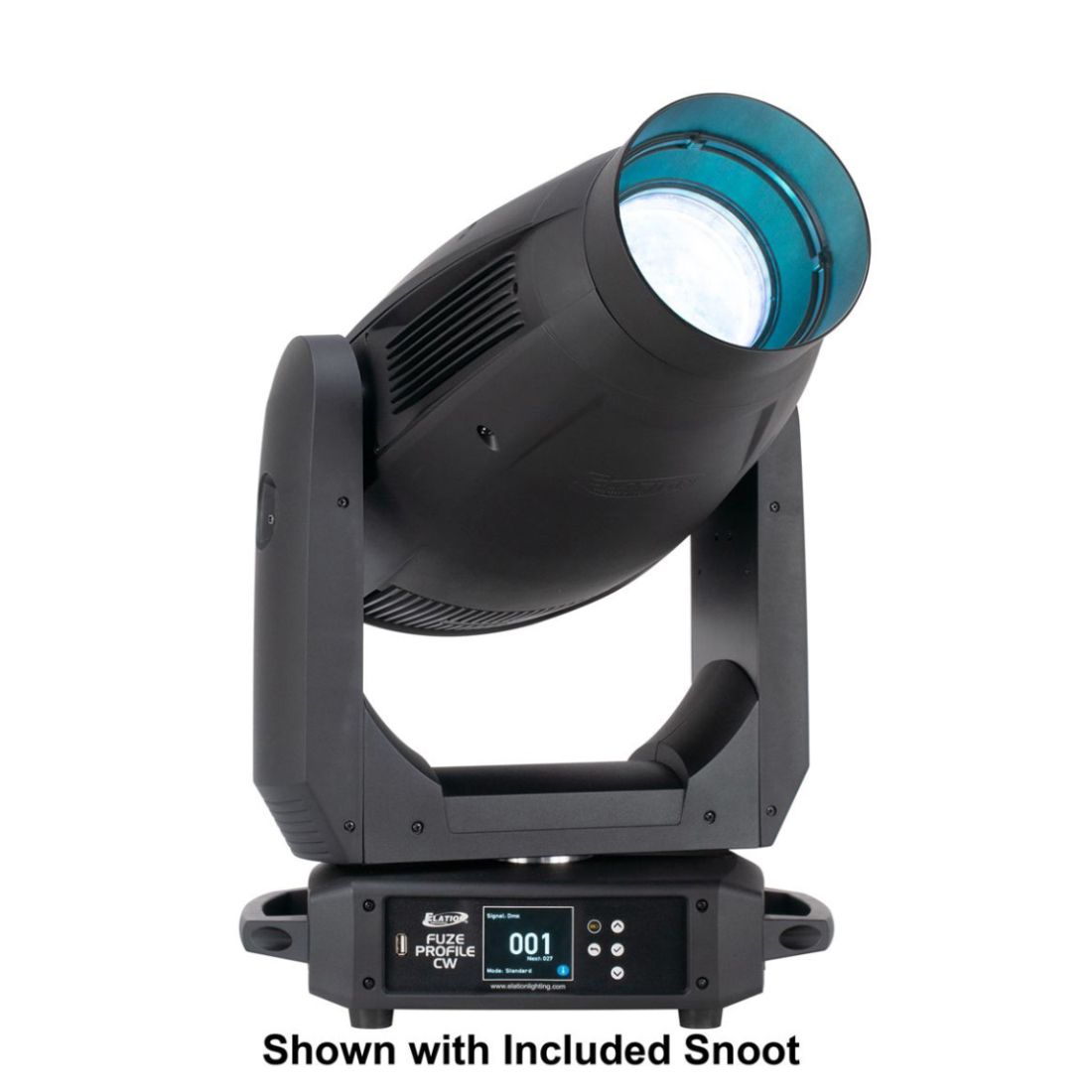

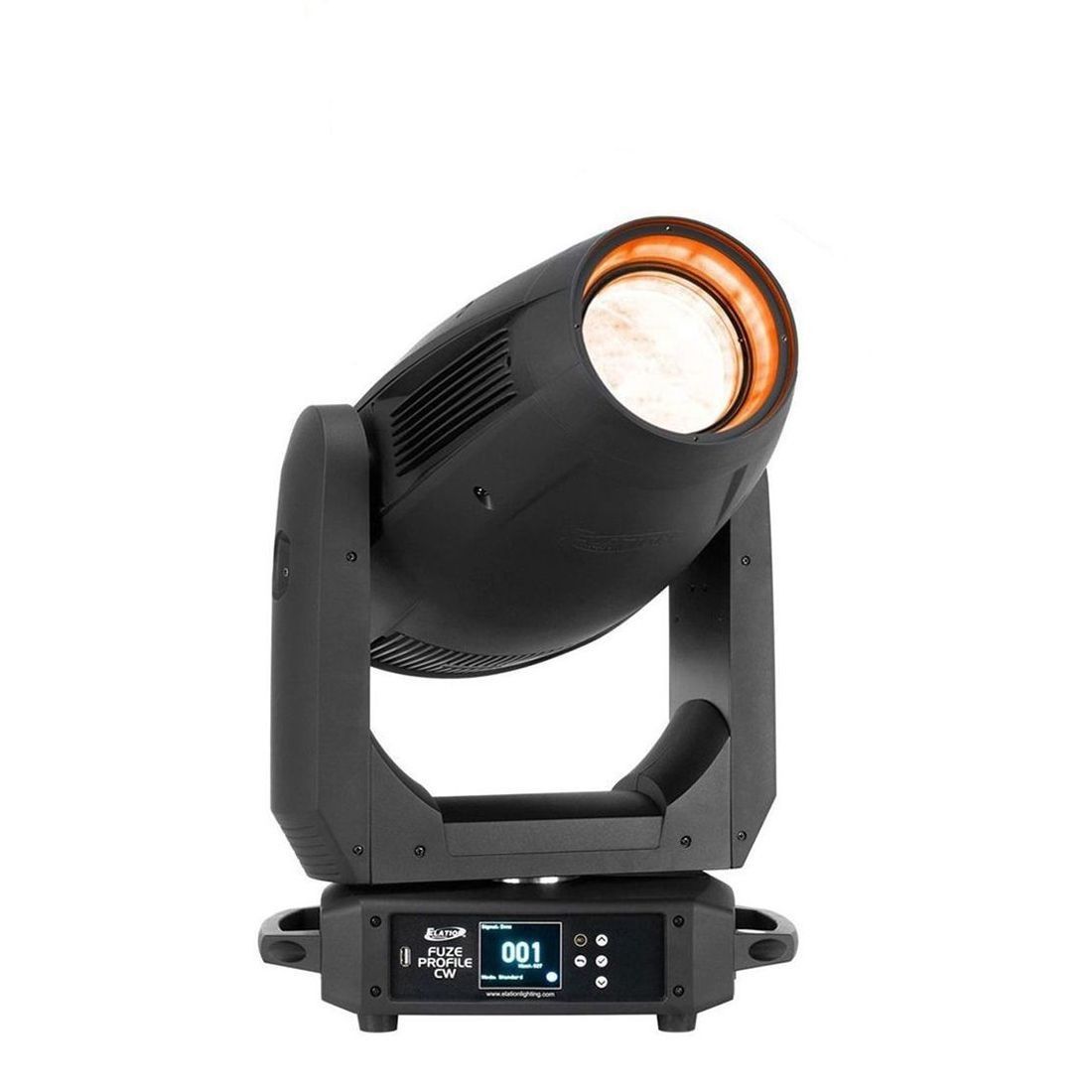

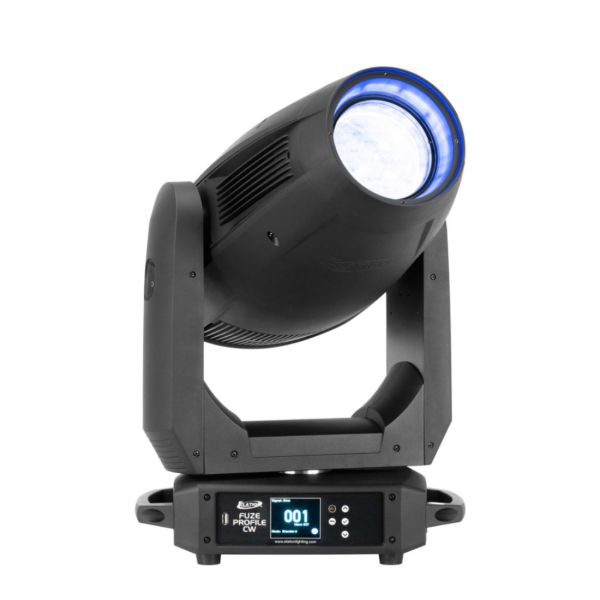

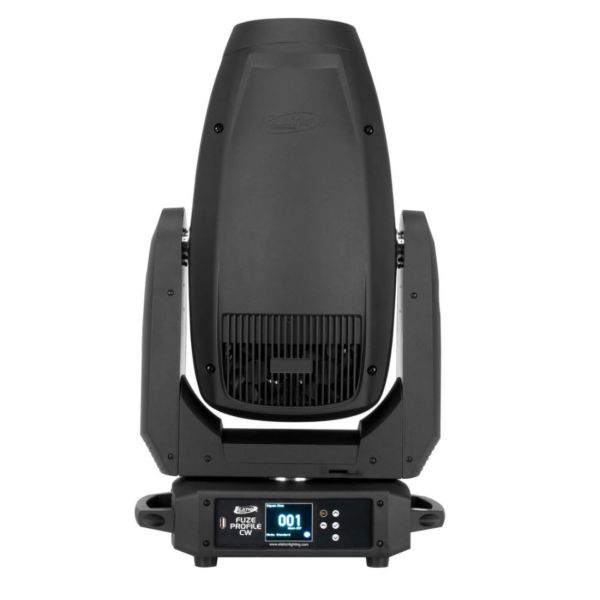

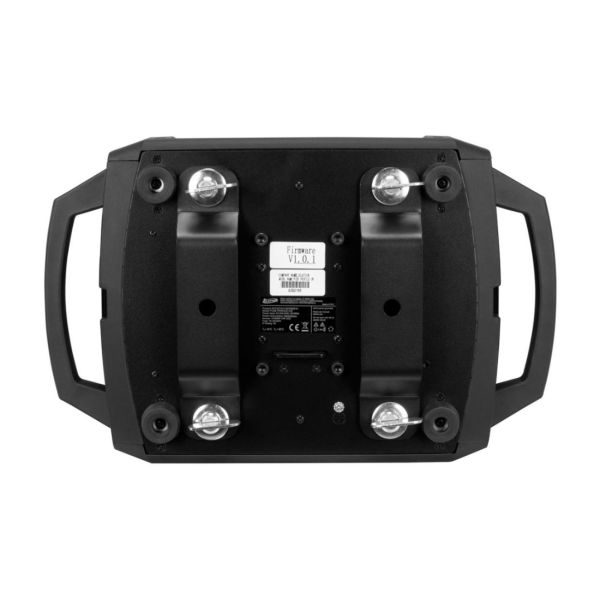

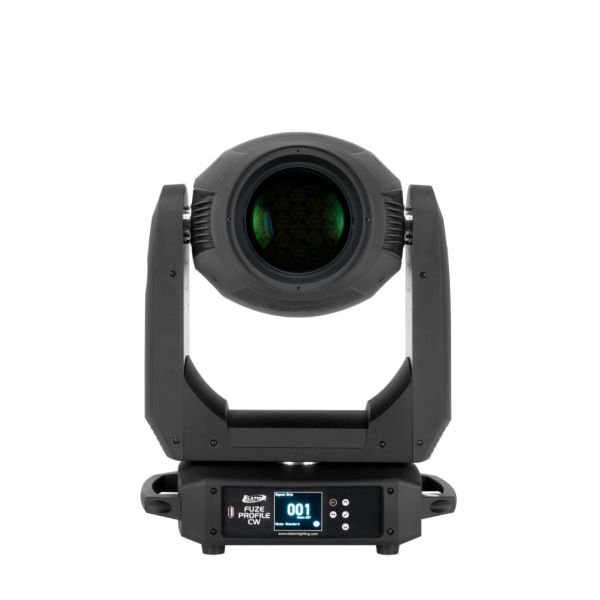

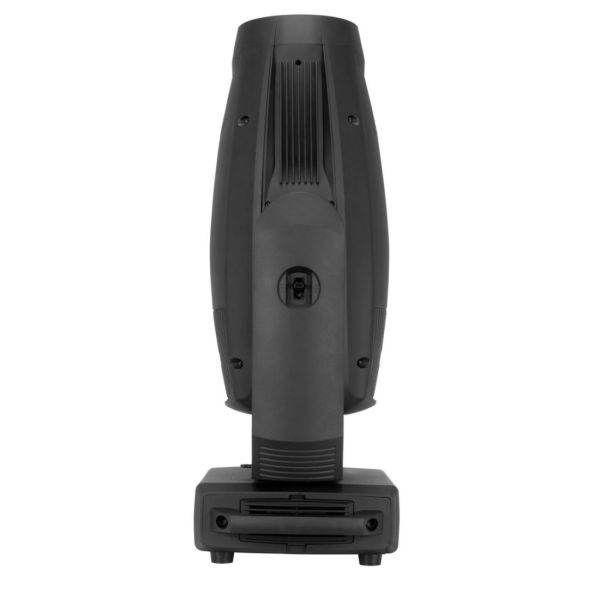

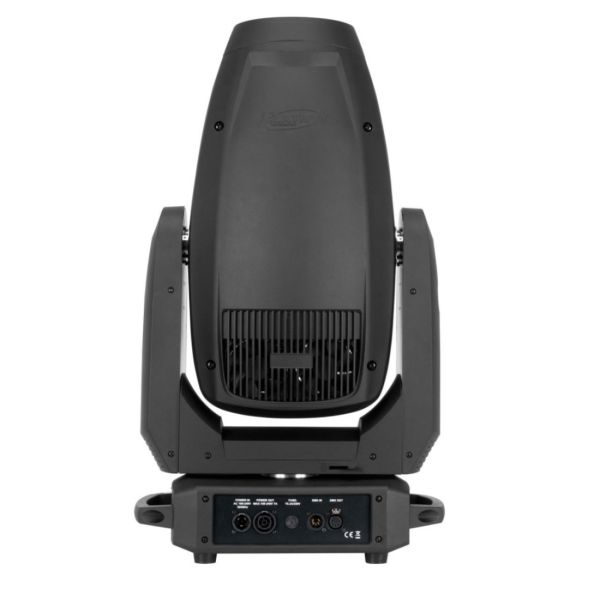

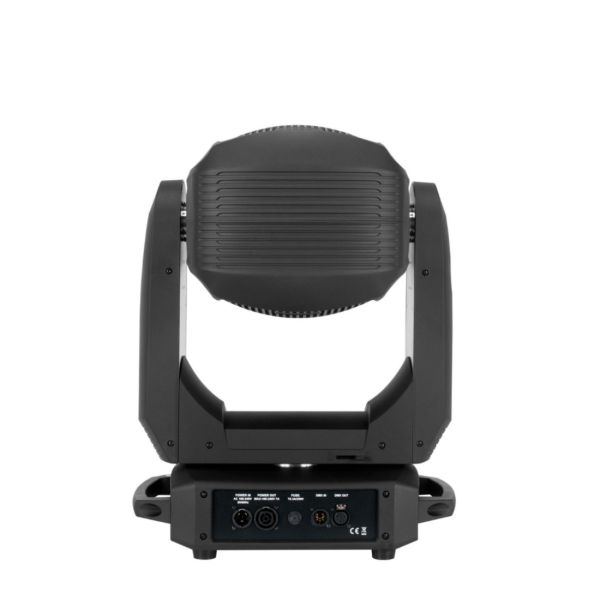

Fuze Profile CW

The Fuze Profile CW™ is an automated LED framing fixture designed for tradeshows, stages, television and a wide array of AV event applications. The 91CRI 380W engine ensures accurate color reproduction while delivering a powerful output of 11,000 lumens. Designed to illuminate objects like exhibits and banners, texture areas and keylight persons with its flat field and accurate framing, it has many practical applications where a fully automated ellipsoidal fixture is required. A rotating gobo wheel of breakups, two color wheels featuring solid colors and correction filters plus an Iris round out its comprehensive feature set.

Technical Data

FEATURES

High Efficiency 380W White LED Engine, 91CRI
Dual Color Wheel (Solids and Color Corrections)
Rotating Gobo Wheel
Full Blackout Framing System
Iris and Frost
Wide Zoom Range from 9° to 43°

SOURCE

380W 6,000K White LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

11,200 Total Lumen Output
CRI 91

Zoom Range 9° - 43°
Beam Angle 9.3° - 43.1°
Field Angle 10.3° - 46.8°

EFFECTS

Motorized Zoom
4 Rotating Full Blackout Framing Blades, +/- 60° Index
Variable Frost Filter
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Adjustable LED Refresh Rate Frequency
Pan Angle: 540°/630°
Tilt Angle: 270°

COLOR

2 Color Wheels
7 Solid Colors
7 Color Corrections and UV

GOBOS

1 Gobo Wheel
7 Rotating / Indexing Interchangeable Glass Gobos

CONTROL / CONNECTIONS

2 DMX Channel Modes (26 / 40)
16-bit Pan, Tilt, and Dimming Control
Motorized Focus
DMX, RDM Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
16 Bit Resolution Adjustable Movement
Hibernation Mode (Power Save)
5pin DMX In/Out
IP65 Locking Power Cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 408mm (15.9”)
Width: 252mm (9.9”)
Vertical Height: 698mm (27.4”)
Weight: 23.3kg (51.4 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
590W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 2011.9

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice

COLORS AND GOBOS

Color Wheel
Red
Red
UV
UV
Light Blue
Light Blue
Light Pink
Light Pink
Warm Yellow
Warm Yellow
Medium Green
Medium Green
Lavender
Lavender
Amber
Amber
8000K
8000K
6800K
6800K
5500K
5500K
4500K
4500K
3200K
3200K
2700K
2700K
Gobo Wheel 1
Gobo 17
Gobo 18
Gobo 20
Gobo 22
Gobo 26
Gobo 80
Gobo 81
Framing
Endless Rotation

Related Products

Fuze Profile

Fuze Profile

Fuze Spot

Fuze Spot

Fuze GFH & Filterframe

Fuze GFH & Filterframe

C-Loader II

C-Loader II

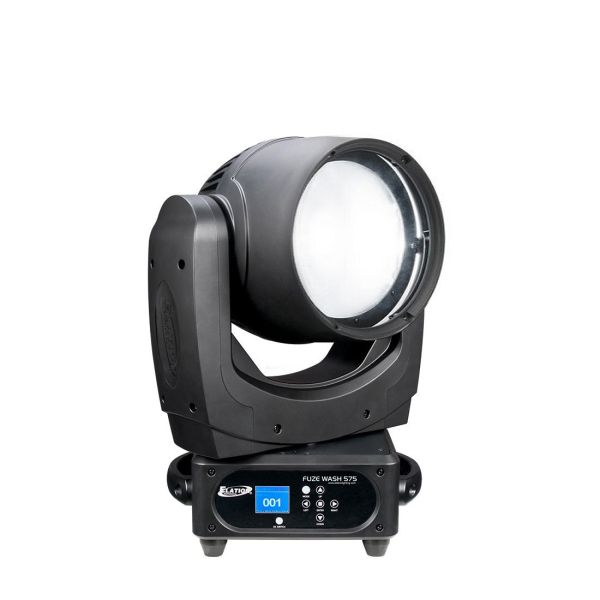

Fuze Wash 575
