Fuze Wash 575

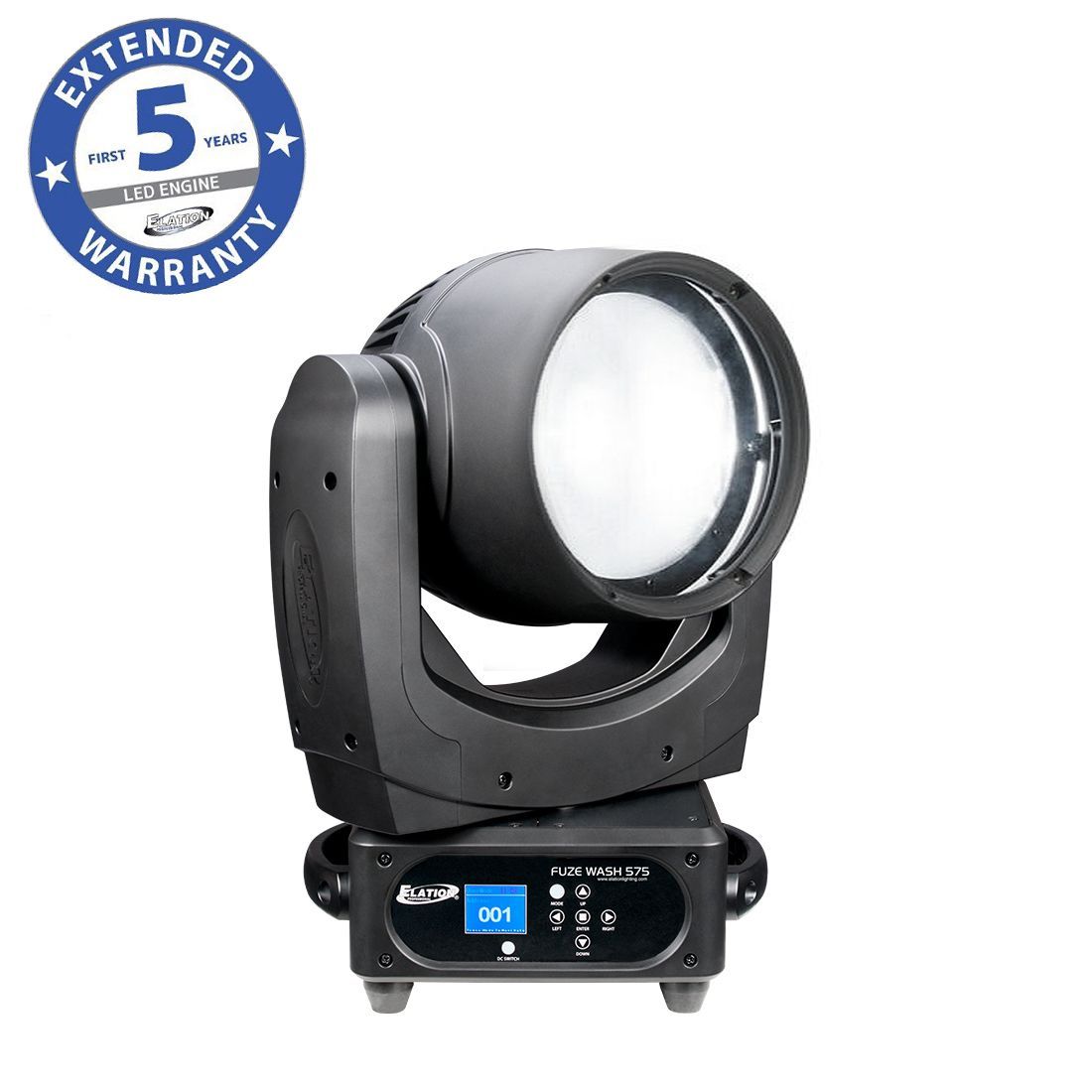

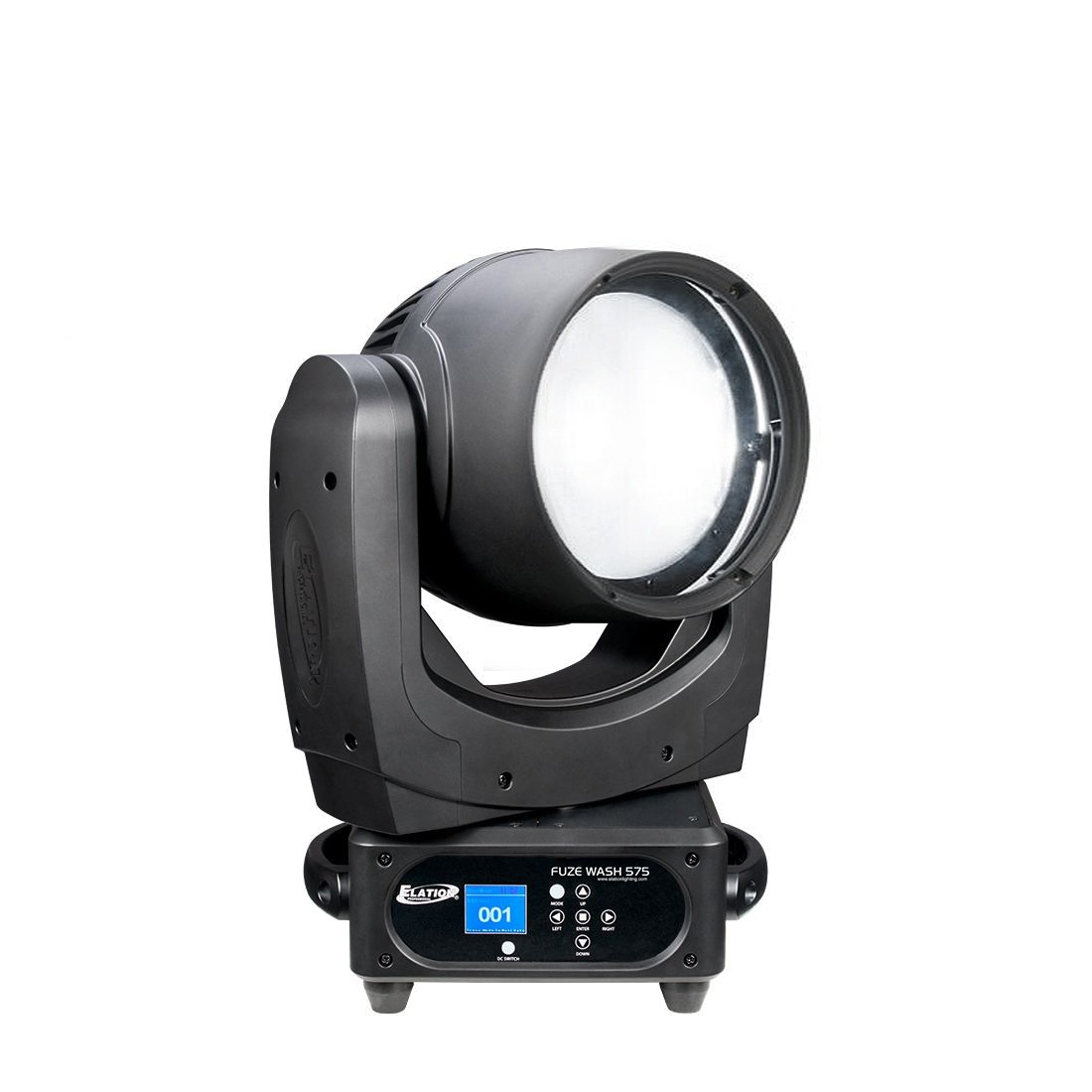

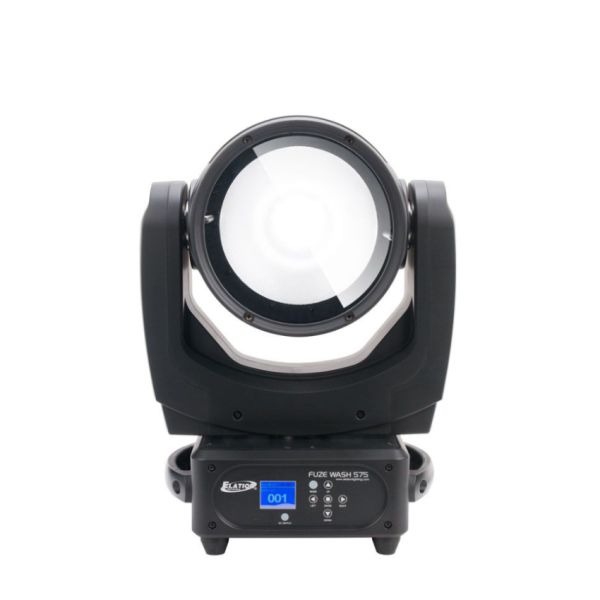

The FUZE WASH 575™ is a single source par moving head luminaire with a high output 350W Cool White / Daylight 6,800K 95CRI COB LED engine, 11° to 40° motorized zoom, smooth 16-bit pan and tilt movement, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, 5pin DMX and Locking Power Cable in/out connections, LCD menu display with 7 button control panel, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).

Technical Data

FEATURES

Cool White / Daylight Single Source Par Moving Head
High Output 95CRI 6,800K COB LED
11° to 40° Motorized Zoom
Smooth 16-Bit Pan and Tilt Movement
Variable Dimming Curve Modes
RDM (Remote Device Management)
Flicker Free Operation for TV and FILM
Multiple Unit Power Linking

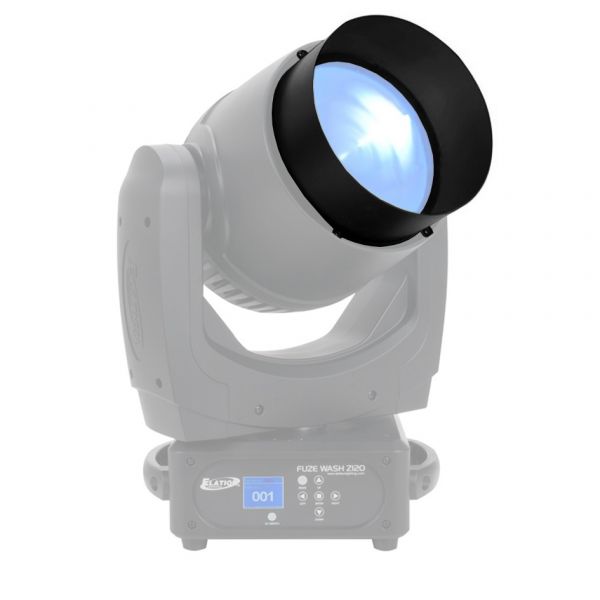

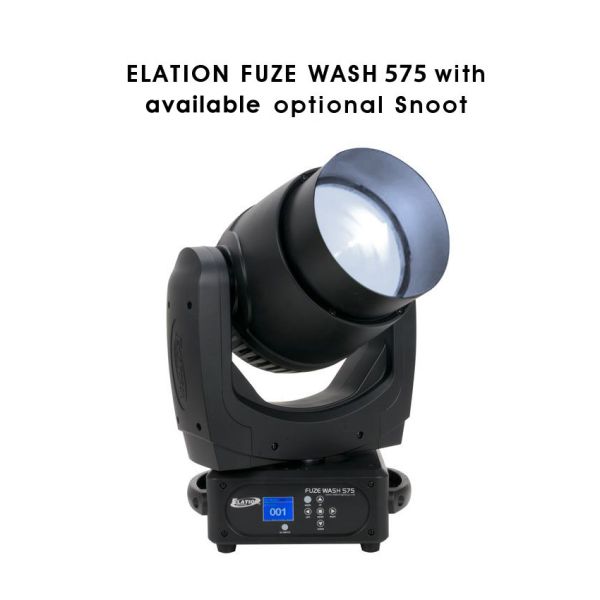

Optional Snoot Lens

SOURCE

350W 95CRI 6,800K Cool White / Daylight COB LED
50,000 Hour Average LED Life*
*LED life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

35,425 LUX 3,291 FC @6.6' (2m) (11° Full On)
6,502 LUX 604 FC @6.6' (2m) (40° Full On)

Zoom Range 11° - 40°
Beam Angle 10.6°- 41.2°
Field Angle 39.7°- 52.6°

EFFECTS

11° - 40° Motorized Zoom
Electronic Strobe
Variable Dimming Curve Modes

COLOR

Cool White/Daylight

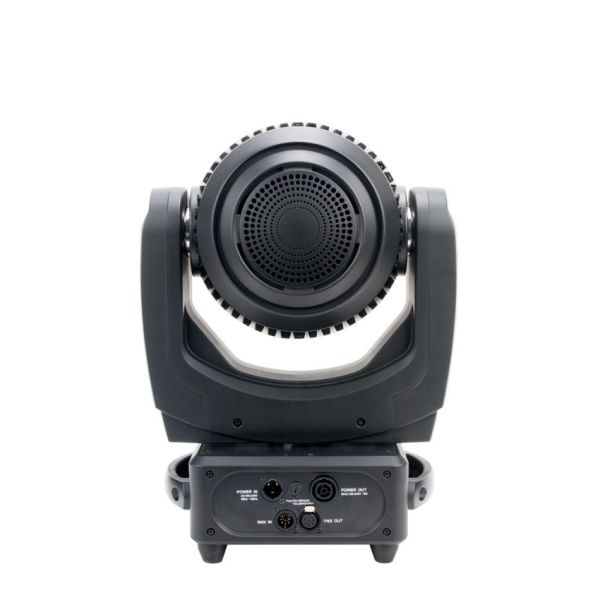

CONTROL / CONNECTIONS

2 DMX Channel Modes (11 Total Channels)
7 Button Control Panel and LCD Menu Display
Smooth 16-Bit Pan and Tilt Movement
RDM (Remote Device Management)
5pin DMX In/Out
IP65 Locking Power Cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 13.3" (337.7mm)
Width: 9.0" (228.8mm)
Vertical Height: 18.33" (465.7mm)
Weight: 27 lbs. (12.2 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
425W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 1449.25

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
