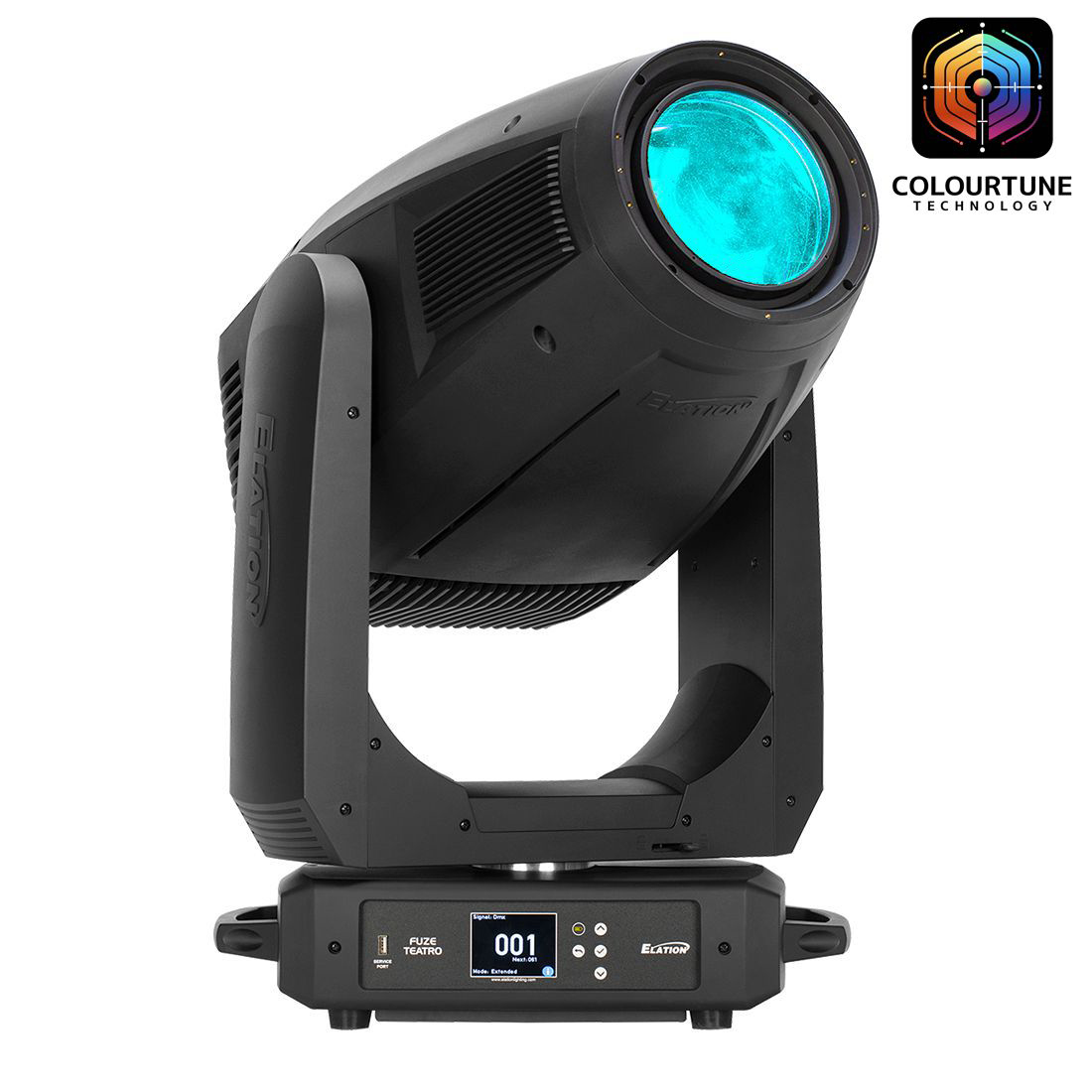

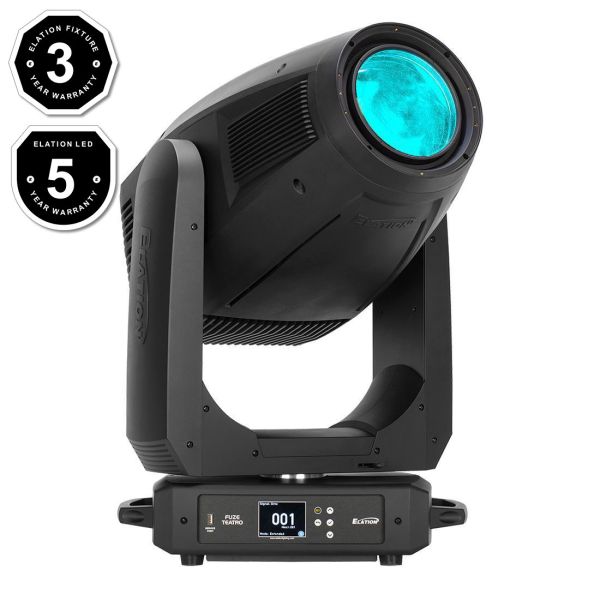

Fuze Teatro

The FUZE TEATRO™ is a silent fanless full spectrum automated LED framing fixture designed for theater, television and a wide array of other precision lighting applications.
The 95 CRI engine utilizes an 480W 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction and dynamic whites while delivering a powerful output of up to 15,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY or RGB emulation provide the designer with immediate access to the impressive LED color array.

The FUZE TEATRO is designed for any application where a silent fully automated framing fixture with outstanding and compelling color range and quality is required. The fixtures enhanced optical design and lens coatings ensure precise and razor-sharp projections, removing all unwanted color shifting and aberrations in all zoom, focus, or framing positions.
Dual rotating gobo wheels, animation wheel, dual frost, prism and iris round out its comprehensive feature set in this quiet and extremely powerful automated framing fixture.

Technical Data


Convection cooled fanless design
Ultra Quiet and High Performance Modes
Full Spectrum 480W RGBMA LED Engine
Precise dynamic whites from 2400 - 8500K
Instant color changes, Natural color transitions
Rich and intense primary colors
Dual Rotating Gobos plus Animation Wheel
Full Blackout Framing System
Iris, Prism, and Dual Frost
Wide Zoom Range from 7° to 50°


480W 6,500K RGBMA LED Engine
30,000 Hour Average LED Life*

*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


Total Lumen Output'
14890 (Integrating Sphere)
13100 (Goniometer)
CRI 95.1
Zoom Range 7° - 50°
Beam Angle 6.8° - 50.5°
Field Angle 8.5° - 54.7°


Motorized Zoom
4 Rotating Full Blackout Framing Blades, +/- 60° Index
Dual Variable Frost Filter (Medium/ Wash)
4 Facet Round, 4 Facet Linear Prism
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Pan Angle: 540° / 630°
Tilt Angle: 250°
Motionless Reset


ColourTune Technology
RGBMA Color Array
CMY Emulation
Variable CCT 2,400K - 8,500K
Green/Magenta Shift
Virtual Gel Swatch Book


2x 6 Rotating / Indexing Interchangeable Glass Gobos
Animation Wheel


16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM, Art-NET, sACN Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
16 Bit Resolution Adjustable Movement

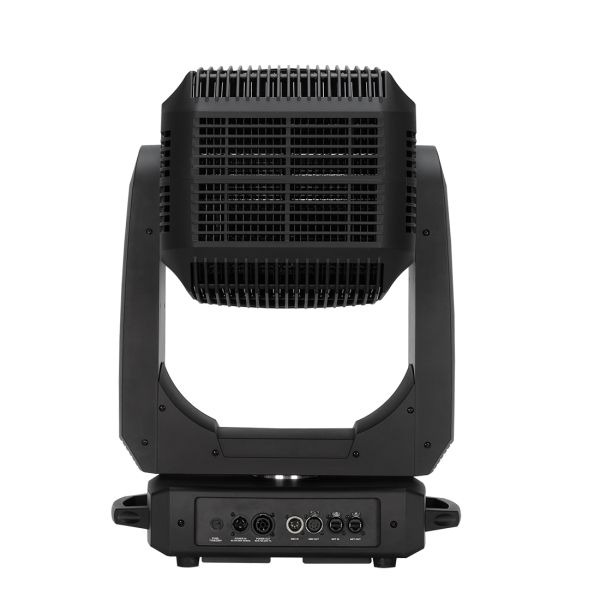

5pin DMX In/Out
Locking Ethernet In/Out
IP65 Locking Power In/Out


Length: 306 mm (12.0")
Width: 462 mm (18.2")
Height: 783 mm (30.8")
Weight: 36 kg (79.4 lbs.)


AC 100-240V - 50/60Hz
725W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 2772.25


Current firmware can be found here (login required)

Specifications and documentation subject to change without notice


Gobo Wheel 1
Gobo 17
 Gobo 18
 Gobo 22
 Gobo 23
 Gobo 128
 Gobo 131
Gobo Wheel 2
Gobo 24
 Gobo 43
 Gobo 57
 Gobo 80
 Gobo 126
 Gobo 127
Animation Wheel
Animation Wheel 1
Prism 2
 Prism 3
Endless Rotation
