Code 1330000070

DMX10-3

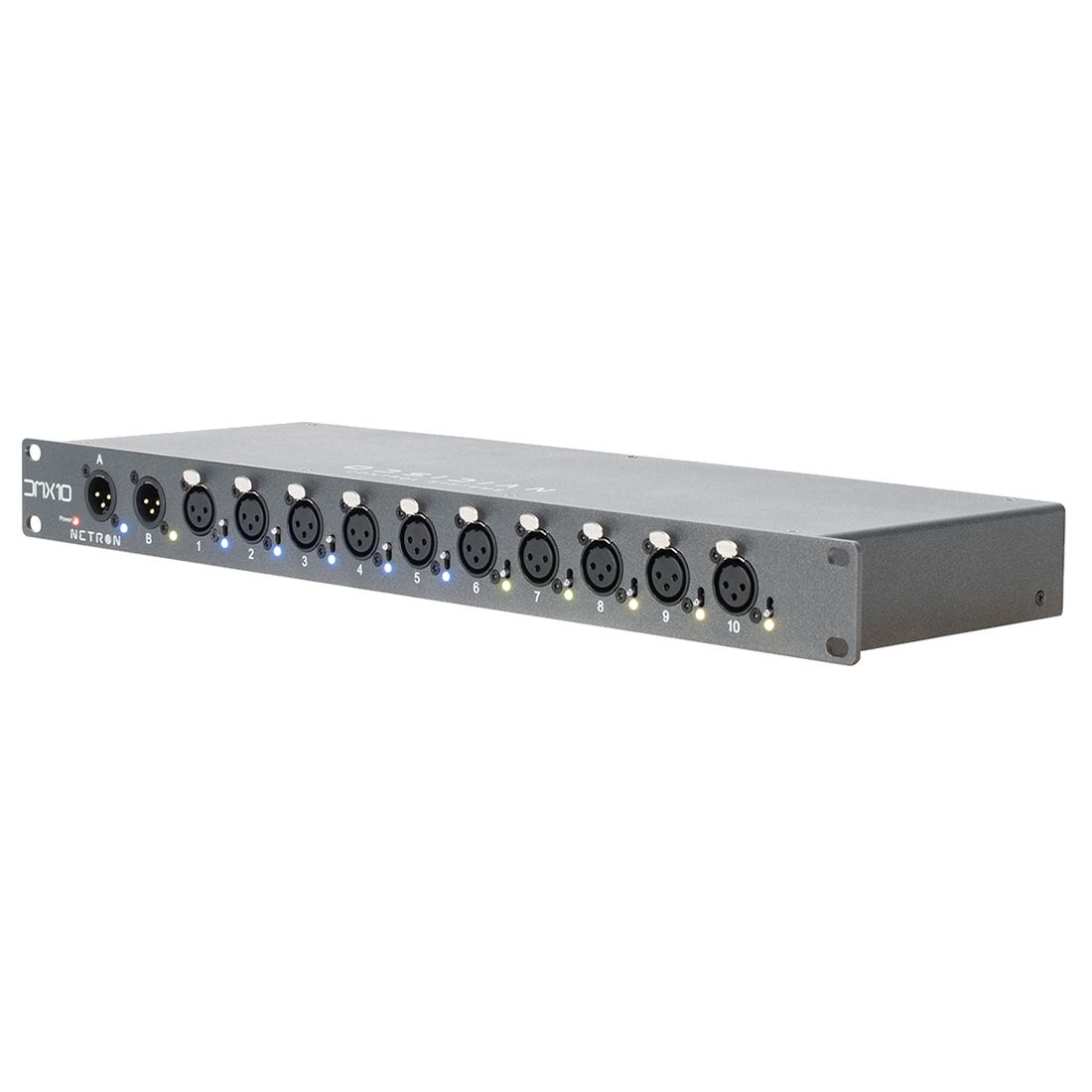

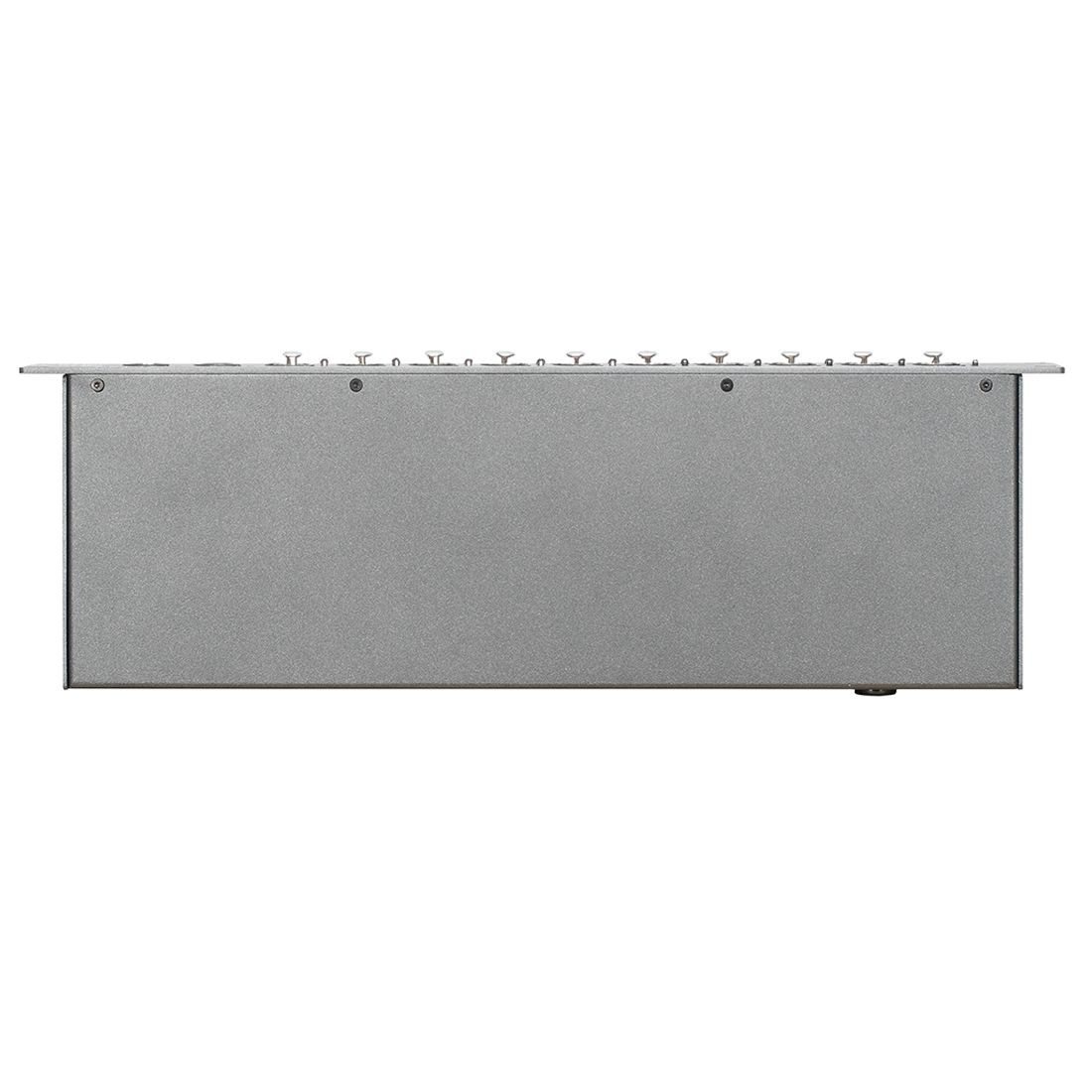

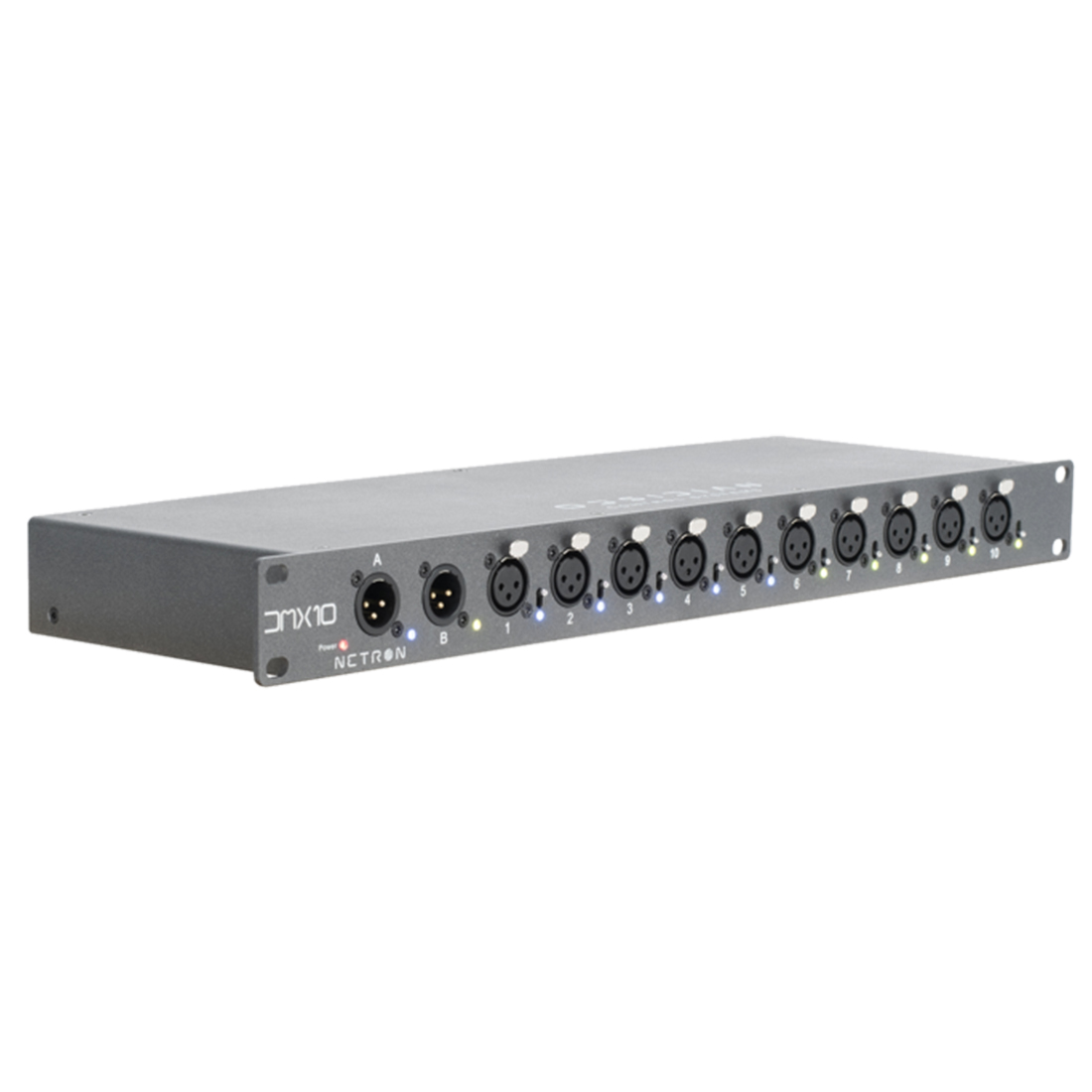

The DMX10-3 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 3pin XLR DMX outputs. Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation.

The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5 and 3pin XLR configurations

Technical Data

FEATURES


Dual A/B 3pin XLR DMX Input
10 isolated 3pin XLR DMX Outputs
A/B routing per output port
LED feedback for In/Out/A/B/Power
Industrial strength powder-coated finish
Lightweight and rugged rackmount housing

For all technical details and documentation for NETRON devices please visit https://obsidiancontrol.com/netron

SPECIFICATIONS

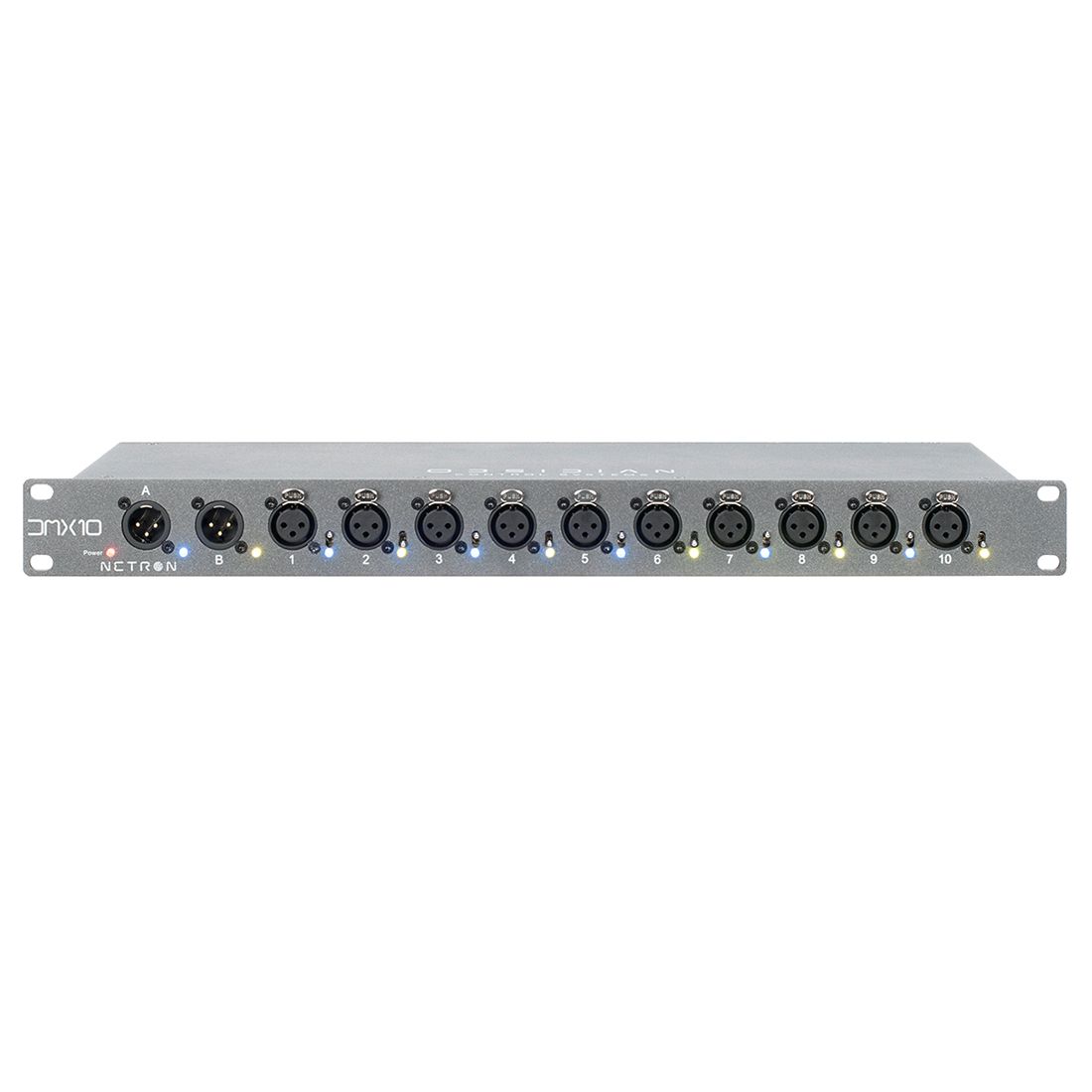

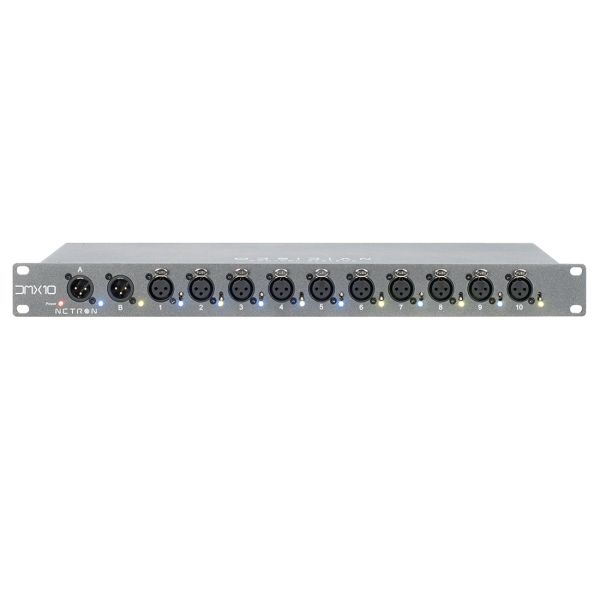

Front


(2) 3pin DMX Input
(10) 3pin Opto-Isolated DMX Outputs

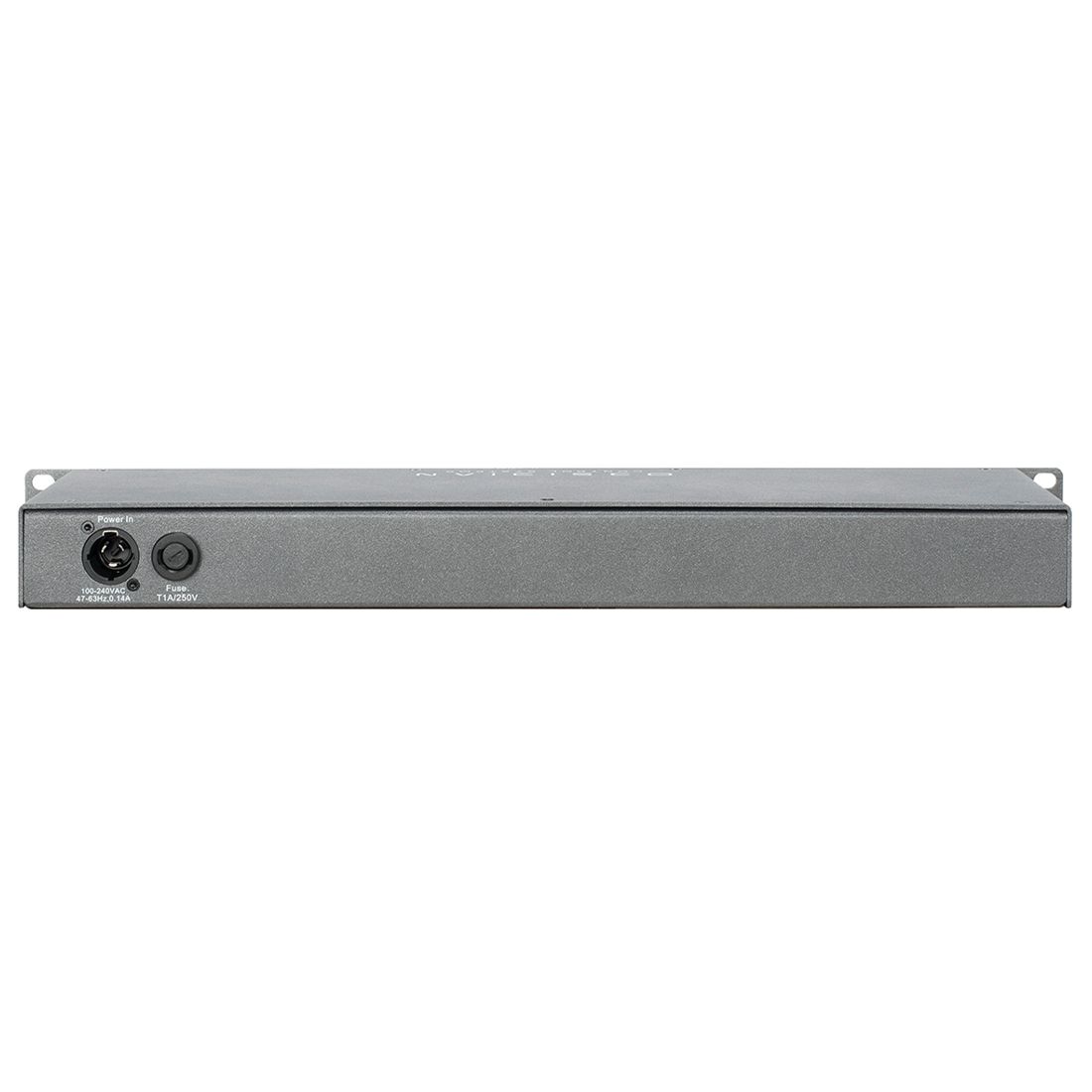

Back


Locking Power In

PHYSICAL


Length: 482.5 mm (19 in.)
Width: 146 mm (5.7 in.)
Height: 44 mm (1.7 in.)
Weight: 1.82kg ( 4.0 lbs)

ELECTRICAL


100-240 V nominal, 50/60 Hz

INCLUDED ITEMS

1.5m Locking power cable


Specifications and documentation subject to change without notice
