SŌL IV Blinder

4x 350W RGBLAW LED Blinder IP65

Code 1236300108

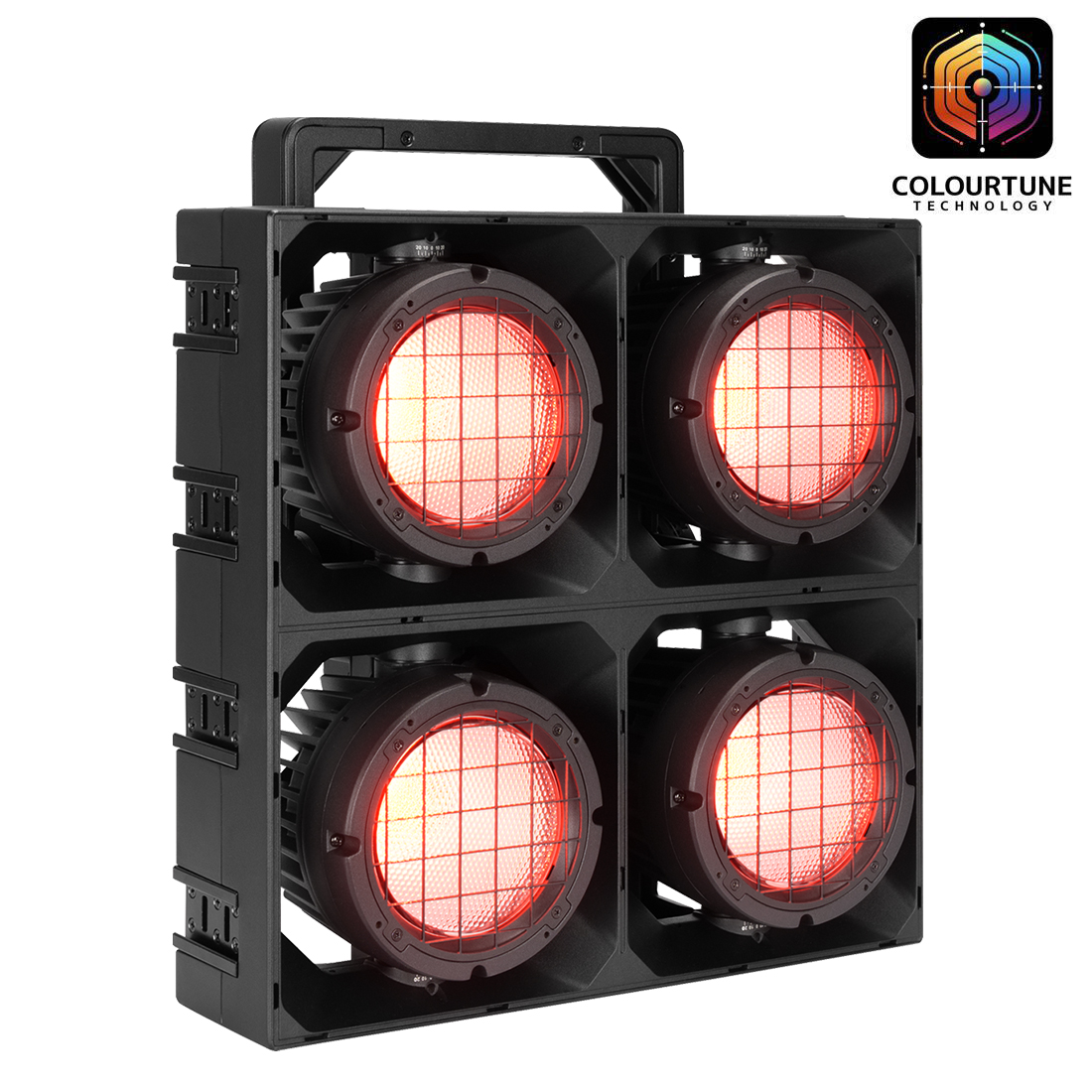

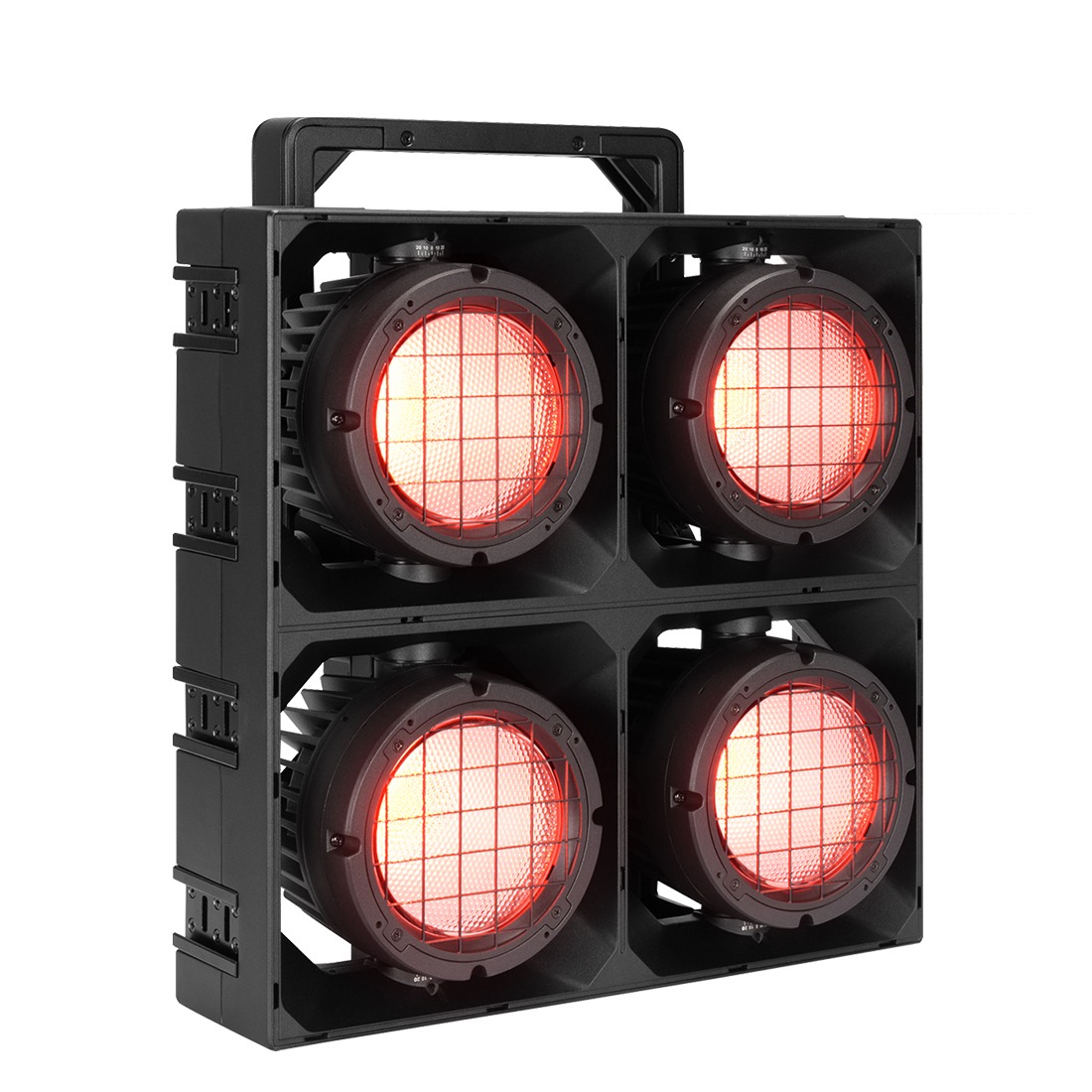

Introducing the SŌL IV BLINDER, the most versatile addition to the SŌL Series yet, featuring a grid of four fixtures in a single modular housing. Like the SŌL I and SŌL II, the SŌL IV offers the same cutting-edge technology and powerful LED engine but with even greater creative potential through its multi-fixture design. The SŌL IV BLINDER can be used as a standalone fixture or interconnected in endless configurations with additional SŌL IV...

Code 1236300108

SŌL IV Blinder

The SŌL IV BLINDER can be used as a standalone fixture or interconnected in endless configurations with additional SŌL IV units, as well as the SŌL I and SŌL II models. This flexibility allows lighting professionals to craft expansive arrays, intricate shapes, and dynamic effects that adapt to any stage or event setup.

With the same 350W RGB+Lime+Amber+White LED engine, 93+ CRI, and IP65-rated durability, the SŌL IV delivers unmatched brightness, color fidelity, and performance. Whether you’re looking for an impactful standalone solution or a fixture that integrates seamlessly into a larger lighting design, the SŌL IV BLINDER provides the ultimate canvas for your creativity.

Illuminate your vision with the boundless possibilities of the SŌL IV BLINDER – the next step in redefining stage lighting innovation.

Technical Data

FEATURES

4x 350W RGBLAW LED
59,830 Total Fixture Lumen Output (Sphere)
46° Beam Angle
Simple 'Array Mode' Addressing System
Individual Pan Adjustment with Lock
Dim-to-Warm/ Red Shift Emulation
High Output Blinder Mode or Constant Output Mode Options
Unique Horizonal and Vertical Array Rigging Method (Compatible with SŌL II, SŌL I Blinder Frame, Pulse Panel, SIX+ BAR and PULSE BAR Interconnect)
IP65 Rated

SOURCE

4 X 350W RGBLAW LED
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

Total Lumen Output
59.830 (Integrating Sphere)
CRI TBA

Compound Lens

Beam Angle: 46°
Field Angle: 85°

No Lens

Beam Angle: 52°
Field Angle: 95°

EFFECTS

Variable Strobe Rate: 1- 20Hz
Dim-to-Warm/ Red Shift Emulation
Variable 16-bit Dimming Modes and Curves
High Output Blinder Mode or Constant Output Mode Options

COLOR

RGBLAW Color Array
CMY Emulation
Variable CCT 1,800K - 8,500K
Virtual Gel Swatch Book

CONTROL / CONNECTIONS

24 DMX Channel Modes (1ch, 2ch, 4ch, 2ch, 4ch, 8ch, 3ch, 5ch, 9ch, 4ch, 8ch, 16ch, 6ch, 12ch, 24ch, 7ch, 10ch, 16ch, 40ch, 69ch, 28ch, 45ch, 28ch & 45ch)
Simple 'Array Mode' Addressing System
Manual and DMX Controlled Dimmer and Color
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)
IP65 5pin DMX Cable In/Out
IP65 Locking Power Cable In

SIZE / WEIGHT

Length: 240 mm (9.4”)
Width: 420 mm (16.54”)
Vertical Height: 471 mm (18.6”)
Weight (Fixture Only): 17.7kg (39 lbs)
Weight (w/ Removable Yoke): 19.7kg (44 lbs)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
1300W Max Power Consumption
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 4262.5

INCLUDED ITEMS

Removable Fixture Yoke / Omega Bracket
2x Fixture Interconnect Splices
IP65 Locking Power Cable

OPTIONAL ITEMS

1236300095 SŌL Fresnel Lens (SOL FL)
1236300106 SŌL Frosted Lens (SOL FRO)
1236300094 SŌL Bowens Adapter (SOL BA)
1236300113 SŌL Dome Lens (SOLDL)
1236300114 SŌL Blackout Lens (SOL BL)
1236300100 SŌL Gel Frame Holder Kit (SOL GFHK)
1236300099 SŌL Barndoor (SOL BD)
1236300110 Fixture Interconnect Splice Package
1236300115 Interconnect Clamp Adapter (FICA01)
1744000021 L Track A1
1744000022 L Track A2
1744000023 L Track CA1
1744000025 L Track CA2
