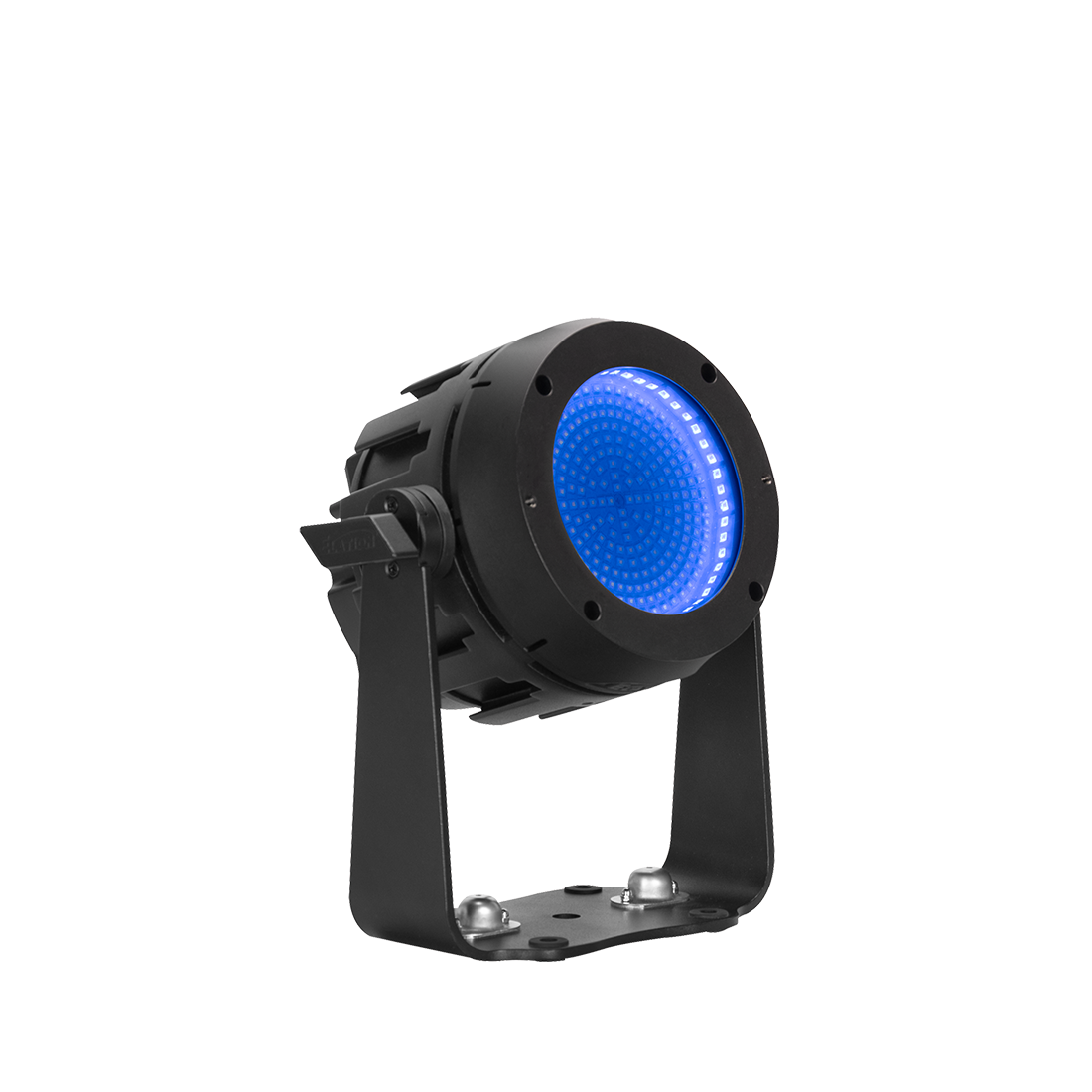

SŌL I Strobe

The SŌL I STROBE gives designers control over how strobe energy moves and feels. Multi-zone architecture enables rhythmic patterns and animated movement, while variable electronic frost allows the beam to transition from crisp, high-impact flashes to smoother, more blended looks—softening edges, reducing harshness, and helping strobe effects integrate naturally into the wider visual environment.

RGB backlighting adds depth and visual context around key moments, allowing strobe cues to be paced and layered into broader looks without introducing pixel-mapping complexity or additional workflow overhead.

Built to cut through LED walls, ambient light, and layered visuals, the SŌL I STROBE delivers fast, clean strobe flashes that make timing-driven cues immediately noticeable. The SŌL I STROBE gives designers control over how strobe energy moves and feels.

Multi-zone architecture enables rhythmic patterns and animated movement, while variable electronic frost allows the beam to transition from crisp, high-impact flashes to smoother, more blended looks—softening edges, reducing harshness, and helping strobe effects integrate naturally into the wider visual environment.

RGB backlighting adds depth and visual context around key moments, allowing strobe cues to be paced and layered into broader looks without introducing pixel-mapping complexity or additional workflow overhead.Built on the same modular, IP-rated platform as the SŌL Blinder Series, the SŌL I STROBE rigs and scales easily from single fixtures to large arrays.

Shared housing, mounting, and accessories allow it to integrate seamlessly into existing SŌL systems, while silent, fanless operation and outdoor-ready construction support reliable performance across touring, festivals, broadcast, and permanent installations. The result is dependable strobe performance indoors or outdoors, show after show.

Technical Data

FEATURES

(252) 5W CW Strobe LEDs in 8 Zones
(48) 1.5W RGB LEDs in 16 Zones
14,500 Total Fixture Lumen Output (Sphere)

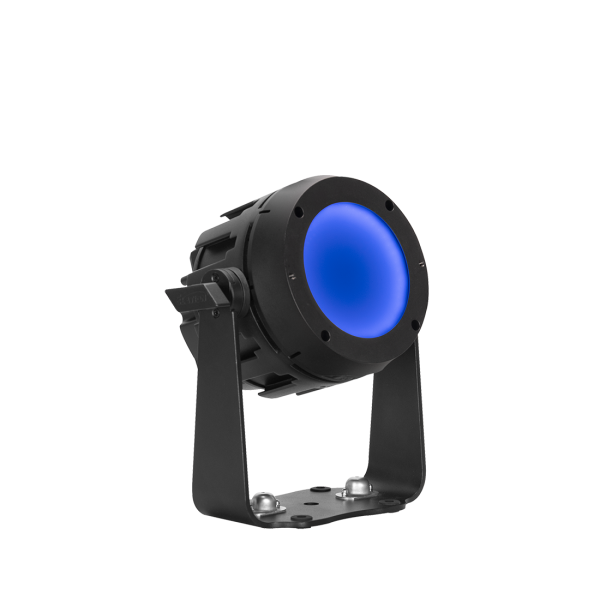

Variable Electronic Frost
Simple 'Array Mode' Addressing System
Nearly Endless Mounting and Configuration Options
Fully Compatible with SŌL I Interconnectivity
IP65 Rated

SOURCE

(252) 5W CW Strobe LEDs
(48) 1.5W RGB LEDs
50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

Total Lumen Output
14,500 (Integrating Sphere)
TBA (Goniometer)
Beam Angle: 60°
Field Angle: 80°

EFFECTS

Variable Electronic Frost
8 Zones of CW Strobe LEDs
16 Zones of RGB LEDs
1- 20Hz Strobe Rate
Library of Customizable RGB and CW Strobe Effects
Variable Dimming Modes and Curves

COLOR

RGB Color Array
Variable CCT 1800K - 8500K

CONTROL / CONNECTIONS

5 DMX Channel Modes (4ch/12ch/23ch/40ch/80ch)
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)
IP65 5pin XLR DMX In/Out
IP65 Locking Power Cable In

SIZE / WEIGHT

(Without Accessories)
Length: 185mm (7.28")
Width: 114mm (4.48”)
Vertical Height: 114mm (4.48”)
Weight (Fixture Only): 3.2kg (7 lbs)
Weight (With Floor Stand/Yoke): 4.5kg (9.9 lbs)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
250W Max Power Consumption
Power Thru Capacity: 9A (3 units @110V; 8 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 852.5

INCLUDED ITEMS

IP65 Locking Power Cable
Yoke/ Floor Stand
Fixture Interconnect Adapter

OPTIONAL ITEMS

1236300102 SŌL I Interconnect (SOL1 IC)
1236300109 SŌL I Interconnect Pack
1236300098 SŌL I M10 Connect (SOL1 M10C)
1236300103 SŌL I Rear Mount Bracket (SOL1 RMB)
1236300096 SŌL I Heavy Duty Yoke (SOL1 Y)
1236300111 SŌL I Blinder Frame (SOL1 BFK)
1236300095 SŌL Fresnel Lens (SOL FL)
1236300106 SŌL Frosted Lens (SOL FRO)
1236300094 SŌL Bowens Adapter (SOL BA)
1236300113 SŌL Dome Lens
1236300114 SŌL Blackout Lens (SOLBL)
1236300100 SŌL Gel Frame Holder Kit (SOL GFHK)
1236300099 SŌL Barndoor (SOL BD)
1236300101 SŌL Power & DMX Jumper Cable (PDJ112)
These additional accessories below are relevant only when using the SŌL I Blinder Frame (SOL1 BFK) -
1236300112 SŌL/Pulse HD YOKE
1236300110 Fixture Interconnect Splice Package
