SŌL I ACL

SŌL I ACL

150W RGBLA Modular ACL with Zoom, IP65

Code 1237000413

Built as an extension of the SŌL system, the SŌL I ACL integrates seamlessly into existing arrays, adding a focused-beam tool that expands creative possibilities without complicating the rig. Engineered for consistent visual impact, SŌL I ACL produces controlled, narrow beams that remain uniform across distance, atmosphere, and multi-fixture arrays. Its dedicated narrow-beam optical approach and RGBLA engine prioritize beam clarity and saturated...

Code 1237000413

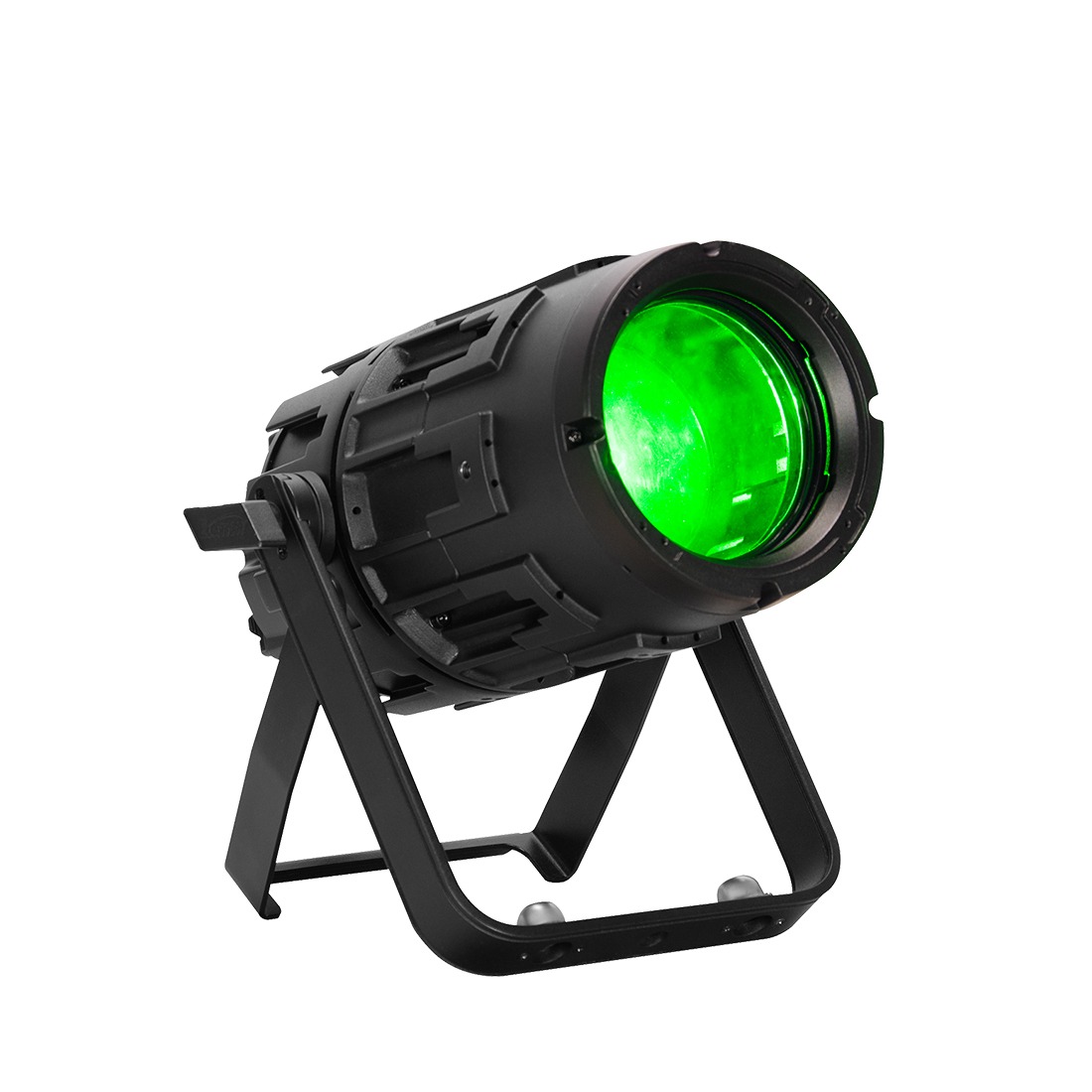

SŌL I ACL

Built as an extension of the SŌL system, the SŌL I ACL integrates seamlessly into existing arrays, adding a focused-beam tool that expands creative possibilities without complicating the rig.

Engineered for consistent visual impact, SŌL I ACL produces controlled, narrow beams that remain uniform across distance, atmosphere, and multi-fixture arrays. Its dedicated narrow-beam optical approach and RGBLA engine prioritize beam clarity and saturated color, ensuring every look feels intentional. An ultrafast 4°–41° zoom adds dynamic range—shifting instantly from tight, punchy beams to wider effects for layered visual moments.

Built to integrate seamlessly into existing SŌL and select Pulse arrays, the compact form factor makes it easy to adapt to evolving layouts and creative concepts. With silent, convection-cooled operation and an IP-rated enclosure, SŌL I ACL performs reliably wherever you need it—from rooftops and hospitality spaces to touring and live events.

Technical Data

FEATURES

150W RGBLA LED Array
1,860 Total Fixture Lumen Output (Sphere)
4°- 41° Ultrafast Zoom
Simple 'Array Mode' Addressing System
Dim-to-Warm/ Red Shift Emulation
High Output Blinder Mode or Constant Output Mode Options
Nearly Endless Mounting and Configuration Options
Fully Compatible with SŌL I Interconnectivity
IP65 Rated

SOURCE

150W RGBLA LEDs
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

Total Lumen Output
1,860 (Integrating Sphere)
CRI 83
Zoom Range 4° - 41°
Beam Angle: 4° - 36°
Field Angle: 5° - 41°

EFFECTS

Ultrafast Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR

RGBLA Color Array
CMY Emulation
Variable CCT 1800K - 8500K
Virtual Gel Swatch Book

CONTROL / CONNECTIONS

12 DMX Channel Modes
Manual and DMX Controlled Dimmer, Color & Zoom
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)
5pin DMX and IP65 Locking Power Cable In/Out

SIZE / WEIGHT

(Without Accessories)
Length: 293.5mm (11.56")
Width: 114mm (4.48”)
Vertical Height: 114mm (4.48”)
Weight: 5.6kg (12.3 lbs)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
154W Max Power Consumption
Power Thru Capacity: 9A (6 units @110V; 14 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 525.14

INCLUDED ITEMS

Fixture Yoke/ Floor Stand
Fixture Interconnect Lock
IP65 Locking Power Cable

OPTIONAL ITEMS

1236300102 SŌL I Interconnect (SOL1 IC)
1236300109 SŌL I Interconnect Pack
1236300098 SŌL I M10 Connect (SOL1 M10C)
1236300103 SŌL I Rear Mount Bracket (SOL1 RMB)
1236300096 SŌL I Heavy Duty Yoke (SOL1 Y)
1236300111 SŌL I Blinder Frame (SOL1 BFK)
1236300095 SŌL Fresnel Lens (SOL FL)
1236300106 SŌL Frosted Lens (SOL FRO)
1236300094 SŌL Bowens Adapter (SOL BA)
1236300113 SŌL Dome Lens
1236300114 SŌL Blackout Lens (SOLBL)
1236300100 SŌL Gel Frame Holder Kit (SOL GFHK)
1236300099 SŌL Barndoor (SOL BD)
1236300101 SŌL Power & DMX Jumper Cable (PDJ112)
These additional accessories below are relevant only when using the SŌL I Blinder Frame (SOL1 BFK) -
1236300112 SŌL/Pulse HD YOKE
1236300110 Fixture Interconnect Splice Package
