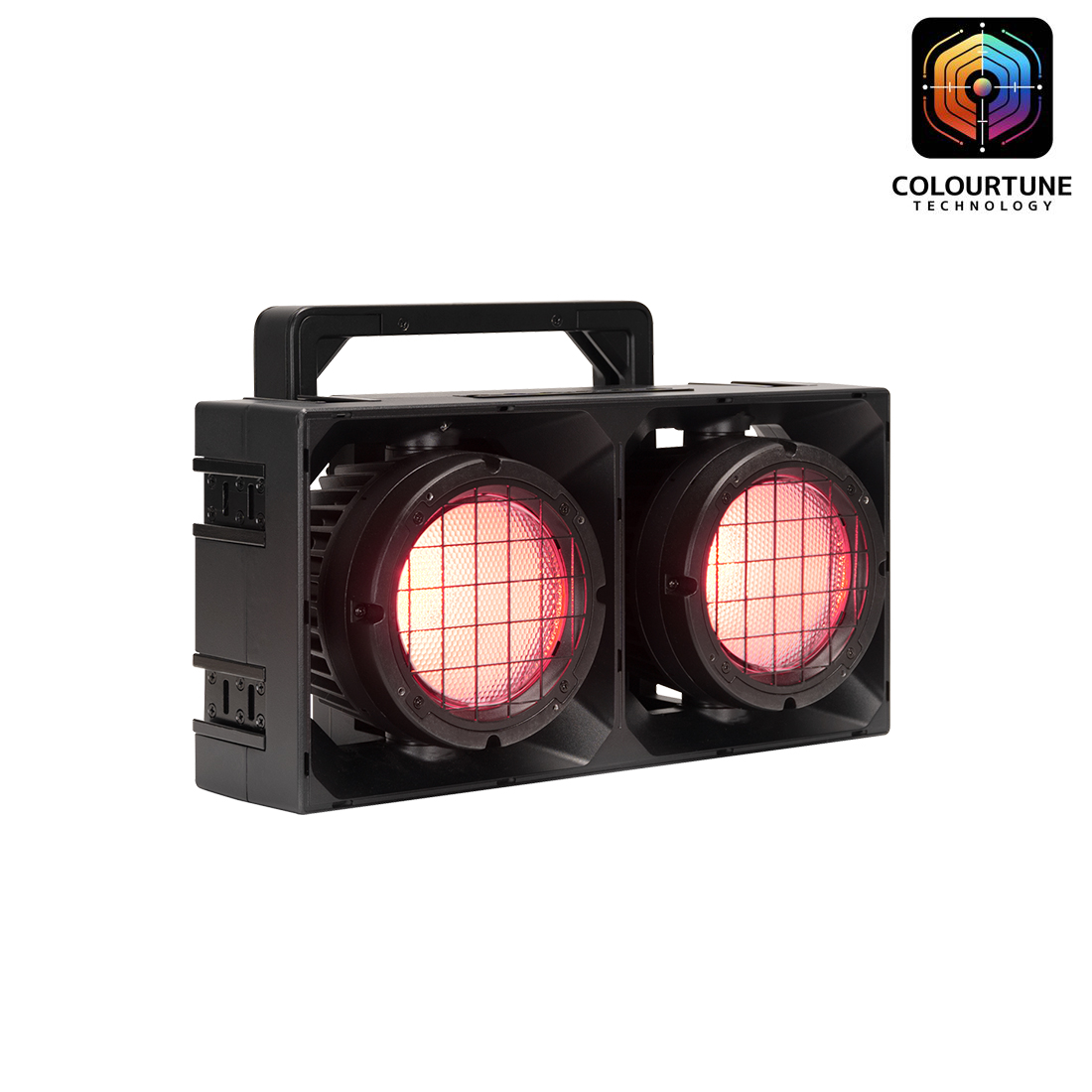

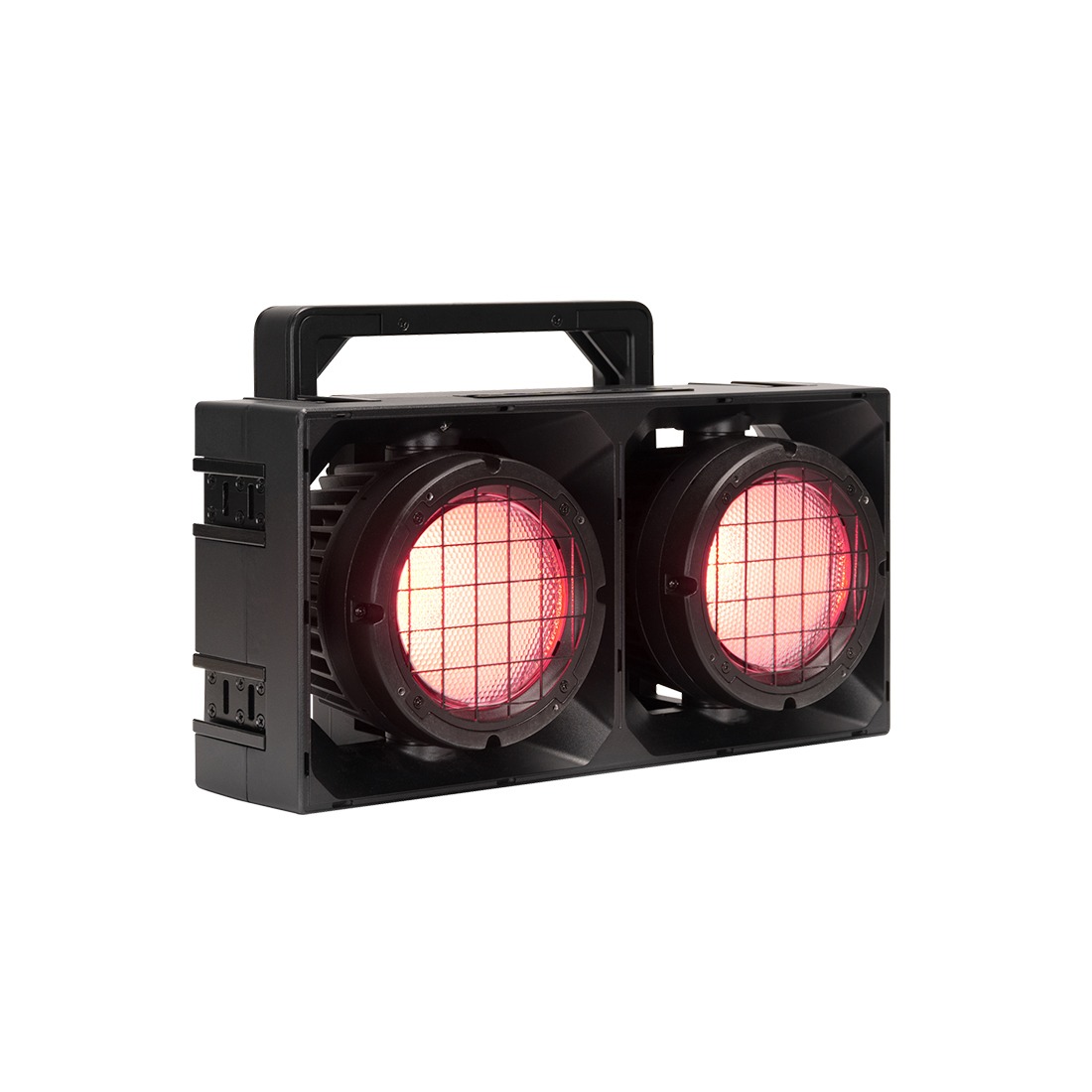

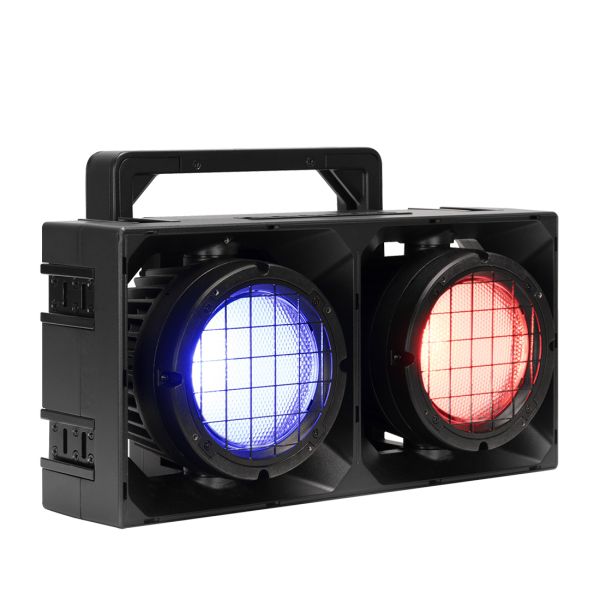

SŌL II Blinder

2x 350W RGBLAW LED Blinder IP65

Code 1236300107

Introducing the SŌL II BLINDER, the next evolution in the SŌL Series, offering double the impact with two fixtures housed in a single modular unit, arranged side-by-side. Maintaining all the innovative features of the SŌL I BLINDER, the SŌL II provides even greater flexibility for creative configurations and designs. The SŌL II’s housing is designed for seamless connectivity on all sides, allowing multiple units to be stacked together in any configuration...

Code 1236300107

SŌL II Blinder

The SŌL II’s housing is designed for seamless connectivity on all sides, allowing multiple units to be stacked together in any configuration imaginable. This makes it easier than ever to build expansive lighting arrays, custom shapes, and versatile effects panels that truly stand out.

With the same powerful 350W RGB+Lime+Amber+White LED engine, 93+ CRI, and robust IP65 rating, the SŌL II BLINDER delivers unmatched brightness, color fidelity, and durability, just like its single-fixture counterpart. Whether you’re using it as a standalone unit or integrating multiple fixtures into your design, the SŌL II BLINDER elevates your creative possibilities, offering limitless options for crafting unforgettable visual experiences.
Illuminate your stage with the enhanced power and flexibility of the SŌL II BLINDER – redefining what's possible in entertainment lighting design.

Technical Data

FEATURES

2x 350W RGBLAW LED
30,750 Total Fixture Lumen Output (Sphere)
46° Beam Angle
Simple 'Array Mode' Addressing System
Individual Pan Adjustment with Lock
Dim-to-Warm/ Red Shift Emulation
High Output Blinder Mode or Constant Output Mode Options
Unique Horizonal and Vertical Array Rigging Method (Compatible with SŌL IV, SŌL I Blinder Frame, Pulse Panel, SIX+ BAR and PULSE BAR Interconnect)
IP65 Rated

SOURCE

2 X 350W RGBLAW LED
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

Total Lumen Output
30.750 (Integrating Sphere)
CRI TBA

Compound Lens

Beam Angle: 46°
Field Angle: 85°

No Lens

Beam Angle: 52°
Field Angle: 95°

EFFECTS

Variable Strobe Rate: 1- 20Hz
Dim-to-Warm/ Red Shift Emulation
Variable 16-bit Dimming Modes and Curves
High Output Blinder Mode or Constant Output Mode Options

COLOR

RGBLAW Color Array
CMY Emulation
Variable CCT 1,800K - 8,500K
Virtual Gel Swatch Book

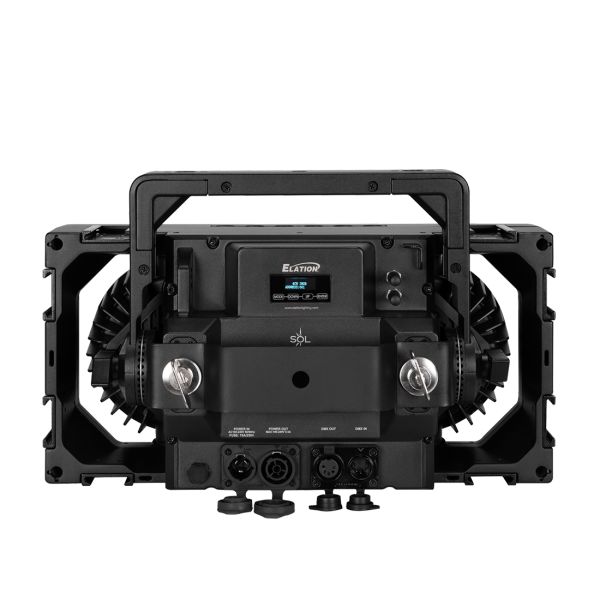

CONTROL / CONNECTIONS

18 DMX Channel Modes (1ch, 2ch, 2ch, 4ch, 3ch, 5ch, 4ch, 8ch, 6ch, 12ch, 7ch, 10ch, 22ch, 37ch, 16ch, 25ch, 16ch & 25 ch)
Simple 'Array Mode' Addressing System
Manual and DMX Controlled Dimmer and Color
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)
5pin DMX and IP65 Locking Power Cable In/Out

SIZE / WEIGHT

Length: 236 mm (9.3”)
Width: 420 mm (16.5”)
Horizontal Height: 261 mm (10.3”)
Weight (Fixture Only): 11.2 kg (24.7 lbs)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
650W Max Power Consumption
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 2216.5

INCLUDED ITEMS

Removable Fixture Yoke / Omega Bracket
2x Fixture Interconnect Splices
IP65 Locking Power Cable

OPTIONAL ITEMS

1236300112 SOL/Pulse HD Yoke
1236300095 SŌL Fresnel Lens (SOL FL)
1236300106 SŌL Frosted Lens (SOL FRO)
1236300094 SŌL Bowens Adapter (SOL BA)
1236300113 SŌL Dome Lens
1236300114 SŌL Blackout Lens (SOLBL)
1236300100 SŌL Gel Frame Holder Kit (SOL GFHK)
1236300099 SŌL Barndoor (SOL BD)
1236300110 Fixture Interconnect Splice Package
1236300115 Interconnect Clamp Adapter (FICA01)
1744000021 L Track A1
1744000022 L Track A2
1744000023 L Track CA1
1744000025 L Track CA2
9900026732 IP Omega Bracket (1 needed)
