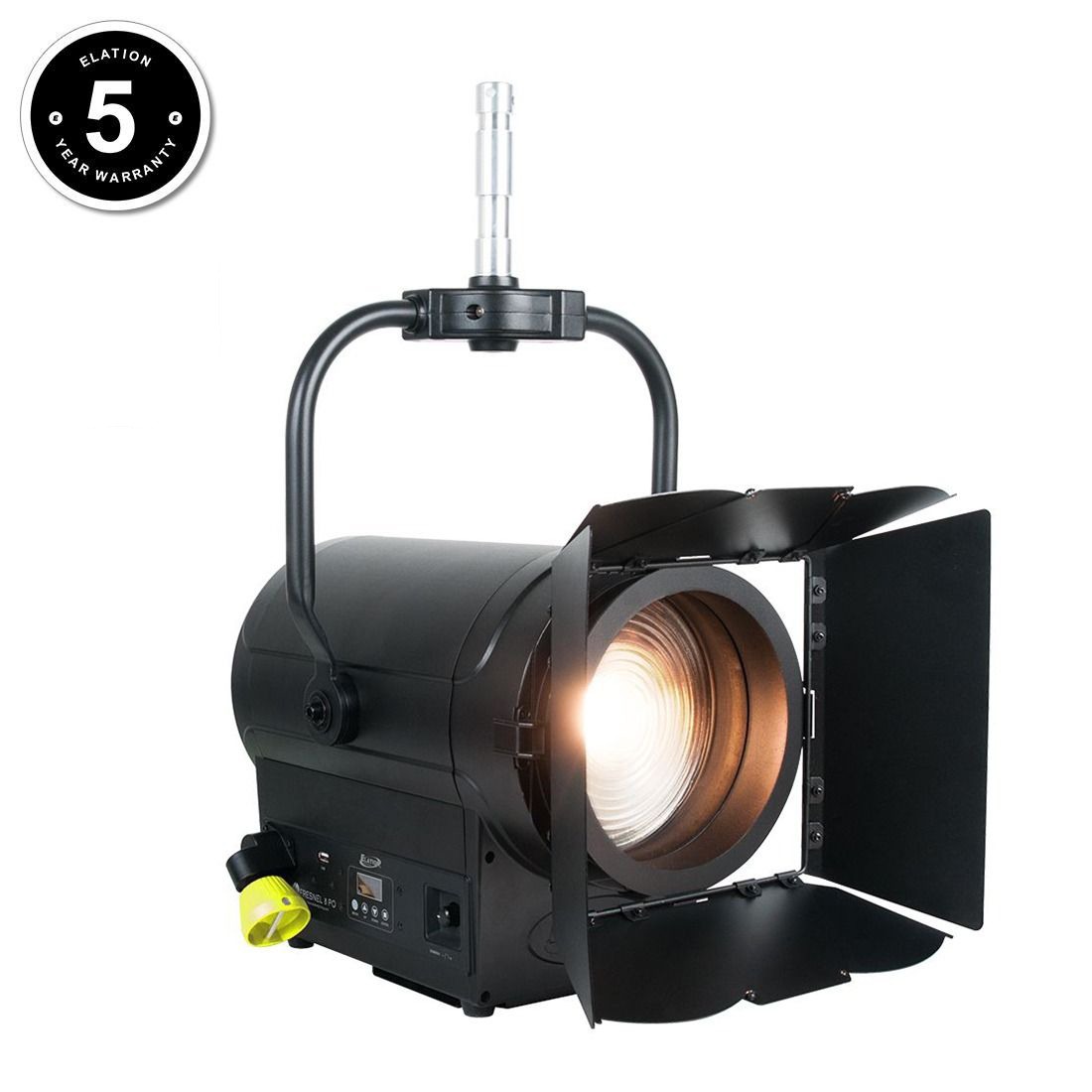

KL Fresnel 8 PO

KL FRESNEL 8PO™ is a 350W 3,000K >96CRI Warm White LED fresnel, producing over 14,000 total lumen output, on par with compatible tungsten halogen models. Features include manual and DMX control, 11° to 57° wide motorized zoom, manual and DMX controlled dimmer, shutter, and zoom, dimmer and zoom rotary dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and FILM, removable barn doors (included), RDM (remote device management) protocol support, 3/5pin DMX and IP65 Locking Power Cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating bar doors (included).

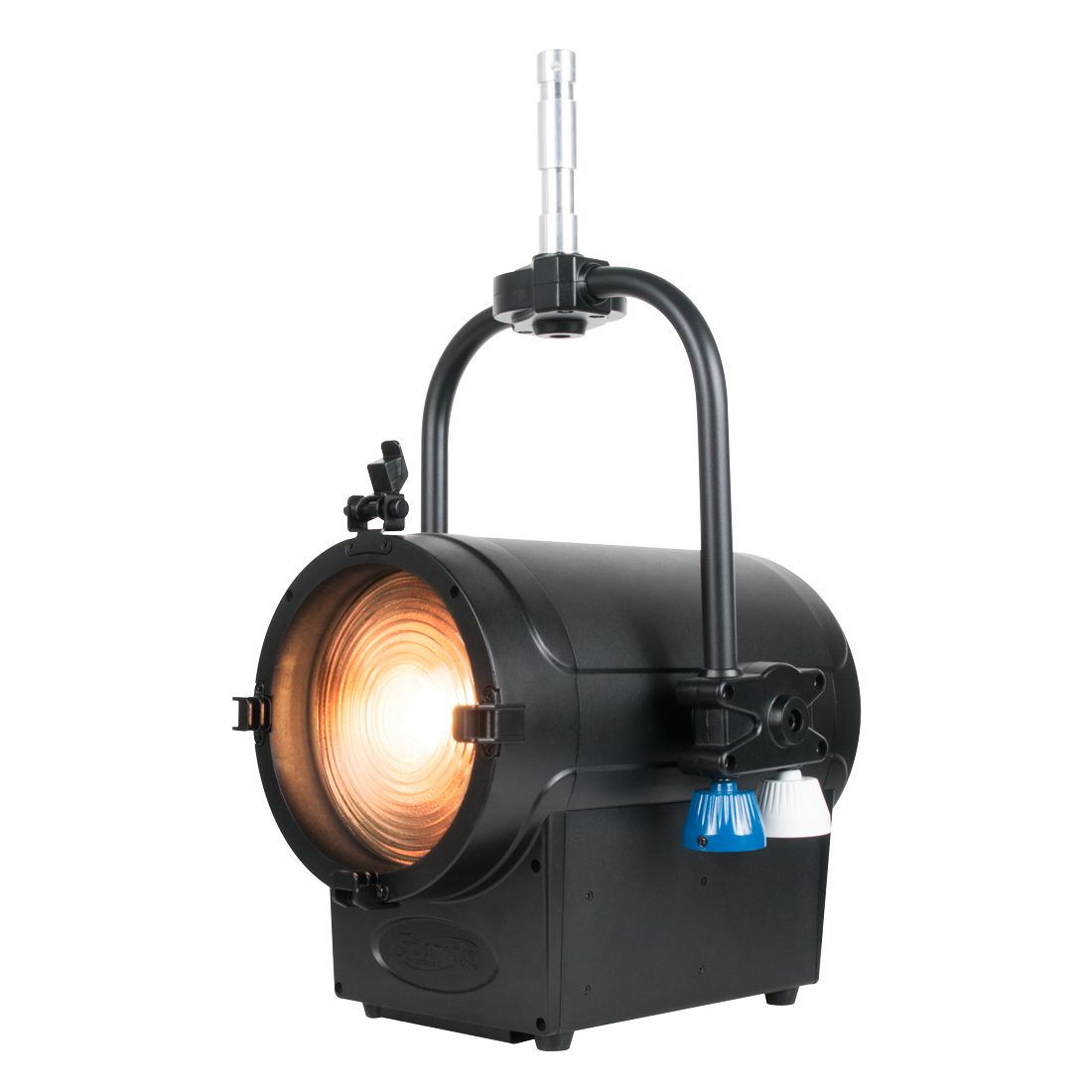

The PO Series are pole operable units for broadcast studio and theater applications. Pole operation allows for easy pan, tilt and zoom maneuverability while avoiding having to access the fixture by climbing on a ladder.

Note - A Cool White (Daylight) version and a Manual Yoke Version are available, amongst other versions of the KL Fresnel - Please click here for more info

Technical Data

FEATURES

3,000K Warm White LED Fresnel Luminaire
350W Single Source LED
Pole Operation for Pan and Tilt plus Zoom
Manual and DMX Controlled Dimming
Quick Single Press Light Output for Focusing
11° - 57° Manual Zoom

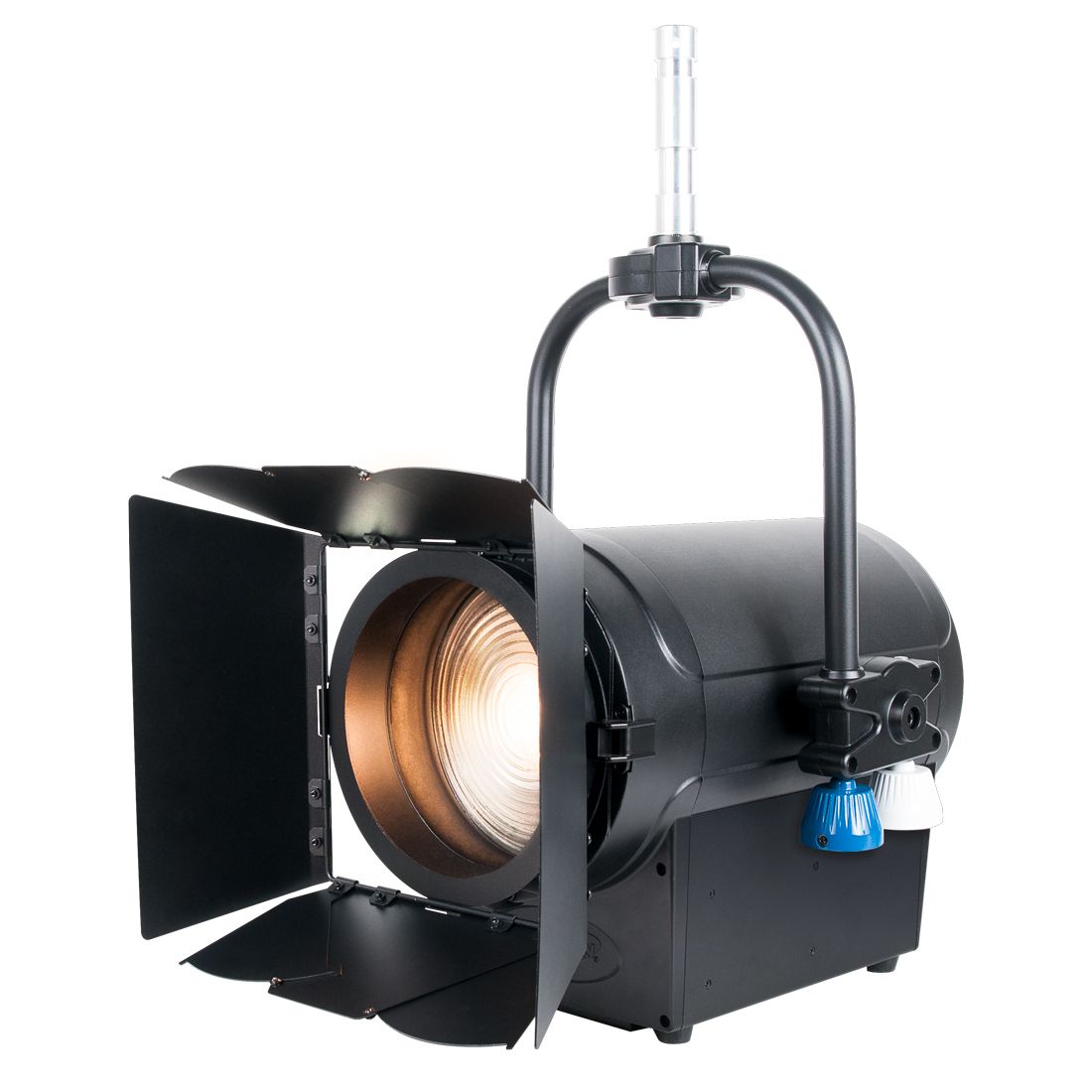

Including 8-Leaf Barn Doors and Gel Frame Holder
Adjustable Refresh Frequency
Silent Operation
Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film

SOURCE

350W Warm or Cool White LED Engine
14,000 Total Output Lumens, 3,000K, 96CRI
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

19,410 LUX 1,803 FC @ 9.8’ (3m) (Min. Zoom)
1,853 LUX 172 FC @ 9.8’ (3m) (Max. Zoom)

EFFECTS

High Speed Electronic Shutter and Strobe
Variable Dimming Curves, Dim Modes and Dimming Delays

COLOR

3,000K Warm White LED

CONTROL / CONNECTIONS

5 DMX Channels Modes (1 / 2 / 3 / 4 / 5)
DMX Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 – 25,000Hz)
8 / 16 Bit Dimming Control
4 Button and 1 Dial Control Panel
Manual and DMX Controlled Dimming
180° Reversible LCD Menu Display
USB Firmware Service Port

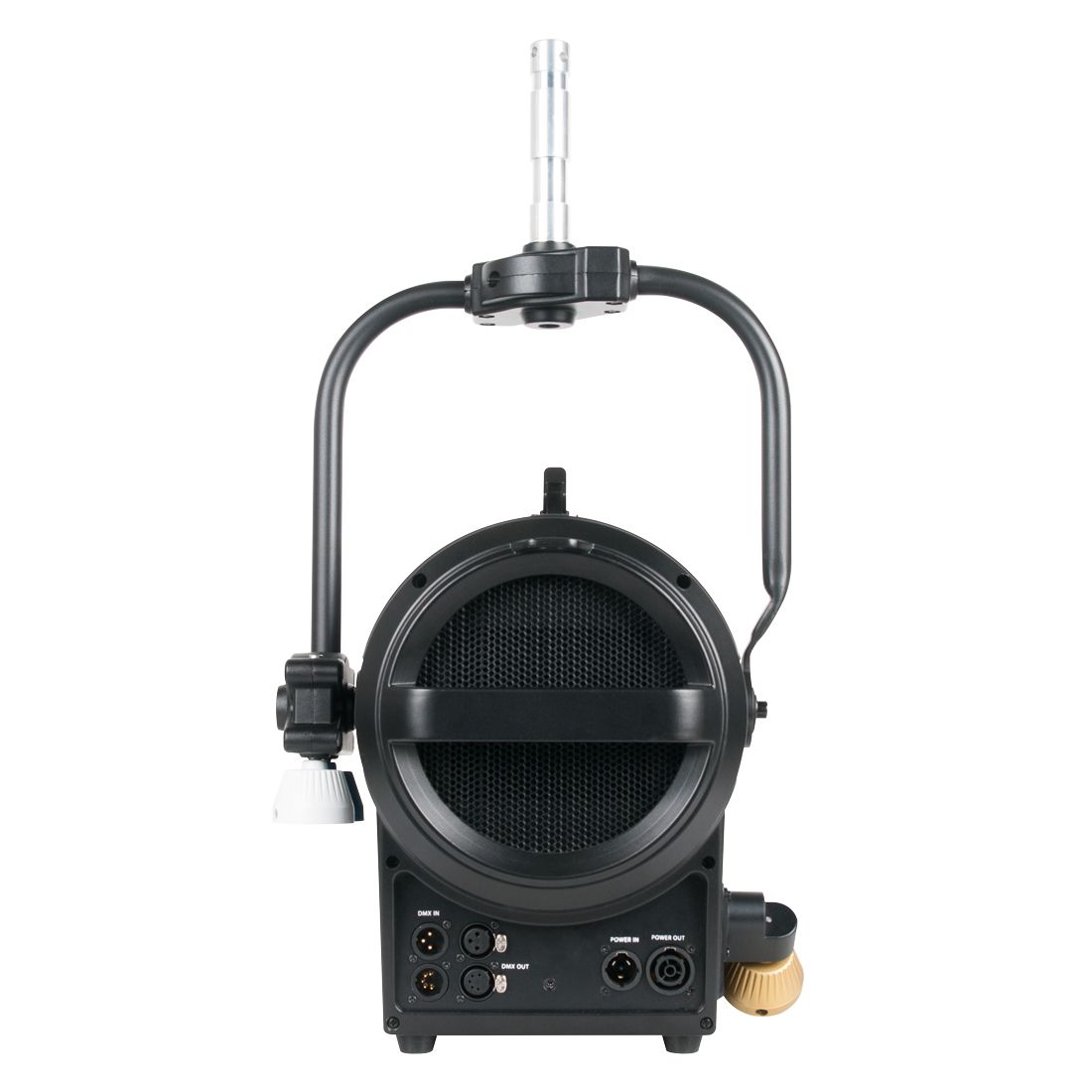

Locking 3/5pin XLR DMX In/Out and Power In/Out

SIZE / WEIGHT

Length: 17.5” (445mm)
Width: 12.9” (328mm)
Vertical Height: 18.0” (456mm)
Weight: 28.0 lbs. (12.7 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
360W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
Power Linking: 3Pcs @ 110V / 6Pcs @ 240V

INCLUDED ITEMS

Gel Frame and Rotating Barn Doors

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice

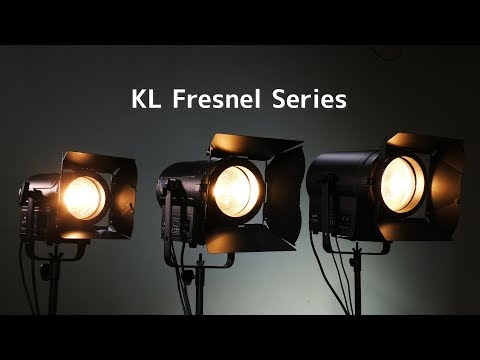

Videos
