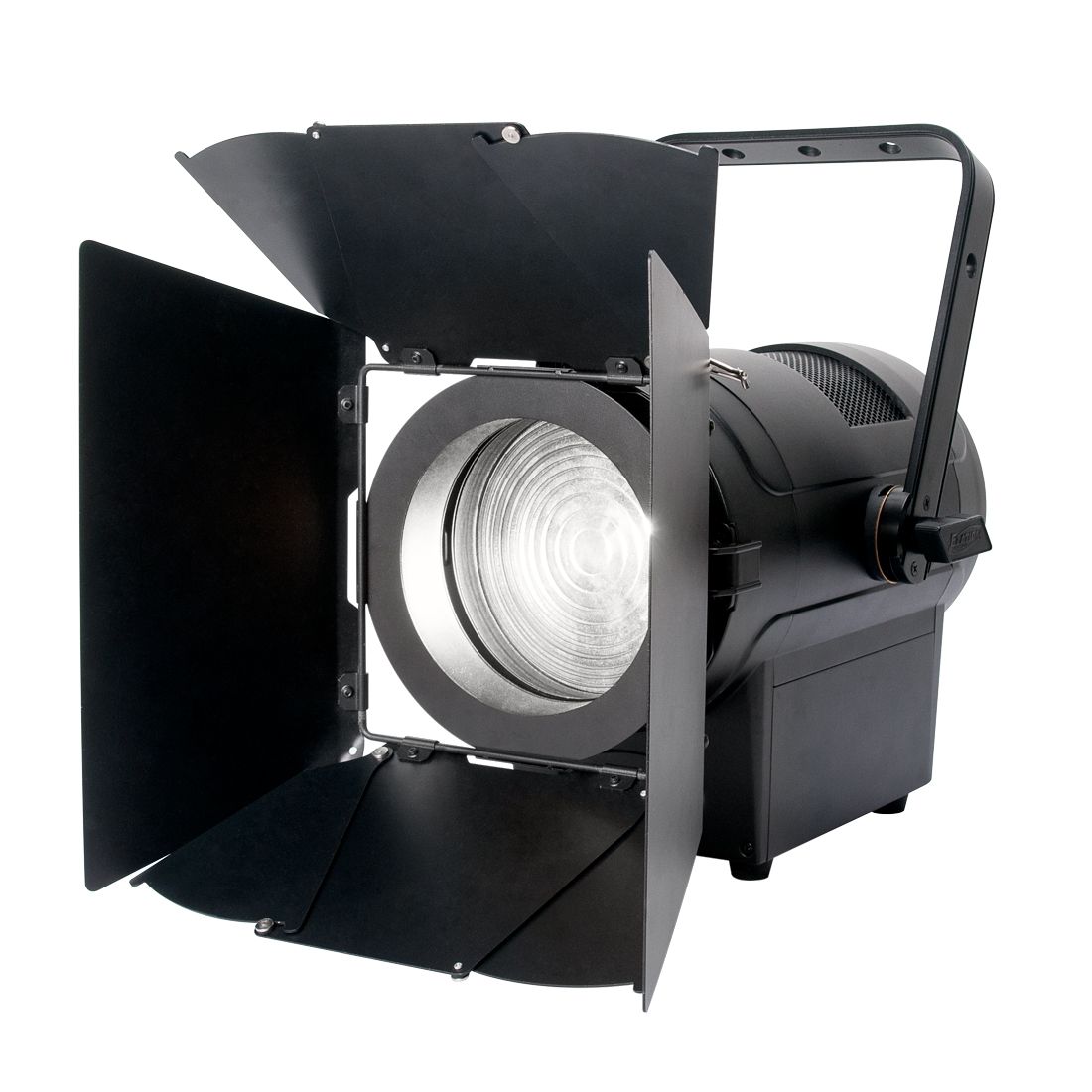

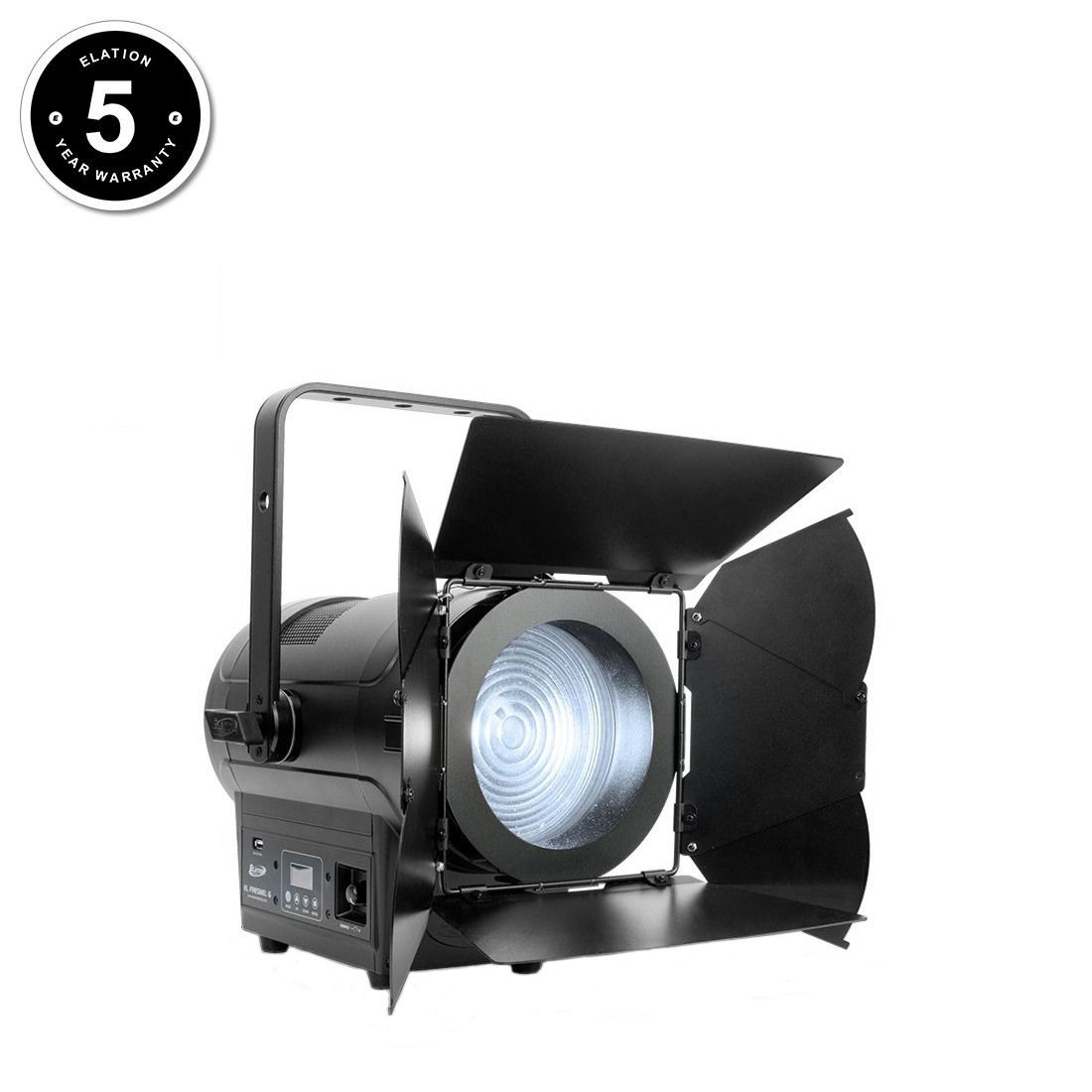

KL Fresnel 6 CW

KL FRESNEL 6CW™ is a 150W 5,600K >97CRI Cool White LED fresnel, producing over 8,500 total lumen output. Features include manual and DMX control, 16° to 39° wide manual zoom, manual and DMX controlled dimmer and shutter, dimmer and zoom rotary dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and FILM, removable barn doors (included), RDM (remote device management) protocol support, 3/5pin DMX and IP65 Locking Power Cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating bar doors (included), and a 3 clamp position adjustable mounting yoke.

Note - A Warm White (Tungsten) version and a Pole Operation version of this model are available, amongst other versions of the KL Fresnel series - Please click here for more info

Technical Data

FEATURES

5,600K Cool White LED Fresnel Luminaire
150W Single Source LED
Manual and DMX Controlled Dimming
Quick Single Press Light Output for Focusing
16° - 39° Manual Zoom

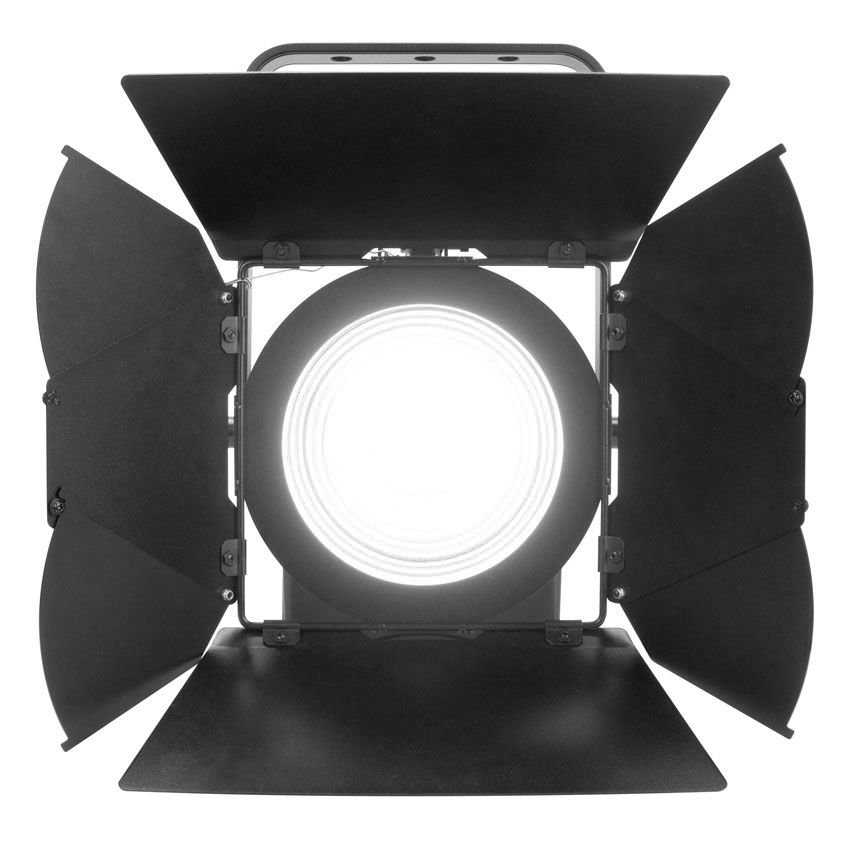

Including 8-Leaf Barn Doors and Gel Frame Holder
Adjustable Refresh Frequency
Silent Operation
Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film

SOURCE

150W Cool White LED Engine
8,500 Total Output Lumens, 5,600K, 97CRI
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

8,500+ Total Lumen Output
9,269 LUX 861 FC @ 9.8’ (3m) (Min. Zoom)
2,334 LUX 217 FC @ 9.8’ (3m) (Max. Zoom)

Zoom Range 16° - 39°
Beam Angle 16.1° - 38°
Field Angle 39.1° - 53.9°

EFFECTS

Manual Zoom

High Speed Electronic Shutter and Strobe
Variable Dimming Curves, Dim Modes and Dimming Delays

COLOR

5,600K Cool White LED

CONTROL / CONNECTIONS

Manual and DMX Controlled Dimmer and Shutter
Dimmer and Zoom Rotary Dials
(5) DMX Channel Modes (1 / 2 / 3 / 4 / 5)

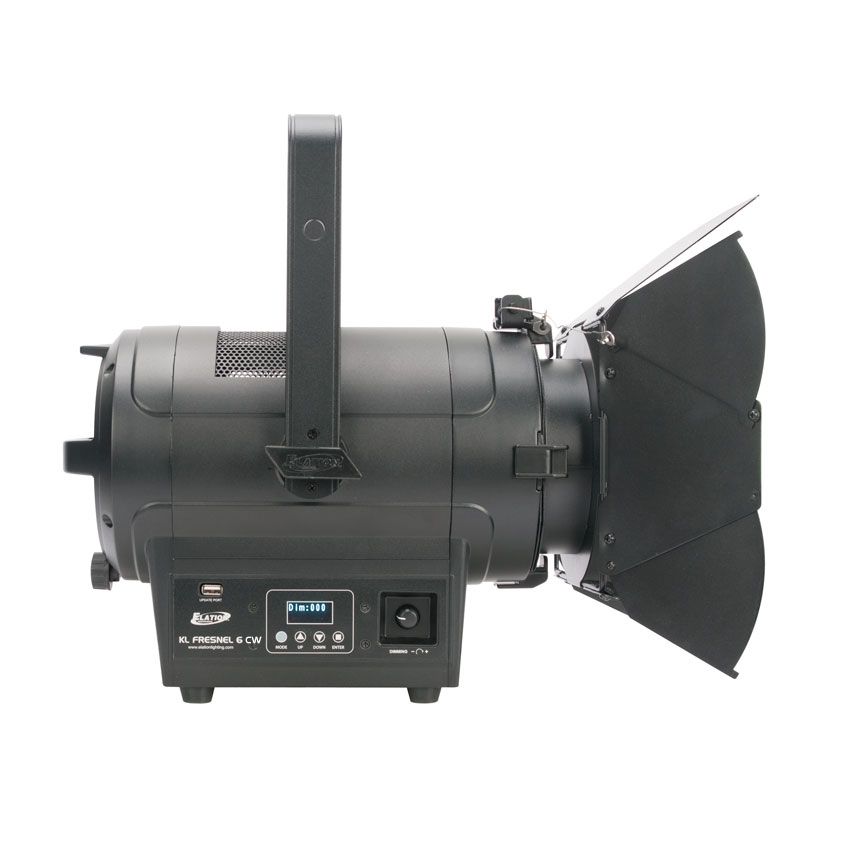

4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)

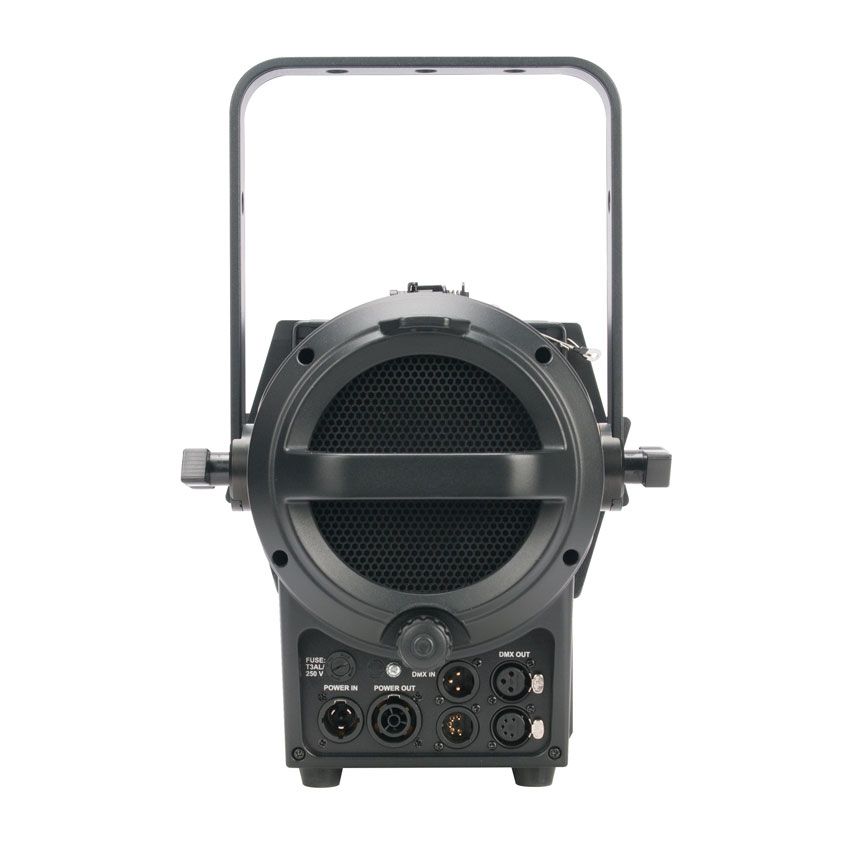

3/5pin DMX and IP65 Locking Power Cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 13.5” (344mm)
Width: 10.8” (273mm)
Vertical Height: 15.5” (393mm)
Weight: 18.5 lbs. (8.4 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
170W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
Power Linking: 6Pcs @ 110V / 14Pcs @ 240V

INCLUDED ITEMS

Gel Frame and Rotating Barn Doors

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
