KL Fresnel 8

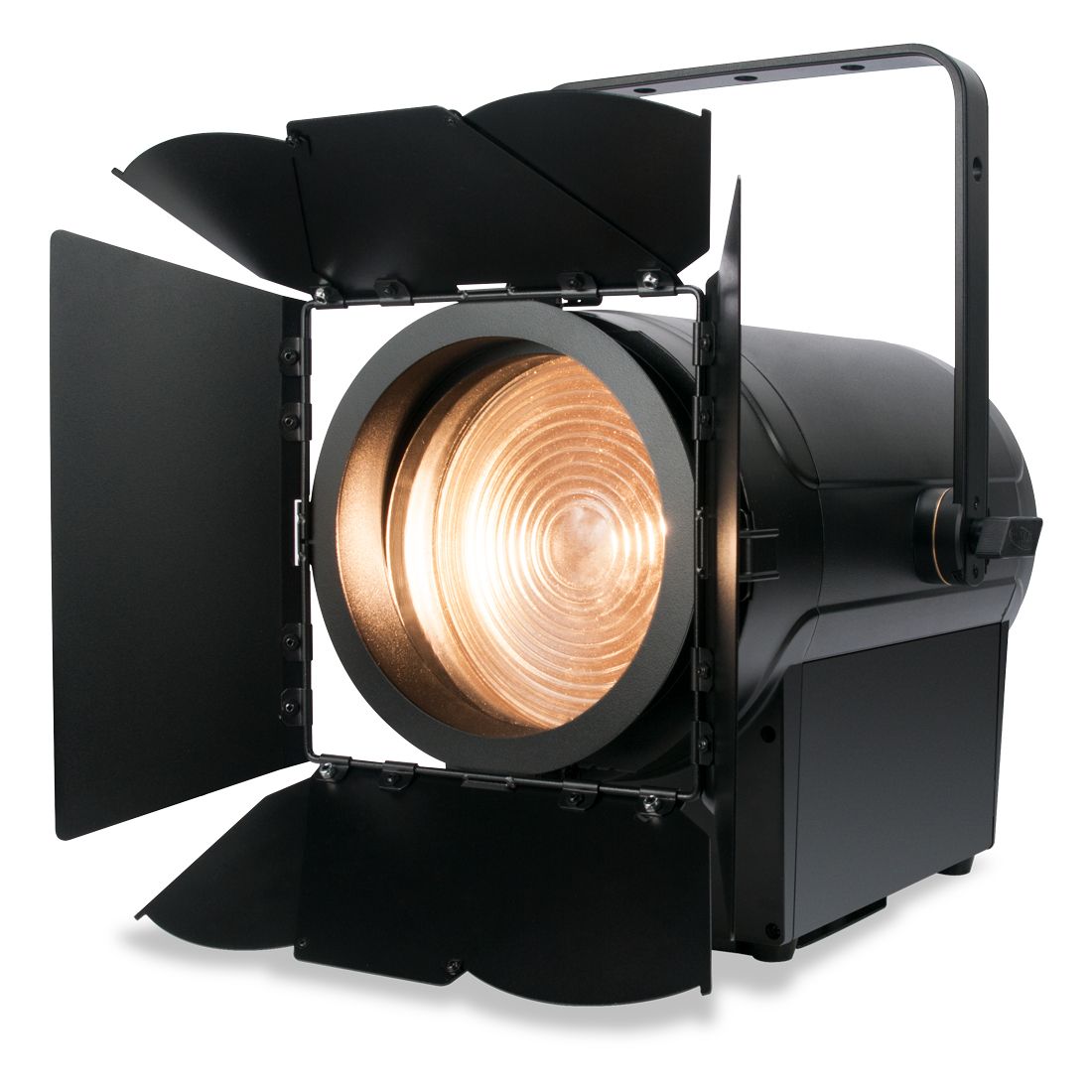

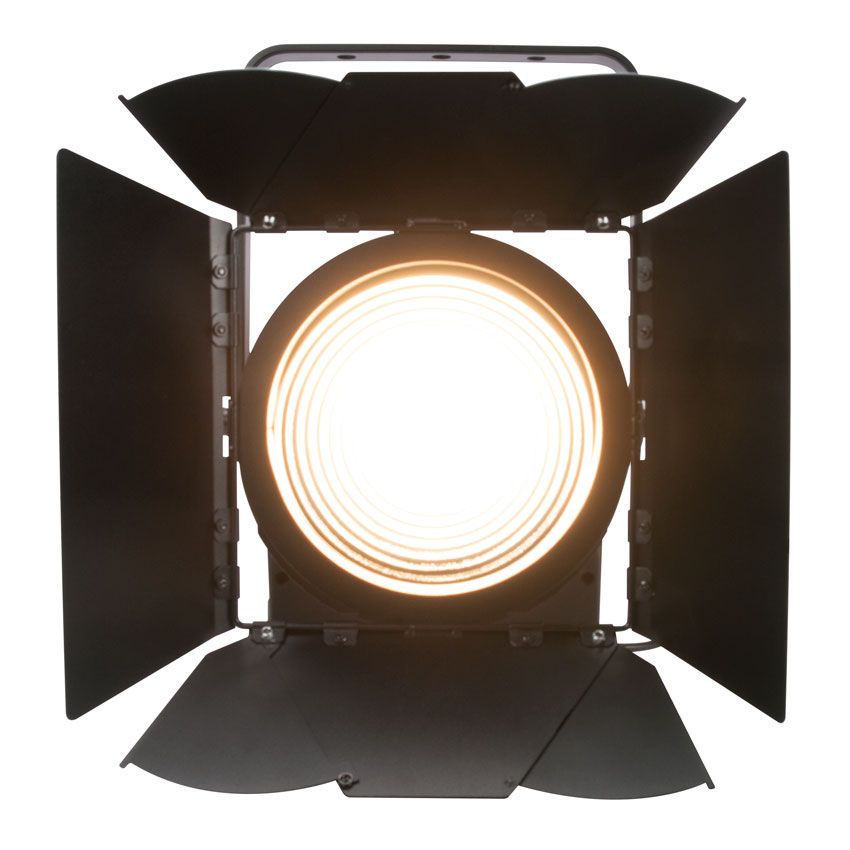

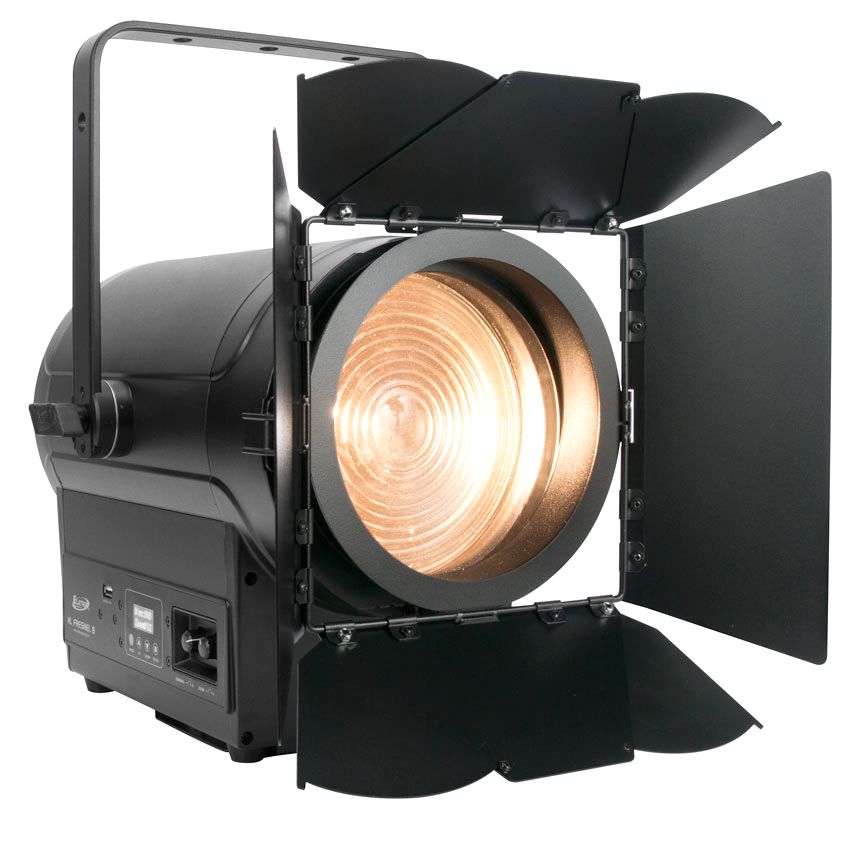

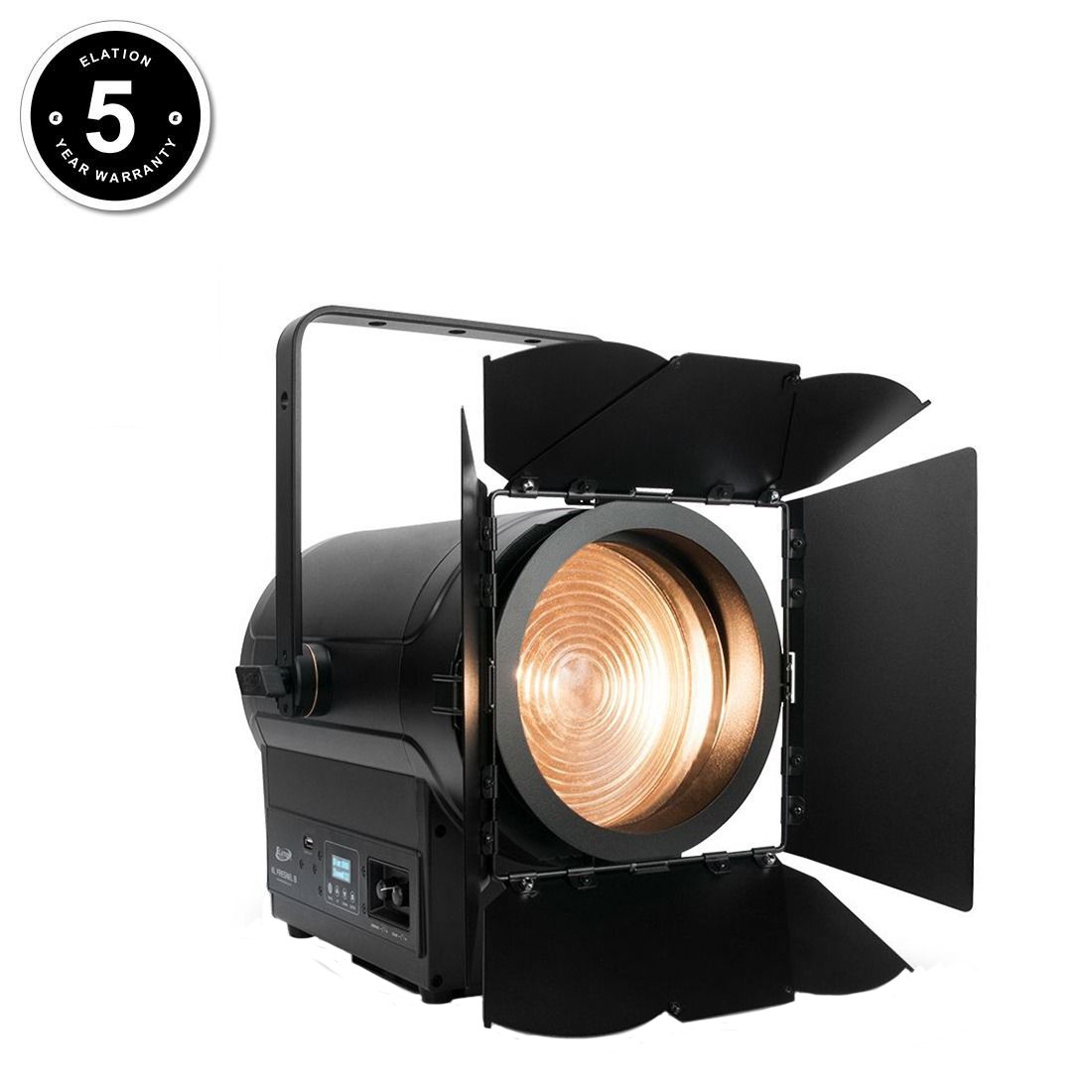

KL FRESNEL 8™ is a 350W 3,000K >96CRI Warm White LED fresnel, producing over 14,000 total lumen output, on par with compatible tungsten halogen models. Features include manual and DMX control, 11° to 57° wide motorized zoom, manual and DMX controlled dimmer, shutter, and zoom, dimmer and zoom rotary dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and FILM, removable barn doors (included), RDM (remote device management) protocol support, 3/5pin DMX and IP65 Locking Power Cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating bar doors (included), and a 3 clamp position adjustable mounting yoke.

Note - A Cool White (Daylight) version and a Pole Operation version are available, amongst other versions of the KL Fresnel series - Please click here for more info

Technical Data

FEATURES

350W 3,000K >96CRI Warm White LED Engine
14,000+ Total Lumen Output
Output On Par with Tungsten Halogen Models
11° to 57° Wide Motorized Zoom
Manual and DMX Controlled Dimmer, Shutter, and Zoom
Dimmer and Zoom Rotary Dials
Smooth 16-bit Selectable Dimming Modes and Curves
LED Refresh Rate Adjustment
Flicker Free Operation for TV and FILM
RDM (Remote Device Management)
Gel Frame and Rotating Barn Doors (included)
3 Clamp Position Adjustable Mounting Yoke

SOURCE

350W >96CRI 3,000K Warm White LED
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

14,000+ Total Lumen Output
43,673 LUX 4,057 FC @2m (6.6’) (Min Zoom / Full ON)
4,169 LUX 387 FC @2m (6.6’) (Max Zoom / Full ON)

Zoom Range 11° - 57°
Beam Angle 10.8° - 56.8°
Field Angle 16.6° - 75.5°

EFFECTS

Motorized Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR

Warm White 3,000K

CONTROL / CONNECTIONS

Manual and DMX Controlled Dimmer, Shutter and Zoom
Dimmer and Zoom Rotary Dials
(5) DMX Channel Modes (2 / 3 / 3 / 6 / 7)

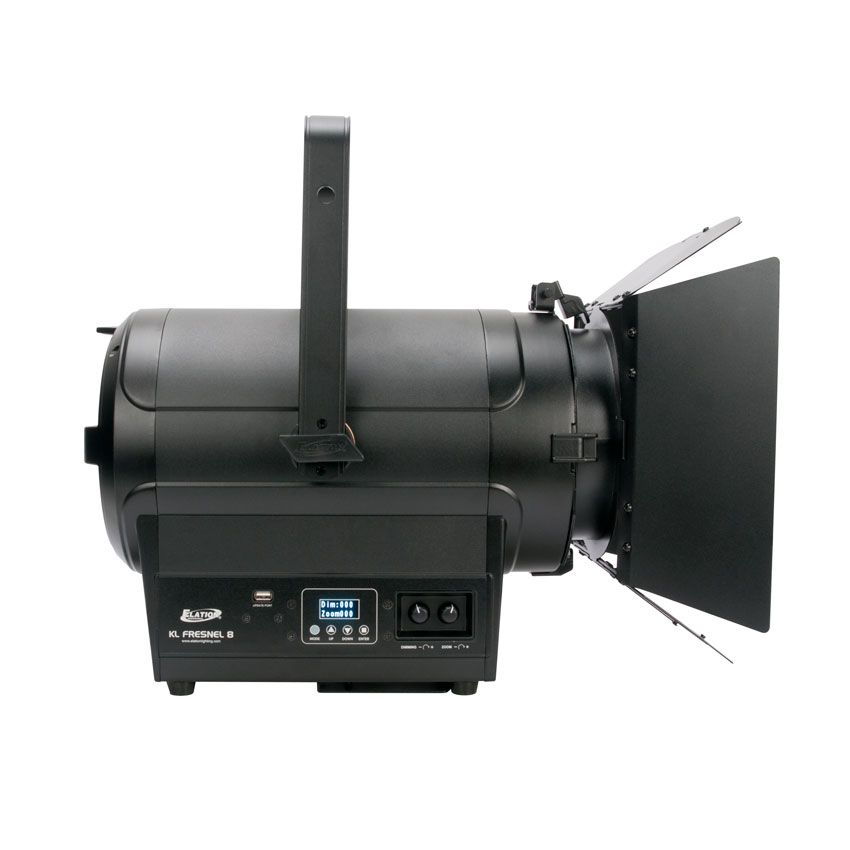

4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)

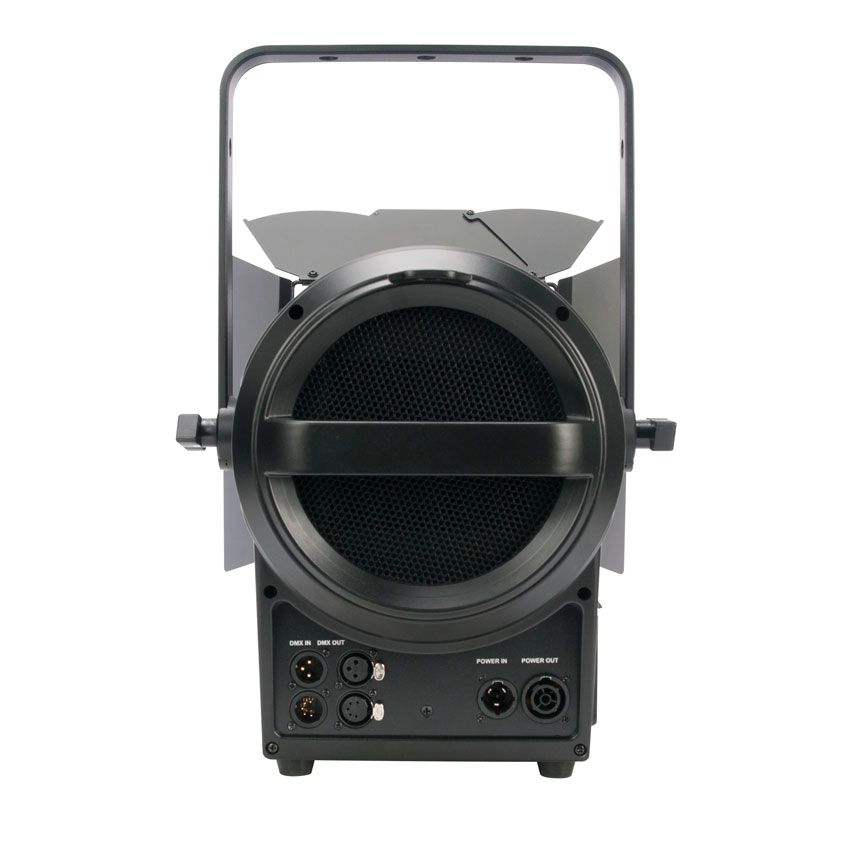

3/5pin DMX and IP65 locking power cable In/Out Connection
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 608.4mm (23.95”)
Width: 327.5mm (12.89”)
Vertical Height: 456mm (17.95”)
Weight: 12.7kg (28.0 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
430W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
Power Linking: 3Pcs @ 110V / 6Pcs @ 240V

INCLUDED ITEMS

Gel Frame and Rotating Barn Doors

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
