KL Fresnel 8 CW

KL FRESNEL 8™ is a 350W 5,600K >97CRI Cool White LED fresnel, producing over 14,000 total lumen output. Features include manual and DMX control, 11° to 56° wide motorized zoom, manual and DMX controlled dimmer, shutter, and zoom, dimmer and zoom rotary dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and FILM, removable barn doors (included), RDM (remote device management) protocol support, 3/5pin DMX and IP65 Locking Power Cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating bar doors (included).

Note - A Warm White (Tungsten) version and a Pole Operation version of this model are available, amongst other versions of the KL Fresnel series - Please click here for more info

Technical Data


5,600K Cool White LED Fresnel Luminaire
350W Single Source LED
Manual and DMX Controlled Dimming
Quick Single Press Light Output for Focusing
11° - 56° Wide Motorized Zoom
Including 8-Leaf Barn Doors and Gel Frame Holder
Adjustable Refresh Frequency
Silent Operation
Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film


350W Cool White LED Engine
14,000 Total Output Lumens, 5,600K, 97CRI
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


Up to 14,000 Total Lumen Output
16,762 LUX 1,557 FC @ 3m (9.8’) (Min. Zoom)
1462 LUX 136 FC @ 3m (9.8’) (Max. Zoom)

Zoom Range 11° - 56°
Beam Angle 11° - 56.2°
Field Angle 17.9° - 77°


High Speed Electronic Shutter and Strobe
Variable Dimming Curves, Dim Modes and Dimming Delays


5,600K Cool White LED


5 DMX Channels Modes (2 / 3 / 4 / 6 / 7)
DMX Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900–25,000Hz)
8 / 16 Bit Dimming Control

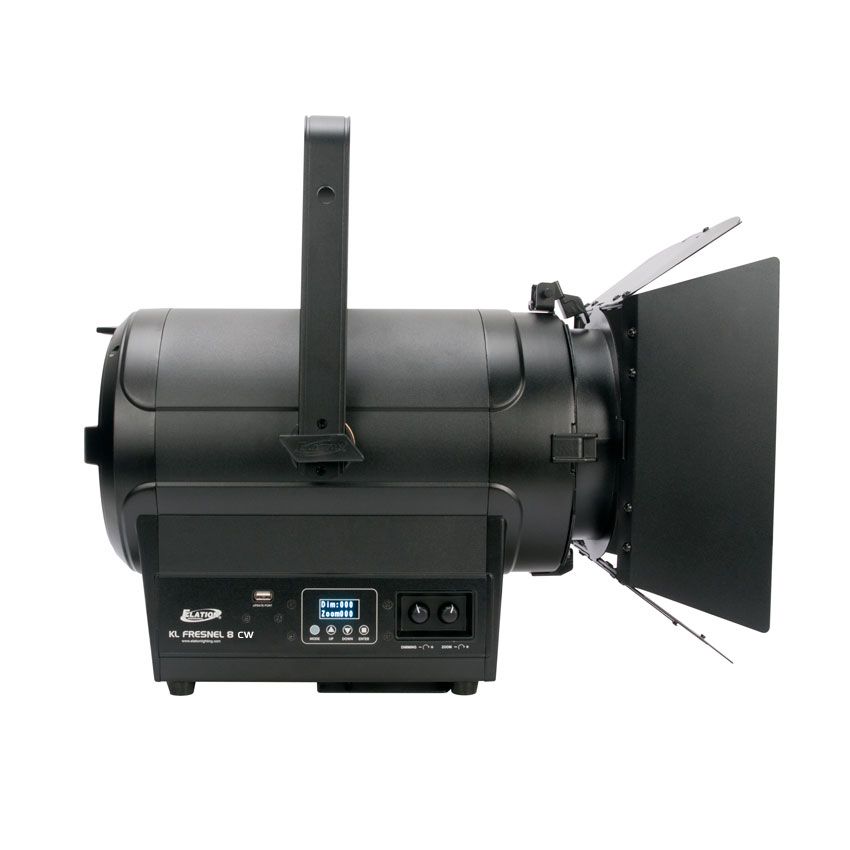

4 Button and 2 Dial Control Panel
Manual and DMX Controlled Dimming
180° Reversible LCD Menu Display
USB Firmware Service Port

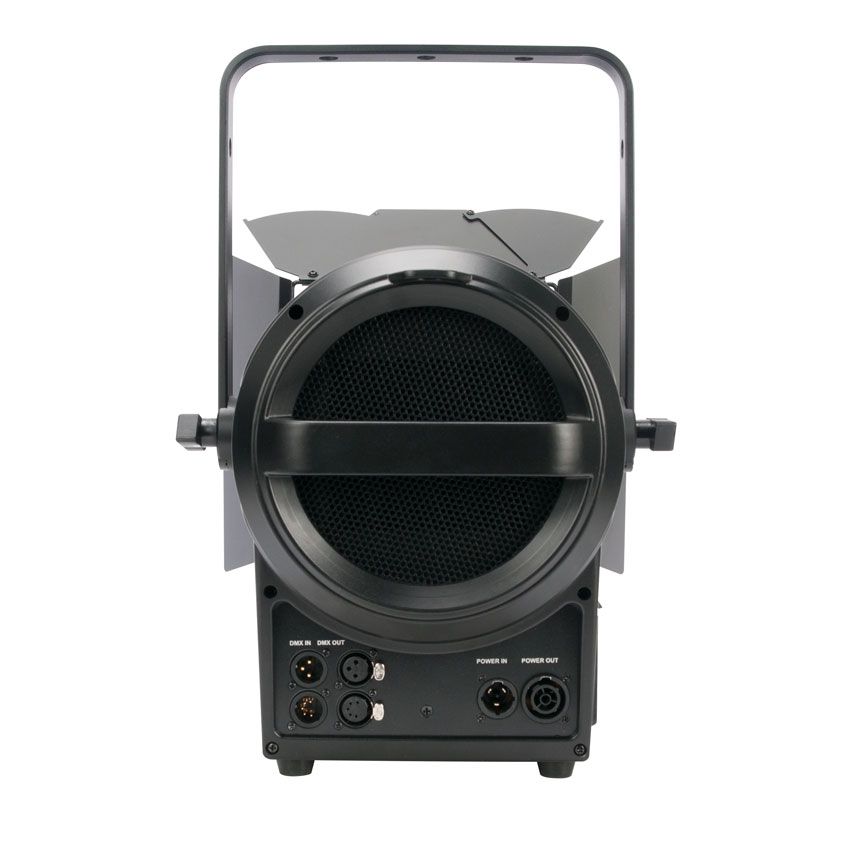

Locking 3/5pin XLR DMX In/Out and Power In/Out Connection


Length: 445mm (17.5”)
Width: 328mm (12.9”)
Vertical Height: 456mm (18.0”)
Weight: 12.7 kg (28.0 lbs.)


AC 100-240V - 50/60Hz
360W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
Power Linking: 3Pcs @ 110V / 6Pcs @ 240V


Gel Frame and Rotating Barn Doors


Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
