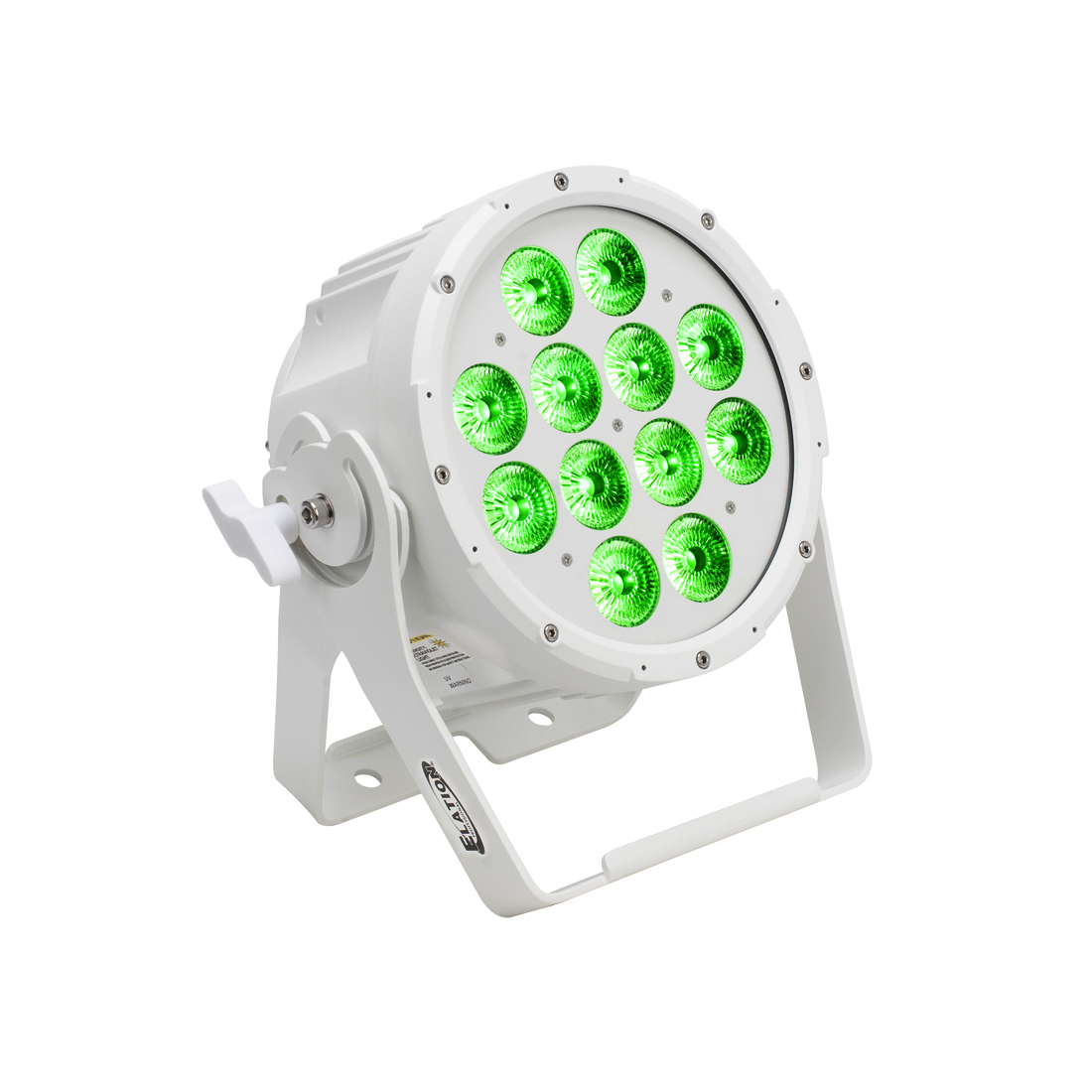

SixPar 200WMG HW

The IP65 outdoor rated SIXPAR 200WMG HW includes the same features as the standard SIXPAR 200IP model but a special added White Marine Grade exterior coating and Hard Wired (bare wire) IP-rated power/data combo in/out cables attached, designed for permanent marine/coastal environment installations.

Featuring (12) 12W 6-in-1 RGBAW+UV LEDs producing a 23° beam angle, internal color and color chase macros, electronic strobe and variable dimming curve modes, manual and DMX-512 control, RDM (remote device management) support, dual yoke / floor stand, rugged die-cast aluminum white marine grade coated exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-250v).

Technical Data


IP65 Outdoor Rated Par Luminaire
Special White Marine Grade Exterior Coating

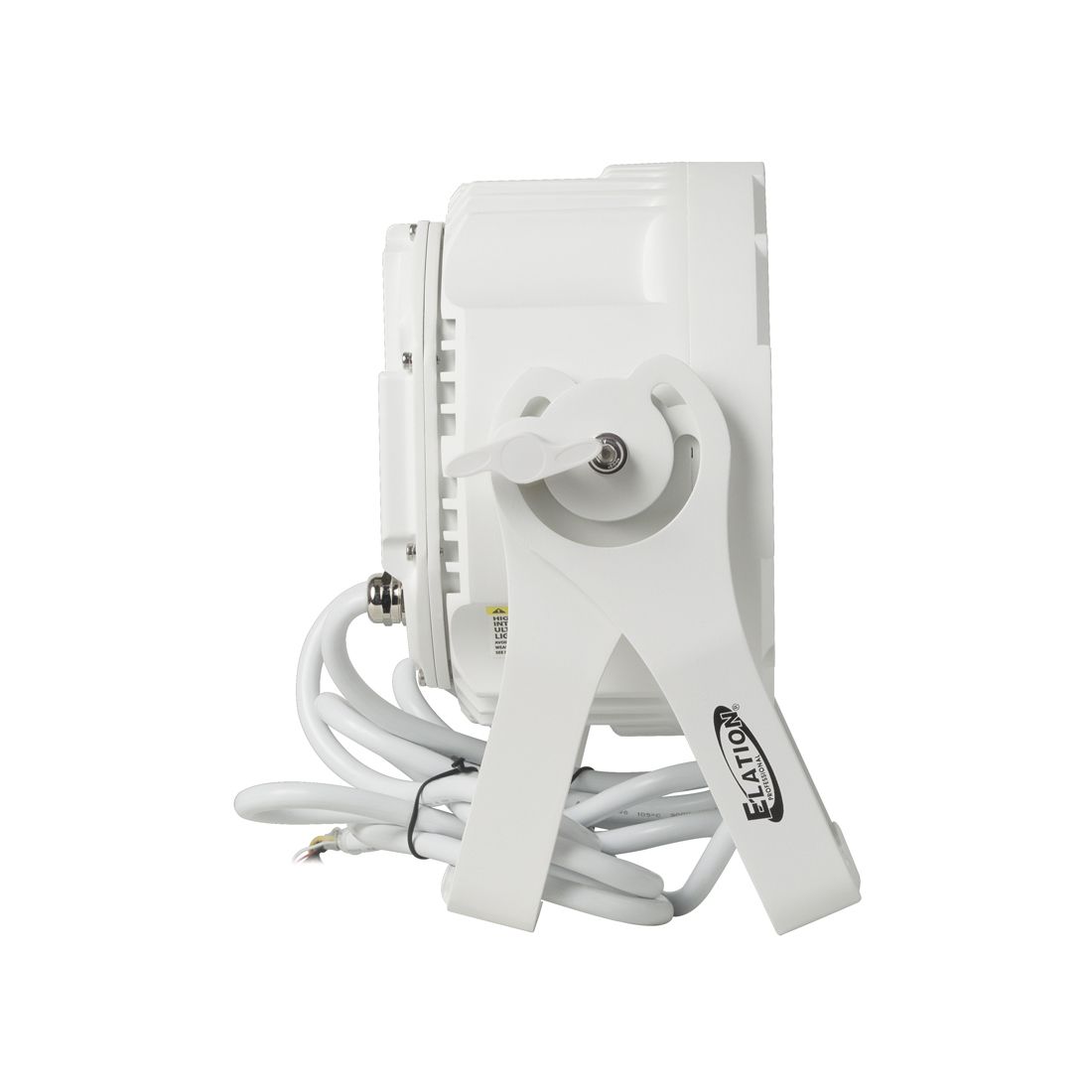

Rugged Die-Cast Aluminum Exterior with Dual Yoke / Floor Stand
(12) 12W 6-in-1 RGBAW+UV LEDs
23° Beam Angle
395nm UV Wavelength
Electronic Strobe and Variable Dimming Curve Modes
Manual and DMX-512 Control
RDM (Remote Device Management) Support
Hard Wired (Bare Wire) IP Rated Power/Data Combo In/Out Cables Attached



(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


coming soon


Electronic Strobe
Variable Dimming Curves Modes
Internal Color and Color Chase Macros


Manual and DMX-512 Control
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch LCD Menu Display

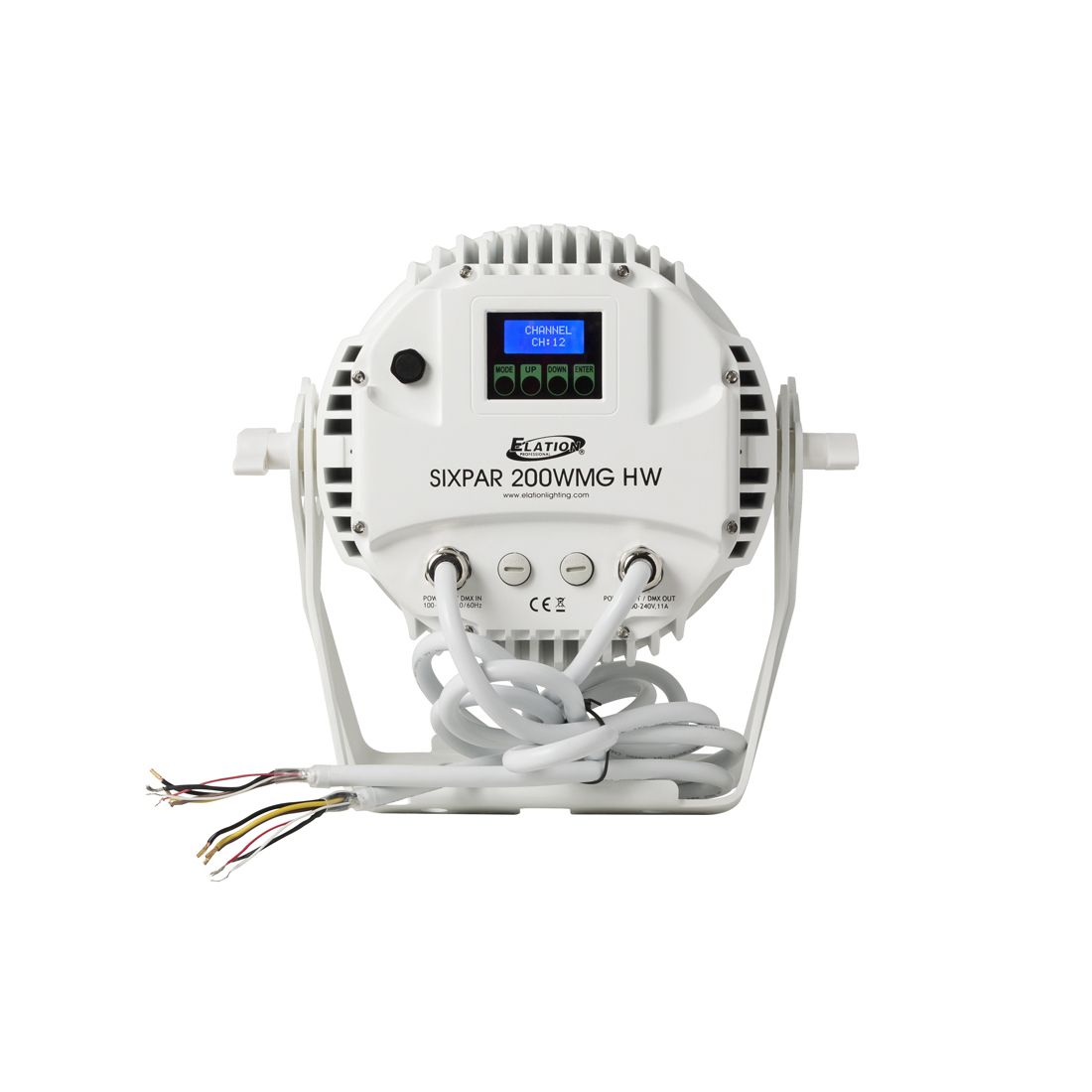

Hard Wired (Bare Wire) IP Rated Power/Data Combo In/Out Cables Attached
With Wired Digital Communication Network


Length: 313mm (12.3”)
Width: 157mm (6.2”)
Vertical Height: 300mm (11.8”)
Weight: 5.7 kg (12.6 lbs.)


AC 110-250V - 50/60Hz
150W Max Power Consumption
-15°C to 45°C (5°F to 113°F)
UV Wavelength: 395nm


Current firmware can be found here (login required)

Specifications and documentation subject to change without notice
