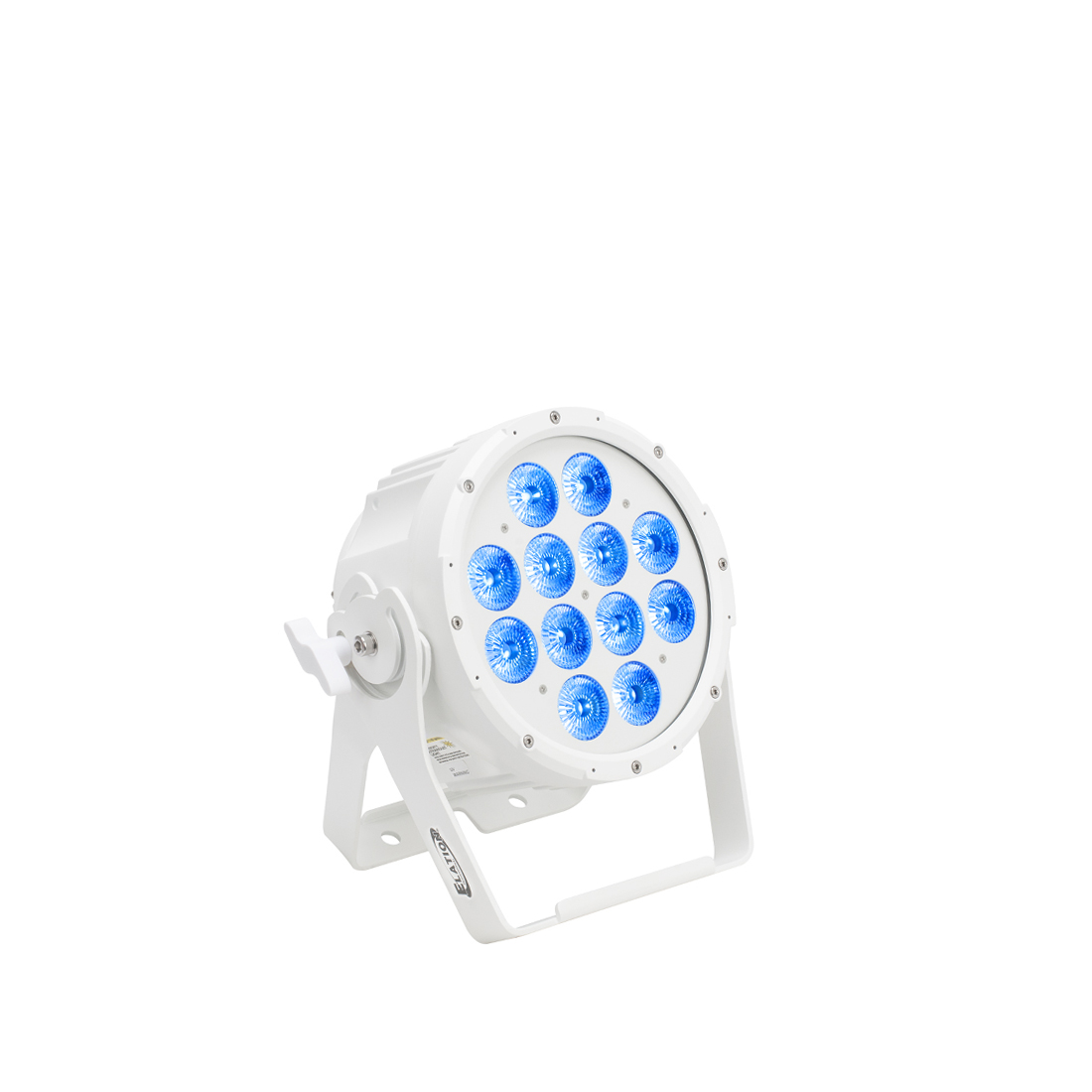

SixPar 200WMG

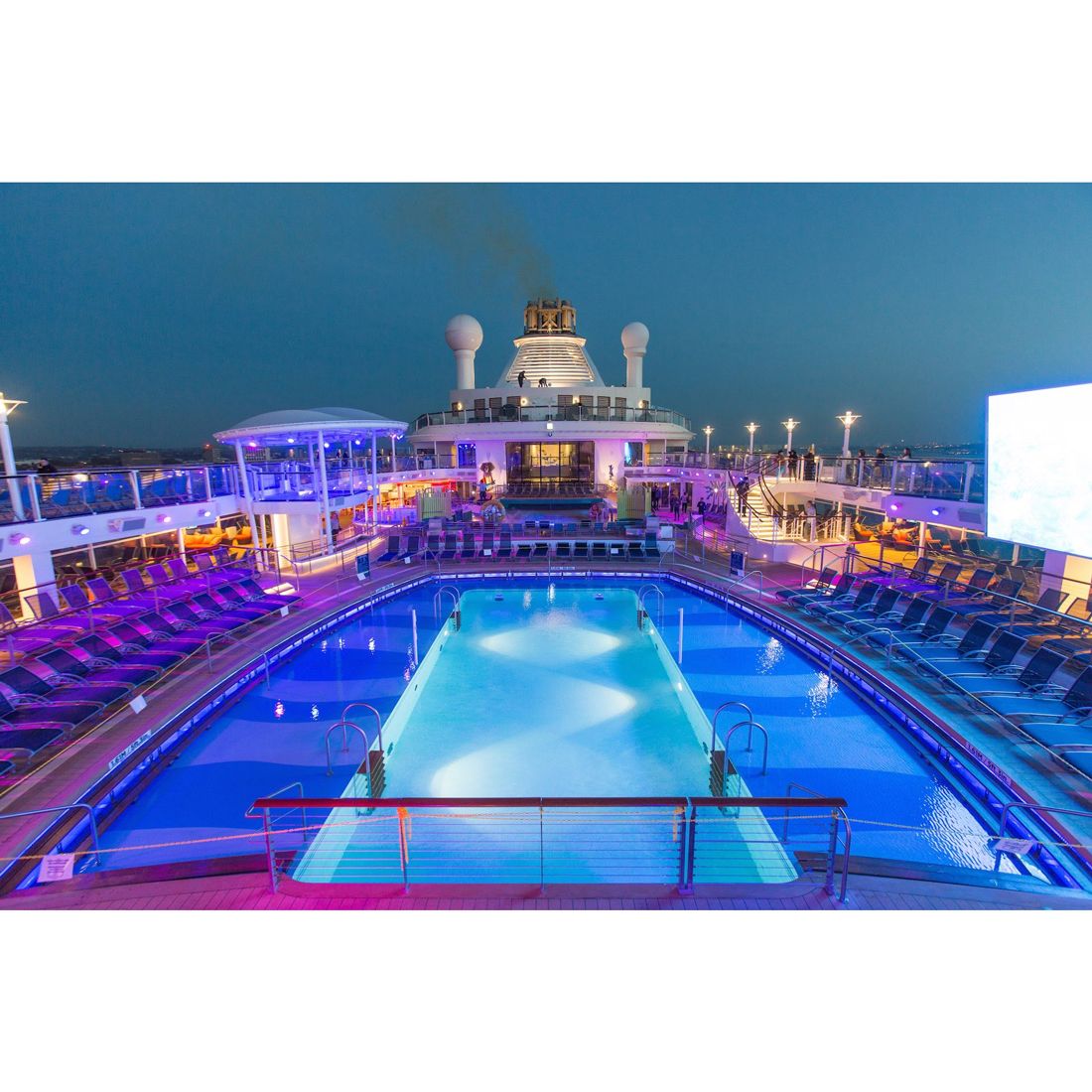

The IP65 outdoor rated SIXPAR 200WMG includes the same features as the standard SIXPAR 200IP model but with a special added White Marine Grade exterior coating designed for the marine/coastal environment installations.

Featuring (12) 12W 6-in-1 RGBAW+UV LEDs producing a 23° beam angle, internal color and color chase macros, electronic strobe and variable dimming curve modes, manual and DMX-512 control, RDM (remote device management) support, dual yoke / floor stand, multiple unit power linking, rugged die-cast aluminum white marine grade coated exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-250v).

Technical Data

FEATURES

IP65 Outdoor Rated Par Luminaire
Special White Marine Grade Exterior Coating

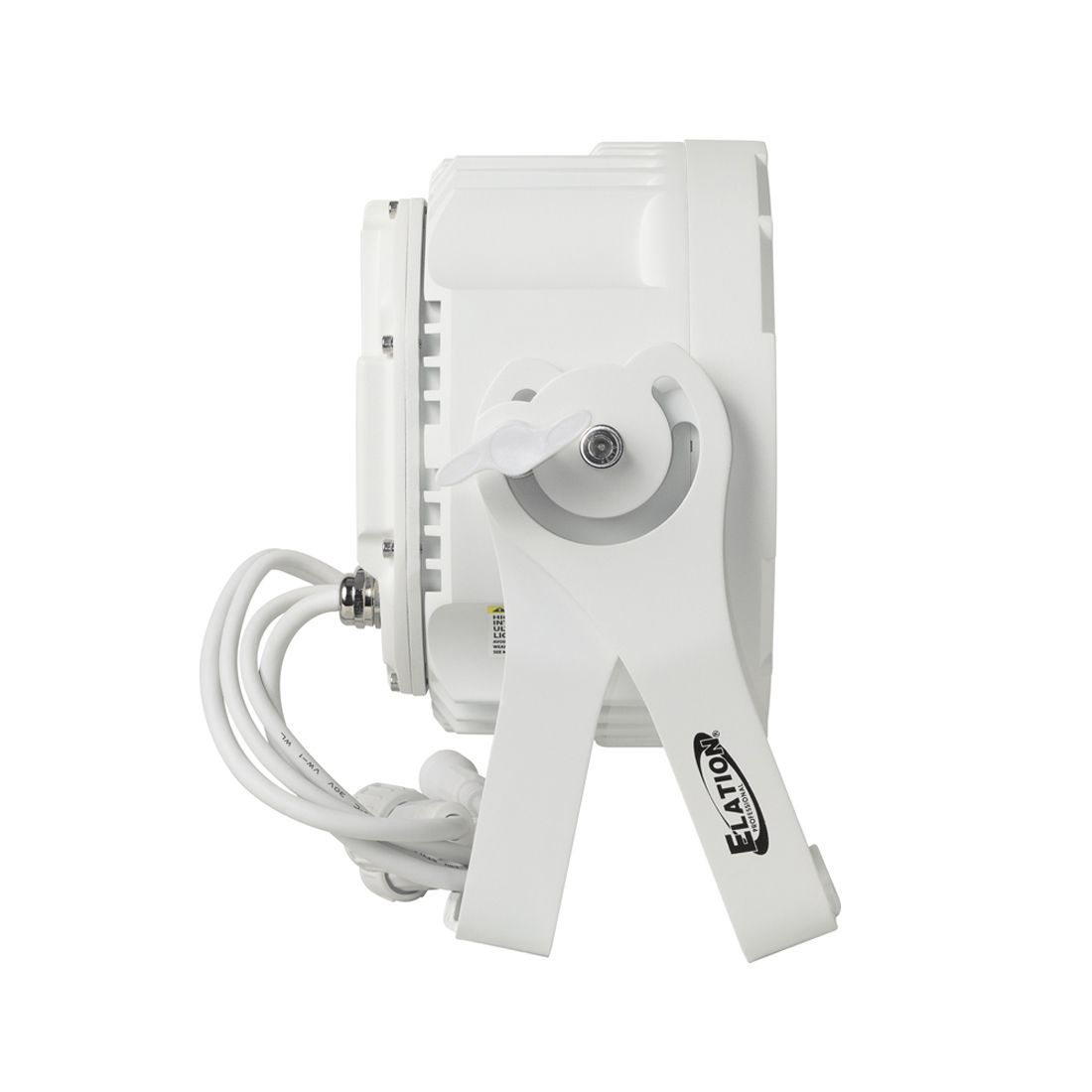

Rugged Die-Cast Aluminum Exterior with Dual Yoke / Floor Stand
(12) 12W 6-in-1 RGBAW+UV LEDs
23° Beam Angle
395nm UV Wavelength
Electronic Strobe and Variable Dimming Curve Modes
Manual and DMX-512 Control
RDM (Remote Device Management) Support
Multiple Unit Power Linking

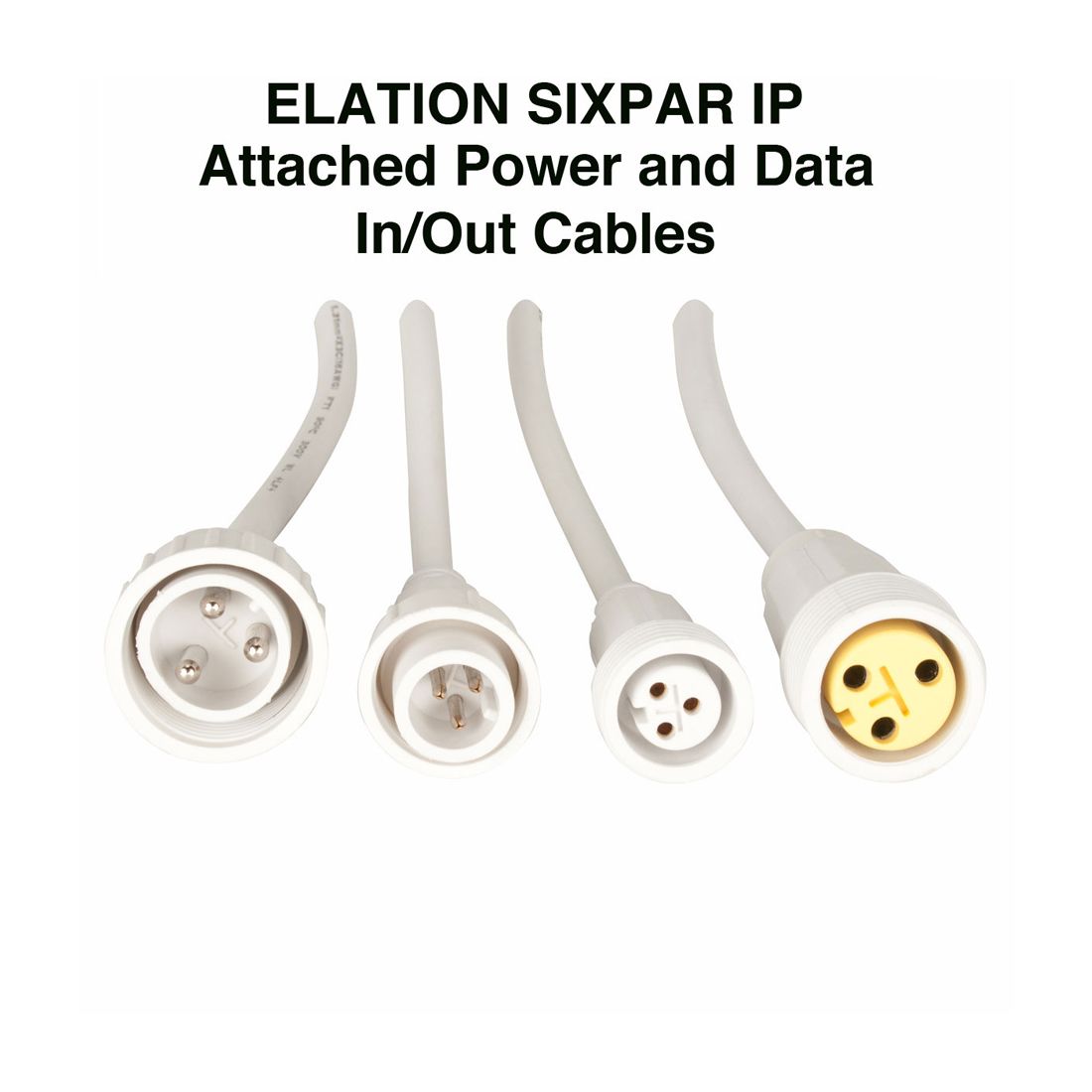

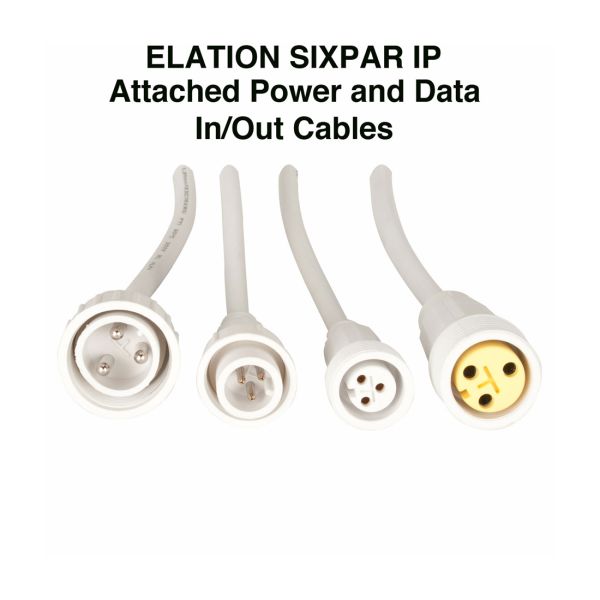

Proprietary IP Rated Power and Data In/Out Cables Attached
Optional Extended Length Proprietary IP Rated Power and Data Linking Cables and In/Out Adapters Available

SOURCE

(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

2,500 LUX 232 FC @ 9.8’ (3m)

EFFECTS

Electronic Strobe
Variable Dimming Curves Modes
Internal Color and Color Chase Macros

COLOR

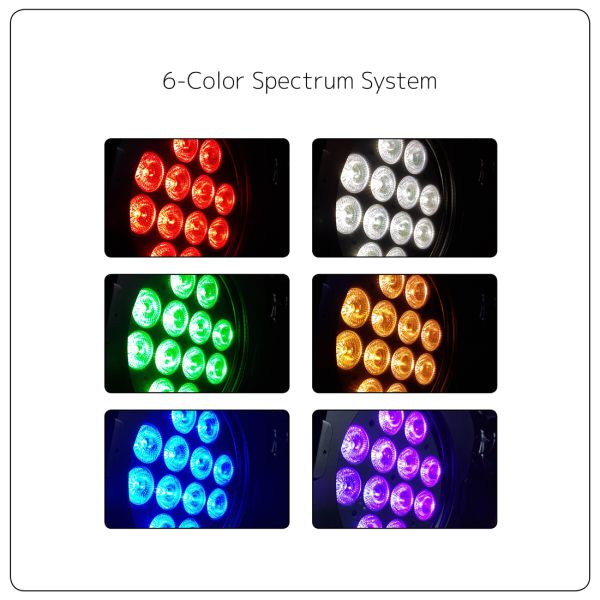

RGBAW+UV Multi-Chip LEDs

CONTROL / CONNECTIONS

Manual and DMX-512 Control
(4) DMX Channel Modes (6 / 7 / 8 / 12)

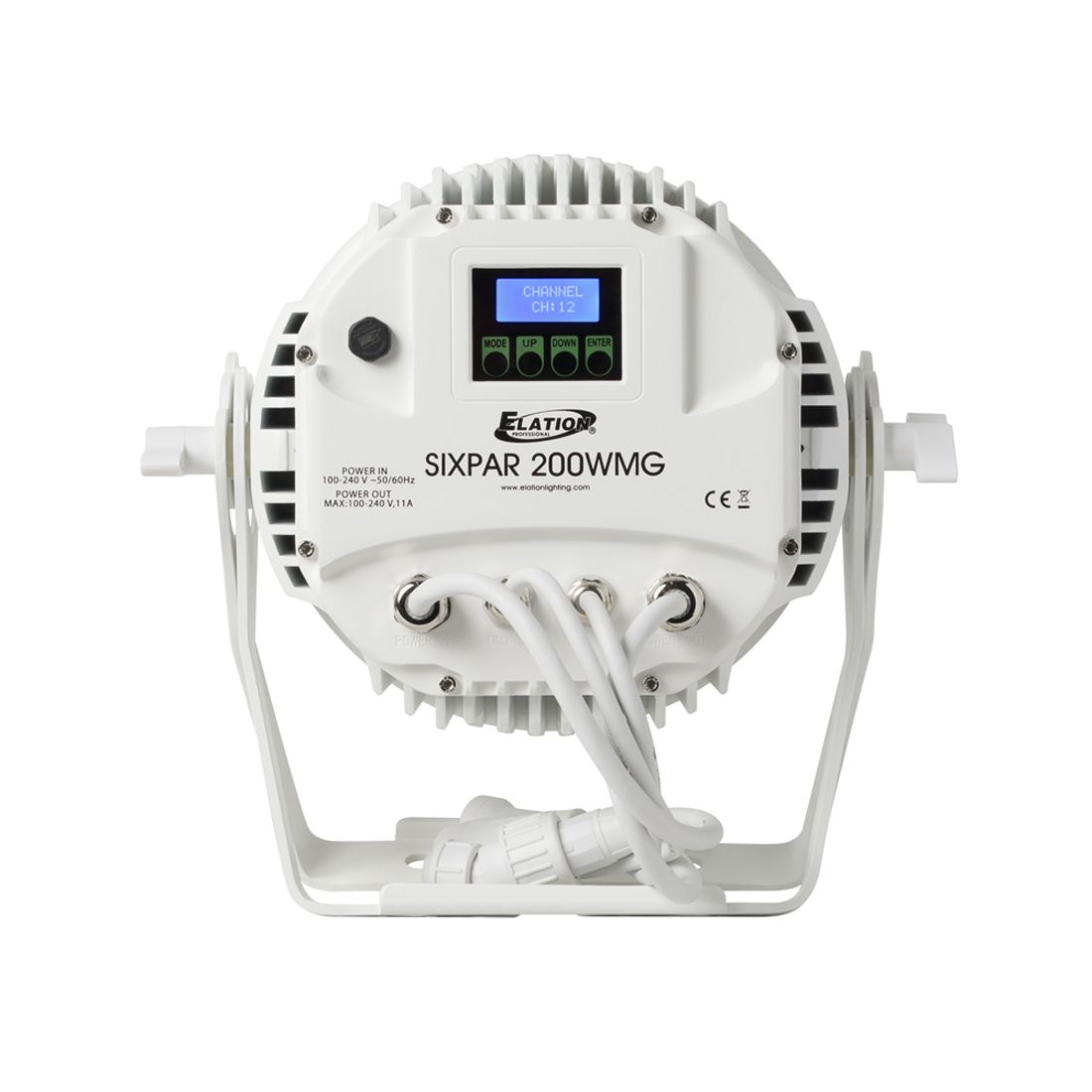

(4) Button Touch LCD Menu Display
Proprietary IP Rated locking 3pin XLR DMX In/Out Cables Attached
Proprietary IP Rated locking 3pin Power In/Out Cable Attached
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 12.3” (313mm)
Width: 6.2” (157mm)
Vertical Height: 11.8” (300mm)
Weight: 12.6 lbs. (5.7 kg)

ELECTRICAL / THERMAL

AC 110-250V - 50/60Hz
150W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm

INCLUDED ITEMS

Male CEE 7/7 to IP Female Power Cable 6.6 ft. (2m)
Male 5pin XLR to IP Female DMX Input Cable 3.3 ft (1m)
Female 5pin XLR to IP Male DMX Output Cable 3.3 ft (1m)

OPTIONAL ACCESSORIES

1621000056 SIXPAR200/GFH Gel Frame Holder
1621000059 SIXPAR/BD200 Barn Doors
1226100230 LSF 10°
1226100228 LSF 20°
1226100227 LSF 30°
1226100229 LSF 60x1°
1322000060 C-Loader II
1621000144 1M White Power Link Cable
1621000148 2M White Power Link Cable
1621000150 5M White Power Link Cable
1621000142 10M White Power Link Cable
1621000146 20M White Power Link Cable
1621000153 White Power IN CEE 7/7-IP Adapter Cable
1621000143 1M White Data Link Cable
1621000147 2M White Data Link Cable
1621000149 5M White Data Link Cable
1621000141 10M White Data Link Cable
1621000145 20M White Data Link Cable
1621000151 White DMX IN XLR5-IP Adapter Cable
1621000152 White DMX Out IP-XLR5 Adapter Cable
1621000154 White Terminator

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
