823

SIXBAR 1000IP

The IP65 rated SIXBAR 1000 IP™ features (12) 12W 6-IN-1 RGBAW+UV LEDs, 25° beam angle, pixel control, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, RDM (remote device management) protocol support, IP rated locking XLR DMX and power in/out connections, LCD menu display with 4 touch button control panel, dual adjustable rigging/floor stand brackets, glare shield and frost filter included, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 145W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).

Technical Data

FEATURES

IP65 Rated
12 x 12W 6-in-1 RGBAW+UV LEDs
25° Beam Angle
Pixel Control
Rugged Die-Cast Aluminum Exterior
Glare Shield and (2) Lens Filters Included

SOURCE

(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

7,149 LUX 664 FC @ 1m (3.3’) (25° Full ON)

EFFECTS

Pixel Control
Strobe and Chase Effects
Variable and Selectable Dimming Curves

COLOR

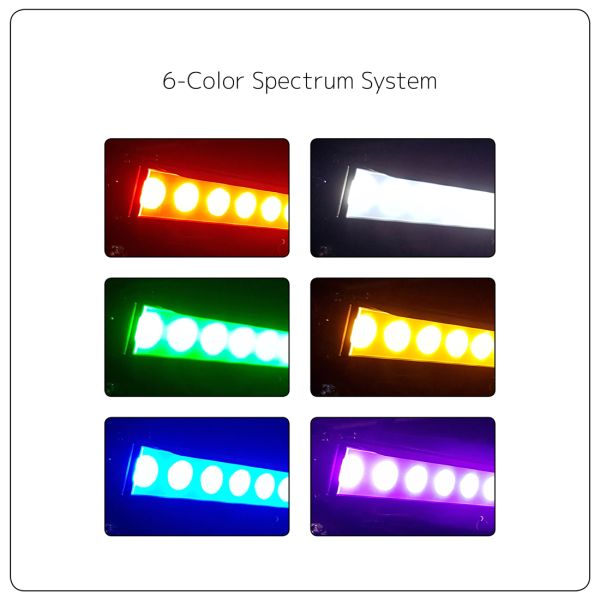

RGBAW+UV Multi-Chip LEDs

CONTROL / CONNECTIONS

(8) DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)
4 Button Touch Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated 5pin DMX In/Out and IP65 locking power cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 853mm (33.6”)
Width: 141.4mm (5.6”)
Vertical Height: 120.5mm (4.7”)
Weight: 8.6 kg (19.0 lbs.)

ELECTRICAL / THERMAL

AC 110-240V - 50/60Hz
145W Max Power Consumption
Multiple Unit Power Linking
-15°C to 45°C (5°F to 113°F)
UV Wavelength: 395nm

INCLUDED ITEMS

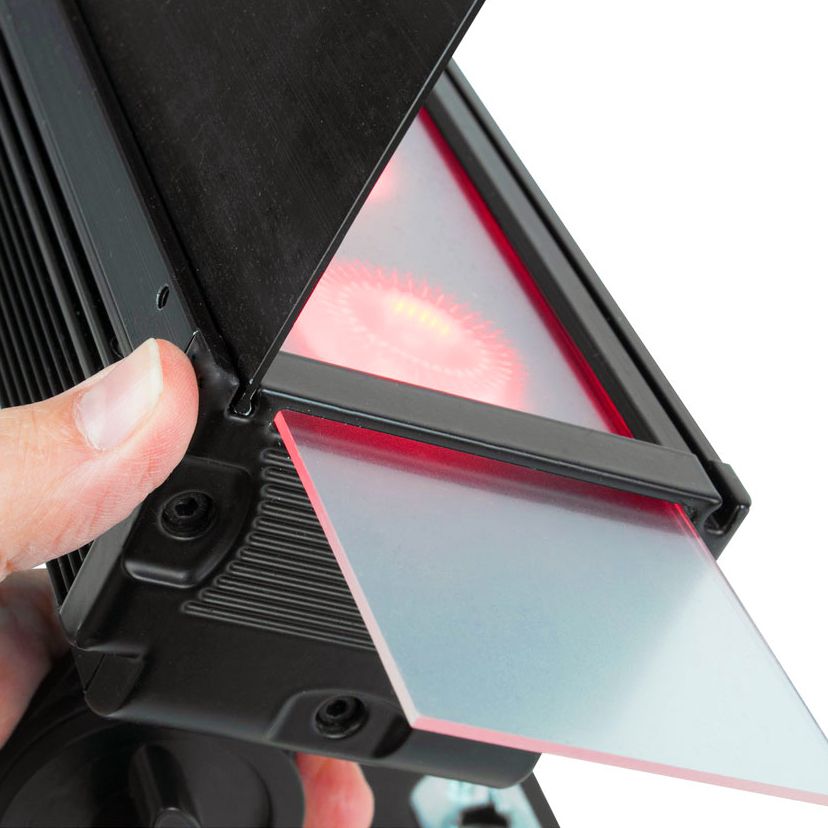

2 Frost Filters
Glare Shield
Mounting Screws for Glare Shield

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
