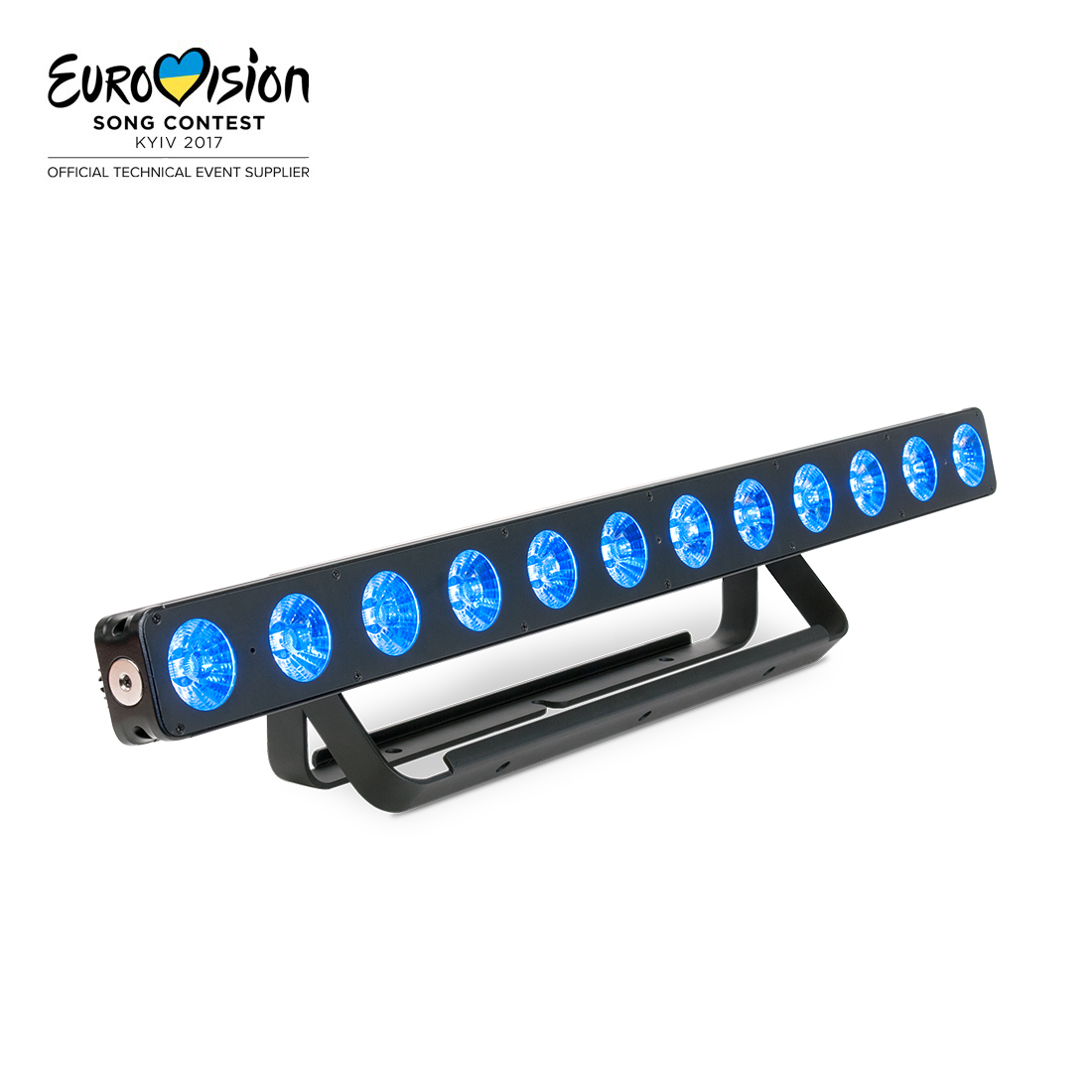

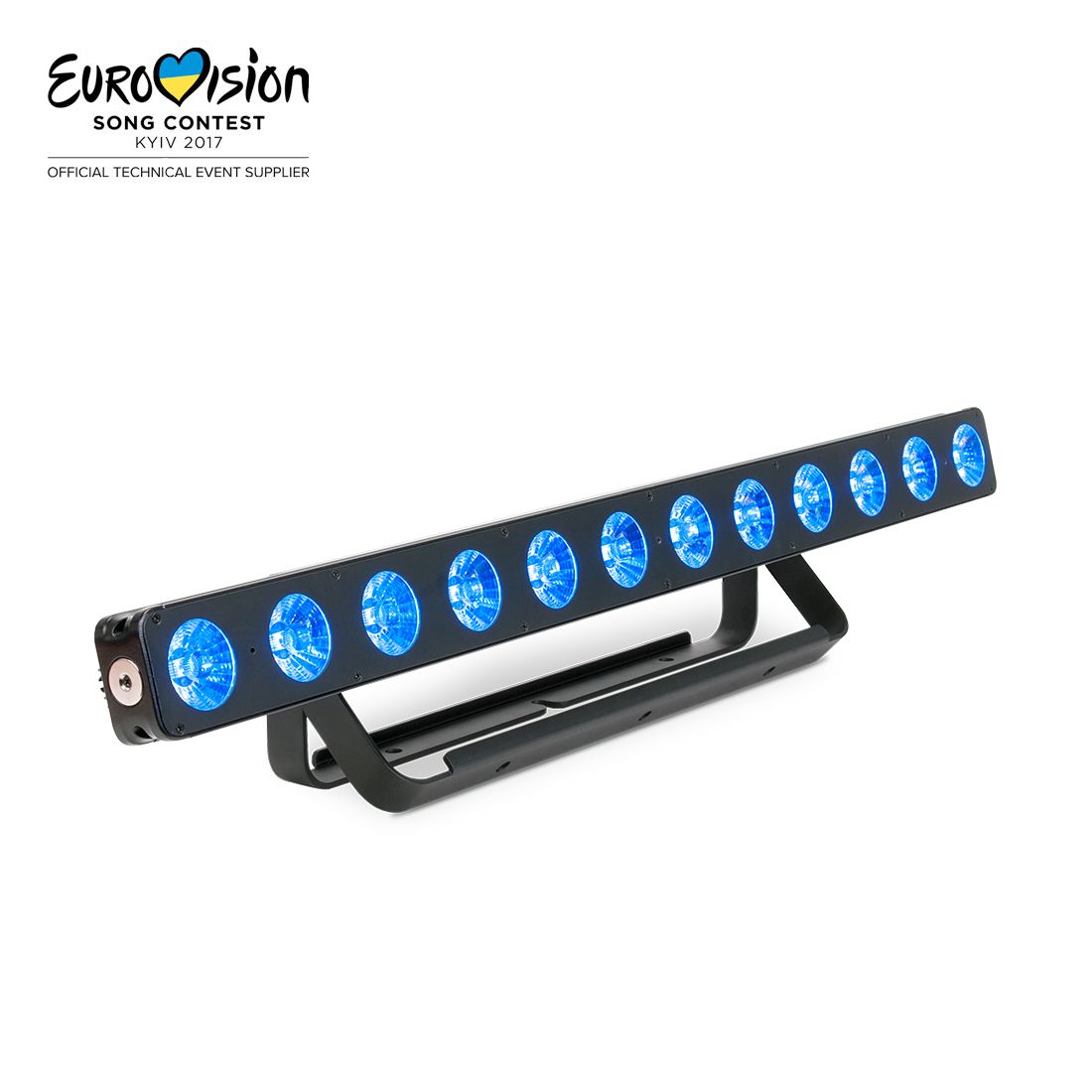

SixBar 1000

The SIXBAR 1000™ features (12) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 30° beam angle, individual control of each LED, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, IP65 locking power cable, and RJ45 Ethernet in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, frost filter and glare shield included, flicker free operation for TV and FILM, 145W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).

Technical Data

FEATURES

30° Beam Angle
ArtNet and KlingNet Support
RDM - Remote Device Management
Individual LED Control
Variable Dimming Curve Modes
Multiple Unit Power Linking
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM

SOURCE

(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

8,500 LUX 790 FC @3.3’ (1m) (30° Full ON)
3,660 LUX 340 FC @6.6’ (2m) (30° Full ON)
2,040 LUX 190 FC @9.8’ (3m) (30° Full ON)
1,290 LUX 120 FC @13.1’ (4m) (30° Full ON)
878 LUX 82 FC @16.4’ (5m) (30° Full ON)

EFFECTS

Strobe and Chase Effects
Individual LED Control
Variable and Selectable Dimming Curves

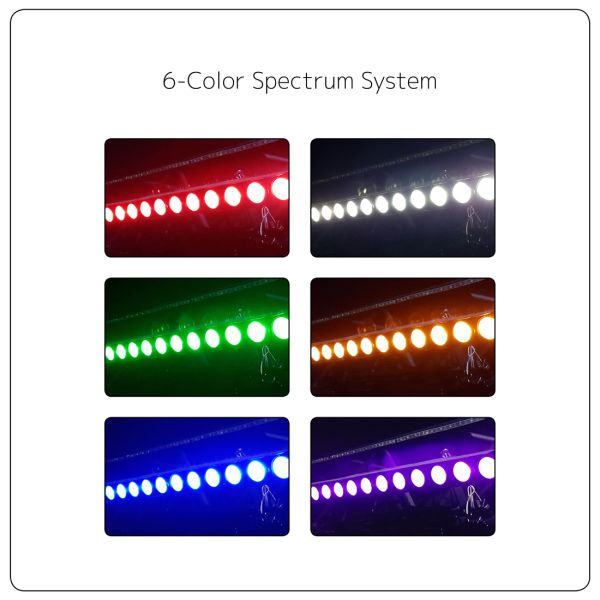

COLOR

RGBAW+UV Multi-Chip LEDs

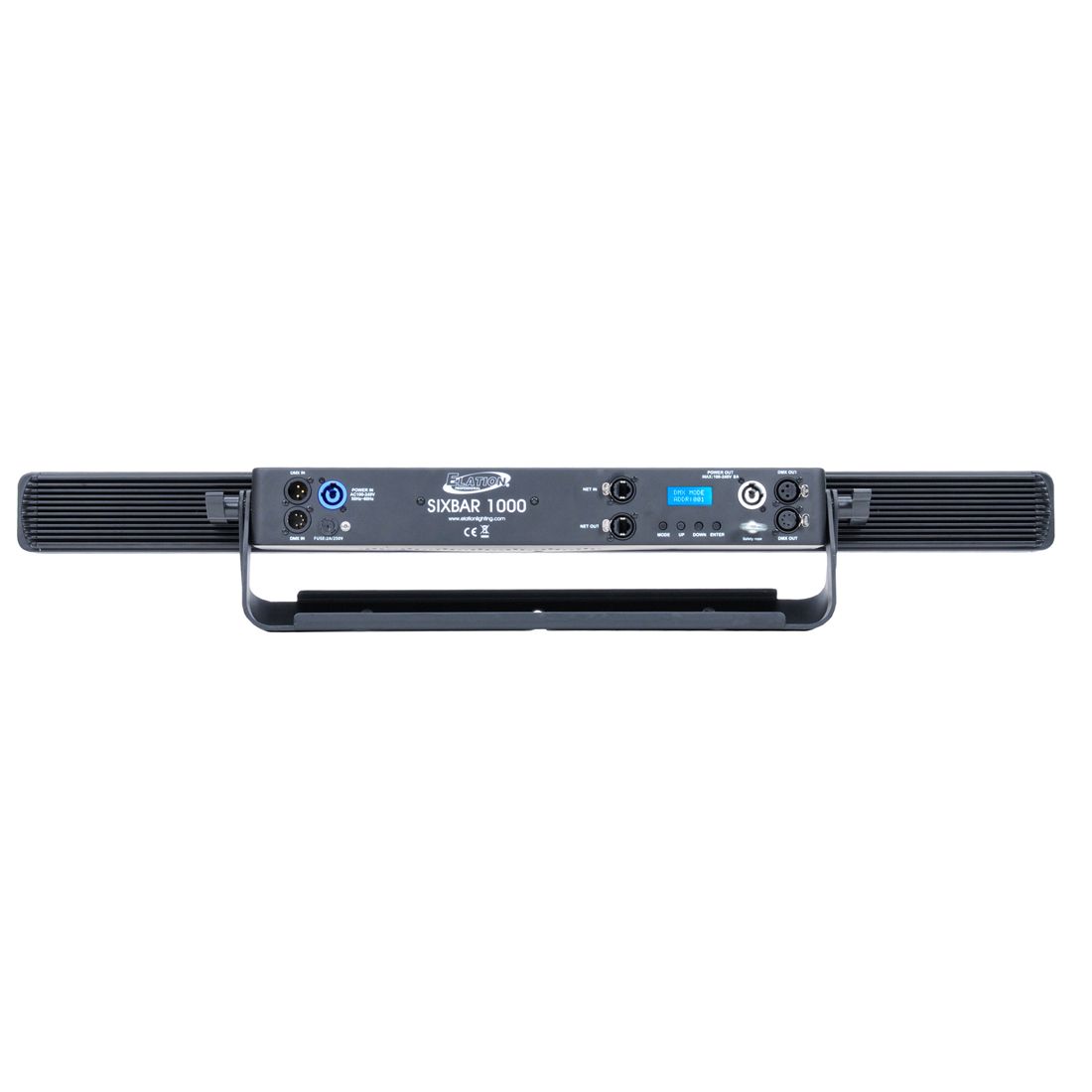

CONTROL / CONNECTIONS

8 DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)
4 Button Control Panel and LCD Menu Display
ArtNet + KlingNET Protocol Support
RDM (Remote Device Management)
(2) locking ethernet Ports
3pin and 5pin DMX In/Out
IP65 locking power cable In/Out }
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 35.4” (900mm)
Width: 8.1” (206.4mm) *with included glare shield
Vertical Height: 6.1” (155mm)
Weight: 16.0 lbs. (7.3 kg)

ELECTRICAL / THERMAL

AC 110-240V - 50/60Hz
145W Max Power Consumption
Power Linking: 6pcs @110V / 15pcs @240V
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm

INCLUDED ITEMS

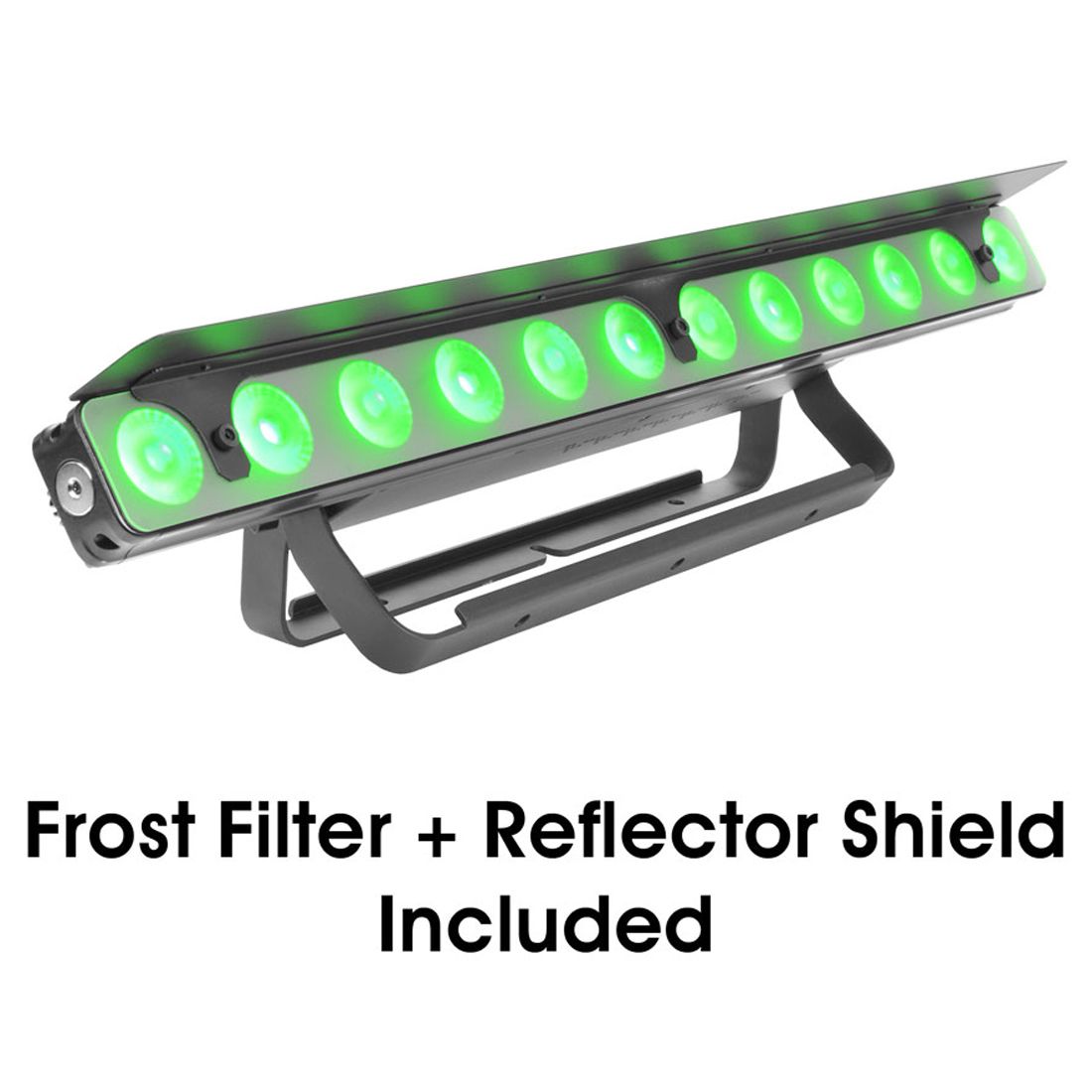

Glare Shield

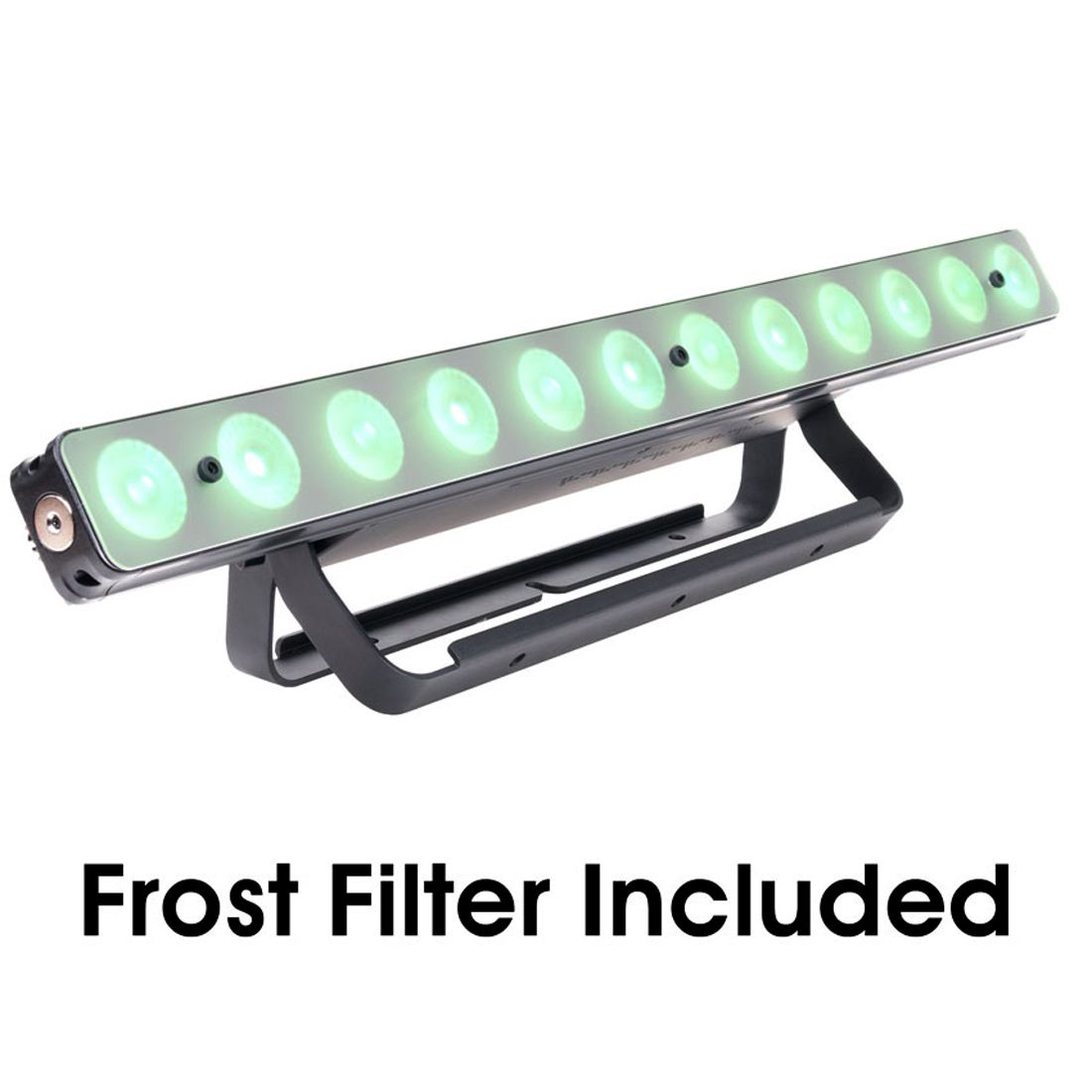

Frost Filter
Mounting Screws for Glare Shield and Frost Filter

FIRMWARE UPDATES

Current firmware can be found here (login required)





Specifications and documentation subject to change without notice
