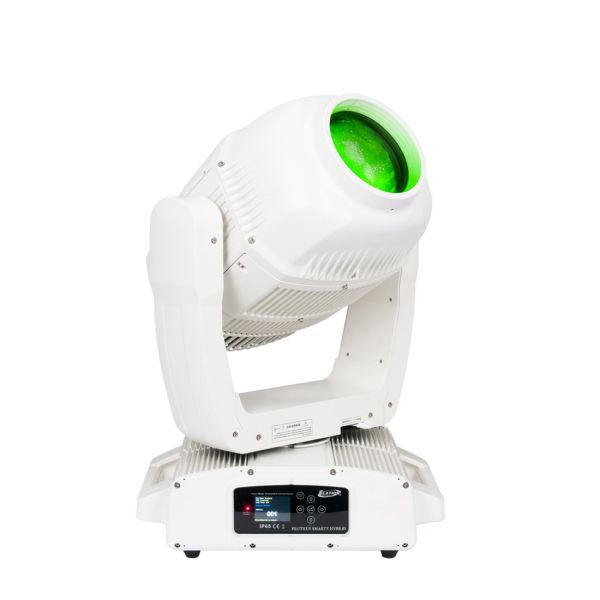

Proteus SMARTY HYBRID WMG HW

The Proteus Smarty Hybrid is full featured all white housing IP65 certified Spot, Beam and Wash Hybrid fixture for indoor and outdoor use. It features the all new Philips™ MSD Platinum 200 Flex lamp with “FLEX” technology which uses a smartly designed discharge lamp/ballast package to produce high output and compact performance at an efficient, long life solution of up to 6,000 hours. Features include up to 11,000 total lumen output, motorized zoom ranges of 1° to 18° in beam mode, 3° to 27° in spot mode, and 5° to 33° in wash mode, a full CMY color mixing system, a full frost filter for wash effects, 13 dichroic colors including a quad-color filter, CTB, CTO, and UV, 8 rotating—interchangeable glass and 12 static-stamped metal gobos, a 16-facet and 4-facet linear independent rotating prisms, multiple CMY color, gobo, and prism macros, motorized focus with an auto-focus feature, high speed shutter and strobe, lamp hibernation mode, DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support, fixed cables, full color 180° reversible LCD menu display with battery backup, and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

***Only on Special Order***


FEATURES

IP65 Certified 3-in-1 Beam, Spot, Wash Hybrid Fixture
Flex Lamp Technology from 190W to 280W and Lamp Hibernation with up to 6000 Hour Lamp Life
Full CMY Color Mixing System
Rotating and Static Gobos, Dual Prism, Frost
Zoom from 1° Beam to 33° Wash and Auto Focus option


SOURCE

Philips™ MSD Platinum 200 Flex 280W Lamp
Up To 6,000 Hour Lamp Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, Dimming, and Lamp Mode.

PHOTOMETRIC DATA

11,000 Total Output Lumen
128,426 LUX 11,931 FC @49.2’ (15m) (Min Zoom Beam)
135,108 LUX 12,552 FC @16.4’ (5m) (Min Zoom Spot)

Beam


Zoom Range 1° - 18°
Beam Angle 1.1° - 7°
Field Angle 2.6° - 17.8°

Spot


Zoom Range 3° - 27°
Beam Angle 1.8° - 18.7°
Field Angle 2.8° - 28.8°

Wash


Zoom Range 5° - 33°
Beam Angle 2.6° - 24.9°
Field Angle 4.6° - 40.7°

EFFECTS

Beam, Spot, Wash Modes
Motorized Zoom
Full Frost Filter for Wash Effects
16-Facet and 4-Facet Linear Prisms
CMY Color, Gobo, Prism Macros
Motorized Focus with Auto-Focus Feature
High Speed Shutter and Strobe


COLOR

Full CMY Color Mixing System
13 Colors including Quad Color, CTO, CTB, and UV


GOBOS

2 Gobo Wheels
8 Rotating / Indexing Interchangeable Glass Gobos
12 Static-Stamped Metal Gobos


CONTROL / CONNECTIONS

2 DMX Channel Modes (20 / 34)
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

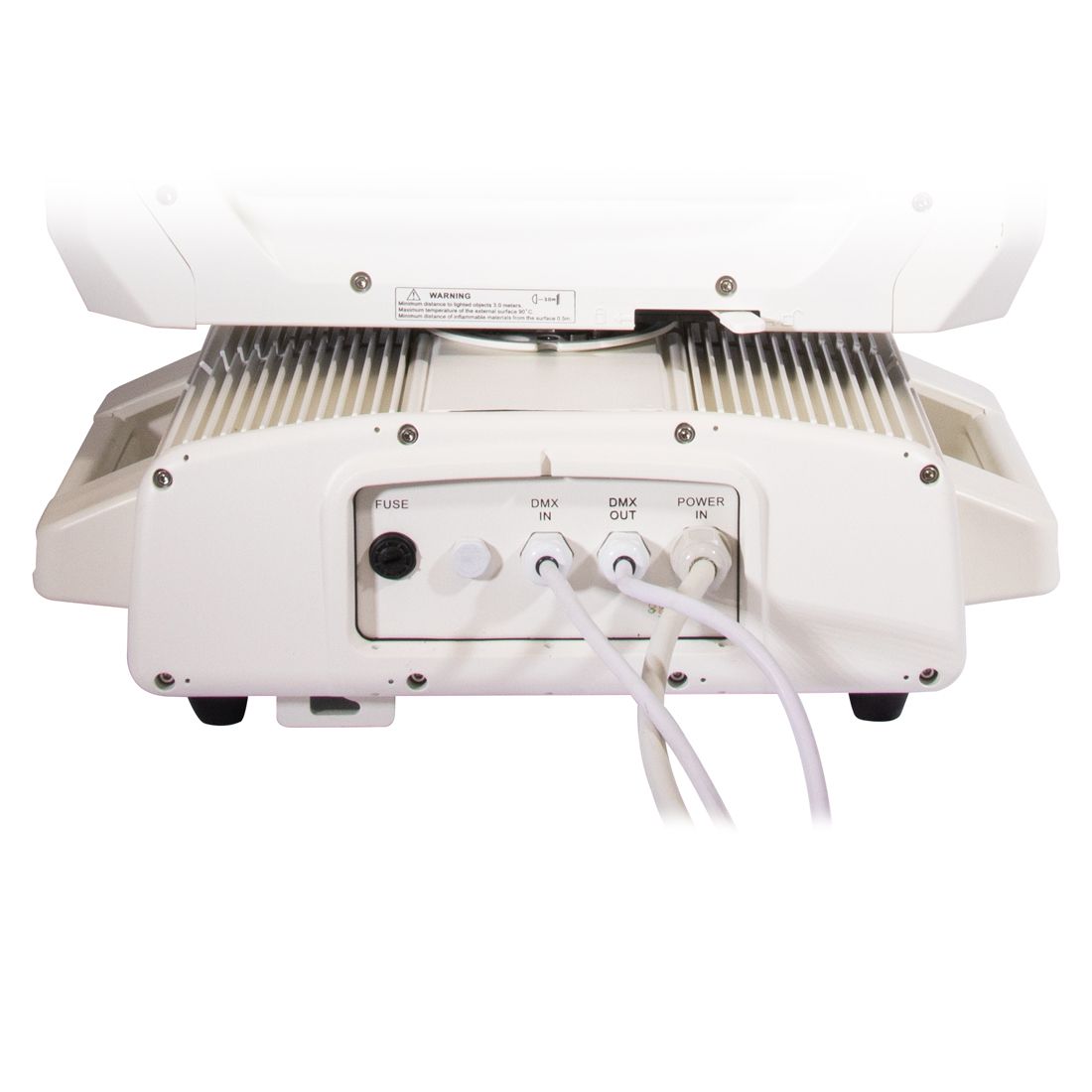

Fixed DMX Cable In/Out
Fixed Power Cable


SIZE / WEIGHT

Length: 17.5 in (444.71mm)
Width: 17.88 in (459mm)
Height: 26.97 in (685mm)
Weight: 78.26 lbs. (35.5kg)


ELECTRICAL / THERMAL

AC 100-240V 50/60Hz
Max Power Consumption 500W

FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice

COLORS AND GOBOS

Color Flags
Cyan Cyan
 Magenta Magenta
 Yellow Yellow
Color Wheel
Cyan Cyan
 Green Green
 Red Red
 Blue Blue
 Orange Orange
 UV UV
 Yellow Yellow
 Magenta Magenta
 C.T.O. C.T.O.
 Aqua Aqua
 CTB CTB
 Pink Pink
 RYBG RYBG
Gobo Wheel 1
Gobo 1
 Gobo 2
 Gobo 3
 Gobo 4
 Gobo 5
 Gobo 6
 Gobo 7
 Gobo 8
Gobo Wheel 2
Gobo 9
 Gobo 10
 Gobo 11
 Gobo 12
 Gobo 13
 Gobo 14
 Gobo 15
 Gobo 16
 Gobo 37
 Gobo 38
 Gobo 39
 Gobo 40
Prisms
Prism 3
 Prism 8
