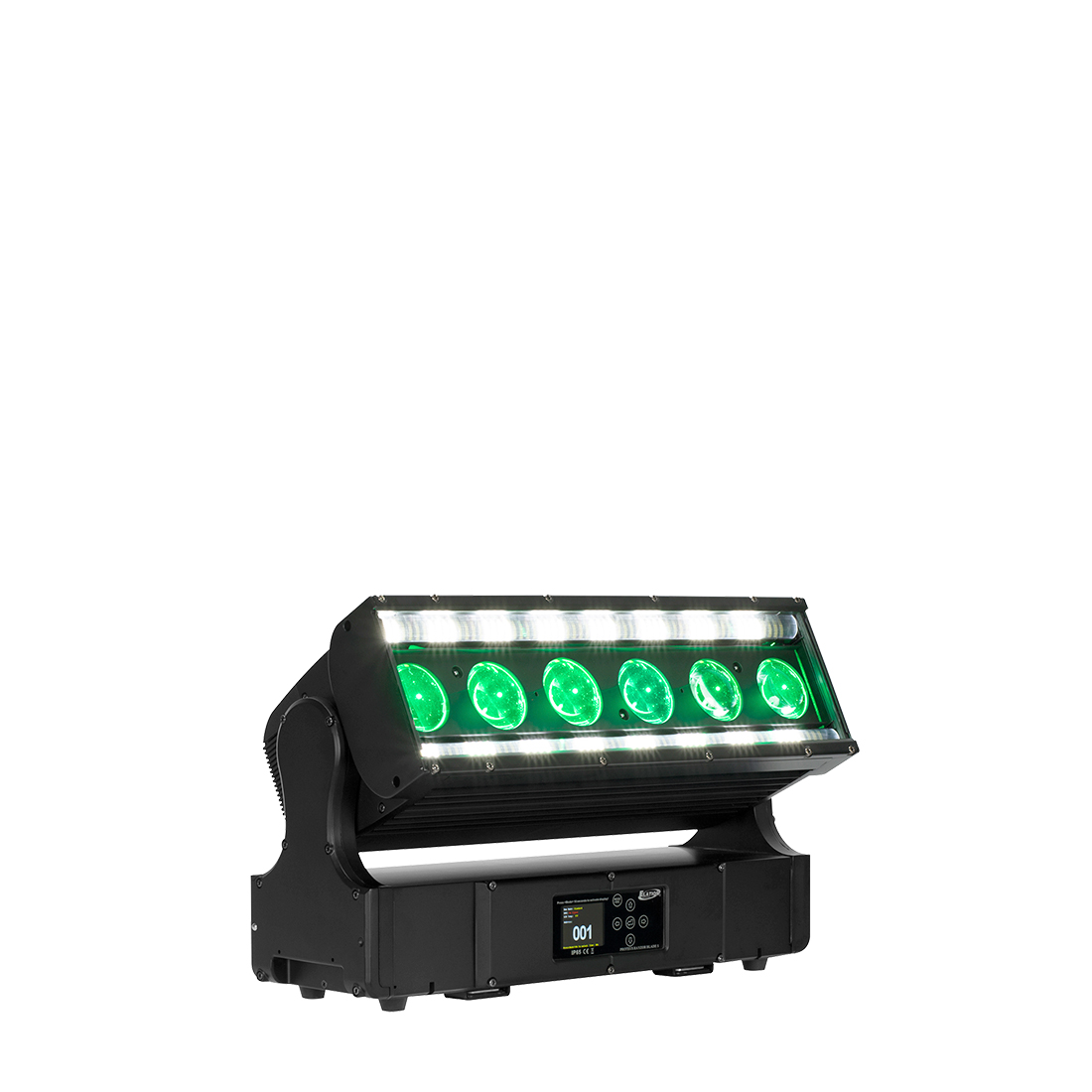

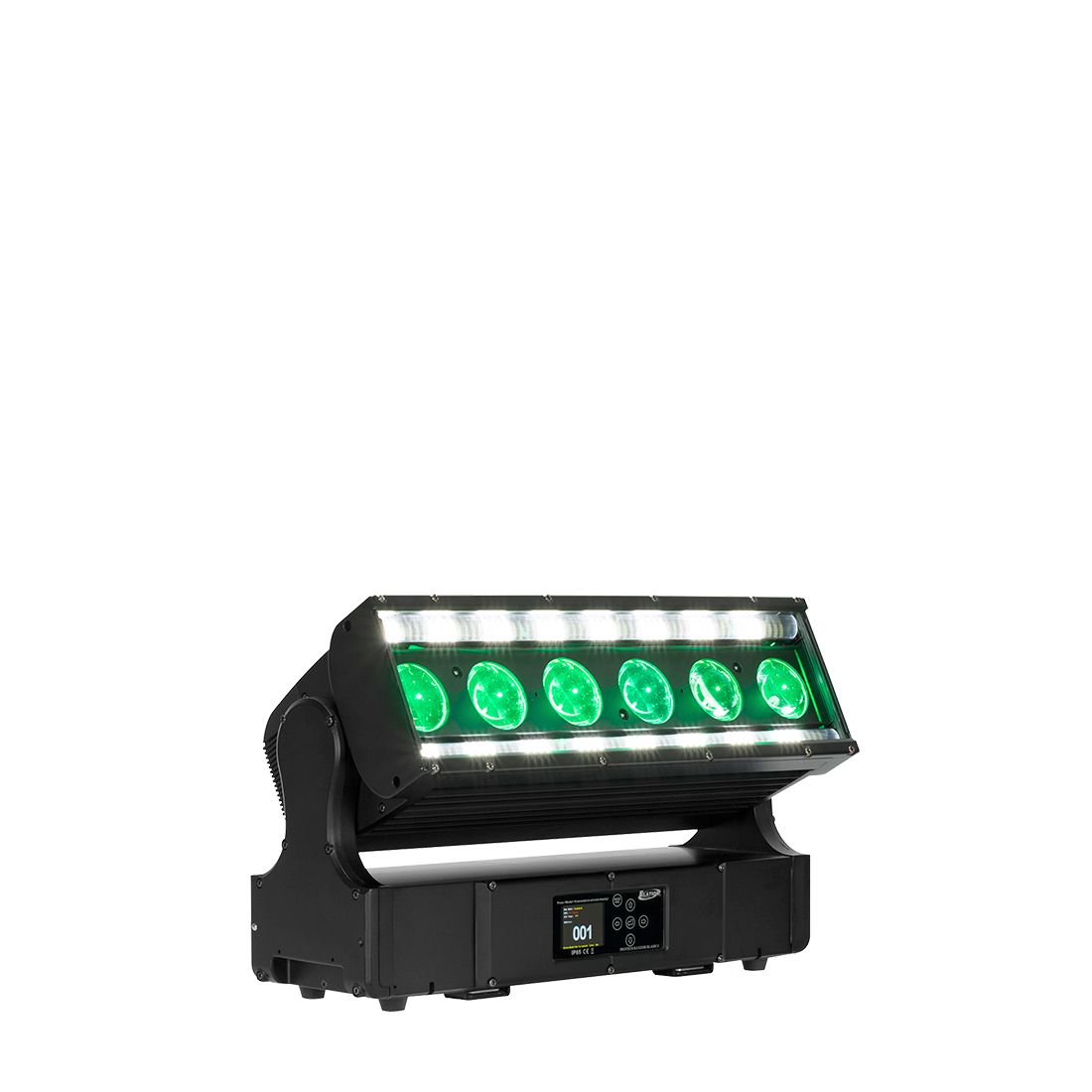

The PROTEUS RAYZOR BLADE S™ is a striking visual combination of Linear Wash, high intensity Strobe Lines and SparkLED FX inside a compact IP65 linear fixture design. Envisioned to provide the designer unlimited creative control of powerful colors and high-powered strobe effects from a single unit it allows unlimited placement in any outdoor and indoor environment. Protected from dust and water ingress the Rayzor Blade S is part of Elation’s industry leading Proteus Range of outdoor luminaires.
This fixture features Elation’s unique patented SparkLED™ system and allows impactful Tilt sweep motions. With its wide zoom range from 6 to 45 degrees it provides intense and well-defined mid-air beams and light curtains at over 6,600 lumens as well as an exceptionally wide and even wash coverage, making it a perfect tool from stage washes, mid-air effects or audience blinders, even in adverse outdoor conditions. SparkLEDs offer a prominent and innovative LED pixel effect with dedicated high brightness pixels inside the large front lenses for additional layers of creativity.

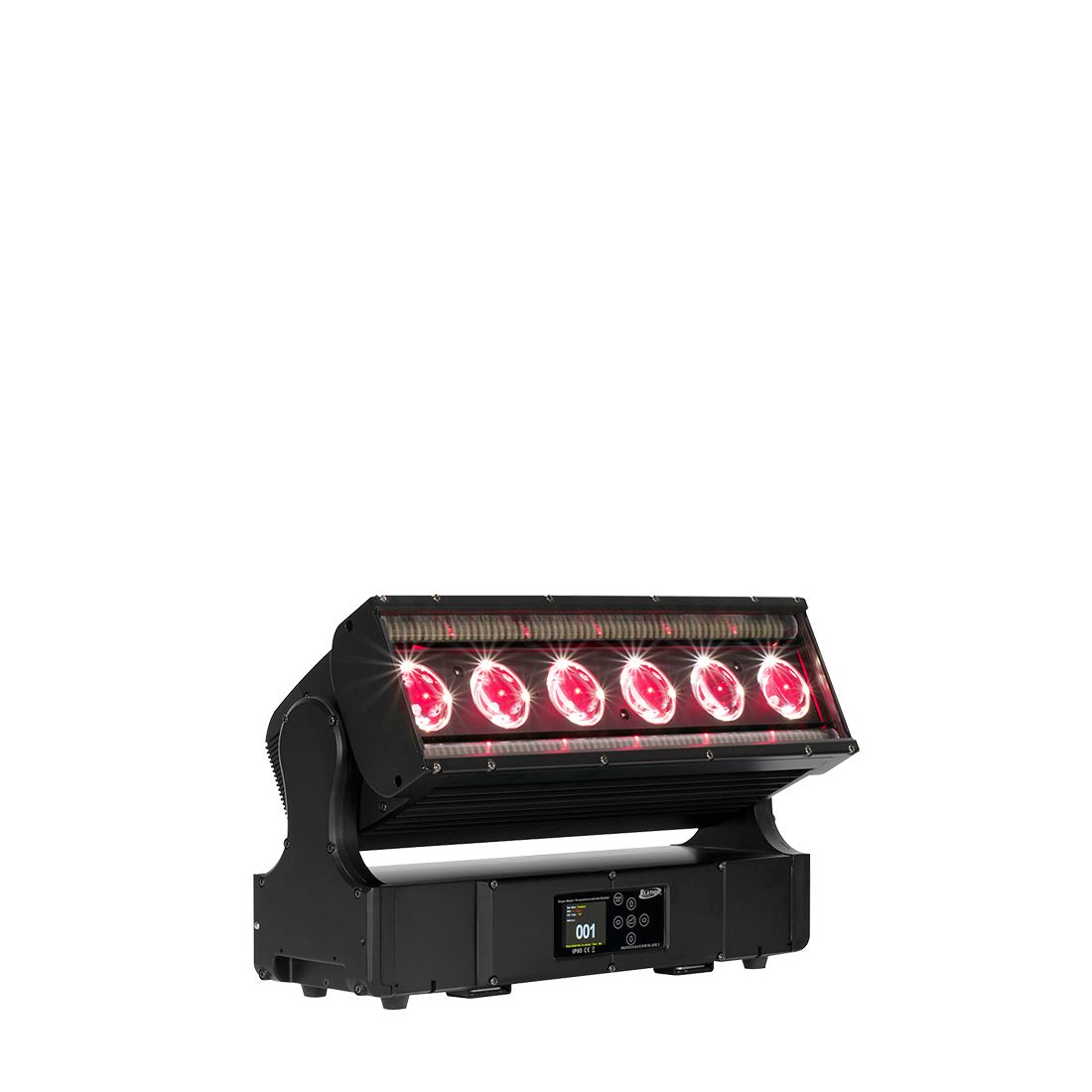

Driven by 6, independently controlled, 60W RGBW LEDs, delivering over 6,000 lumens of output with a total power of 360W, the Proteus Rayzor Blade S provides a powerful beam that stands out on any stage. The oversized front lenses create a large visual surface on the fixture that is enhanced by the exclusive patent pending SparkLEDs technology. SparkLEDs consists of individual white LEDs, strategically placed inside the lens itself to create a unique additional layer, allowing designers access to a new and innovative way of creating interest on the stage. Proteus Rayzor fixtures offer this never seen before style of internal lens illumination for depth and visual impact. SparkLEDs are controllable by the lighting console or driven by a multitude of internal FX patterns.

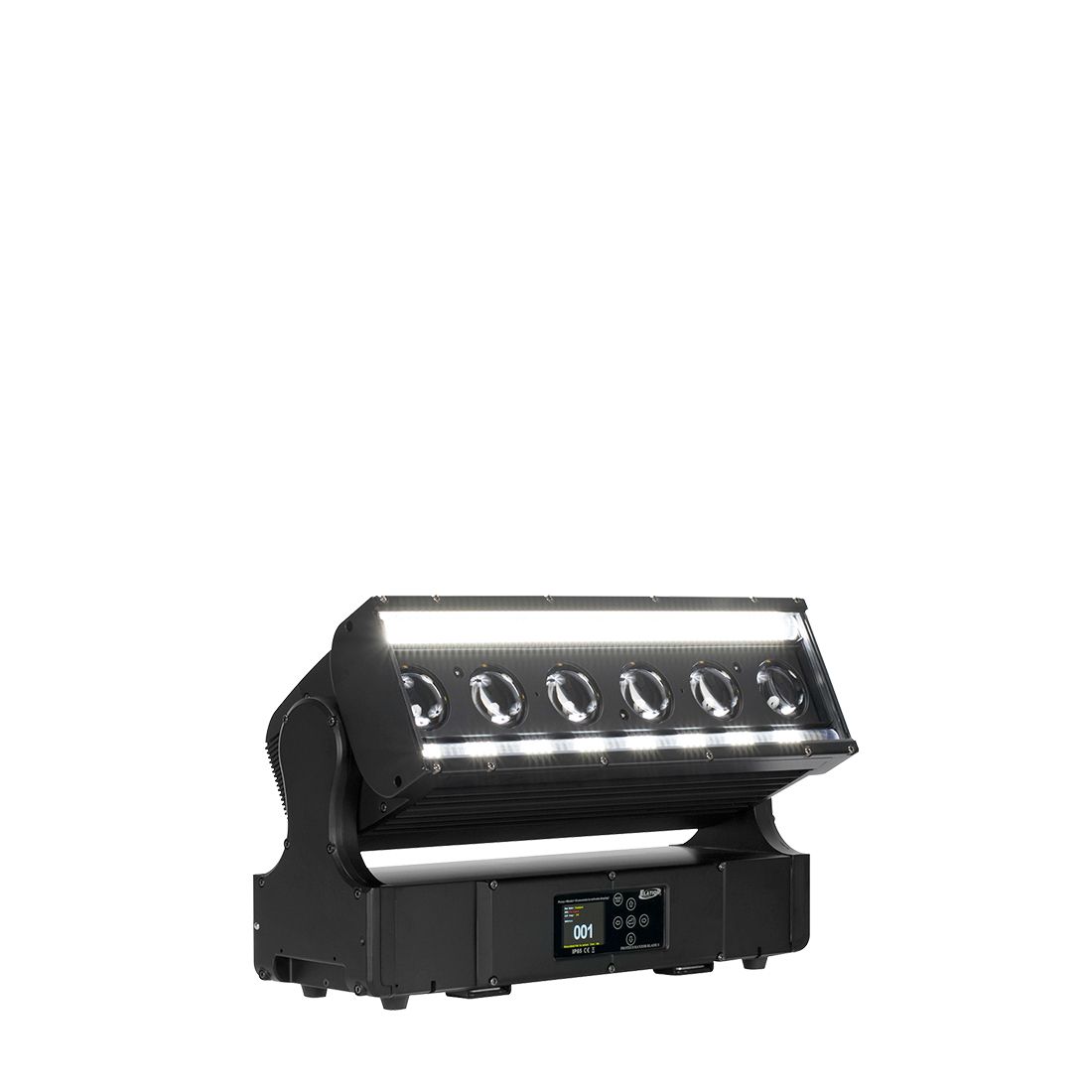

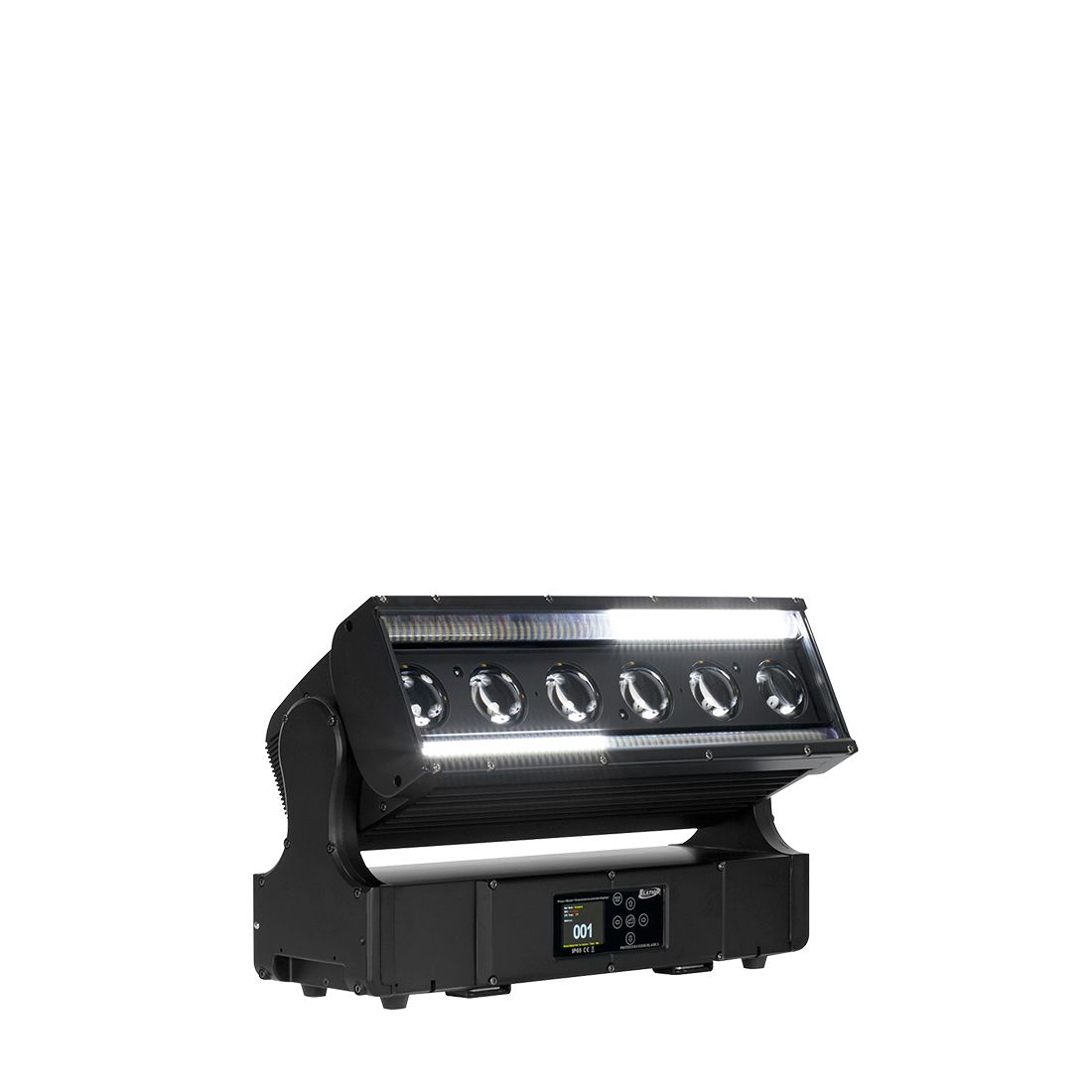

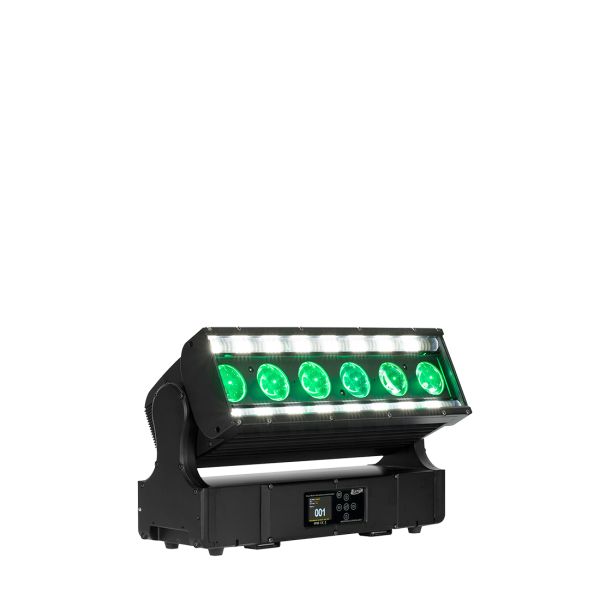

In addition to its powerful wash and SparkLED effects, the Proteus Rayzor Blade S provides two seamless high-intensity strobe lines with a total of 128 cool white LED dots. Flanking the Rayzor lenses across the entire length of the fixture these dual strobe arrays offer incredible visual effects with a multitude of integrated FX or precise pixel control from the lighting console.
IP65 Protected LED Tilt FX Fixture 6x 60W OSRAM RGBW LED with Pixel Control 24x 2W SparkLED™ Effect with Pixel Control Dual 64x1W Strobe Pixel Line Extreme Zoom – 6° for mid-air beam to 45° for even washes Fast and precise 192° Tilt Rotation
(6) 60W Osram RGBW LEDs (24) 2W White SparkLED™ (128) 1W Strobe LED 50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
6,000 Total Lumen Output (RGBW) CRI 80 Zoom Range 6° - 45° Colortemperature SparkLED 4,000K Colortemperature Strobe Line 6,500K
Motorized Zoom Linear Color Temperature Presets (2,700-8,000K) RGBW Color Mixing and Pixel Control White SparkLED Lens Effect Dual White Strobe Lines (64 pixels per side) Color Presets and Macros Electronic Strobe and Variable Dimming Curves 16-bit Dimming
Tilt Angle: 192°
CONTROL / CONNECTIONS

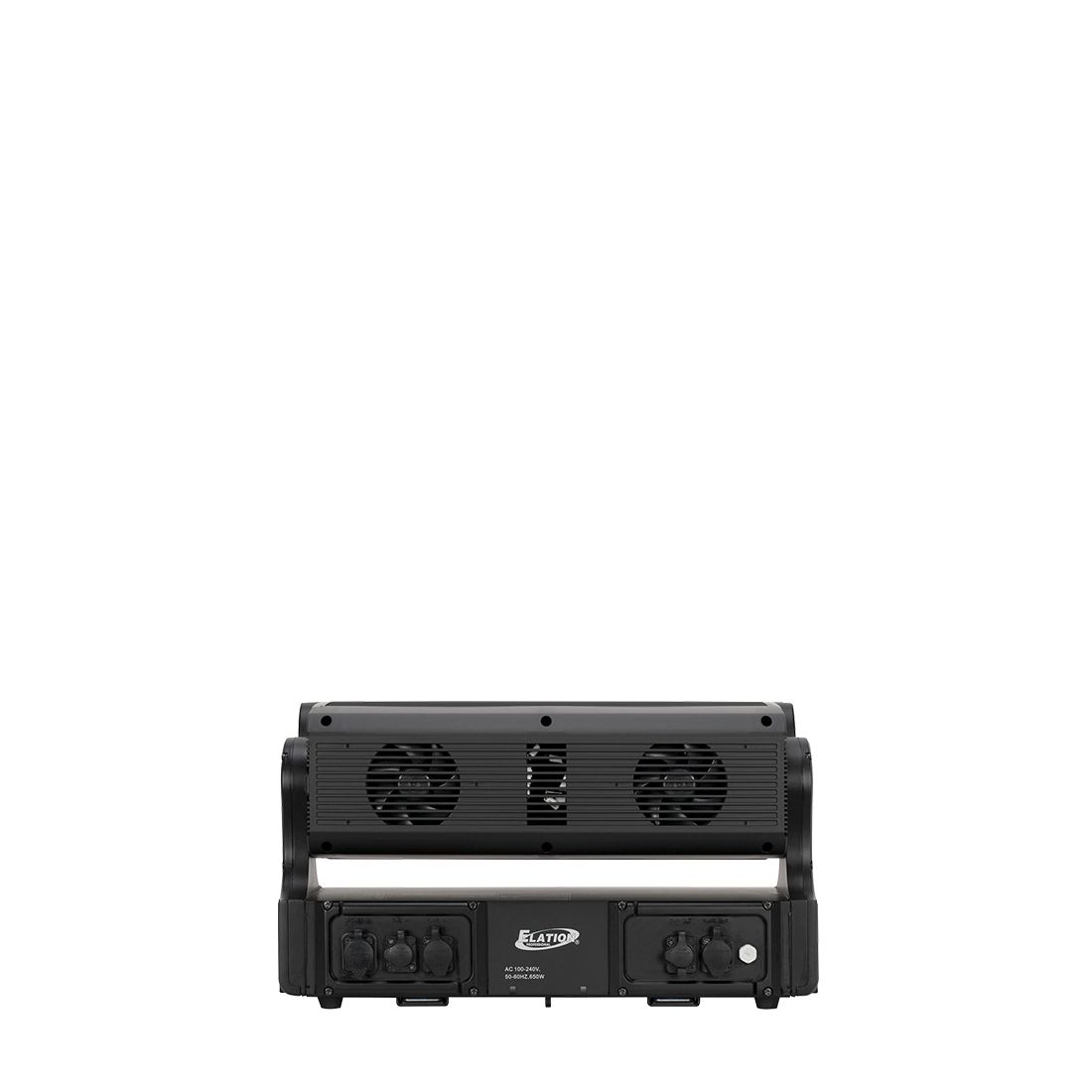

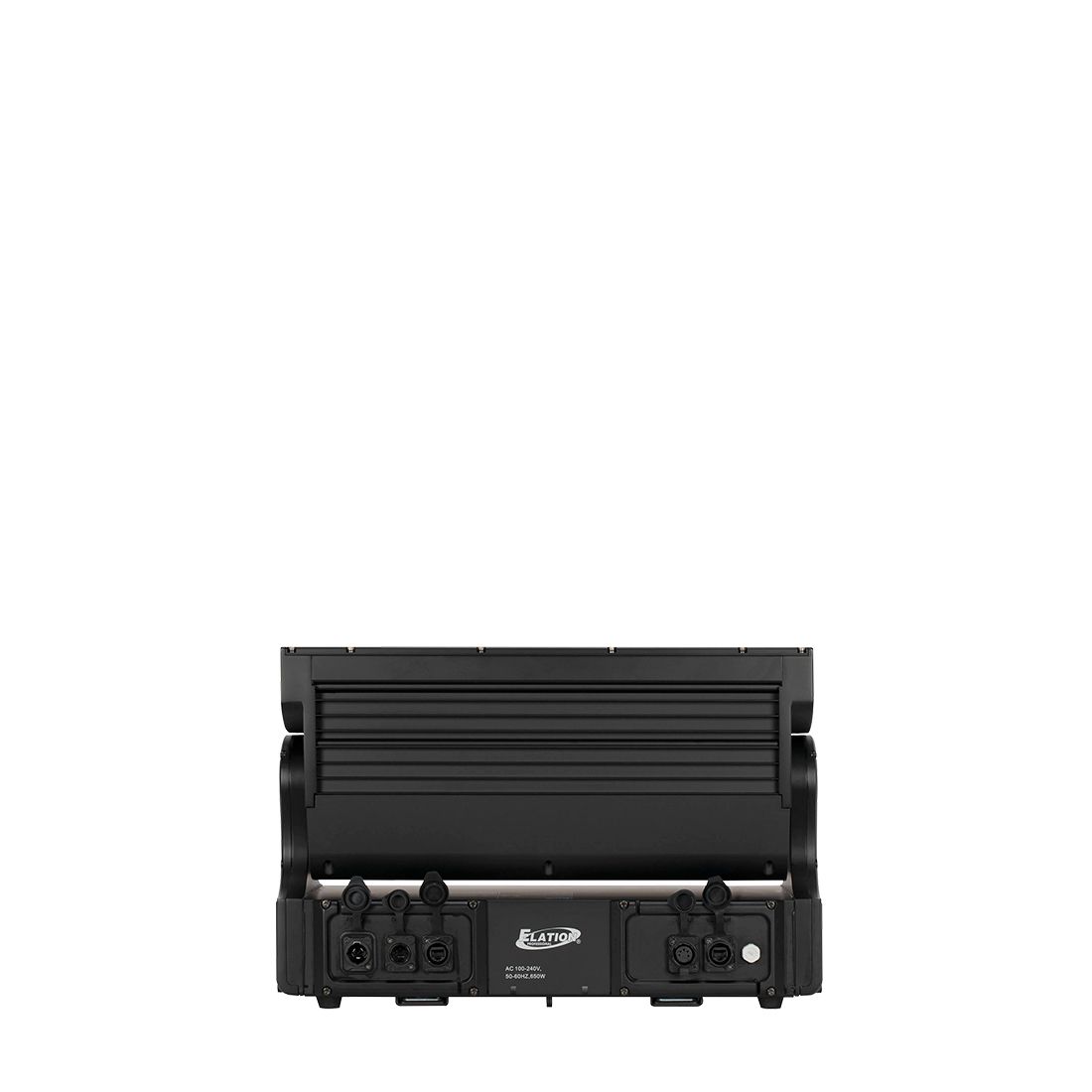

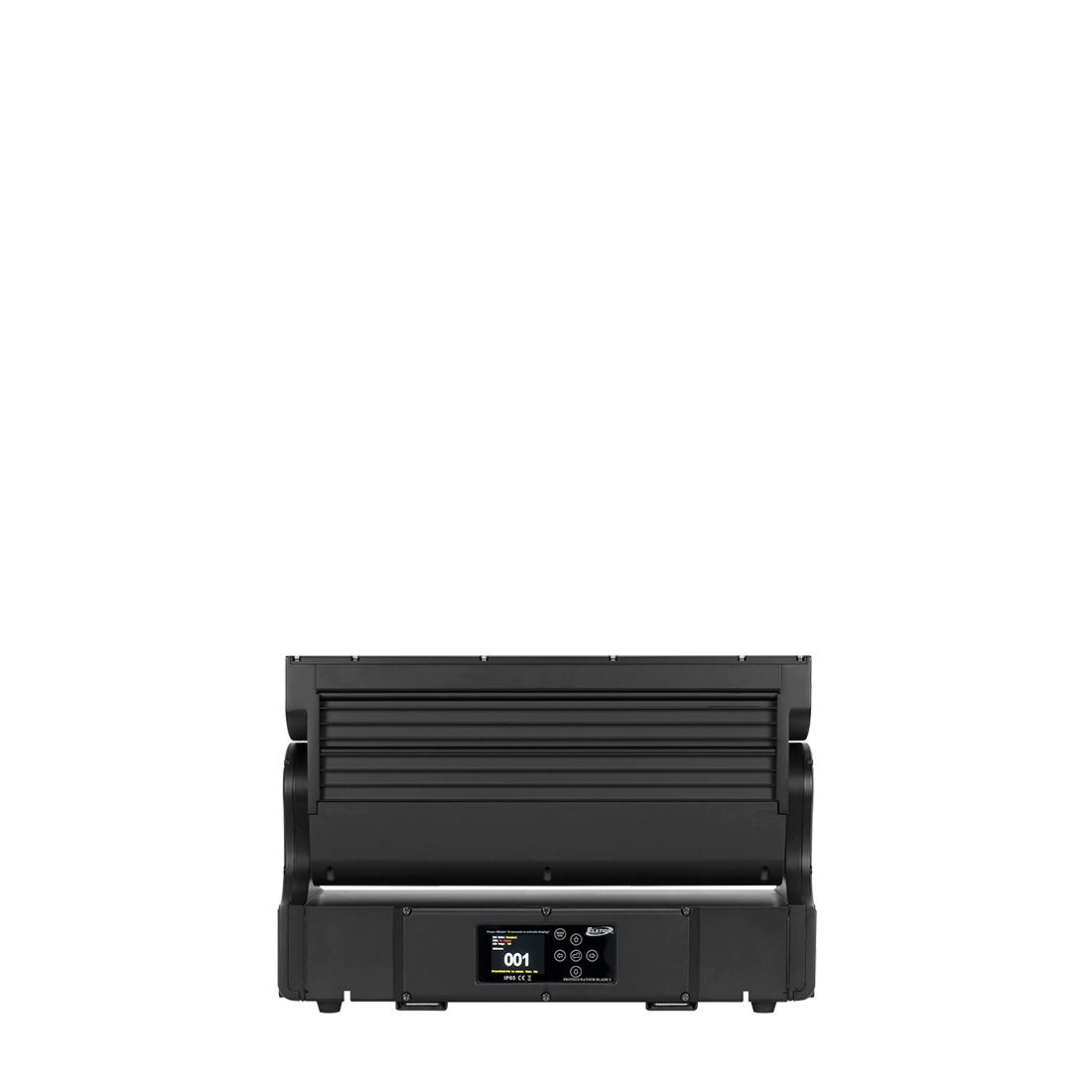

3 DMX Channel Modes (27/50/106 channels) Pixel controlled Wash, SparkLED and Strobe LED 192° Tilt Movement DMX Adjustable Refresh Rate (900 -25,000 Hz) (6) Button Touch Panel Full Color 180° Reversible LCD Menu Display RDM Support IP65 5pin XLR DMX In/Out IP65 RJ45 Ethernet In/Out (Art-Net, sACN) IP65 Locking Power Cable In
