Code
1237000182
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/p/r/proteus_beam_wmg_website_pic_1.jpg)

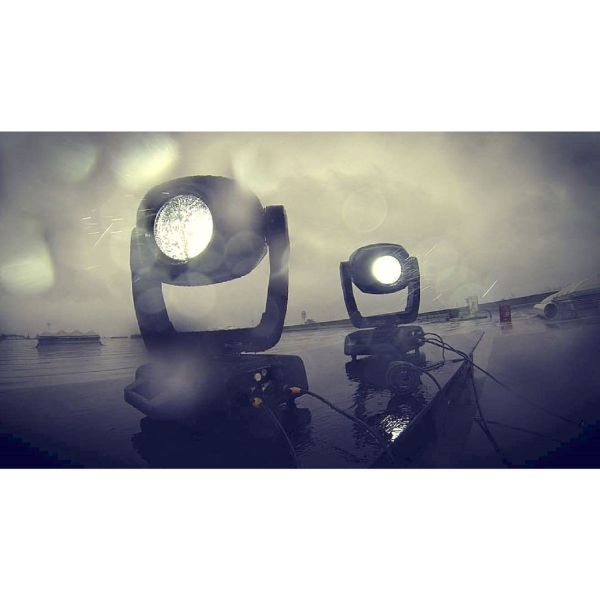

![Proteus Beam WMG Picture 2](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000163_FX2_234_1.jpg)

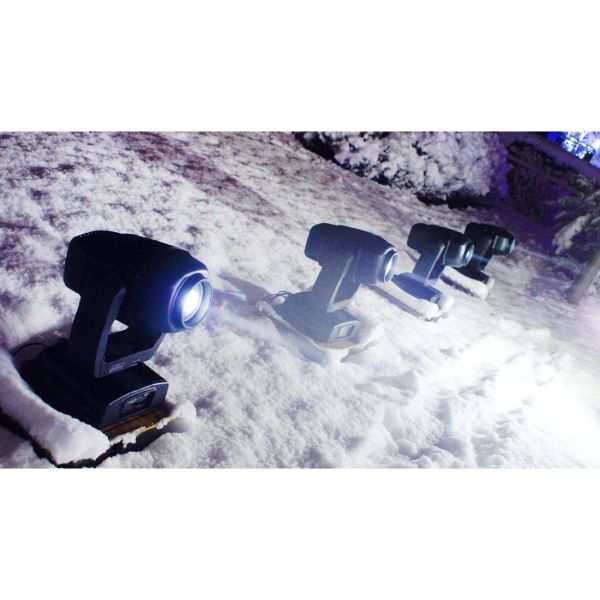

![Proteus Beam WMG Picture 3](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000163_FX_234_1.jpg)
![Proteus Beam WMG Picture 4](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/P/r/Proteus-Beam-2.jpg)
***Only on Special Order***
FEATURES

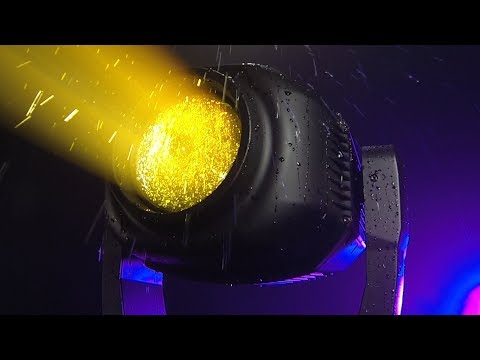

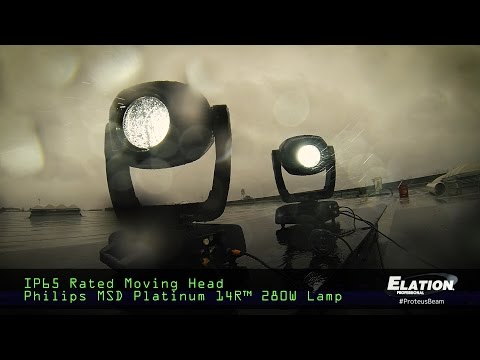

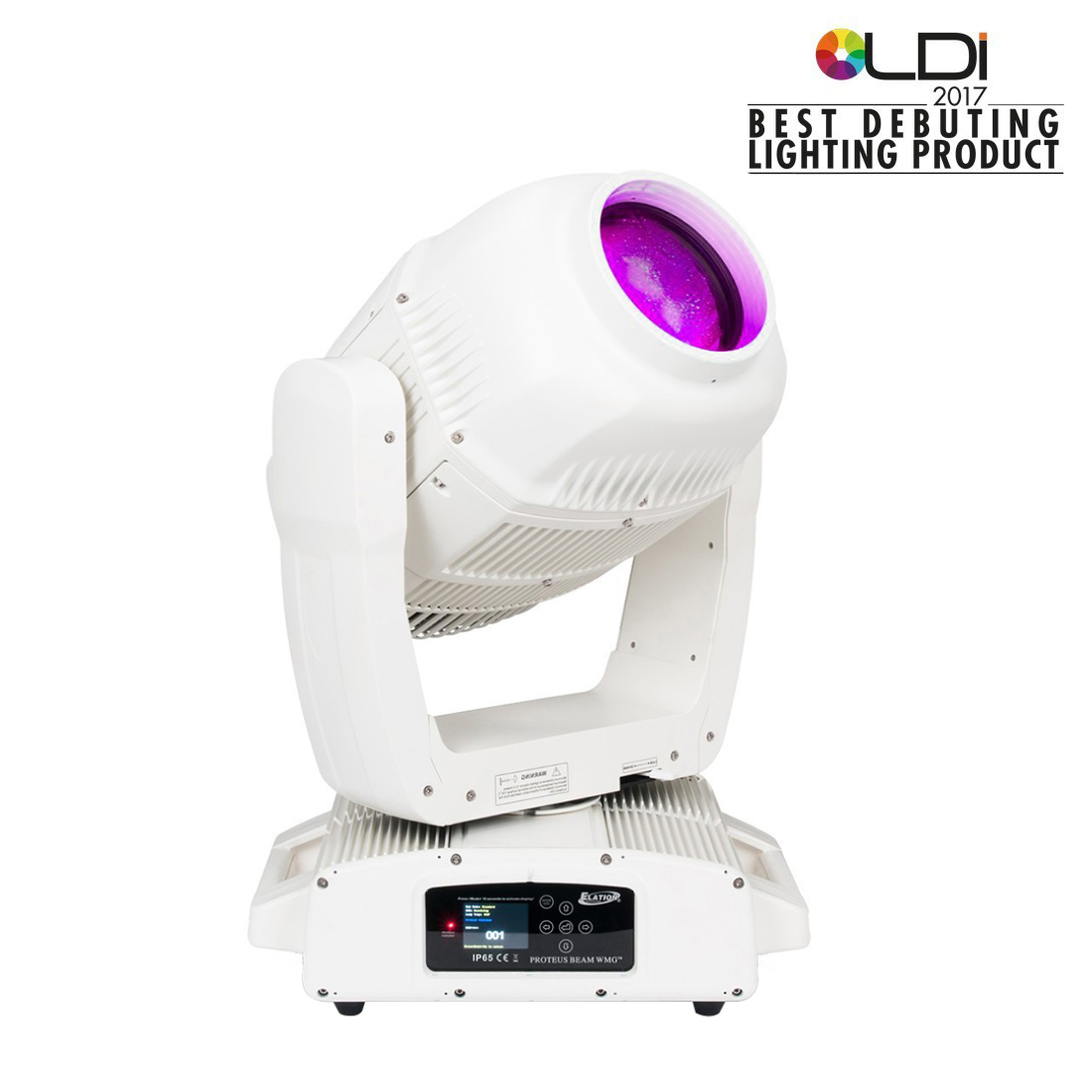

IP65 Rated Moving Head Beam LuminairePhilips™ MSD Platinum 14R 280W 80CRI 7,800K Lamp
Precise 2.5° Beam Aperture and Advanced Optics
Revolutionary Internal Cooling System
Full CMY Color Mixing
13 Dichroic Colors including CTB, CTO, and UV
8 Rotating Interchangeable Metal and 13 Static-Stamped Metal Gobos
5 and 32 Facet Rotating Prisms and Frost Filter
Motorized Focus and Auto-Focus
High Speed Mechanical Shutter and Strobe
DMX, RDM, Art-NET, and sACN Protocol Support
Elation’s E-FLY™ Internal Wireless DMX Transceiver
SOURCE
Philips™ MSD Platinum 14R 280W 80CRI, 7,800K1,500 Hour Average LAMP Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
136,800 LUX 12,709 FC @ 15m (49.2 ft) 2.5°EFFECTS
5 and 32 Facet Rotating Prism and Prism MacrosFrost Filter Hybrid Wash Effect
Motorized Focus and Auto Focus
High Speed Mechanical Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 260°
COLOR
13 Dichroic Colors including CTB, CTO, and UVFull CMY Color Mixing
GOBOS
(8) Interchangeable Rotating / Indexing Metal Gobos(13) Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (28 total channels)6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
DMX, RDM, Art-NET, and sACN Protocol Support
Elation E-Fly™ Internal Wireless DMX Transceiver
IP65 5pin XLR DMX In/Out
IP65 RJ45 ethernet In/Out (Art-NET, sACN)
IP65 Locking Power Cable In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 445mm (17.1”)Width: 454mm (17.87”)
Vertical Height: 680mm (26.77”)
Weight: 35.0kg (77.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz500W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
FIRMWARE UPDATES
Current firmware can be found here (login required)
Specifications and documentation subject to change without notice
COLORS AND GOBOS
Color Flags
![]() |
![]() |
![]() |
Color Wheel
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Gobo Wheel 1
![Gobo 1](/pub/media/gobos/wheel/Gobo1.png)
![Gobo 52](/pub/media/gobos/wheel/Gobo52.png)
![Gobo 53](/pub/media/gobos/wheel/Gobo53.png)
![Gobo 54](/pub/media/gobos/wheel/Gobo54.png)
![Gobo 71](/pub/media/gobos/wheel/Gobo71.png)
![Gobo 90](/pub/media/gobos/wheel/Gobo90.png)
![Gobo 91](/pub/media/gobos/wheel/Gobo91.png)
![Gobo 92](/pub/media/gobos/wheel/Gobo92.png)
Gobo Wheel 2
![Gobo 10](/pub/media/gobos/wheel/Gobo10.png)
![Gobo 12](/pub/media/gobos/wheel/Gobo12.png)
![Gobo 39](/pub/media/gobos/wheel/Gobo39.png)
![Gobo 40](/pub/media/gobos/wheel/Gobo40.png)
![Gobo 68](/pub/media/gobos/wheel/Gobo68.png)
![Gobo 69](/pub/media/gobos/wheel/Gobo69.png)
![Gobo 86](/pub/media/gobos/wheel/Gobo86.png)
![Gobo 93](/pub/media/gobos/wheel/Gobo93.png)
![Gobo 94](/pub/media/gobos/wheel/Gobo94.png)
![Gobo 95](/pub/media/gobos/wheel/Gobo95.png)
![Gobo 96](/pub/media/gobos/wheel/Gobo96.png)
![Gobo 97](/pub/media/gobos/wheel/Gobo97.png)
![Gobo 98](/pub/media/gobos/wheel/Gobo98.png)
Prisms
![Prism 3](/pub/media/prisms/prism_3.png)
