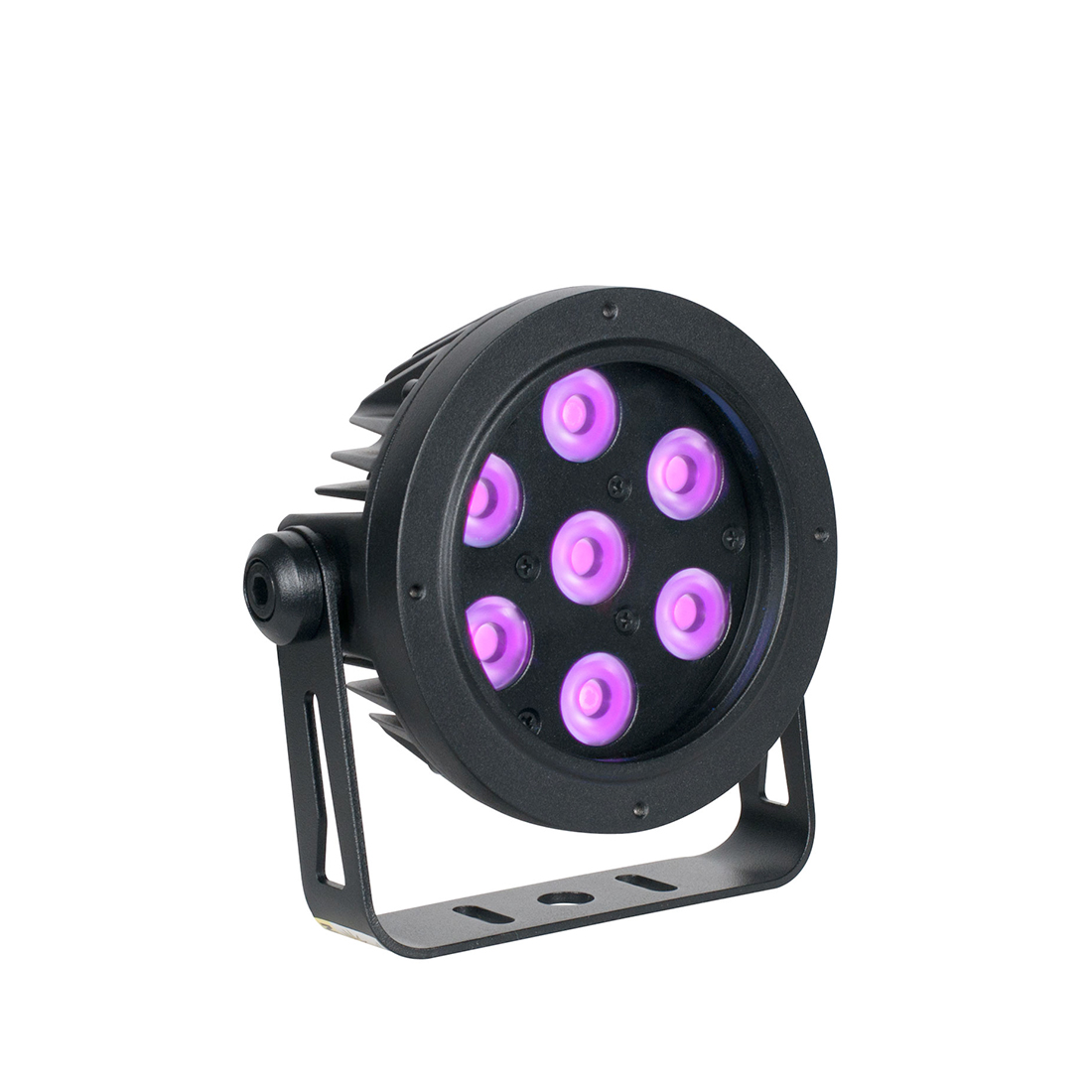

Prisma Mini Par 20

PRISMA MINI PAR 20™ is an IP65-rated exterior UV wash par luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20-degree beam angle.

Powered by the PRISMA DRIVER 8™ or PRISMA DRIVER 8IP™, 'Not Included'



Technical Data

FEATURES

IP65 Rated Exterior High-Power UV Wash Par Luminaire
20 Degree Narrow Beam Angle

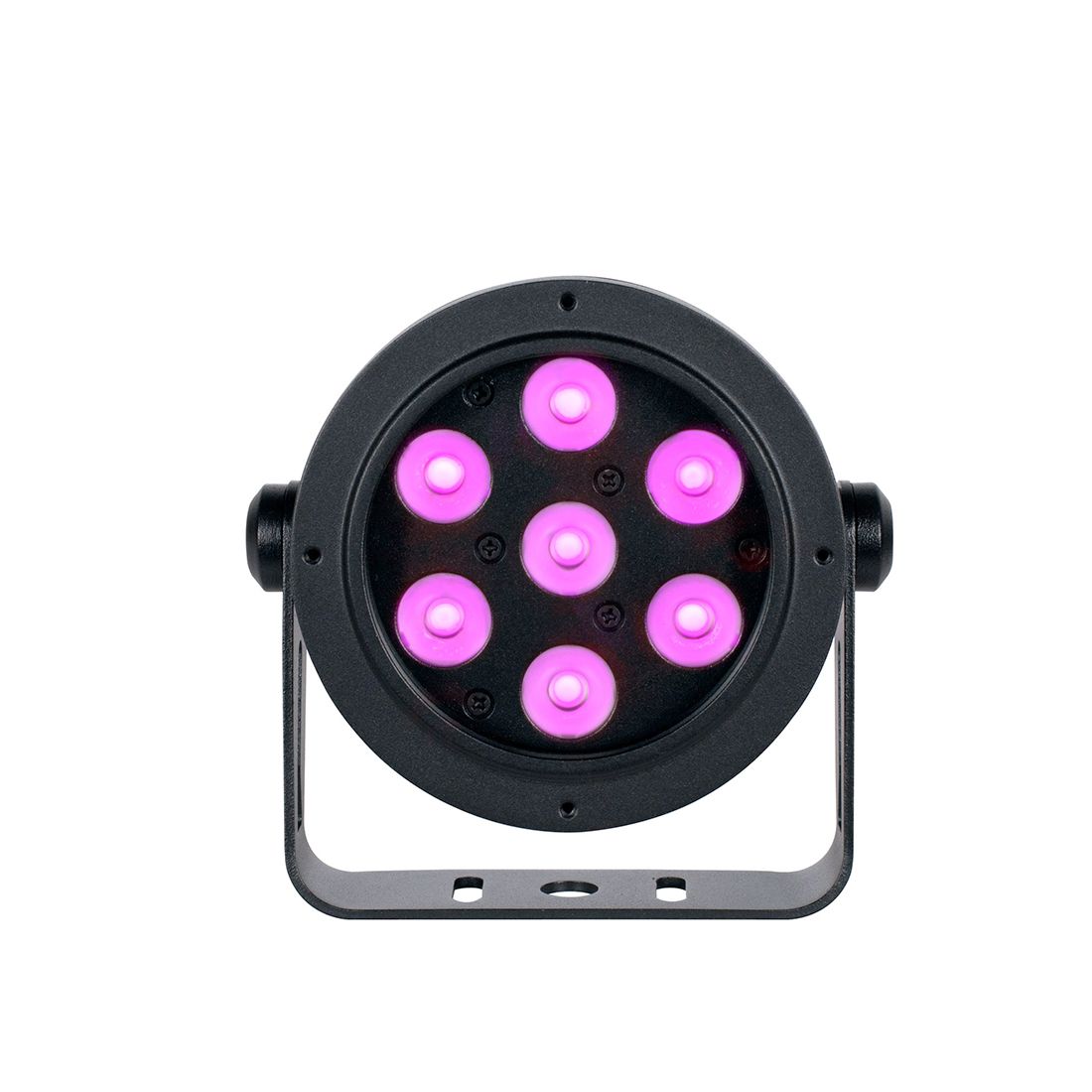

7 x 2 Watt LEDS
365nm True UV Peak Wavelength
2,75m (9') 0,65mm (22 AWG) 2 Conductor wire with Phoenix connector
Zero Visible Light Output
19 Watt Max Power Consumption

SPECIFICATIONS

SOURCE

(7) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength

EFFECTS

High Speed Electronic Strobe
Variable Dimming Curve Modes

CONSTRUCTION

Rugged IP65 Rated Aluminum Housing

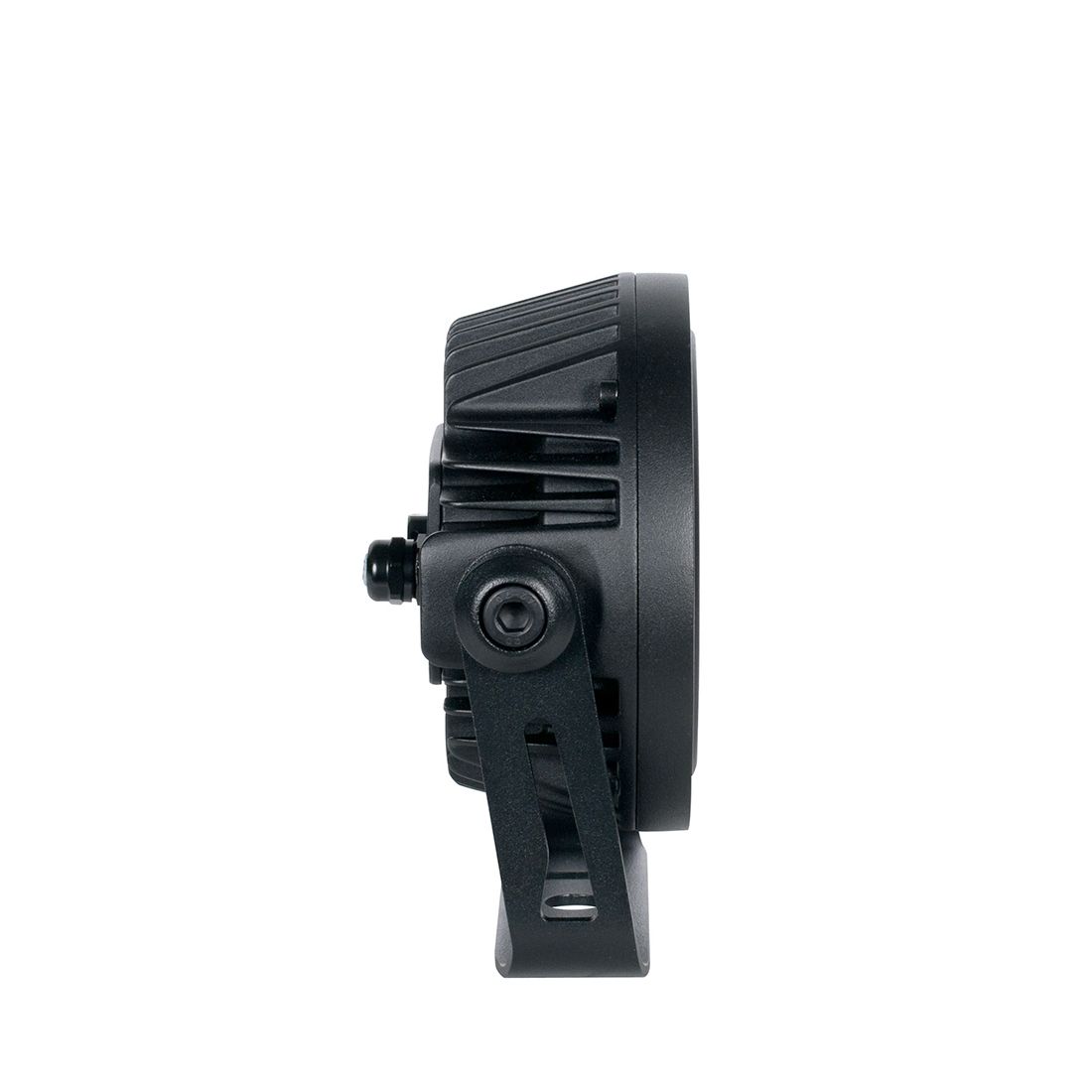

Adjustable Mounting Yoke

CONTROL (Via PRISMA DRIVER 8 or PRISMA DRIVER 8IP

)
Multiple DMX Channel Modes
DMX-512 and RDM Protocol Support

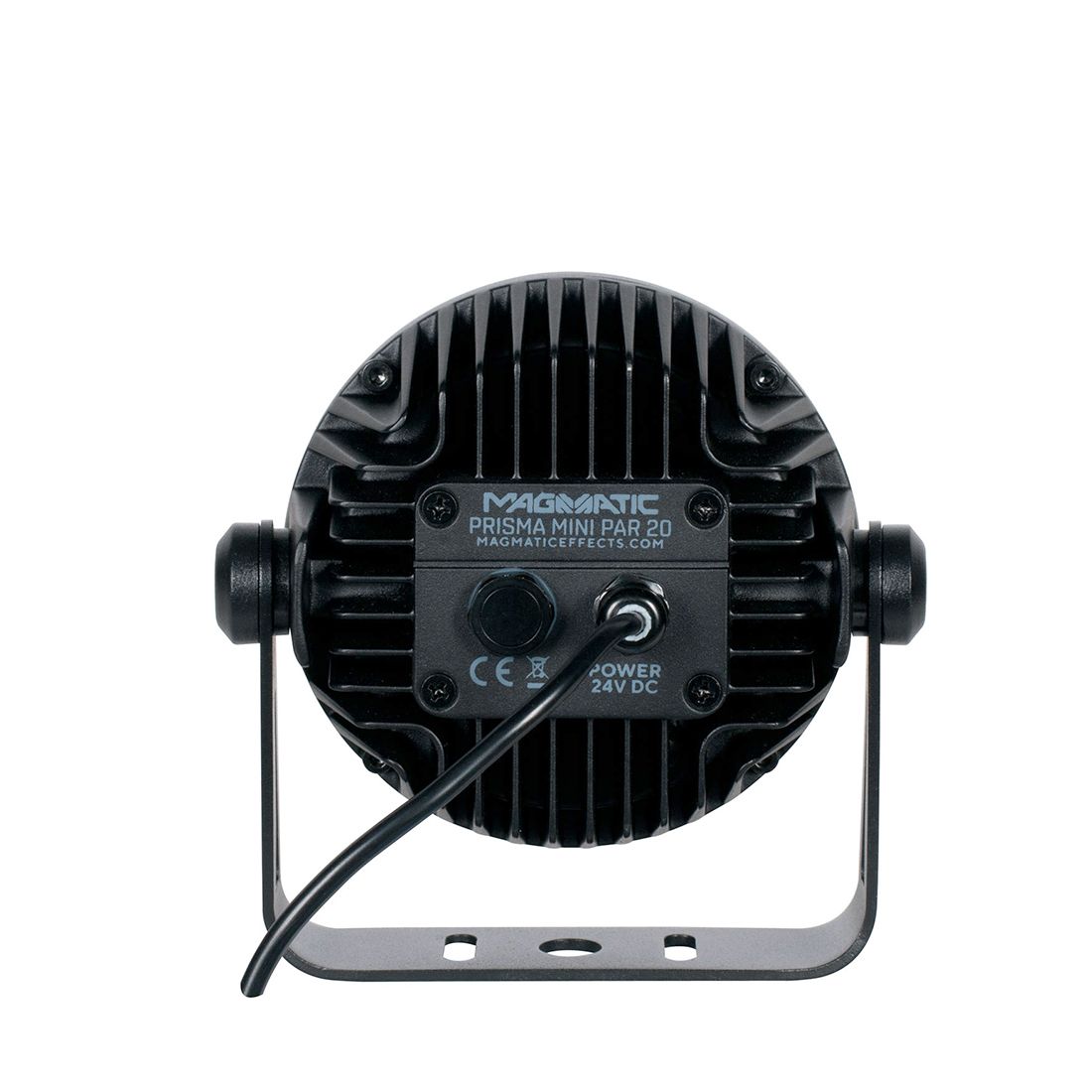

CONNECTIONS

2,75m (9') 0,65mm (22 AWG) 2 Conductor wire with Phoenix connector
Minimum Cable Requirement: 0,65mm (22 AWG)
Maximum Distance From Driver to Fixture: 12m (40')

SIZE / WEIGHT

Length: 144mm (5.66 in.)
Width: 72.8mm (2.86 in.)
Vertical Height: 143.3mm (5.64 in.)
Weight: 0.9kg (1.98 lbs.)

ELECTRICAL

DC 25V (Via Pixel Driver 8)
19W Max Power Consumption

THERMAL

-10°C to 45°C (14°F to 113°F)
Air Cooled

OPTIONAL ACCESSORIES

Black Glass Filter (see below in Related Products) - For the Prisma Mini Par 20 and Prisma Mini Par 45 fixtures. It will create a complete blackout effect, only allowing UV rays to penetrate, it is easy to install within seconds.

Specifications and documentation subject to change without notice
