Prisma Par 50

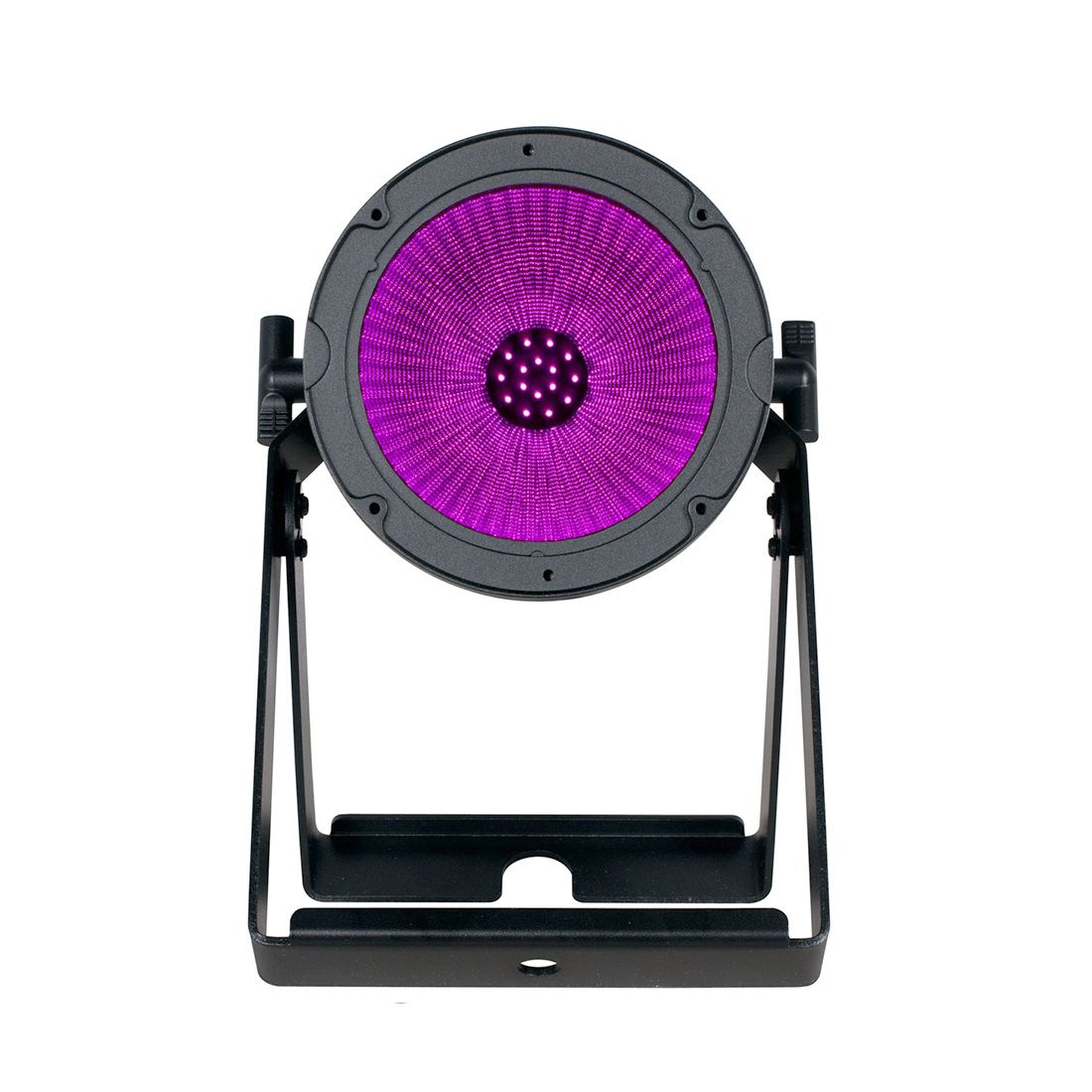

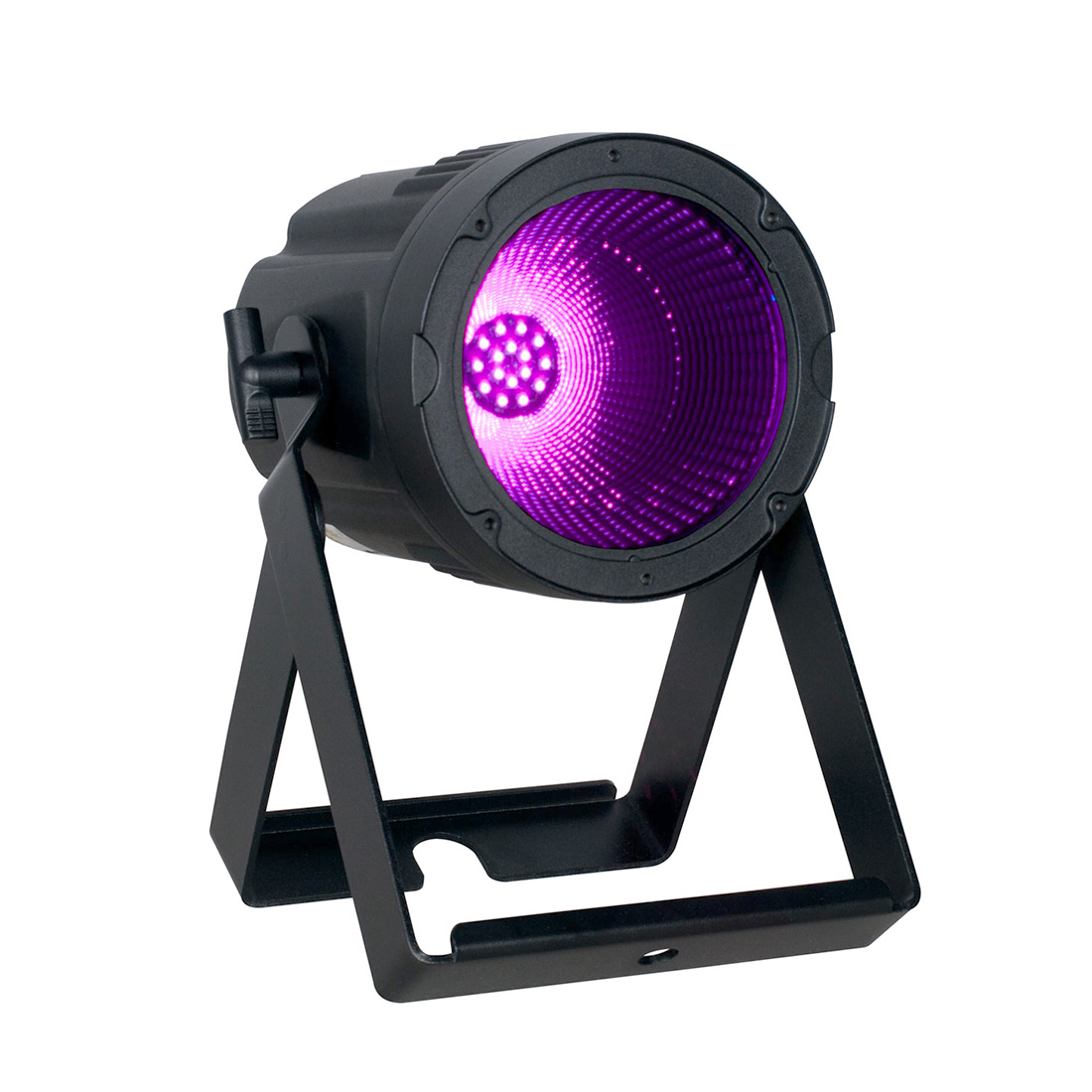

The PRISMA PAR 50™ is an exterior IP65 rated UV wash par luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 50 degree wide beam angle from the large internal LED reflector. Features includes a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control, dual adjustable mounting yokes, a durable aluminium housing, and IP65 DMX 5pin XLR and locking power in/out connections.

Technical Data

FEATURES

IP65 Rated Exterior High-Power UV Wash Par Luminaire
50 Degree Wide Beam Angle
365nm Peak True UV Wavelength
Zero Visible Light Output

SPECIFICATIONS

SOURCE

(16) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

50 Degree Narrow Beam Angle
365nm True UV Peak Wavelength

EFFECTS

High Speed Electronic Strobe
Variable Dimming Curve Modes

CONSTRUCTION

Rugged IP65 Rated Aluminum Housing

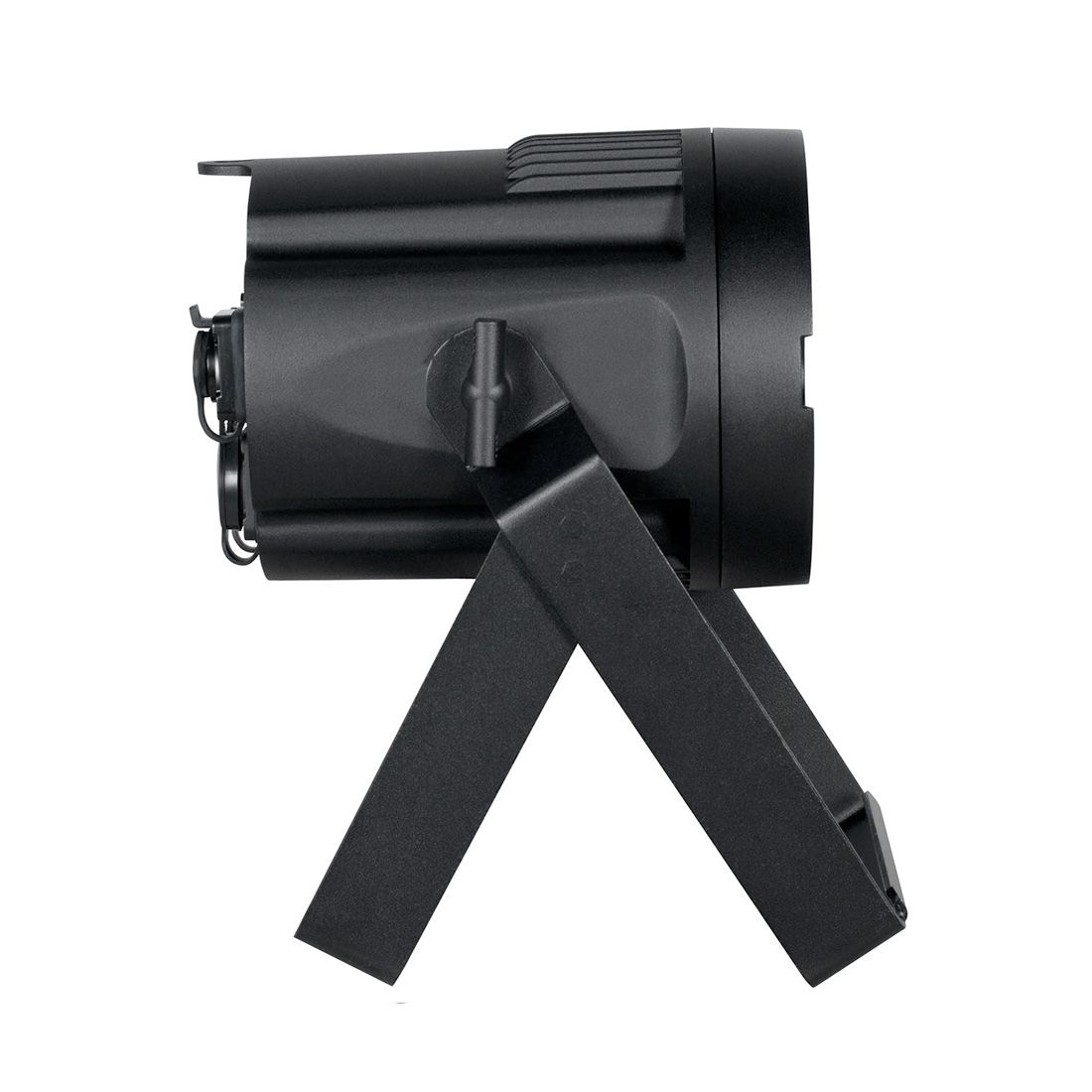

Dual Adjustable Mounting Yokes

CONTROL

Multiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support

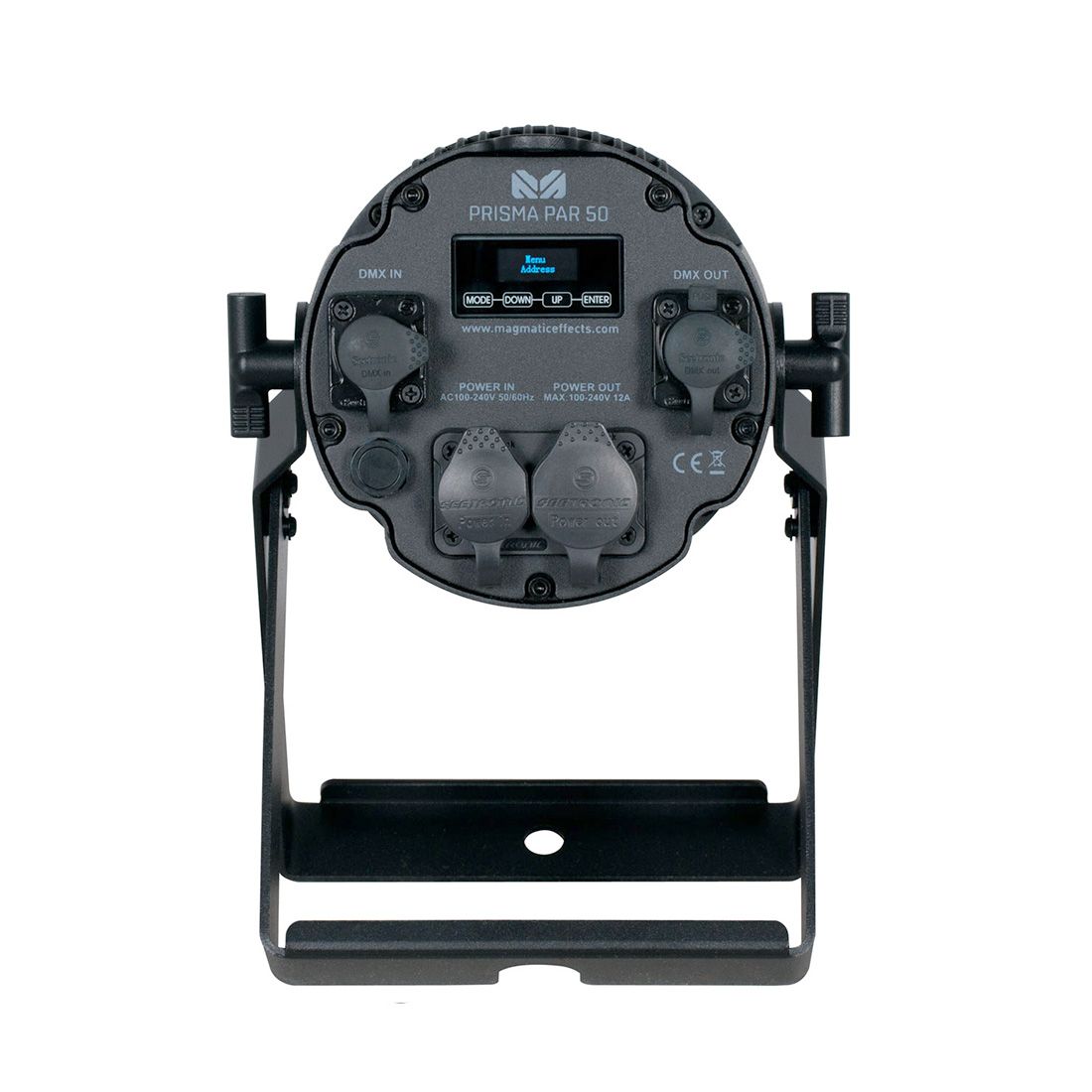

CONNECTIONS

Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector InWith
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 7.55 in. (192mm)
Width: 5.90 in. (150mm)
Vertical Height: 12.36 in. (314mm)
Weight: 7.05 lbs. (3.2kg)

ELECTRICAL

AC100-240V 50-60Hz
37W Max Power Consumption

THERMAL

14°F to 113°F (-10°C to 45°C)
Air Cooled

OPTIONAL ACCESSORIES

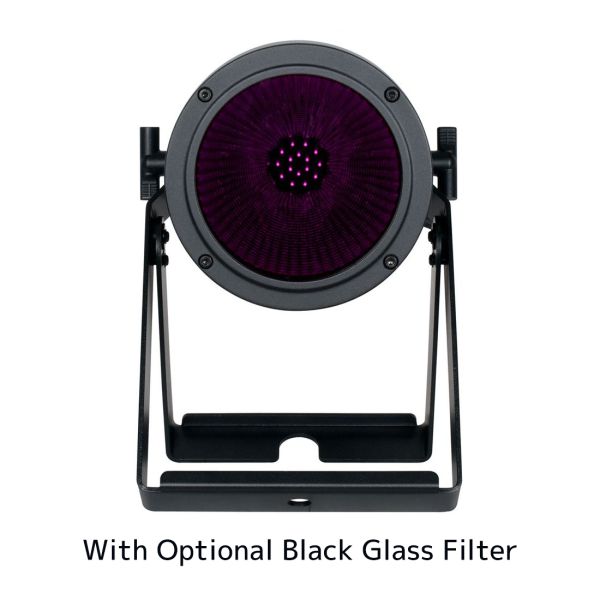

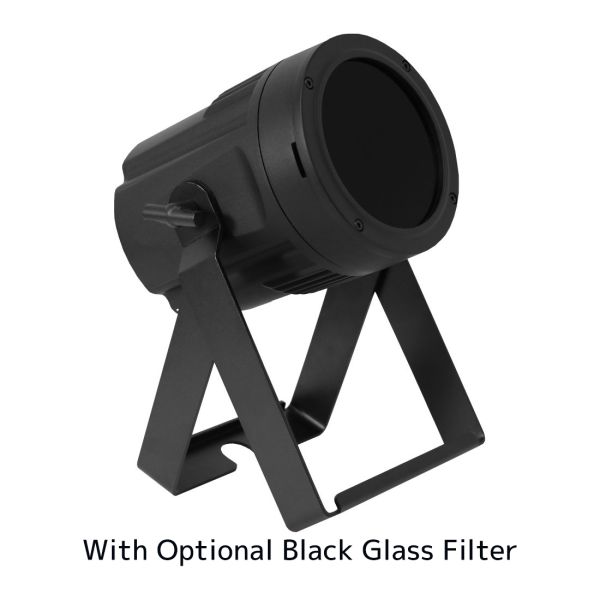

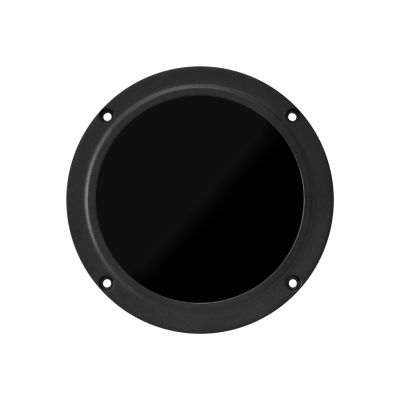

Black Glass Diffusion Filter (see below in Related Products) - For the Prisma Par 20 and Prisma Par 50 fixtures. It will create a complete blackout effect, only allowing UV rays to penetrate, it is easy to install within seconds.


Specifications and documentation subject to change without notice
