Prisma Mini Bar 20

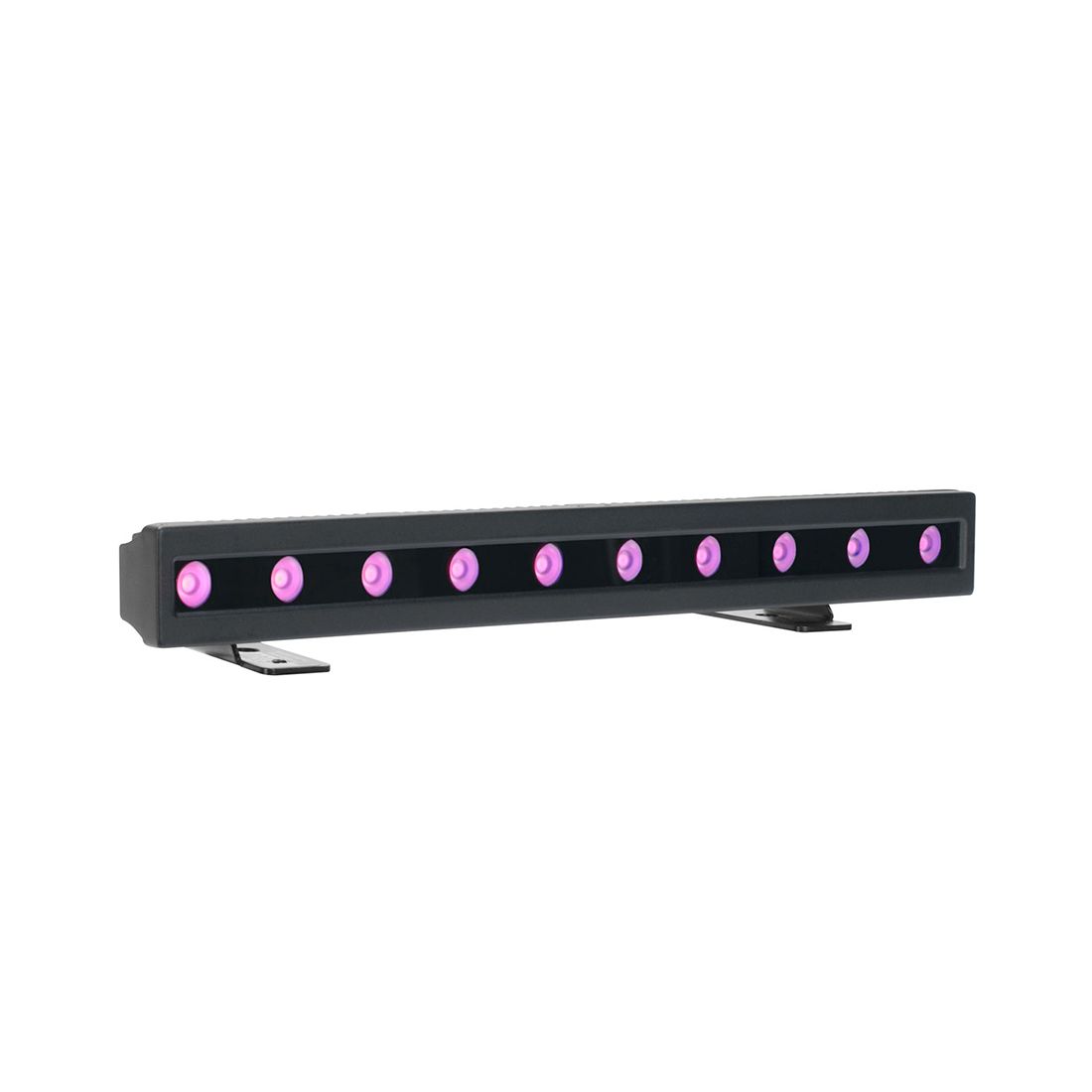

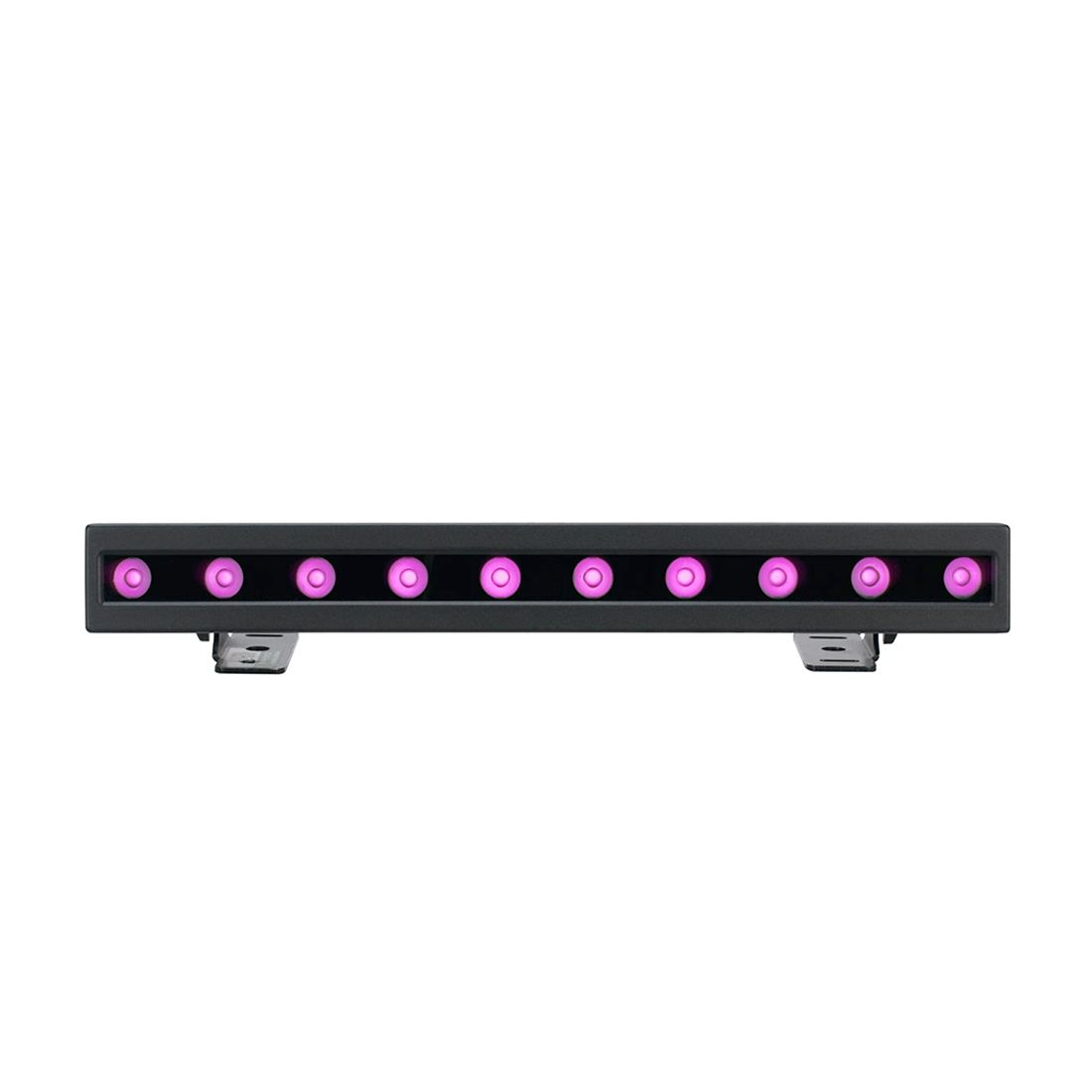

The PRISMA MINI BAR 20™ is an IP65 rated exterior UV wash bar luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20 degree beam angle.

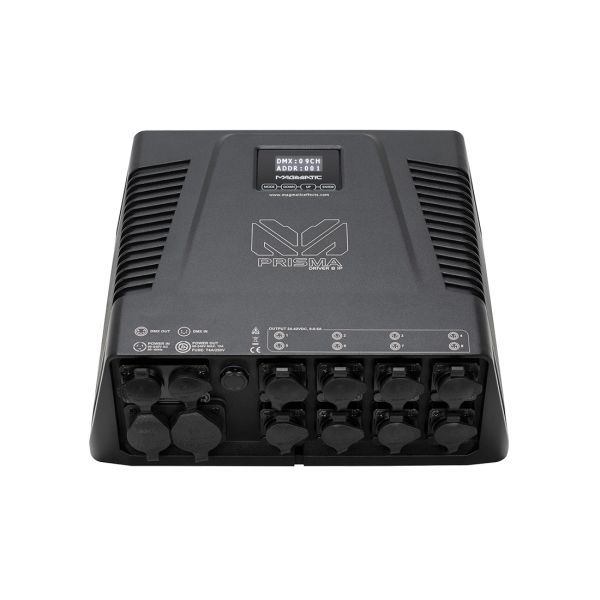

Powered by the PRISMA DRIVER 8™, features 2 adjustable mounting brackets, a durable aluminium housing, and a 6 ft (1.8m) 2-Conductor 14 Gauge IP rated power/data pigtail cable.

Technical Data

FEATURES

* * * P R E L I M I N A R Y * * *

IP65 Rated Exterior High-Power UV Wash Bar Luminaire
20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength
Zero Visible Light Output
IP Rated Power/Data Pigtail Cable Attached

SPECIFICATIONS

* * * P R E L I M I N A R Y * * *

SOURCE

(10) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength

EFFECTS

High Speed Electronic Strobe
Variable Dimming Curve Modes

CONSTRUCTION

Rugged IP65 Rated Aluminum Housing

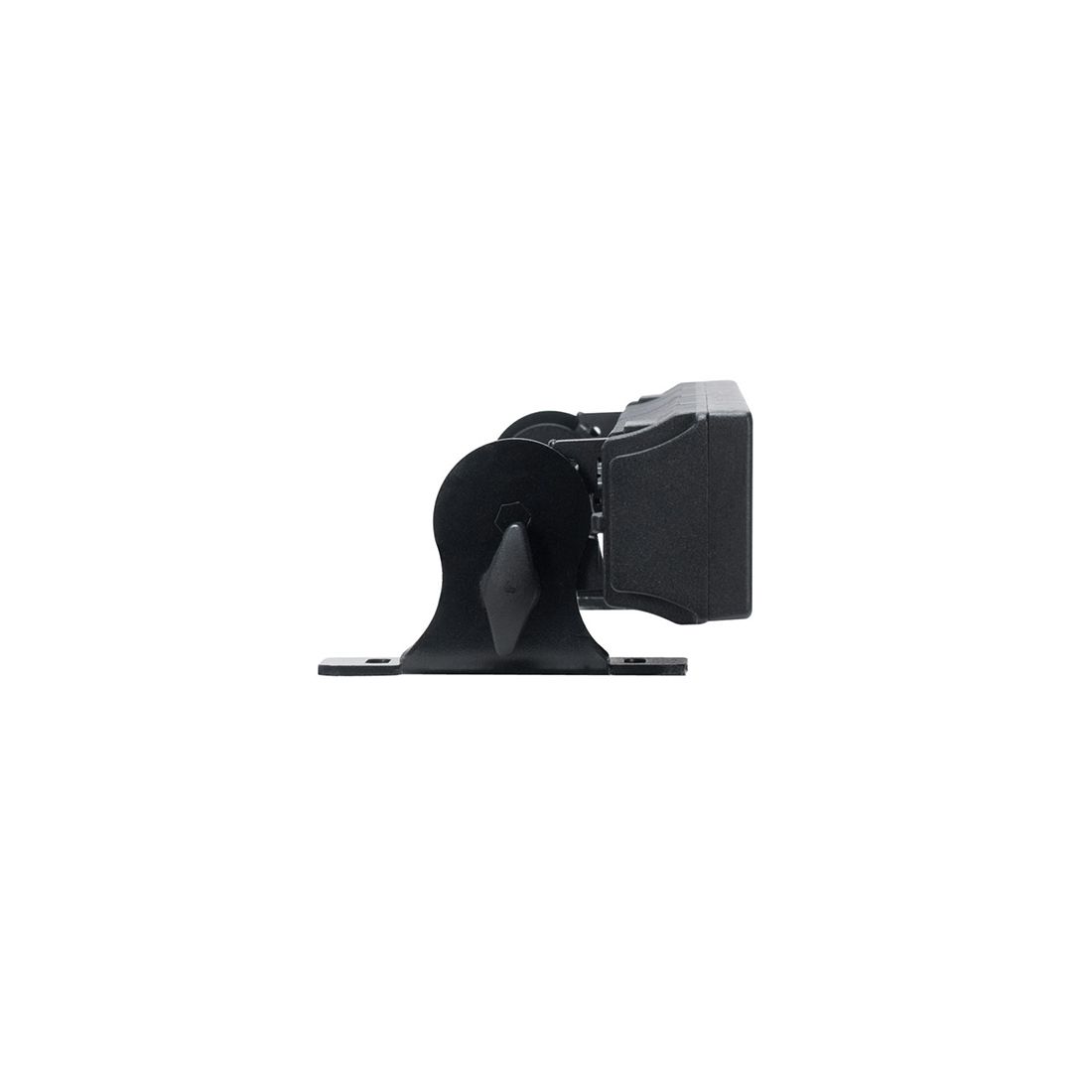

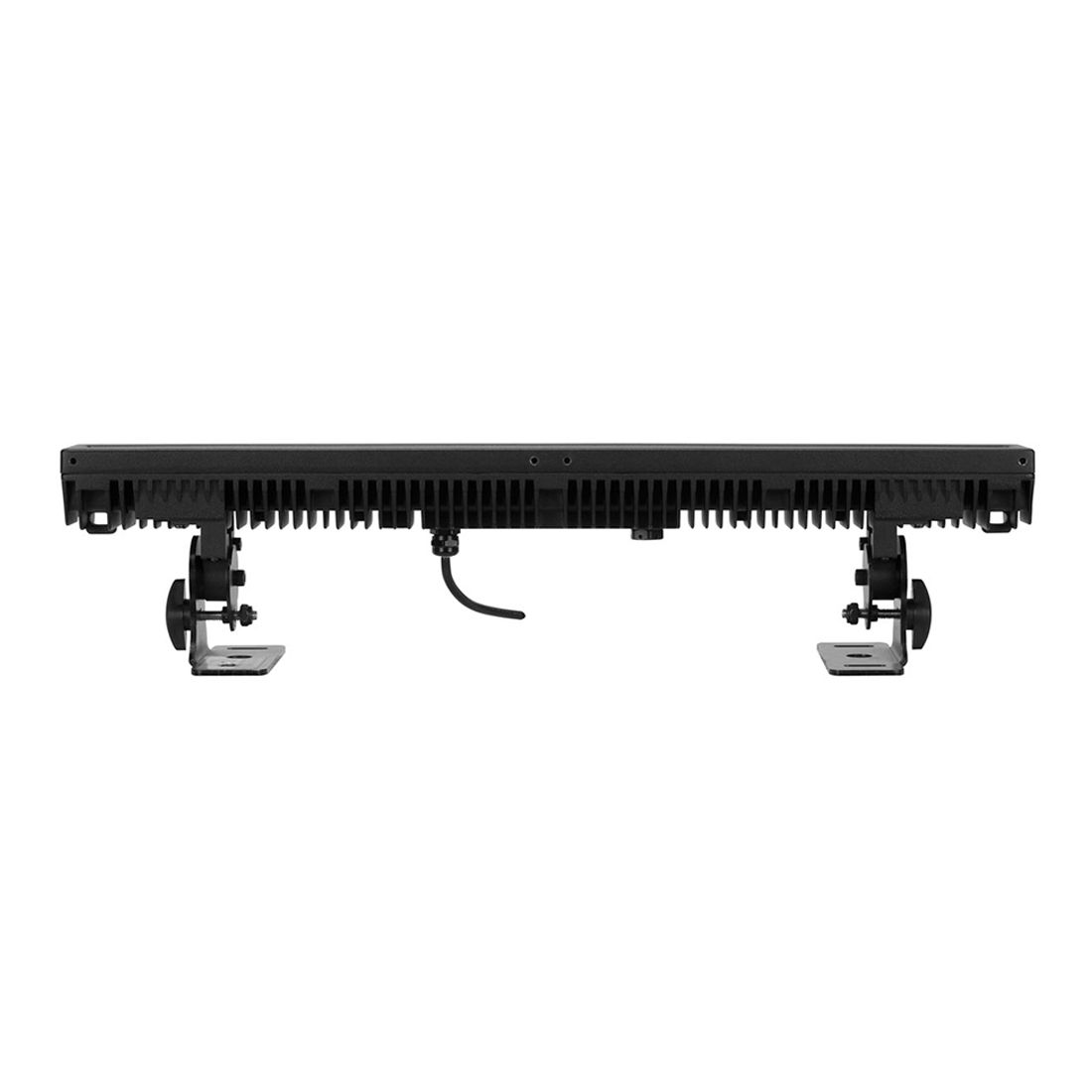

Adjustable Mounting Brackets (x2)

CONTROL

Multiple DMX Channel Modes
DMX-512 and RDM Protocol Support

CONNECTIONS

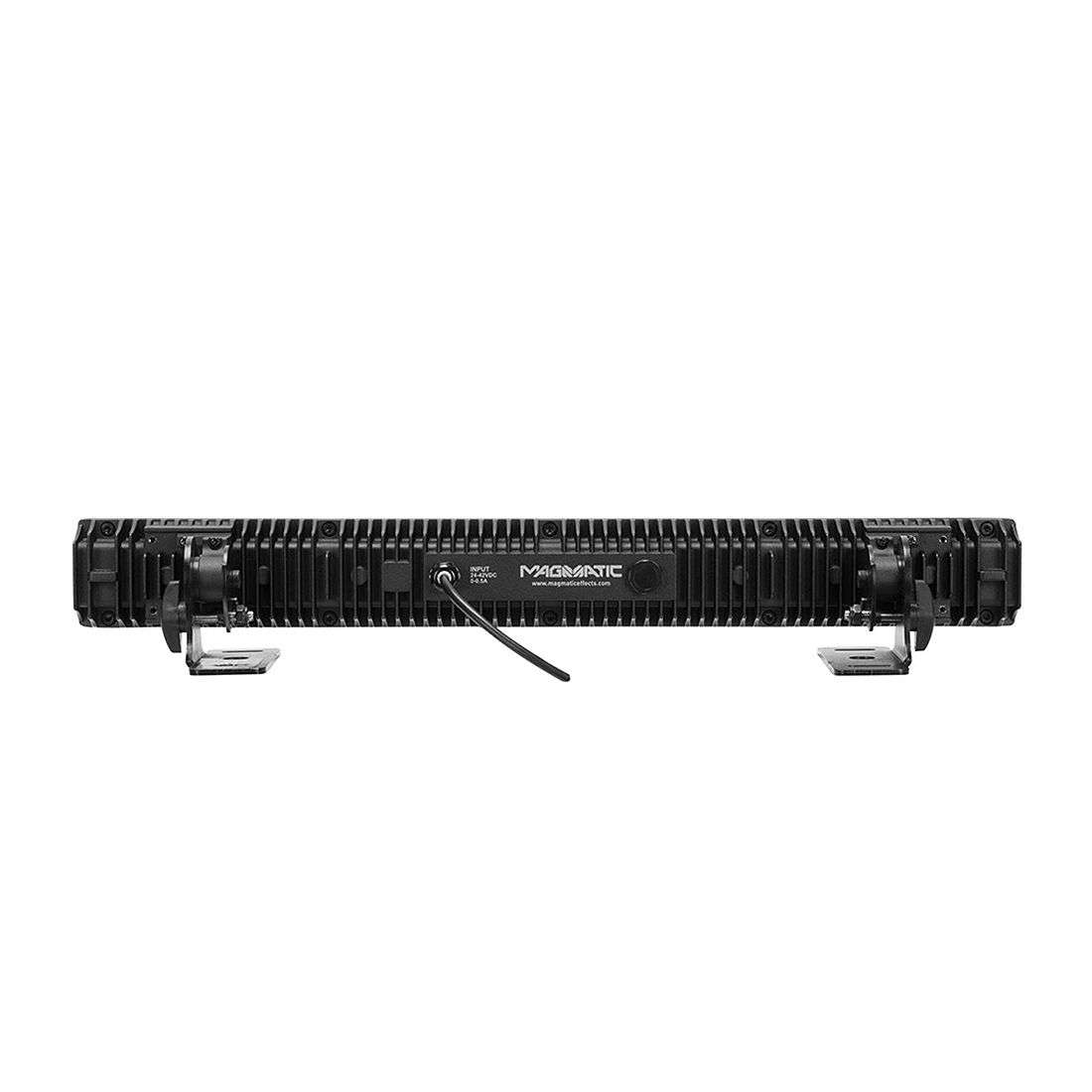

6 ft (1.8m) 2-Conductor 14 Gauge IP Rated Power/Data Pigtail Cable Attached
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 18.90 in. (480mm)
Width: 3.93 in. (100mm)
Vertical Height: 4.40 in. (112mm)
Weight: 4.2 lbs. (2.2kg)

ELECTRICAL

AC100-240V 50-60Hz
25W Max Power Consumption

THERMAL

14°F to 113°F (-10°C to 45°C)
Air Cooled

OPTIONAL ACCESSORIES

Black Glass Diffusion Filter (see below in Related Products) - It will create a complete blackout effect, only allowing UV rays to penetrate, it is easy to install within seconds.


Specifications and documentation subject to change without notice
