Prisma Driver 8 IP

FEATURES

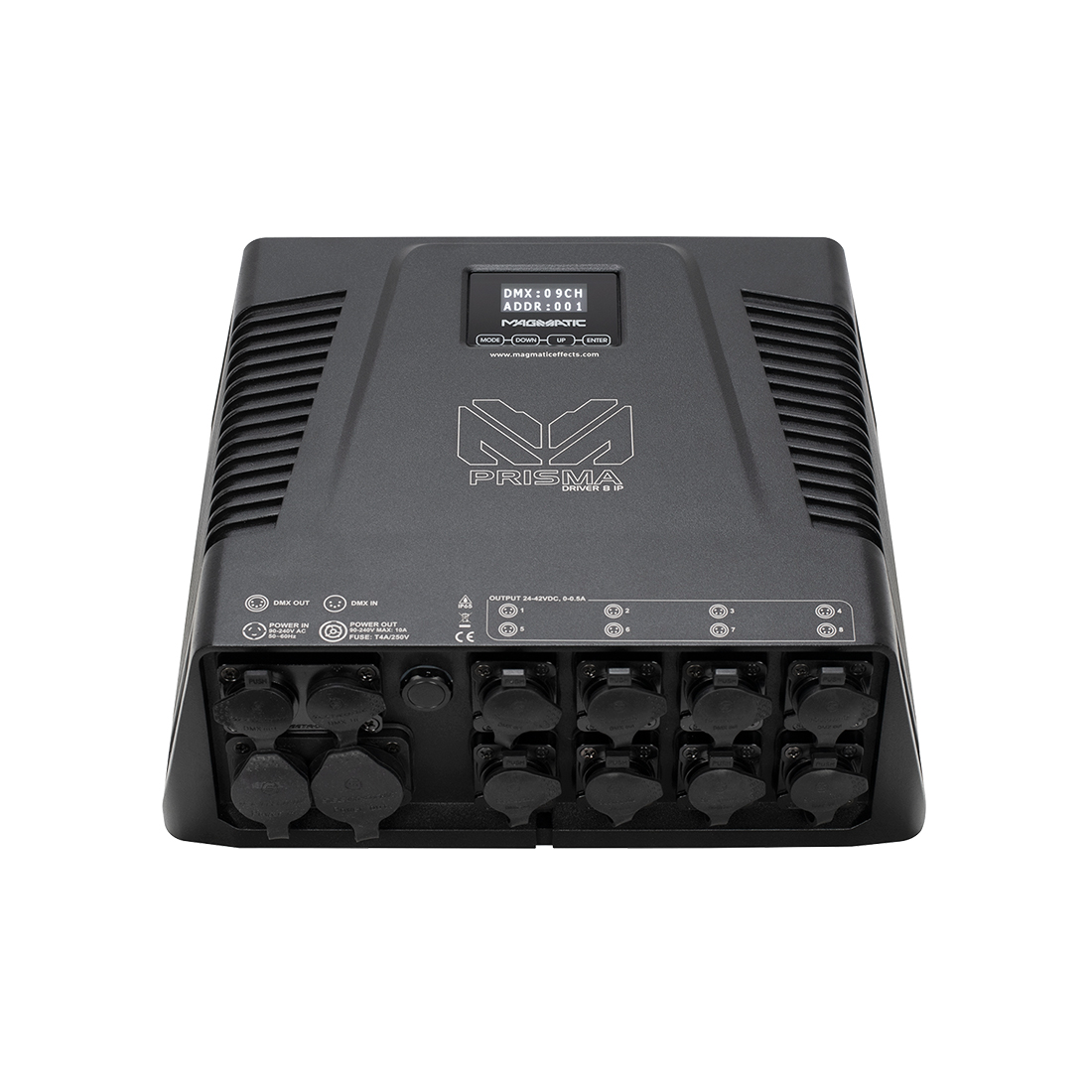

Features include a rugged IP65 housing, easy keyhole slots for wall and surface mounting, multiple DMX control modes, an onboard 4 button touch control panel, 8x 4pin locking output sockets, DMX 5pin locking XLR in/out and locking power in/out.

SPECIFICATIONS

CONSTRUCTION

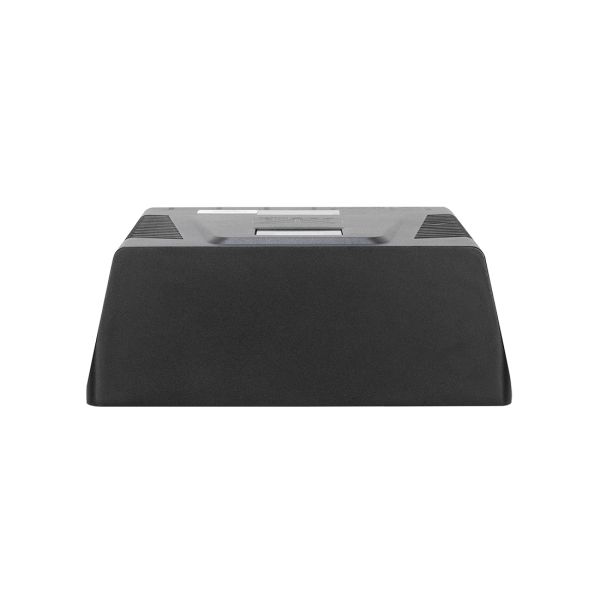

Rugged IP65 Housing
Easy Keyhole Slots for Wall/Surface Mounting

CONTROL

Multiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support

CONNECTIONS

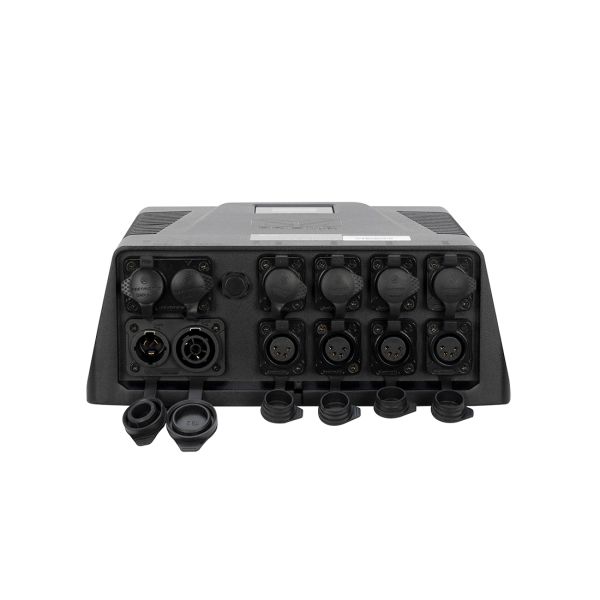

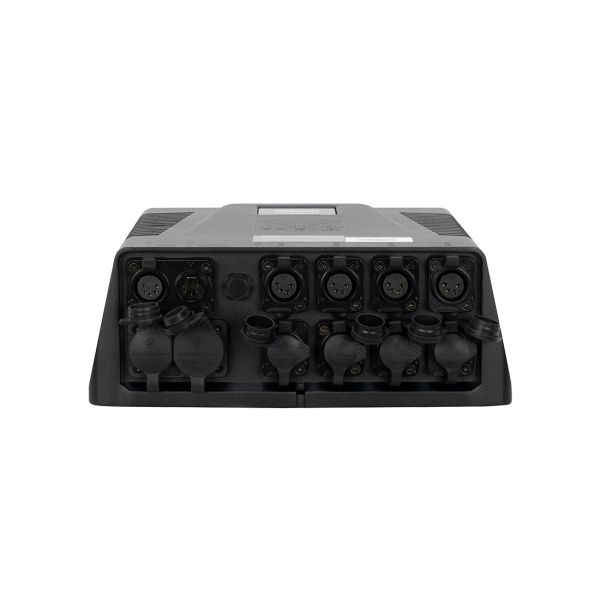

8 x 4pin locking output sockets (8 PRISMA MINI fixtures max)
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 227.8mm (9.0 in.)
Width: 264mm (10.4 in.)
Height: 105.9mm (4.2 in.)
Weight: 3.65 kg (8.05 lbs.)

ELECTRICAL

AC 90-240V, 50-60Hz
48VDC 8.3A
167W Max Power Consumption

THERMAL

Maximum Temperature (Ambient): 113° F (45° C)
Minimum Temperature (Ambient): 14° F (-10° C)
