The NX SYNC captures timecode in various SMPTE formats from its 3-pin XLR connection and converts it to a MIDI Timecode (MTC) stream, where it can be read into ONYX or any other MIDI Timecode compatible software. Additionally, it also has the power to take MTC and send it back out as SMPTE.

The NX SYNC contains a powerful hardware architecture for instant processing and minimal frame delays. It allows the ONYX software to read Linear Timecode (LTC) signals for perfect cue synchronization with external devices like sound or video playback systems.

The NX SYNC does not require custom drivers, and in addition to working with ONYX, it can be used as a SMPTE to MTC/ MTC to SMPTE device for both Windows 10 and MAC OS software applications.

Click here for more information on NX SYNC & for all technical details and documentation

Technical Data

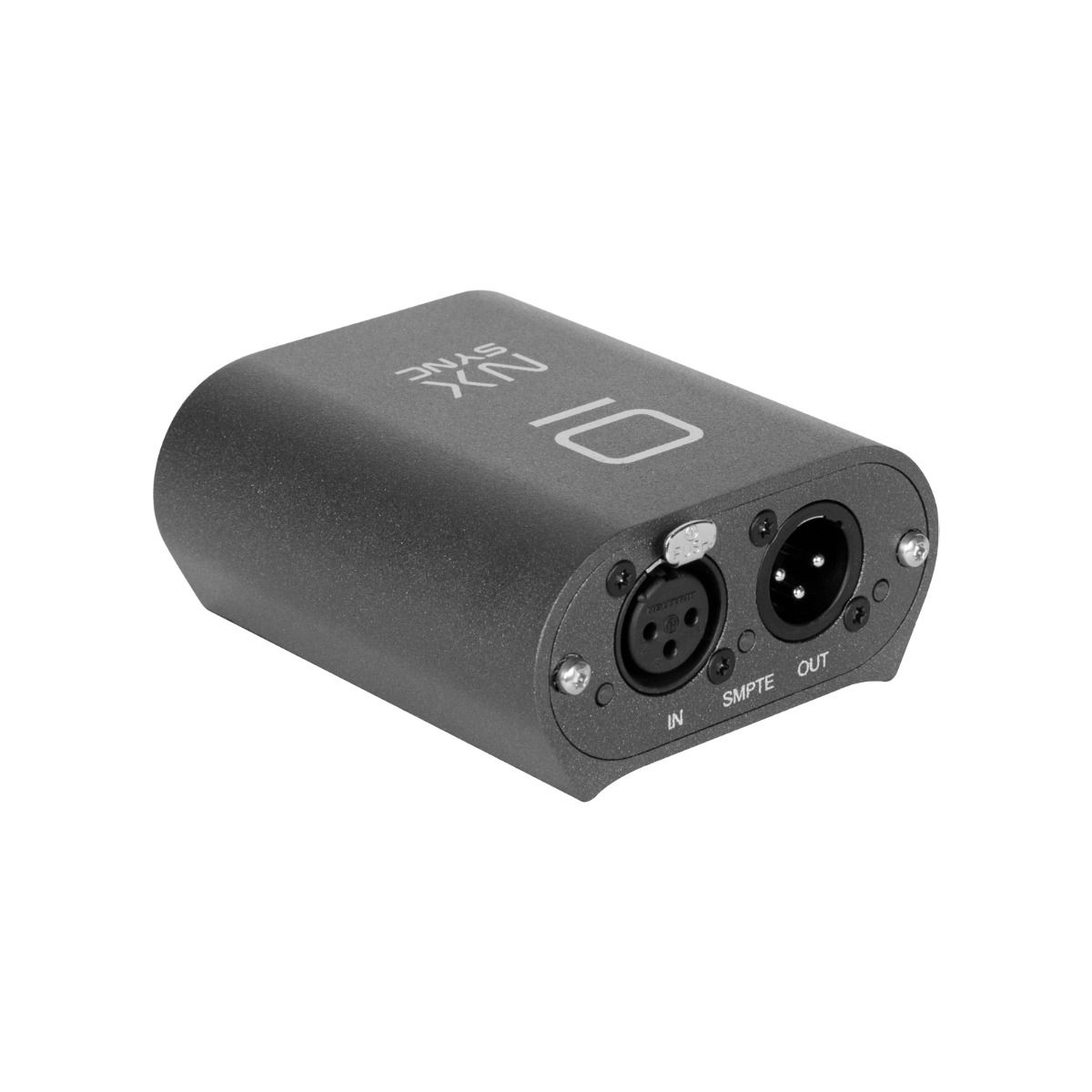

Two 3-pin XLR connectors for LTC Timecode In/Out
SMPTE Timecode @ 24, 25, 29.97 and 30 frames per second
Native Plug-and-Play USB Connection for ONYX, PC and MAC (no custom drivers required)
USB Powered
Convenient, space-saving, stackable design
Rugged impact-resistant housing



Timecode In: 3-pin locking XLR, female
Timecode Out: 3-pin locking XLR, male

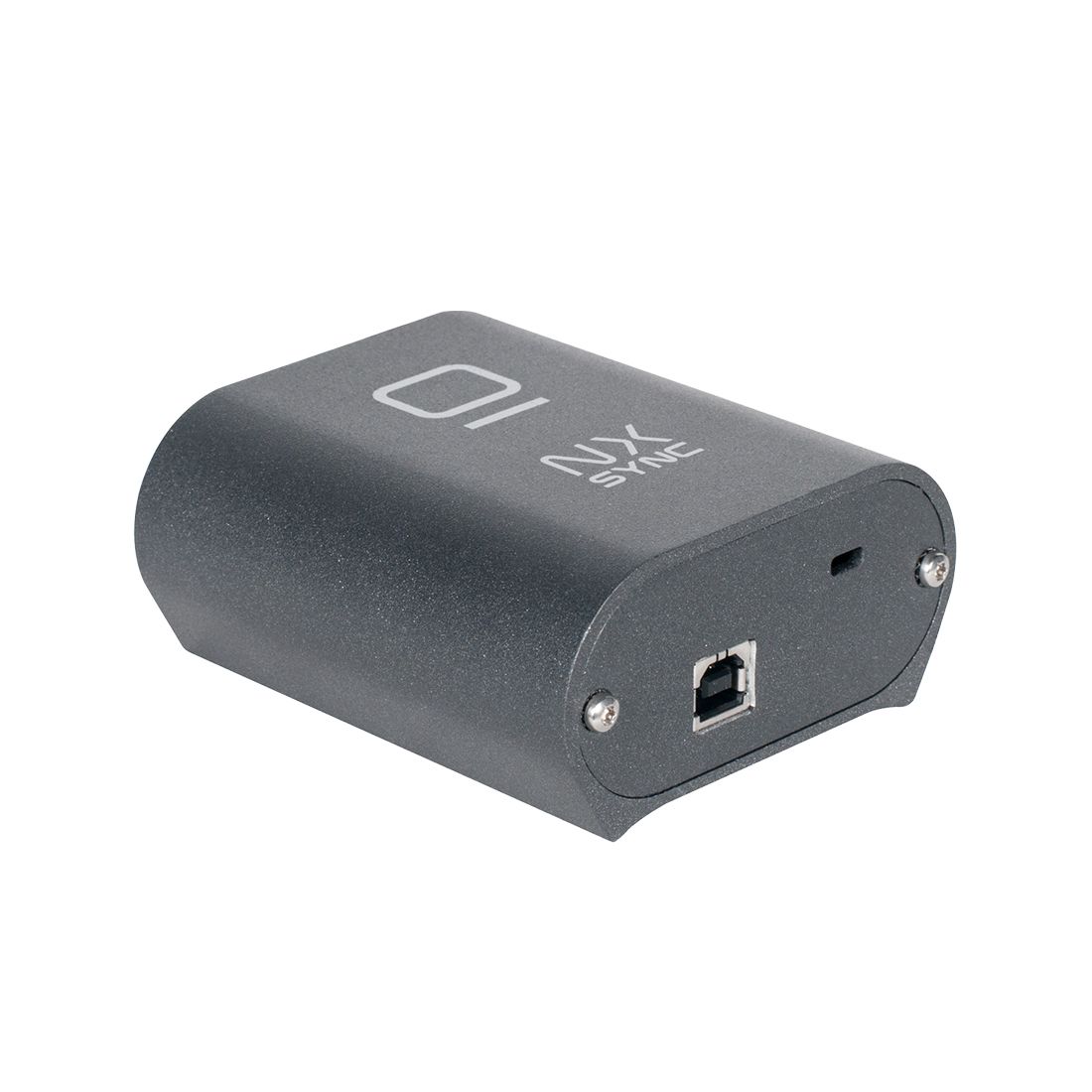

USB In: USB 2.0 B


SMPTE (LTC) 24, 25, 29.97 and 30 frame/sec.
Windows 10
MAC OS 10.13 or higher


Length: 92 mm (3.7 in.)
Width: 82 mm (3.3 in.)
Height: 41mm (1.7 in.)
Weight: 245g (0.6 lbs.)


5V over USB

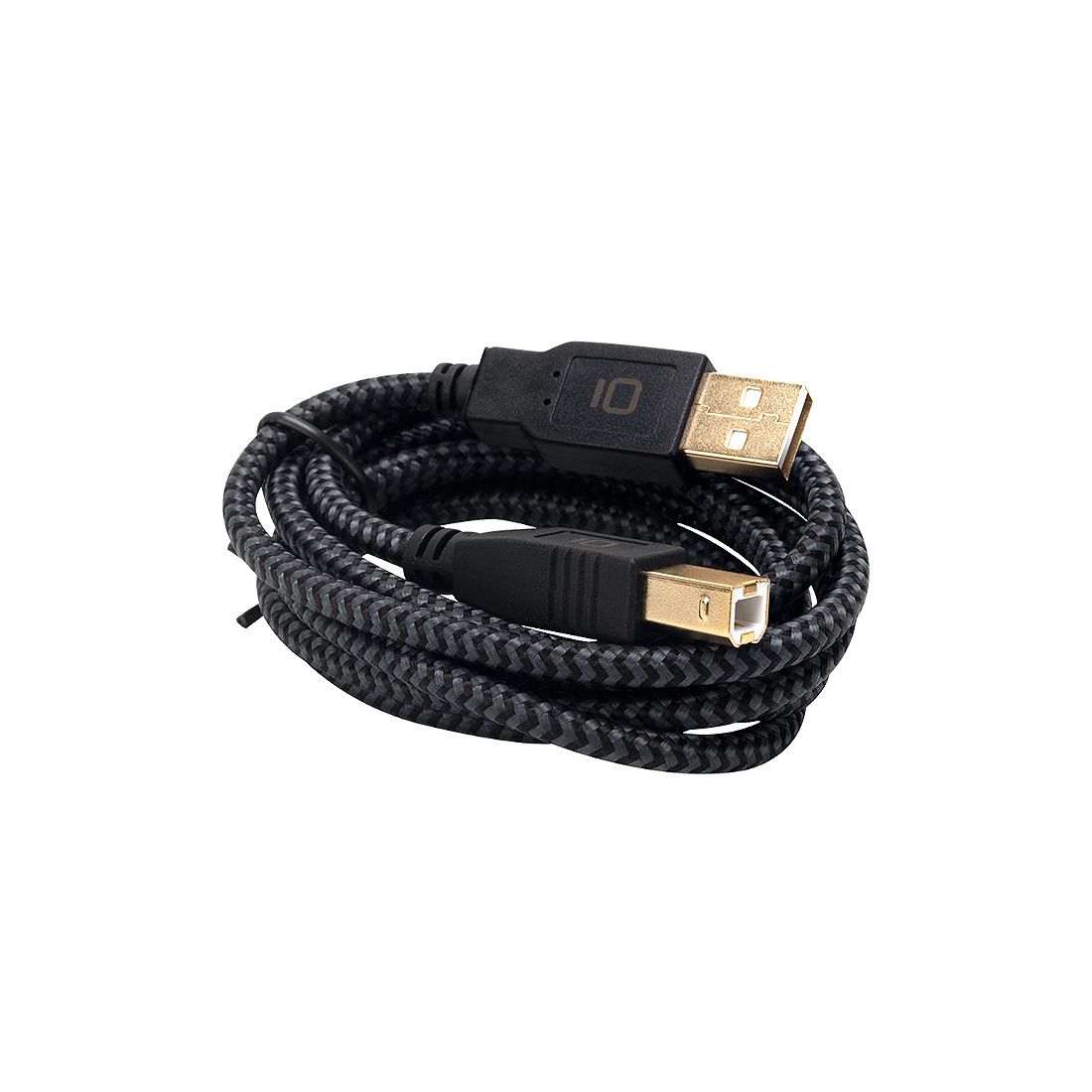

Obsidian Hi-Speed USB Cable


Specifications and documentation subject to change without notice
