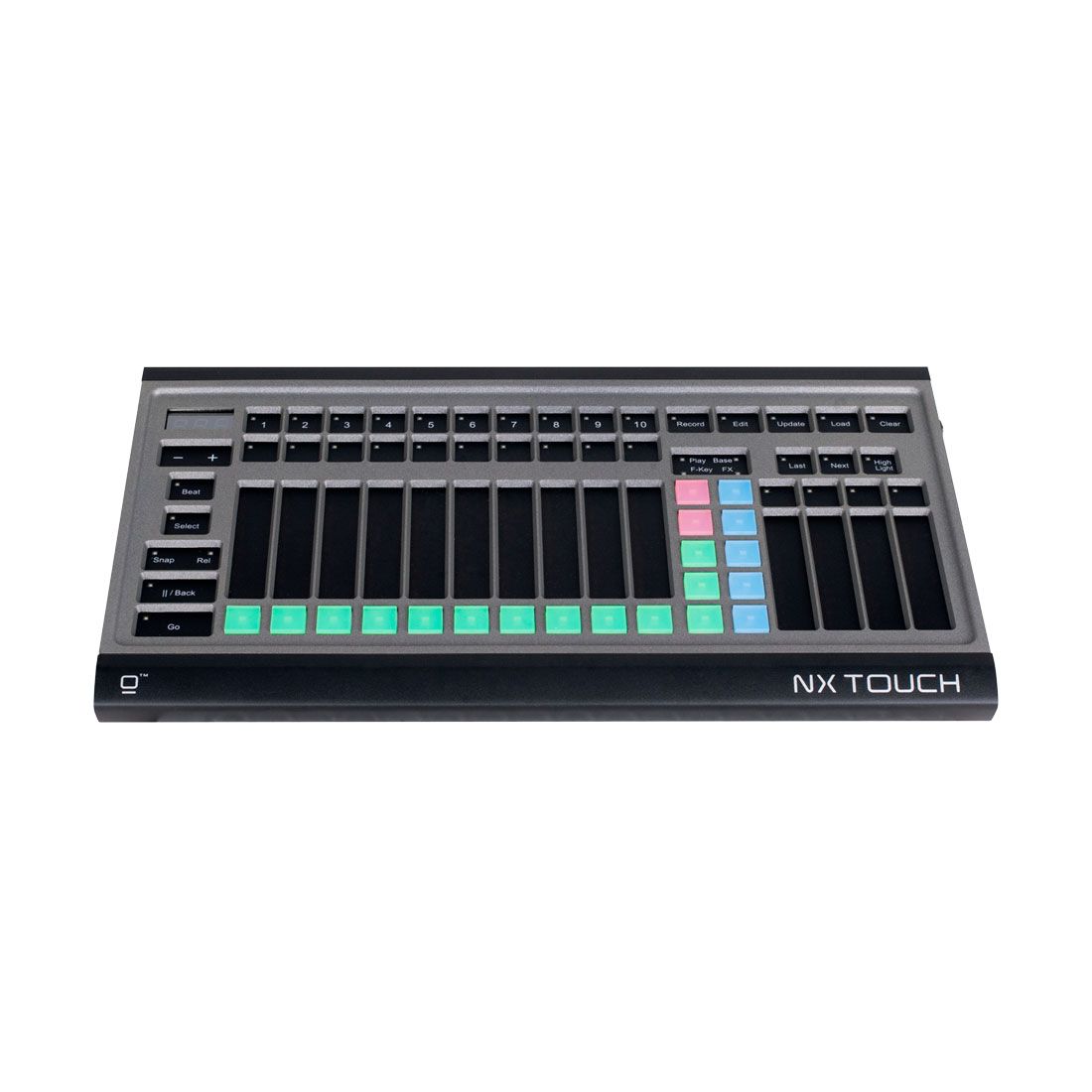

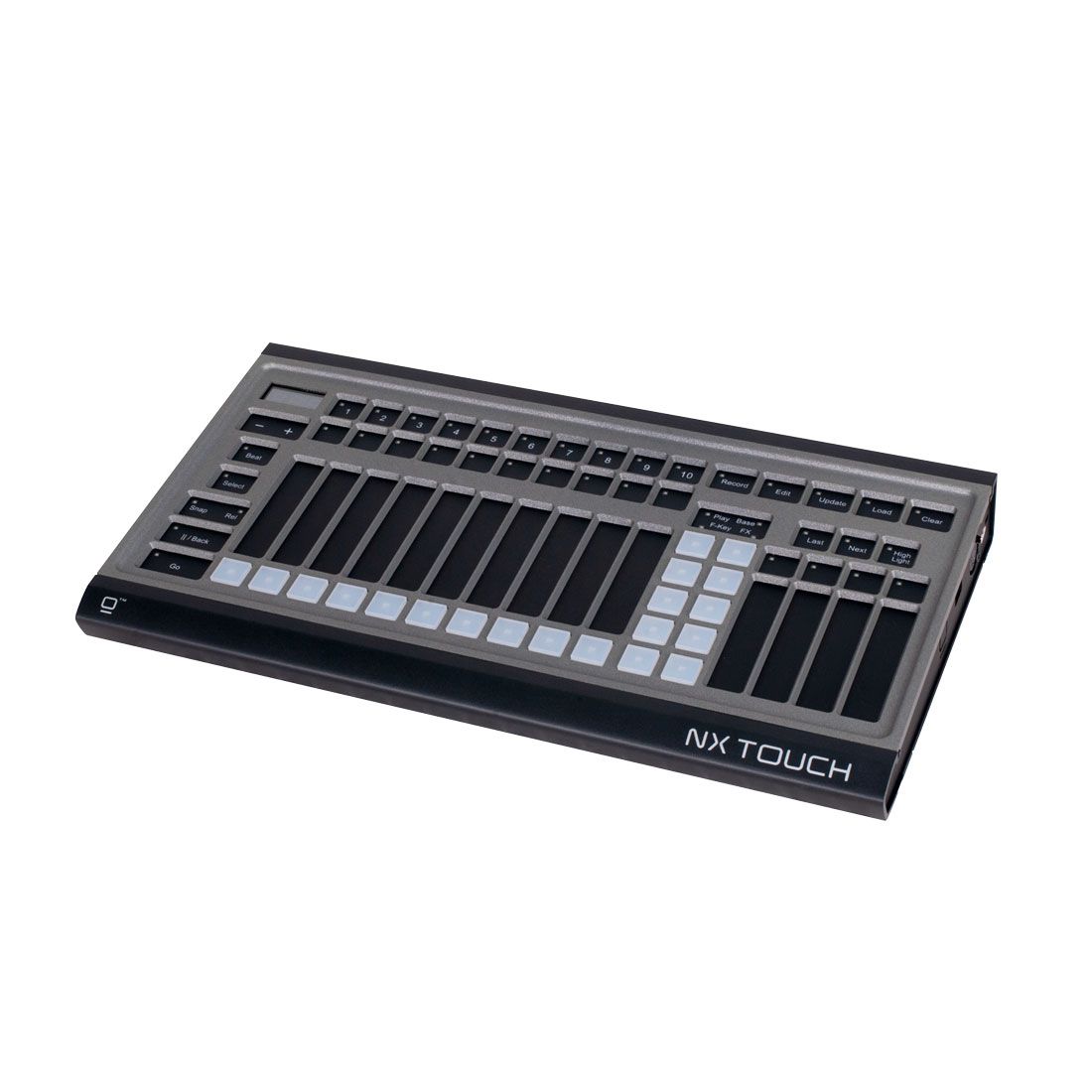

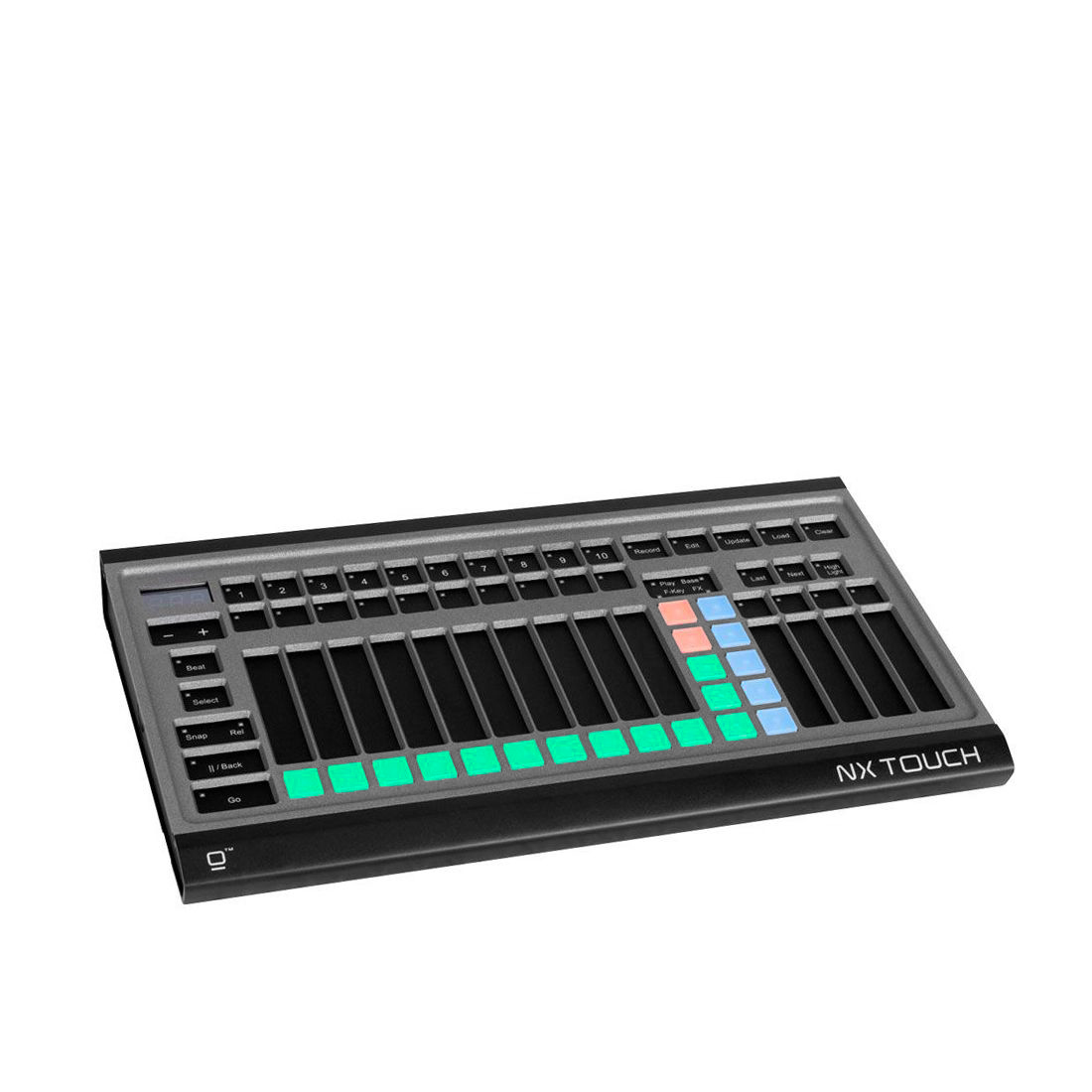

NX Touch

The NX Touch is a powerful yet simple control surface for the ONYX platform, Fully compatible with all ONYX consoles and PC software, NX Touch is a plug-and-play solution with an innovative control surface like no other lighting console.

14 touch faders allow control of playbacks and fixture parameters while 20 velocity-controlled pads allow for new types of effects. Additional programming buttons such as Record, Edit, Update, Load and Clear are accessible directly from the NX Touch control panel. NX Touch includes one DMX port for direct control of any compatible DMX device and enables the ONYX NOVA license for up to 4 Universes.

Click here to learn more about NX Touch & for all technical details and documentation



Technical Data

FEATURES

ONYX NOVA License (4 Universes)
USB control surface for both smaller applications and professional use
Combined playback and programming surface with innovative touch fader technology
Pressure sensitive flash buttons
10 Playbacks, 10 multi-purpose function keys, 4 digital encoders
Portable, rugged and lightweight design

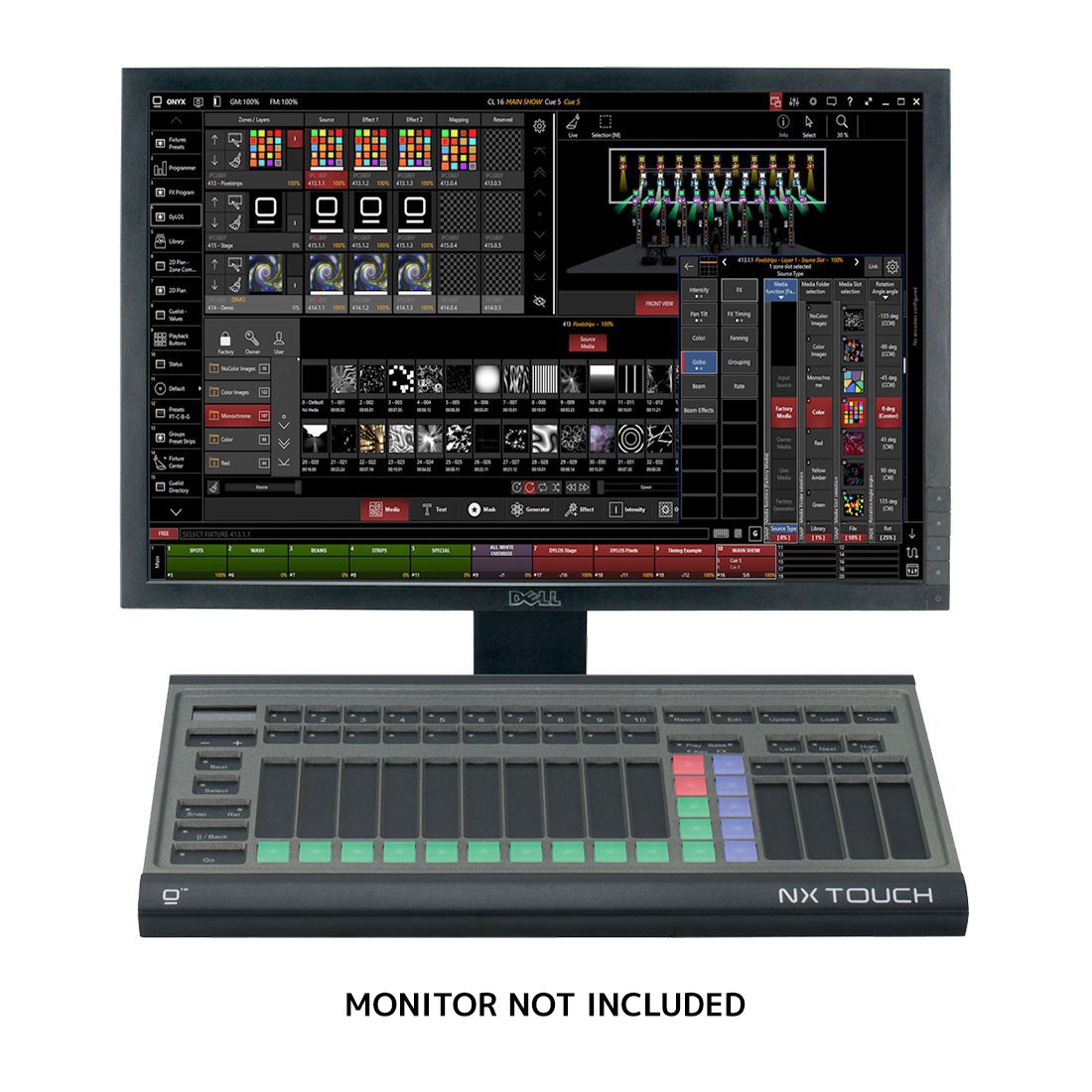

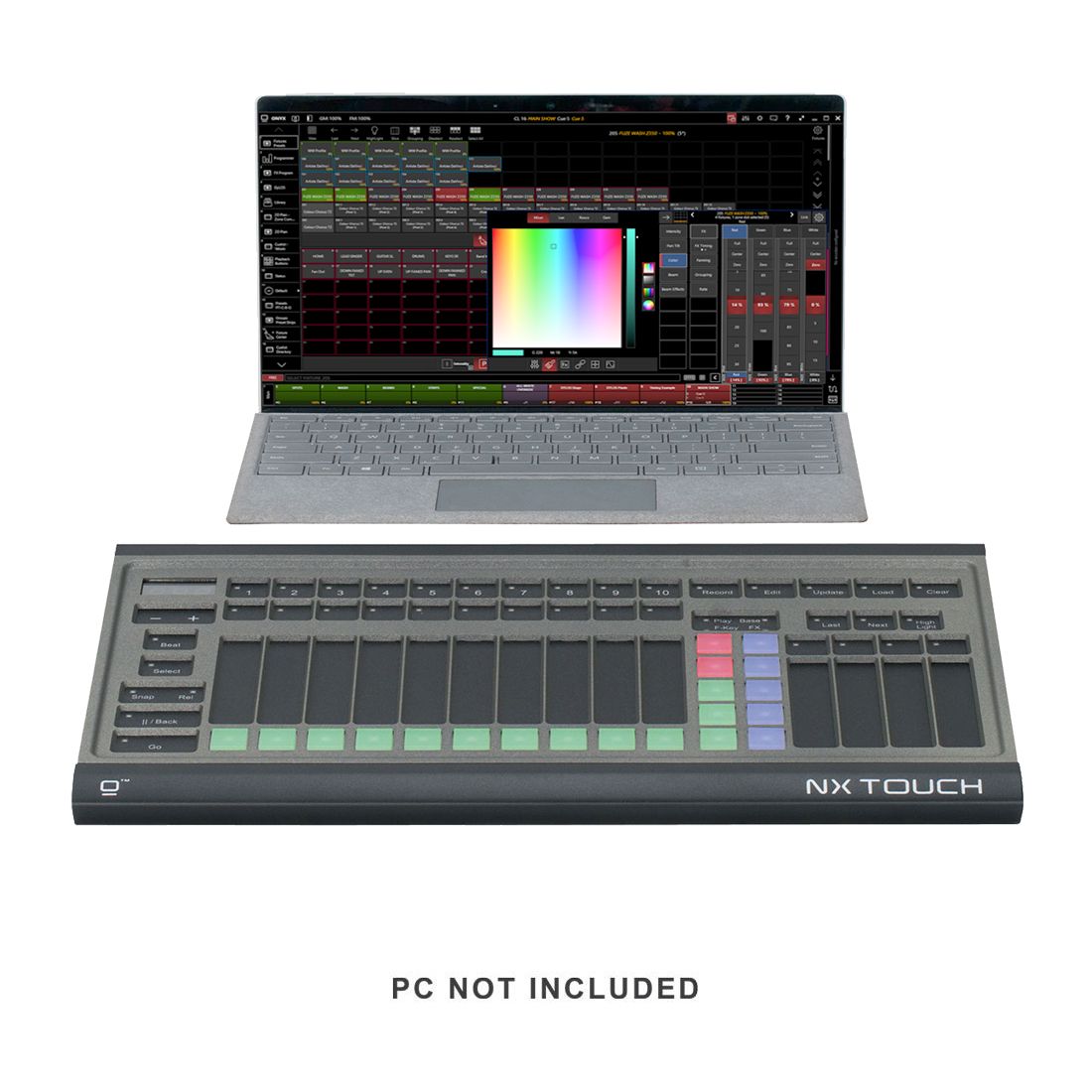

USB connection for ONYX on PC systems or as expansion wing for all ONYX consoles
Integrated DMX output, expandable up to 128 Universes
Plug and Play USB device without external power supply
Rackmount option

SPECIFICATIONS

SURFACE


Bank Navigation Up/Down with numerical display
Main Go section: Snap, Release, Pause and Go buttons
Command Buttons: Record, Edit, Update, Load, Clear
Multifunction Mode Select button
Fixture Selection buttons: Last, Next, Highlight
4x Parameter Select buttons
4x Parameter Adjust touch faders
10x Function velocity pads
10x Playback touch faders with 3 buttons
2x touch pad
1x velocity pad

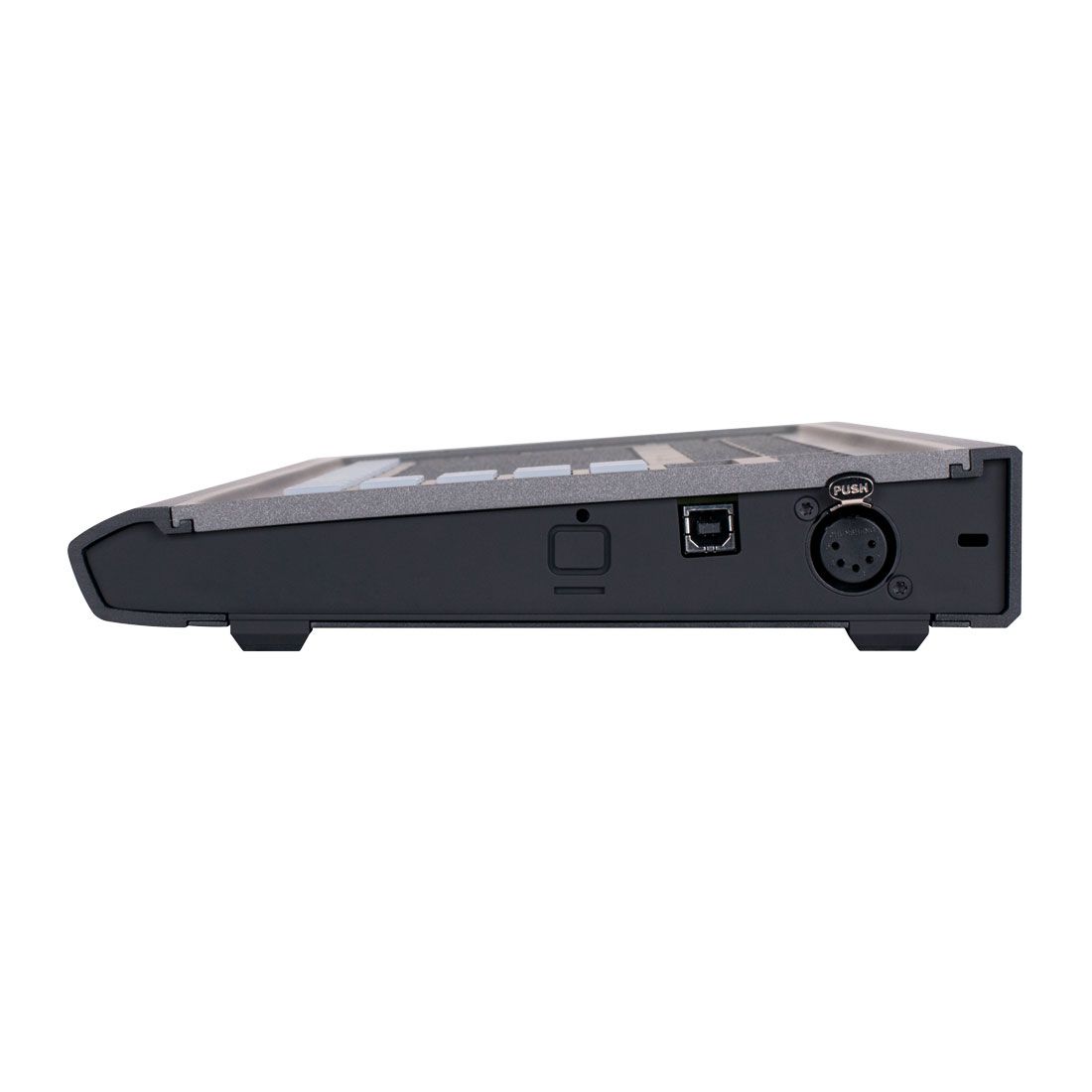

CONNECTIONS

DMX Out: 1x 5pin locking XLR
USB Input: USB B 2.0

REQUIREMENTS

Windows 10
Intel Core i3 processor 6th Generation+
8 GB RAM
SSD Drive
40 GB available disk space
Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
USB 2.0 port
10/100 Ethernet port for Art-Net DMX output
100/1000 Ethernet port for X-Net, Remote operation and sACN

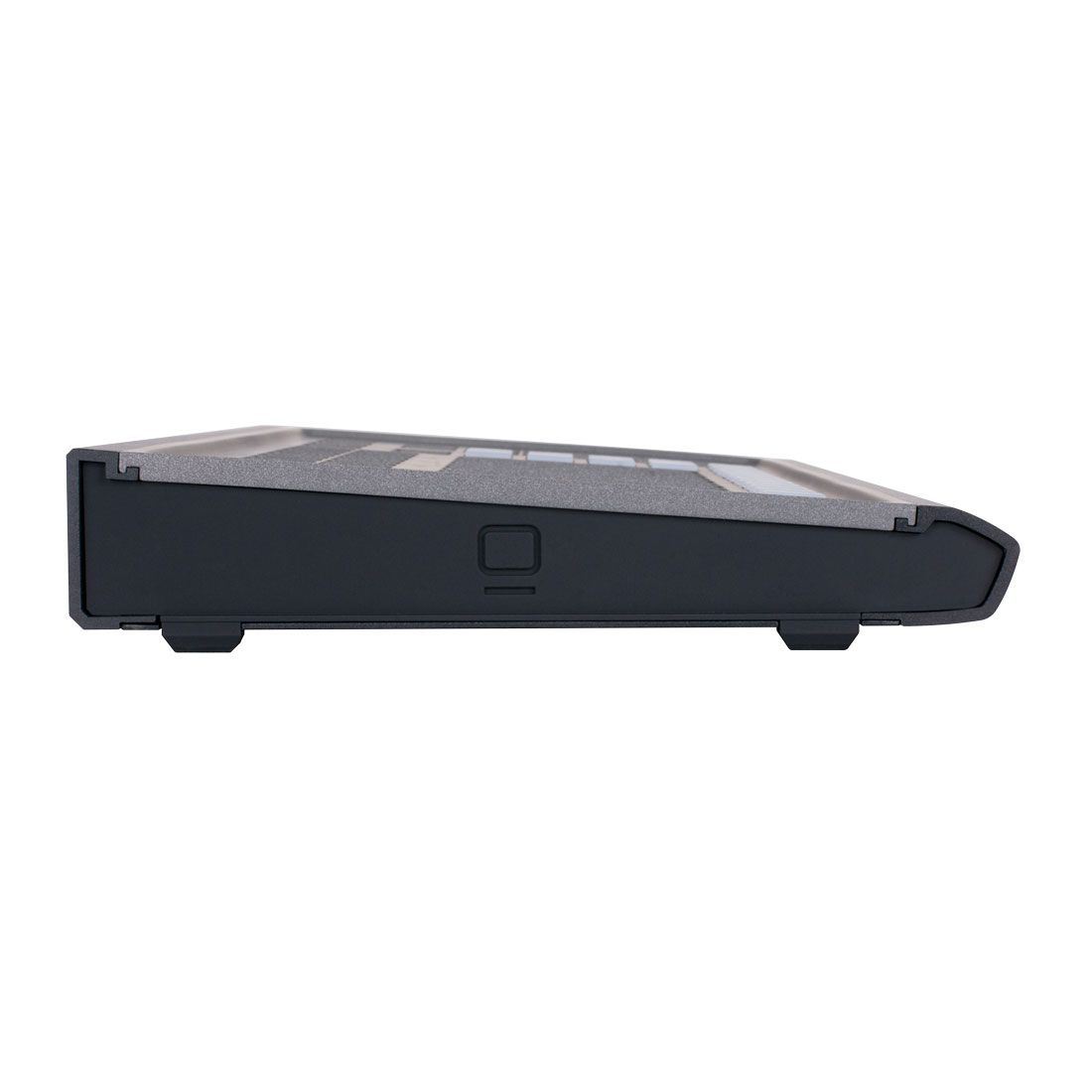

PHYSICAL

Length: 394 mm (15.5 in.)
Width: 218.5 mm (8.6 in.)
Height: 46.5 mm (1.8 in.)
Weight: 1.5 kg (3.3 lbs.)
Housing: Aluminum, steel, plastic

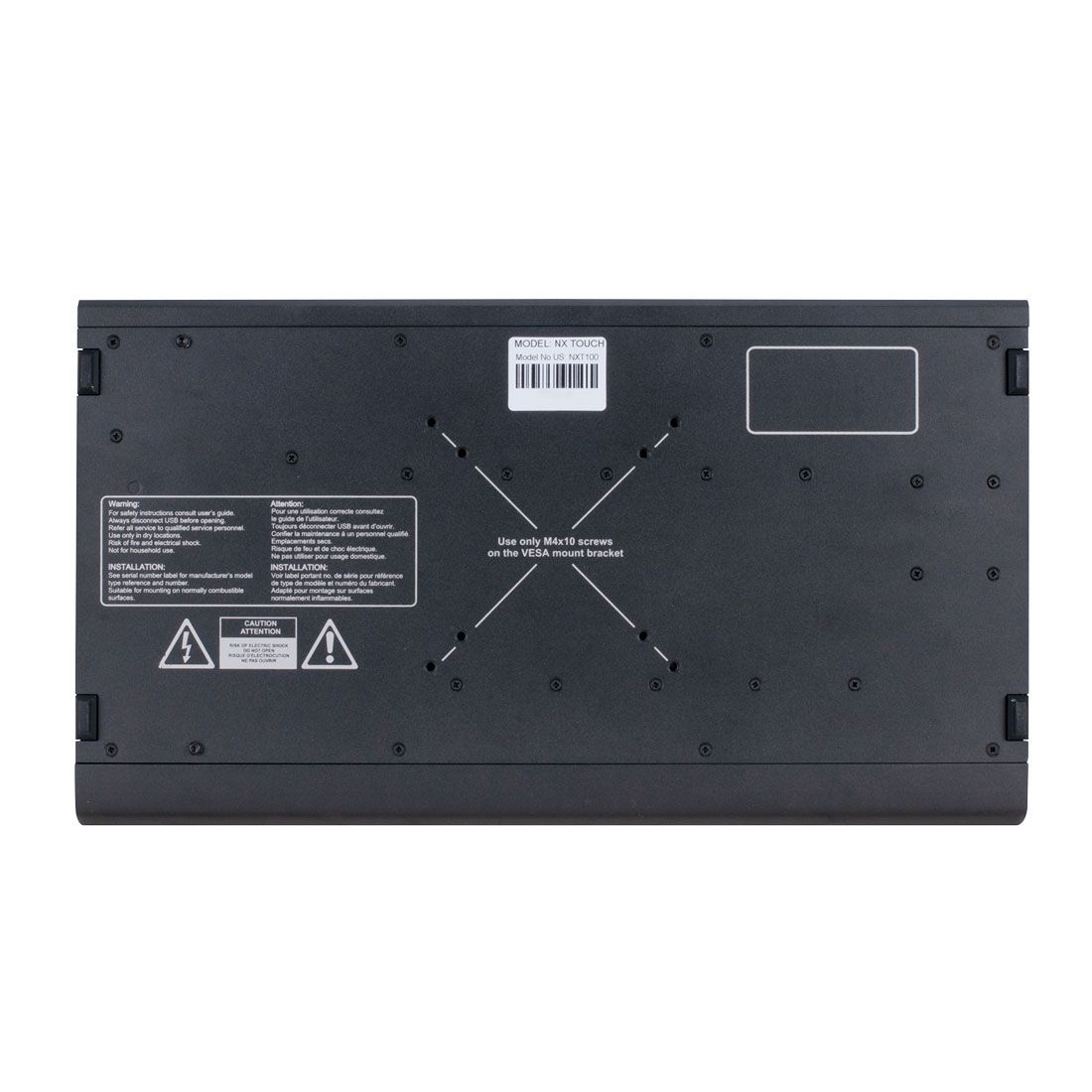

Mounting: VESA 75x75, 100x100
Security: K-Lock locking slot
IP Rating: IP20

ELECTRICAL

Power source: 5 VDC over USB
Maximum current: 500 mA

INCLUDED ITEMS

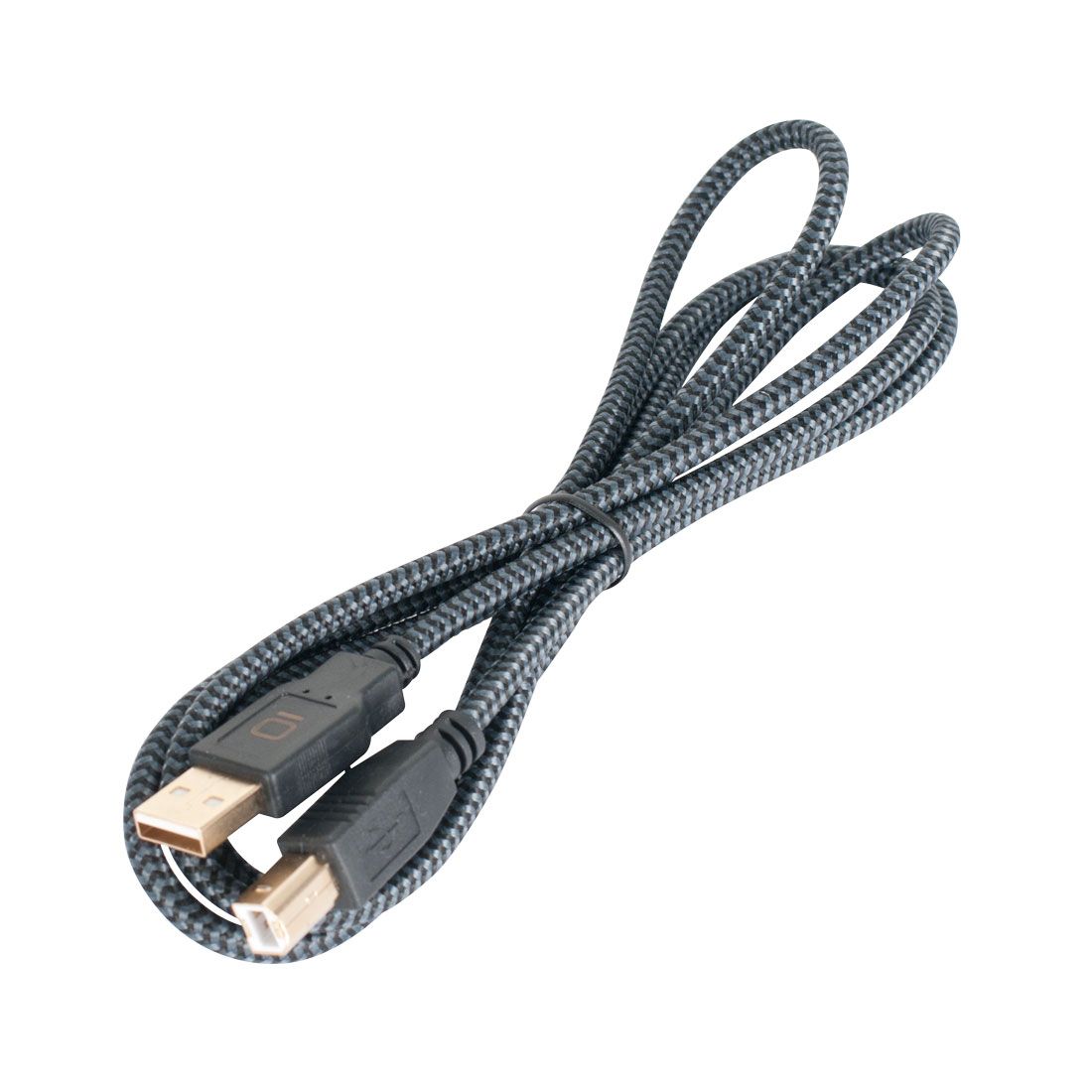

Obsidian USB Cable
Dust Cover



Specifications and documentation subject to change without notice
