Code 1330000049

NX DMX

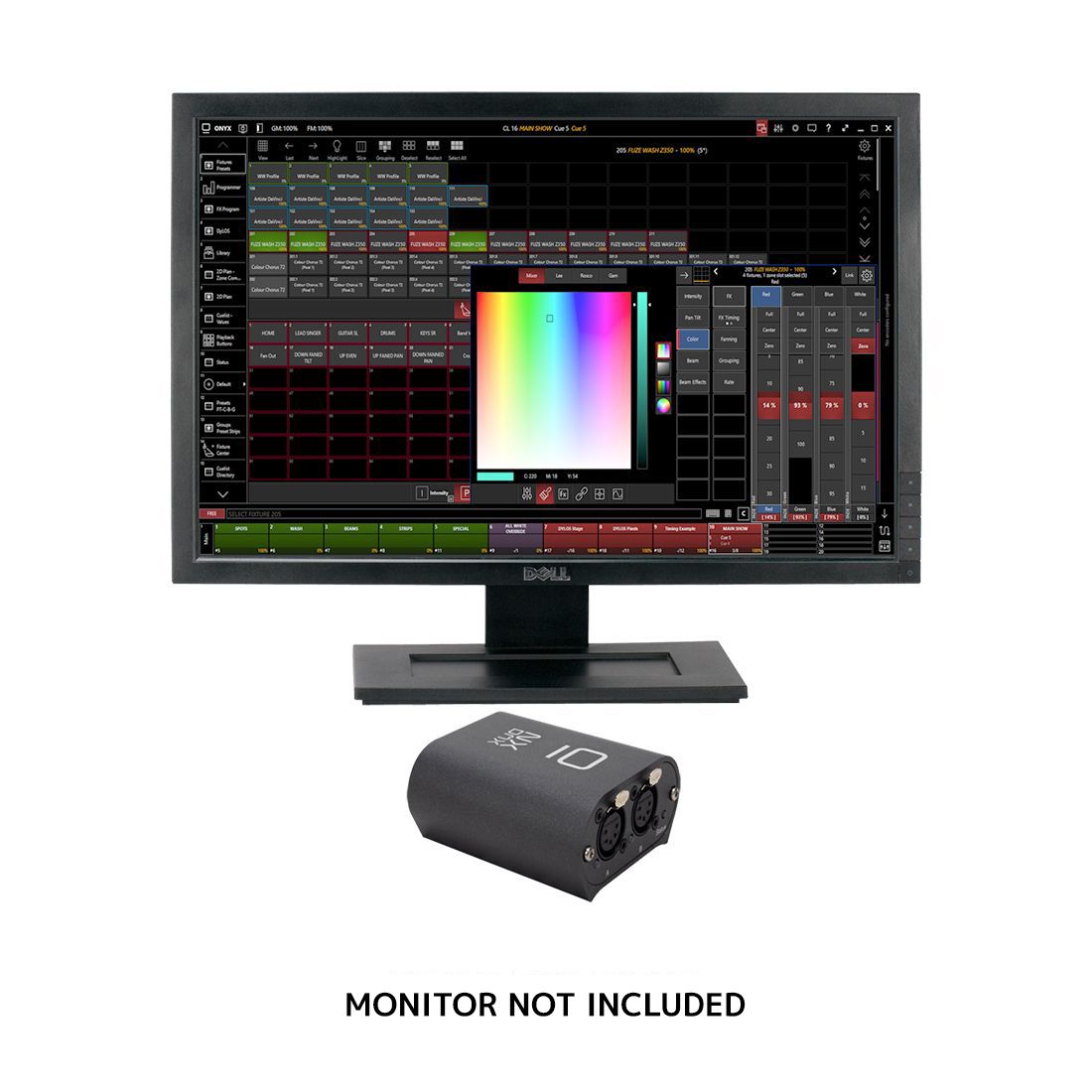

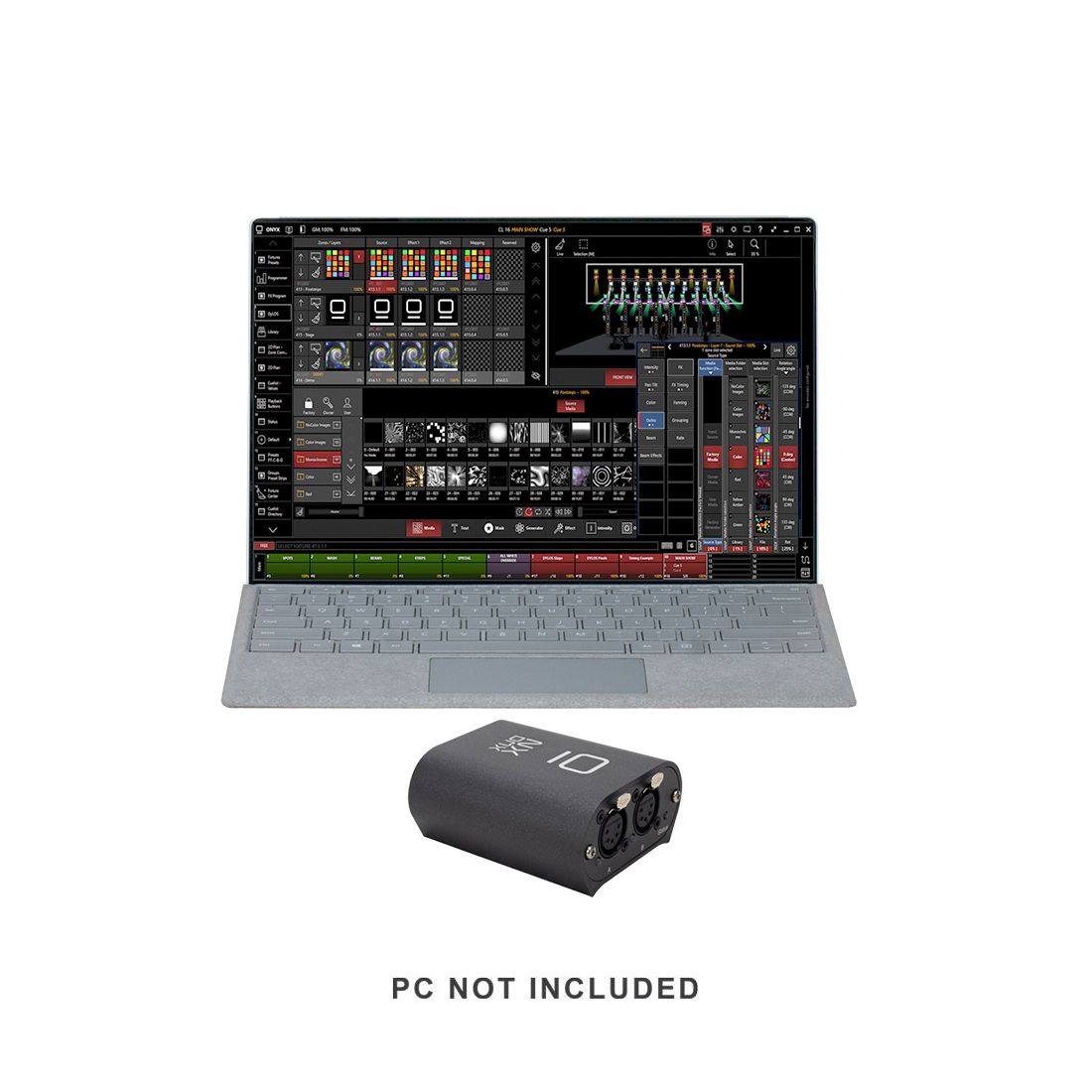

NX DMX is a USB powered 2 port DMX Node. As a member of the innovative ONYX platform from Obsidian Control Systems the NX DMX provides instant access to DMX In and Outputs as well as RDM communication. The device is plug and play and requires no drivers or additional configuration to integrate with ONYX. It is designed to work with any PC but also works with any ONYX console as a fast and affordable way to add two additional DMX ports.

NX DMX enables the ONYX NOVA PC license for up to 4 Universes. When connected to an ONYX licensed PC or ONYX console the NX DMX is assignable to any one of 255 Universes.

NX DMX allows for the full ONYX system to be used in many situations, from small events and tradeshows to clubs and churches. Many technicians utilize ONYX through the NX DMX as an affordable but powerful test station due to ONYX' outstanding library support.

Click here to learn more about NX DMX & for all technical details and documentation

Technical Data

FEATURES

ONYX NOVA License (4 Universes)
Plug and Play 2 Port DMX Node for ONYX
USB powered
DMX In/Out and RDM support
Expand any ONYX console or PC system
Rugged design

SPECIFICATIONS
CONNECTIONS

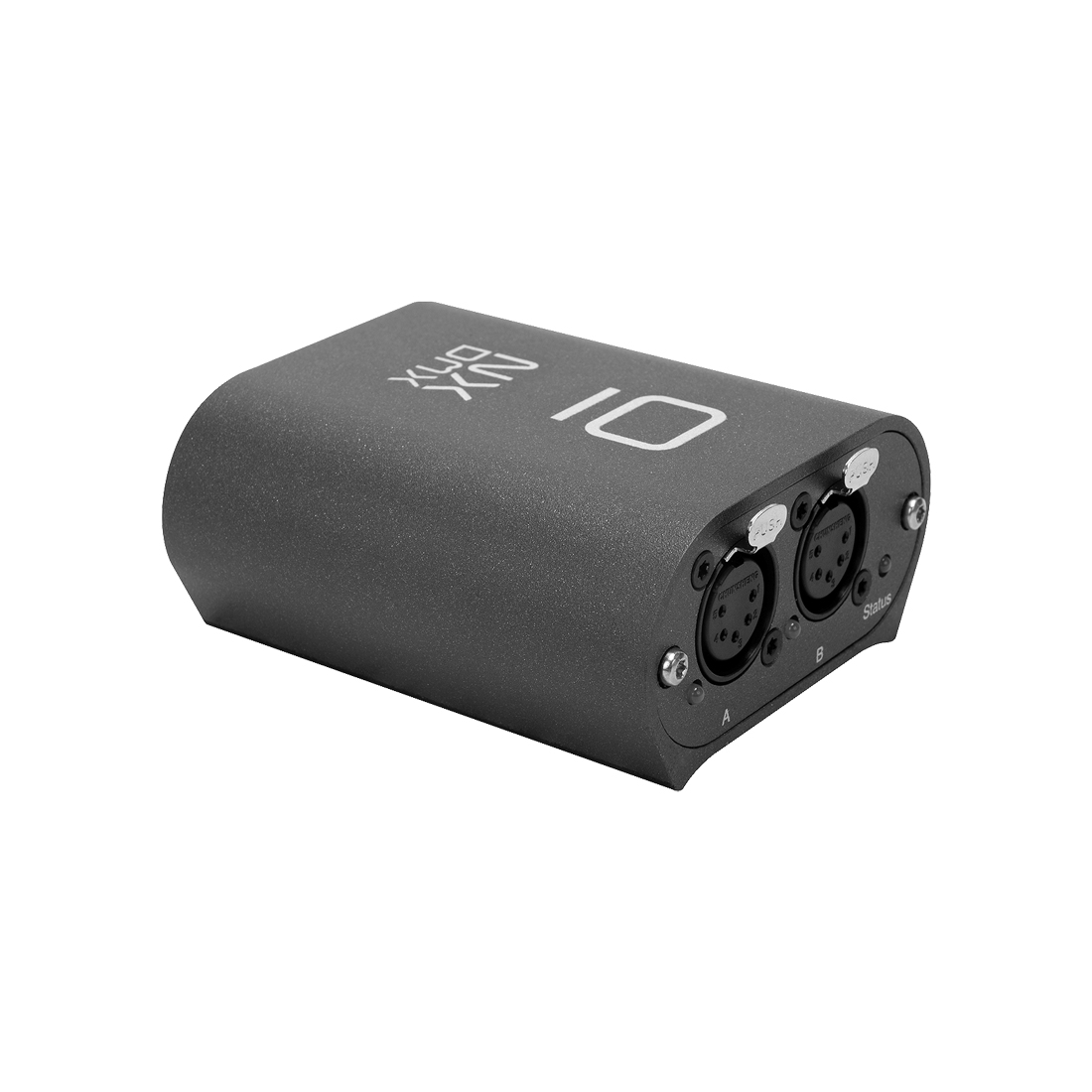

2x DMX / RDM Universe In/Out: 5pin locking XLR

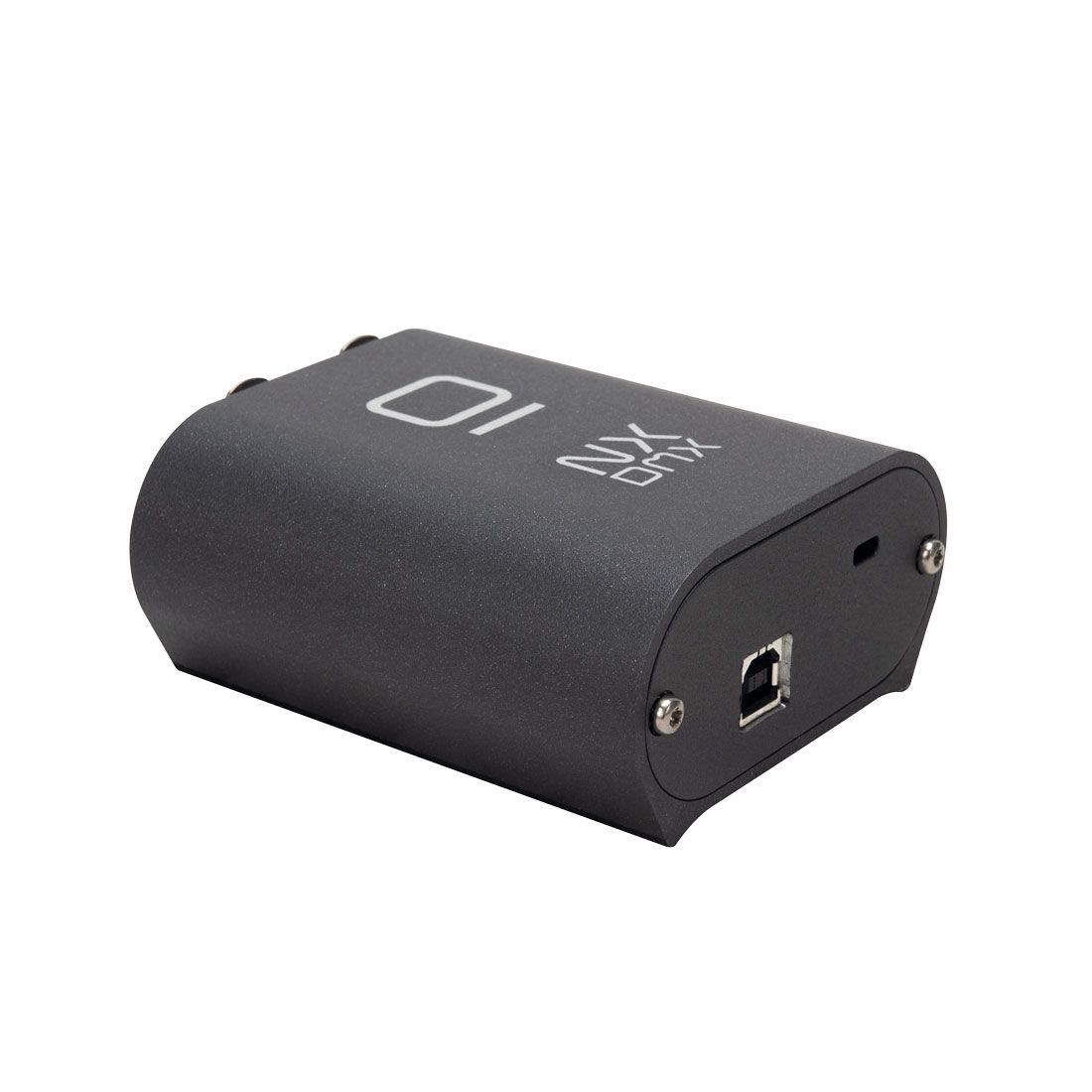

USB In: USB 2.0 B

REQUIREMENTS

Windows 10
Intel Core i3 processor 6th Generation+
8 GB RAM
SSD Drive
40 GB available disk space
Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
USB 2.0 port for Onyx Key and optional USB to DMX devices
10/100 Ethernet port for Art-Net DMX output
100/1000 Ethernet port for X-Net, Remote operation and sACN
NX DMX is also compatible with Elation LightJockey 2 Software

PHYSICAL

Length: 92 mm (3.7 in.)
Width: 82 mm (3.3 in.)
Height: 41mm (1.7 in.)
Weight: 245g (0.6 lbs.)

ELECTRICAL

5V over USB
100-240V nominal, 50/60 Hz
Maximum current: 300 mA

INCLUDED ITEMS

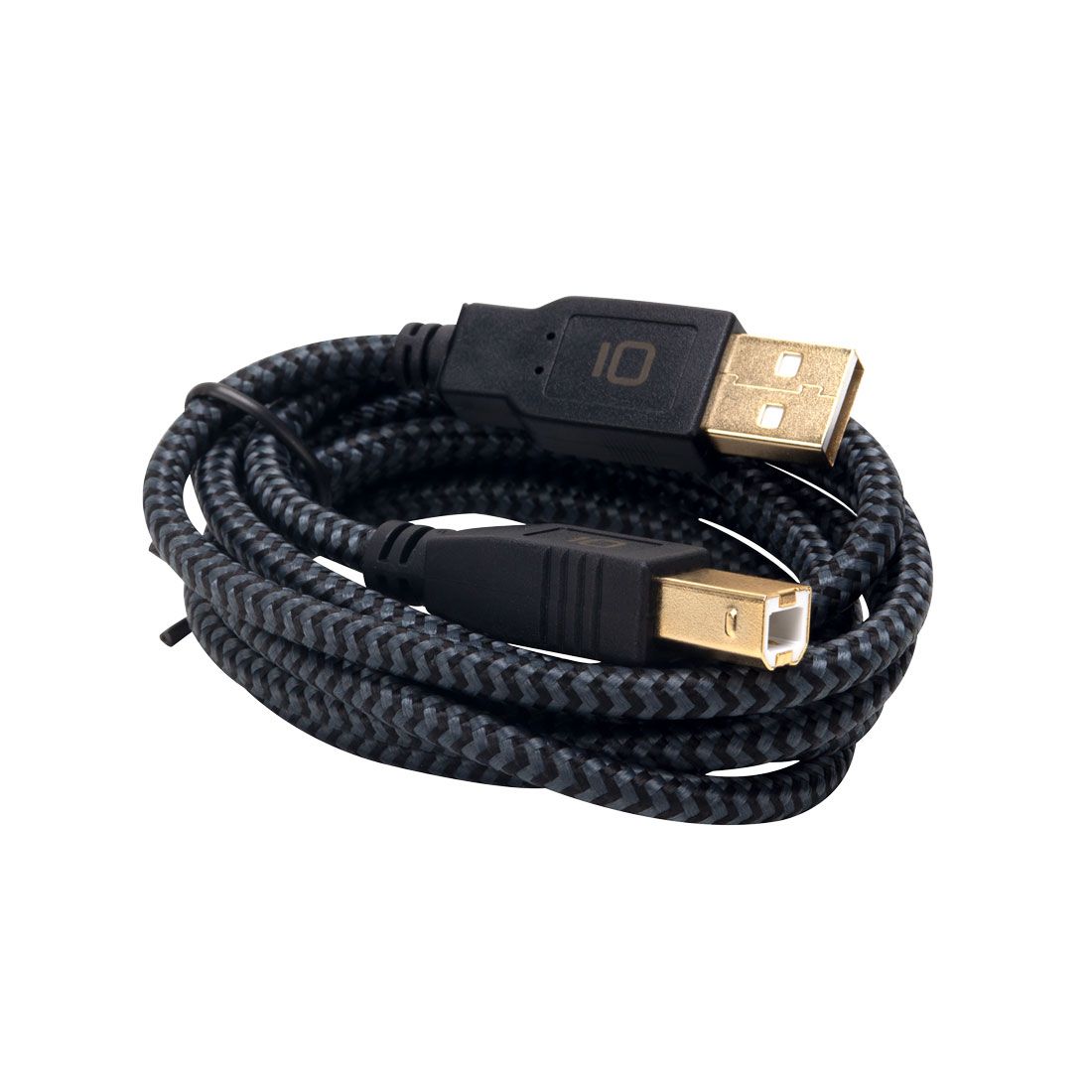

Obsidian USB Cable

Specifications and documentation subject to change without notice
