ZCL BAR Z300IP

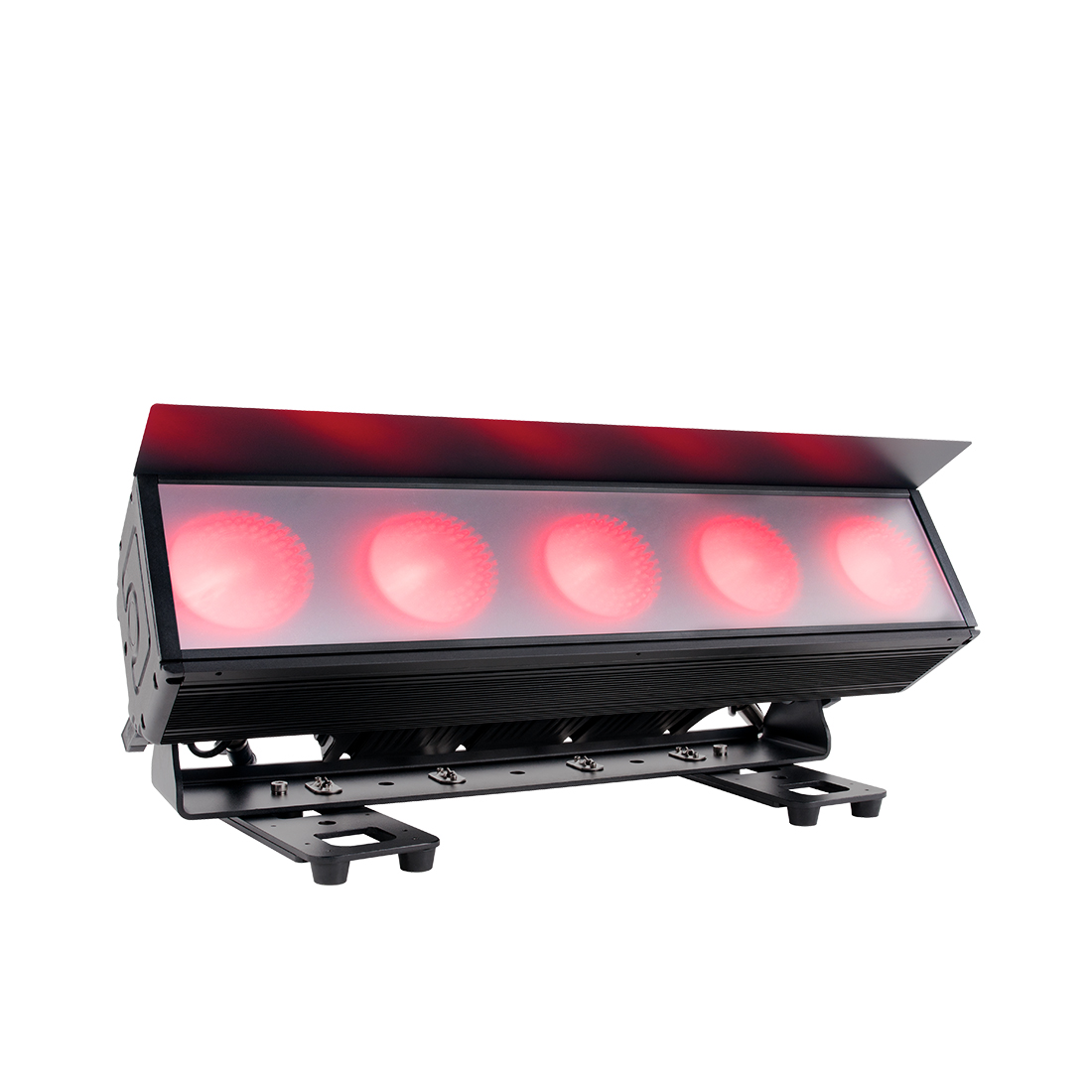

The ZCL BAR Z300 IP™ is a versatile IP65 rated bar effect luminaire with zoom, (5) individual 60W RGBW 4-in-1 LEDs, and the new advanced collimator optic lens which produces a sharp 4° color-changing beam from each lens.

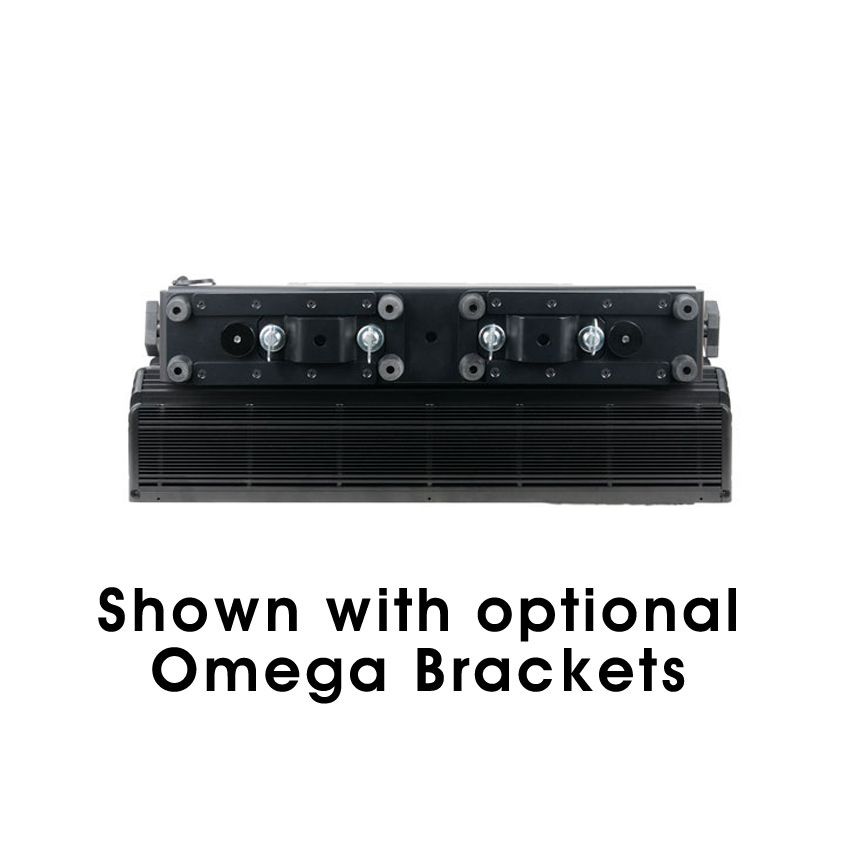

Features include 4° to 44° motorized zoom, strobe and selectable dimming curve effects, 64 color presets, 12 unique program macros, IP rated 5pin DMX and Locking Power Cable in/out connections, LCD menu display with (4) touch button control panel, adjustable yoke with rotating floor stands, clamp rigging with optional omega brackets (not included), multiple unit power linking, rugged die-cast aluminum exterior, 2 frost filters and glare shield options included, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).

Technical Data

FEATURES

IP65 Rated Dust and Water Protection
Multi-Color LED Bar Effect Luminaire
5x 60W RGBW LEDs
Zooming Collimator Lens
Pixel Controlled LEDs
4° To 44° Motorized Zoom

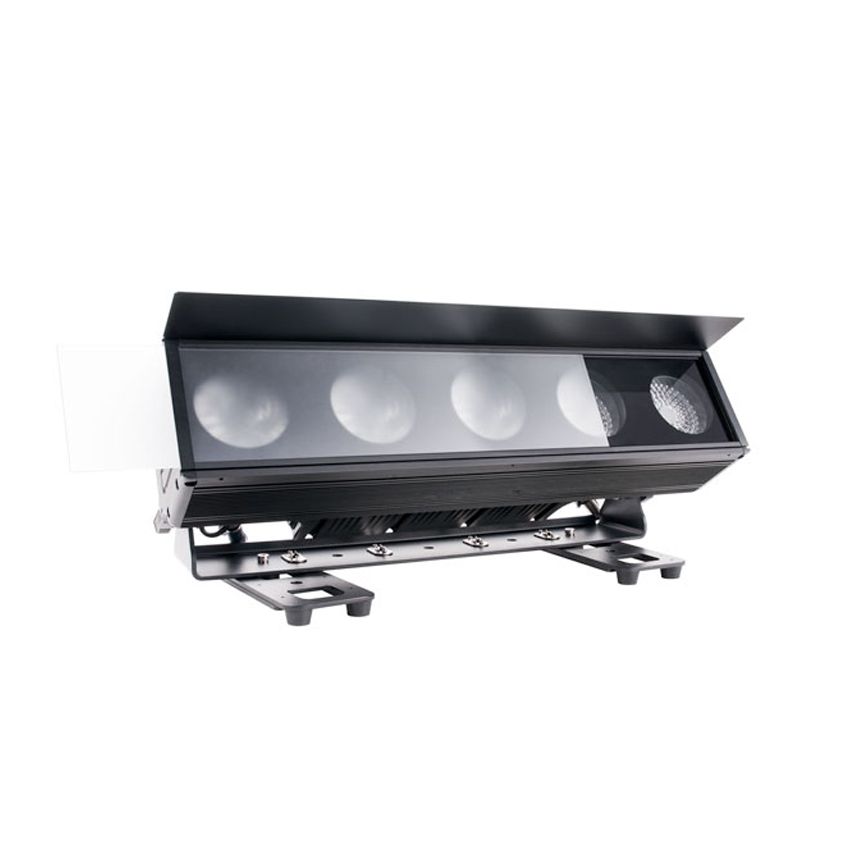

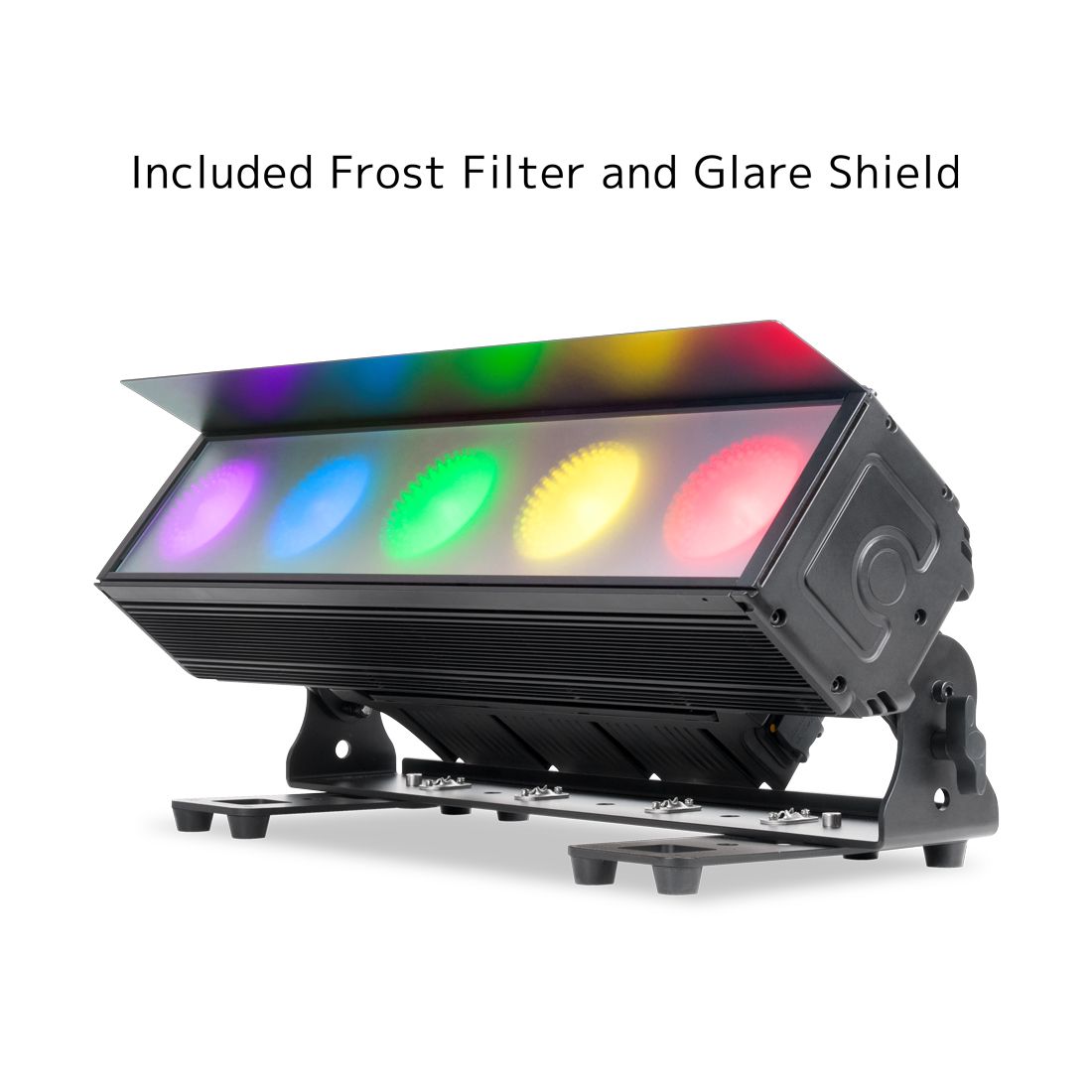

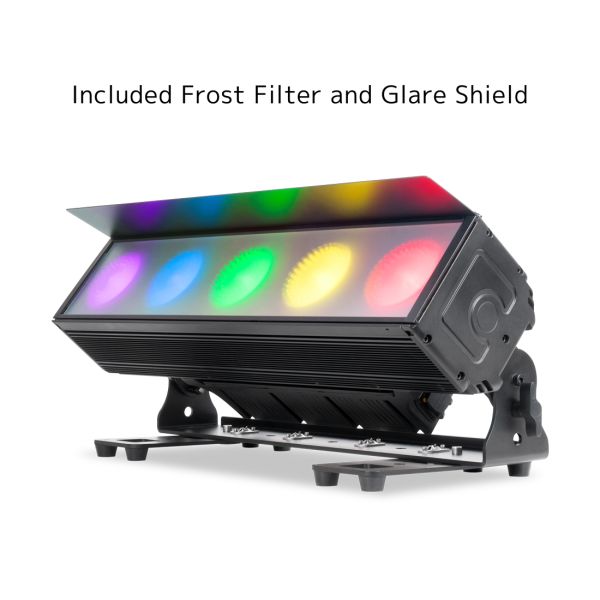

Included 2 Frost Filters and Glare Shield
Quick Lock Mounting Options
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film

SOURCE

5x 60W RGBW Multi-Chip LEDs
4,452 Total Output Lumens
100,000 Hour Average Lamp Life*

PHOTOMETRIC DATA

8,500 LUX 791 FC @3m (9.8’) (Min. Zoom)
691 LUX 64 FC @3m (9.8’) (Max. Zoom)

EFFECTS

Pixel Controlled LEDs
High Speed Electronic Shutter and Strobe
Variable Dimming Curves

COLOR

RGBW Multi-Chip LEDs

CONTROL / CONNECTIONS

6 DMX Channel Modes (5 - 28)
DMX Support
RDM (Remote Device Management)
8 / 16 Bit Dimming Control

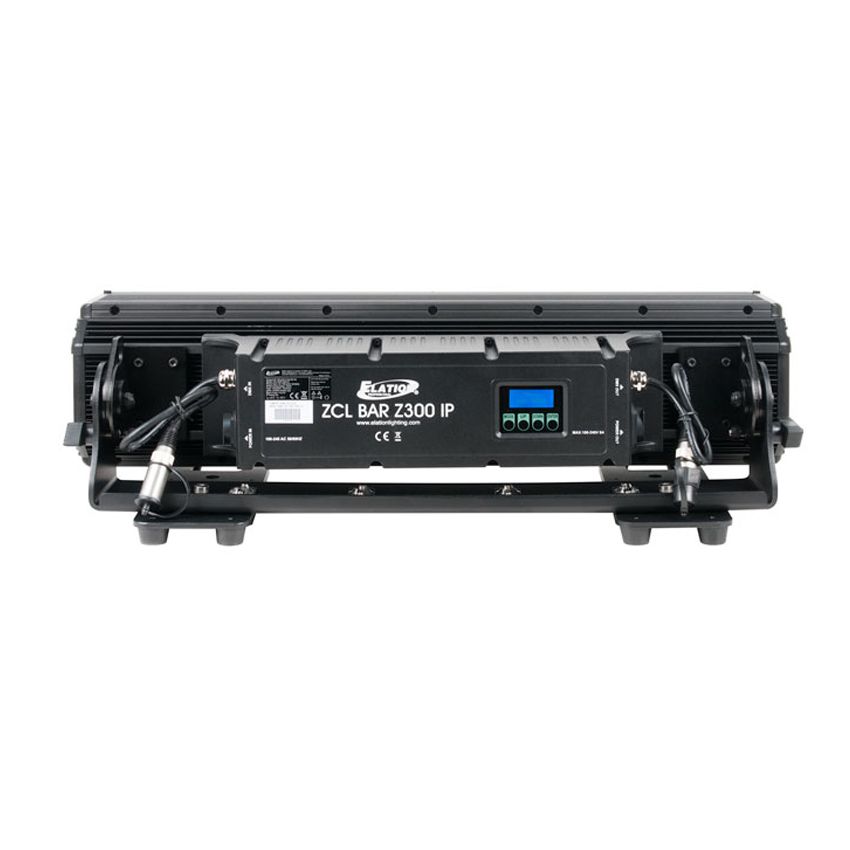

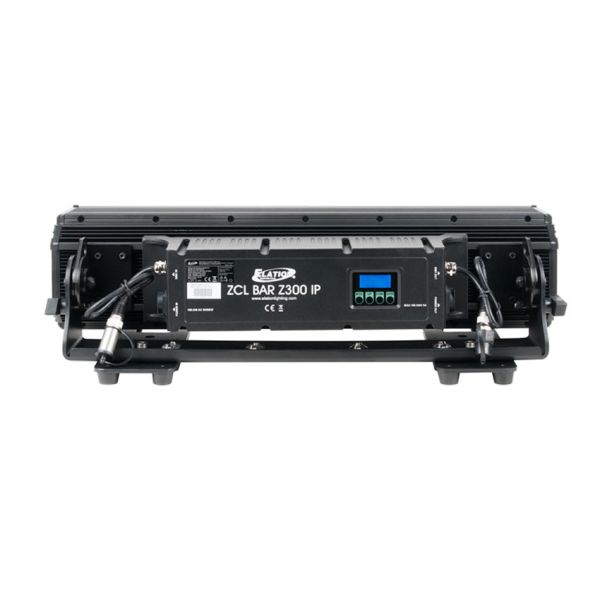

4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
IP65 Rated 5-pin DMX Whip Cables
Locking Power Cable In/Out

SIZE / WEIGHT

Length: 670mm (26.4”)
Width: 158mm (6.2”)
Vertical Height: 298mm (11.7”)
Weight: 19.5 kg (43.0 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
390W Max Power Consumption
-10°C to 45°C (14°F to 113°F)

INCLUDED ITEMS

Glare Shield
Medium Frost
Heavy Frost
Locking IP65 Power to CEE 7/7 Cable

OPTIONAL ACCESSORIES

1322000060 C-Loader II

FIRMWARE UPDATES

Current firmware can be found here (login required)

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.



Specifications and documentation subject to change without notice
