Volt Q5E-6PK

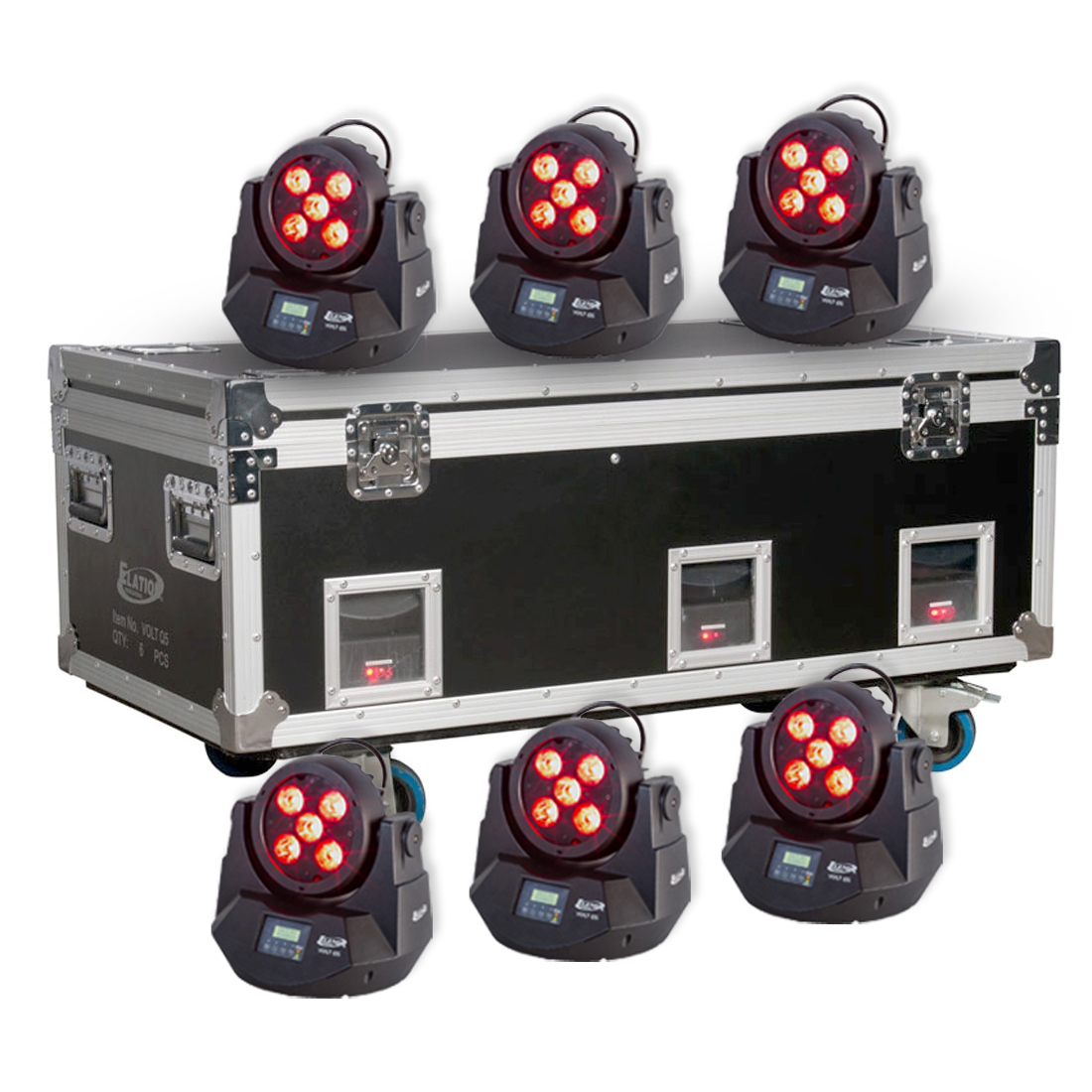

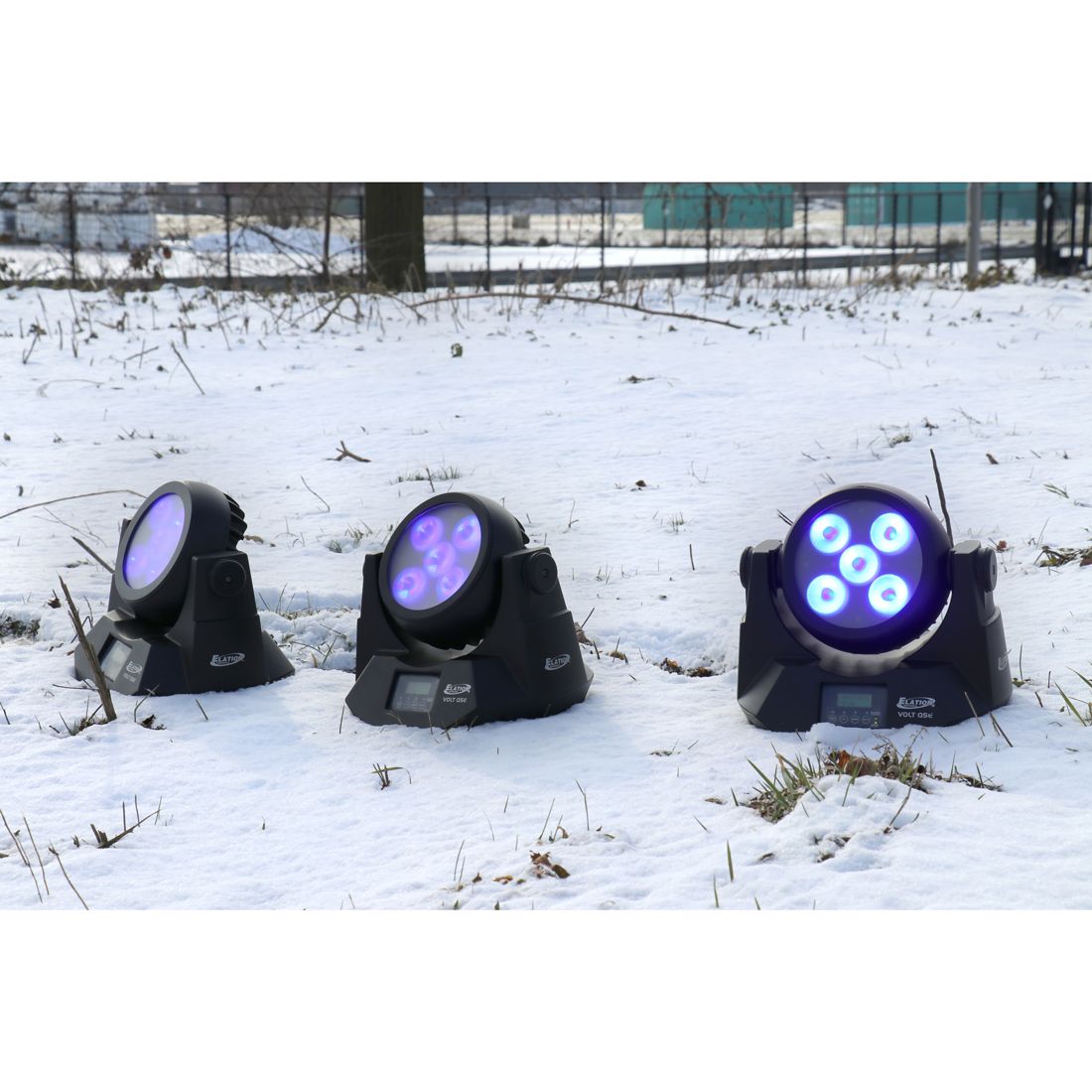

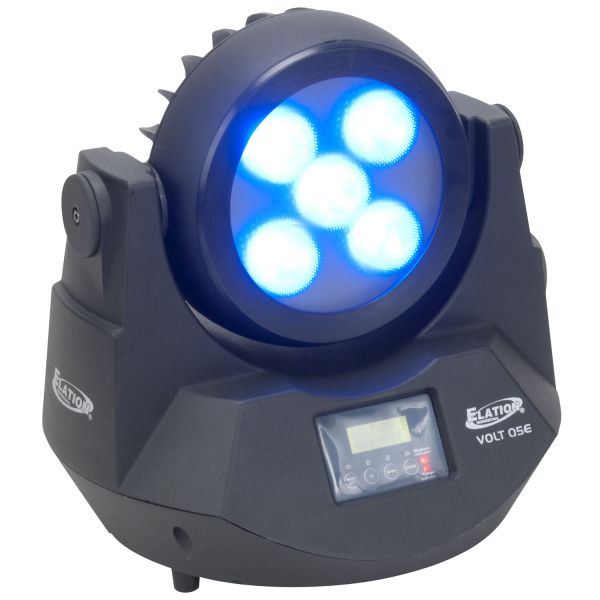

The Volt Q5E Six Pack™ charging road case includes (6) of the IP65 rated Volt Q5E™ units which are ideal for event up-lighting and exterior wash applications, each having (5) 10W QUAD color RGBW LEDs, 9° beam and 17° field angles, 180°+ manual LED head positioning, variable color correction (2,700K - 7,200K), no fans - silent operation, variable dimming curves, DMX, RDM (Remote Device Management), IP DMX in/out and IP Power in connections, flicker free operation for TV and Film, 4 button control, LCD Menu Display, magnetic frost filter gel frame, rugged die-cast aluminum exterior, rubber padded base, retractable carrying handle, an internal wireless EWDMX receiver and powered by a rechargeable Lithium-Ion battery.

Technical Data

FEATURES

IP65-Rated Dust and Water Protection
Battery Powered Wireless DMX Uplighter
Charging Time 8 Hours (Full Charge)
Running Time 7 Hours Full On, up to 17 Hours in Mixed Colors
9° Beam Angle
180°+ Manual LED Head Positioning
Full RGBW Color Mixing
Variable Color Correction (2,700K - 7,200K)
Rechargeable Lithium-Ion Battery
No Fans – Silent Operation
Flicker Free Operation for TV and Film
Rubber Padded Base and Retractable Carrying Handle
Internal Wireless EWDMX Receiver


SOURCE

(5) 10W QUAD Color RGBW LEDs
100,000 Hour Average Life


PHOTOMETRIC DATA

4,710 LUX 438 FC @ 9.8’ (3m)


EFFECTS

Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves


COLOR

RGBW


CONTROL / CONNECTIONS

(4) DMX Channel Modes (4 / 5 / 11 / 12)
Internal Wireless EWDMX Receiver

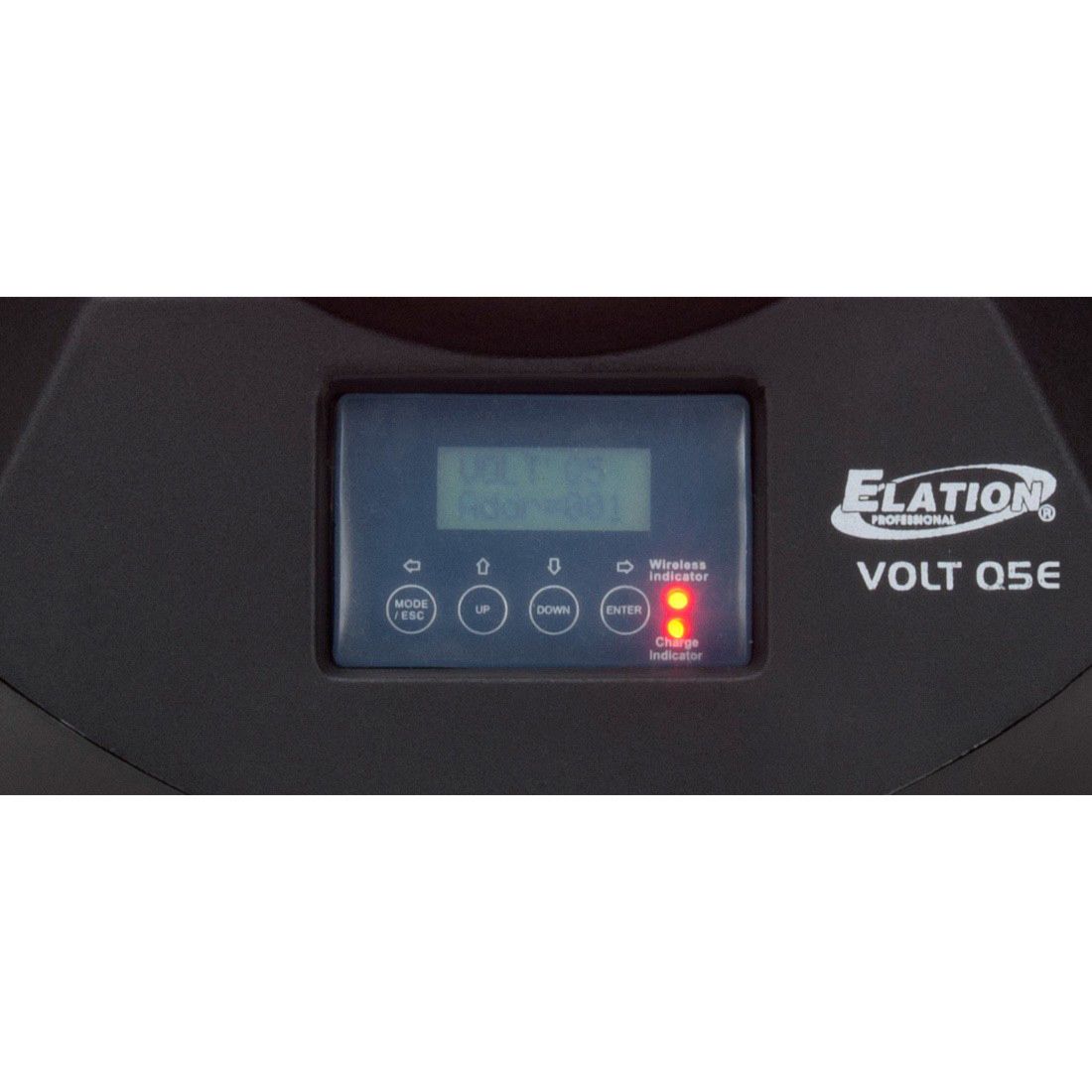

4 Button Control Panel
LCD Menu Display

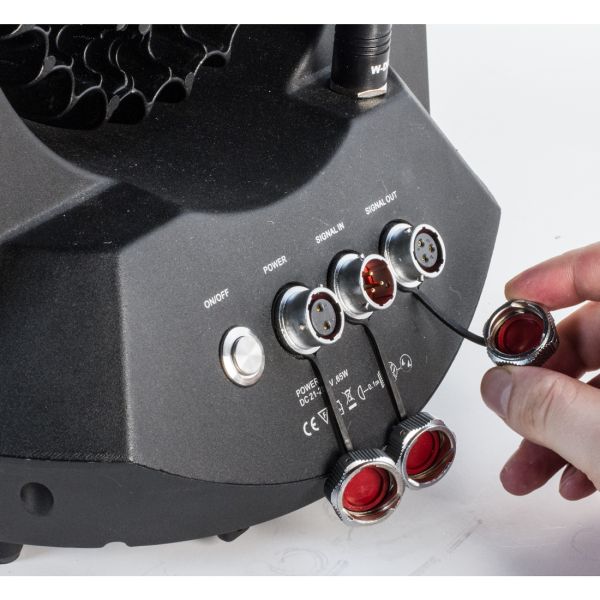

IP DMX In/Out
IP Power Charger In


SIZE / WEIGHT

(single unit)
Length: 11.4” (290mm)
Width: 9.9” (252mm)
Vertical Height: 11.4” (289mm)
Weight: 15.0 lbs. (6.8 kg)


ELECTRICAL / THERMAL

DC 22-26.2V
65W Max Power Consumption (each unit)
14°F to 113°F (-10°C to 45°C)

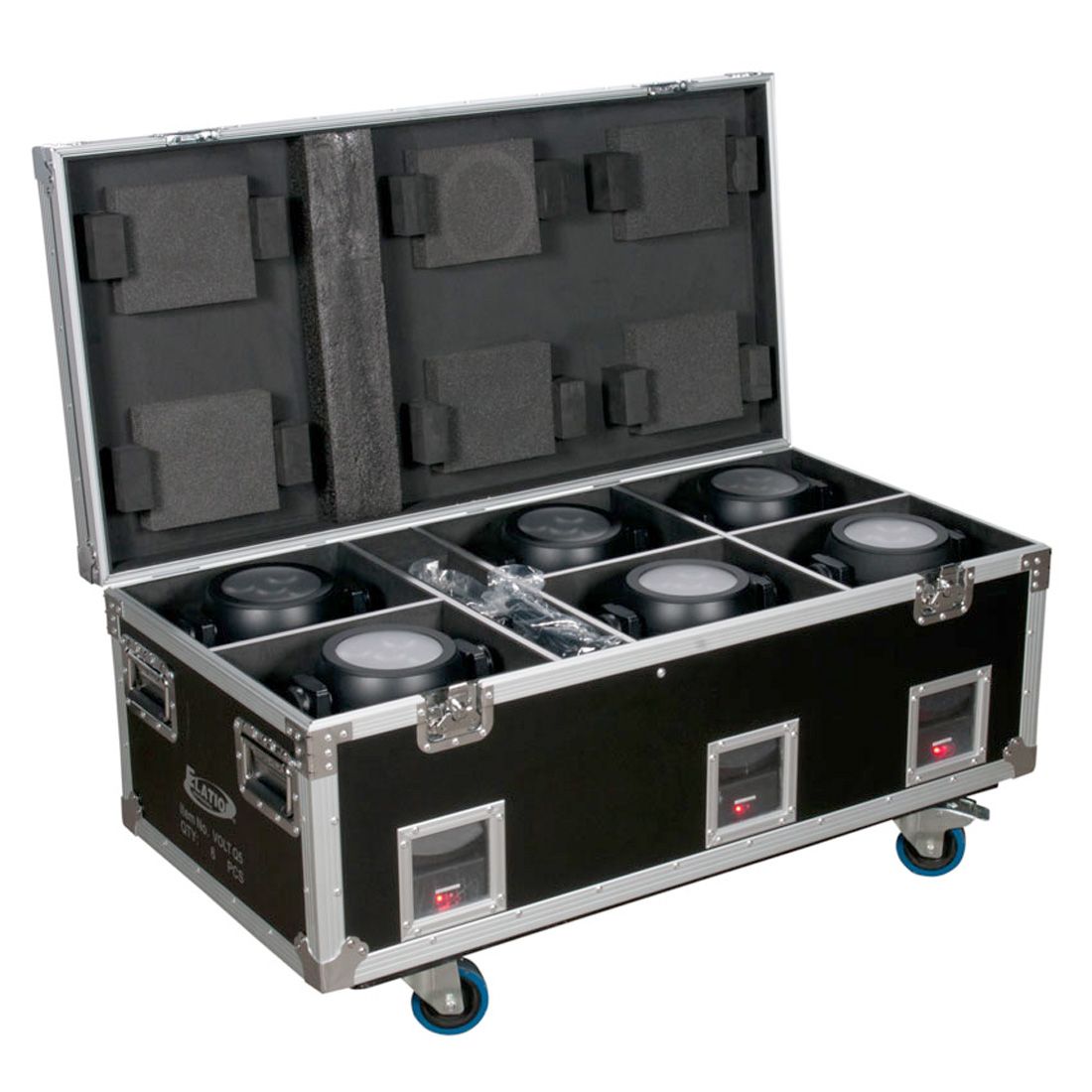

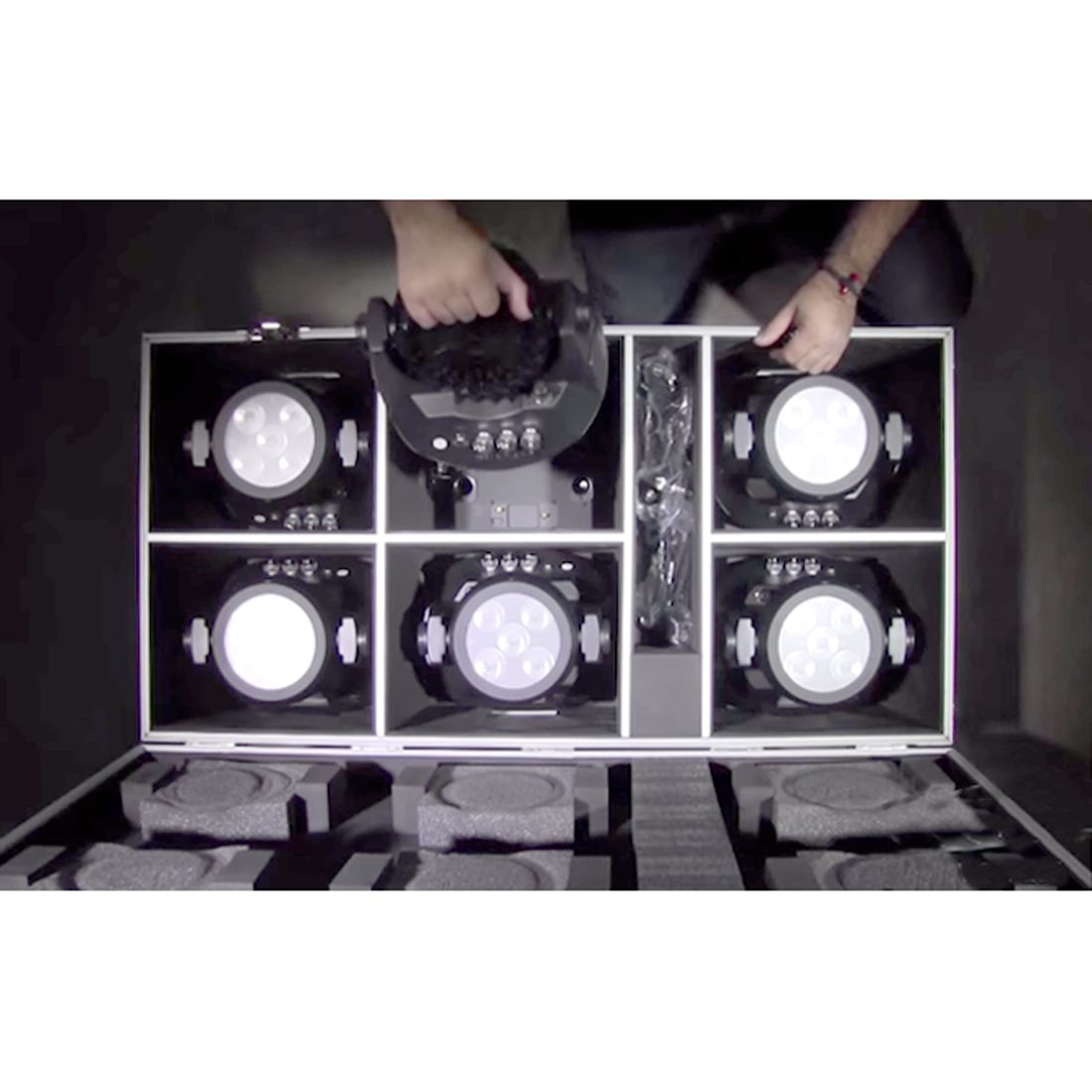

CHARGING ROAD CASE



FEATURES

Charges (6) Volt Q5™ Units

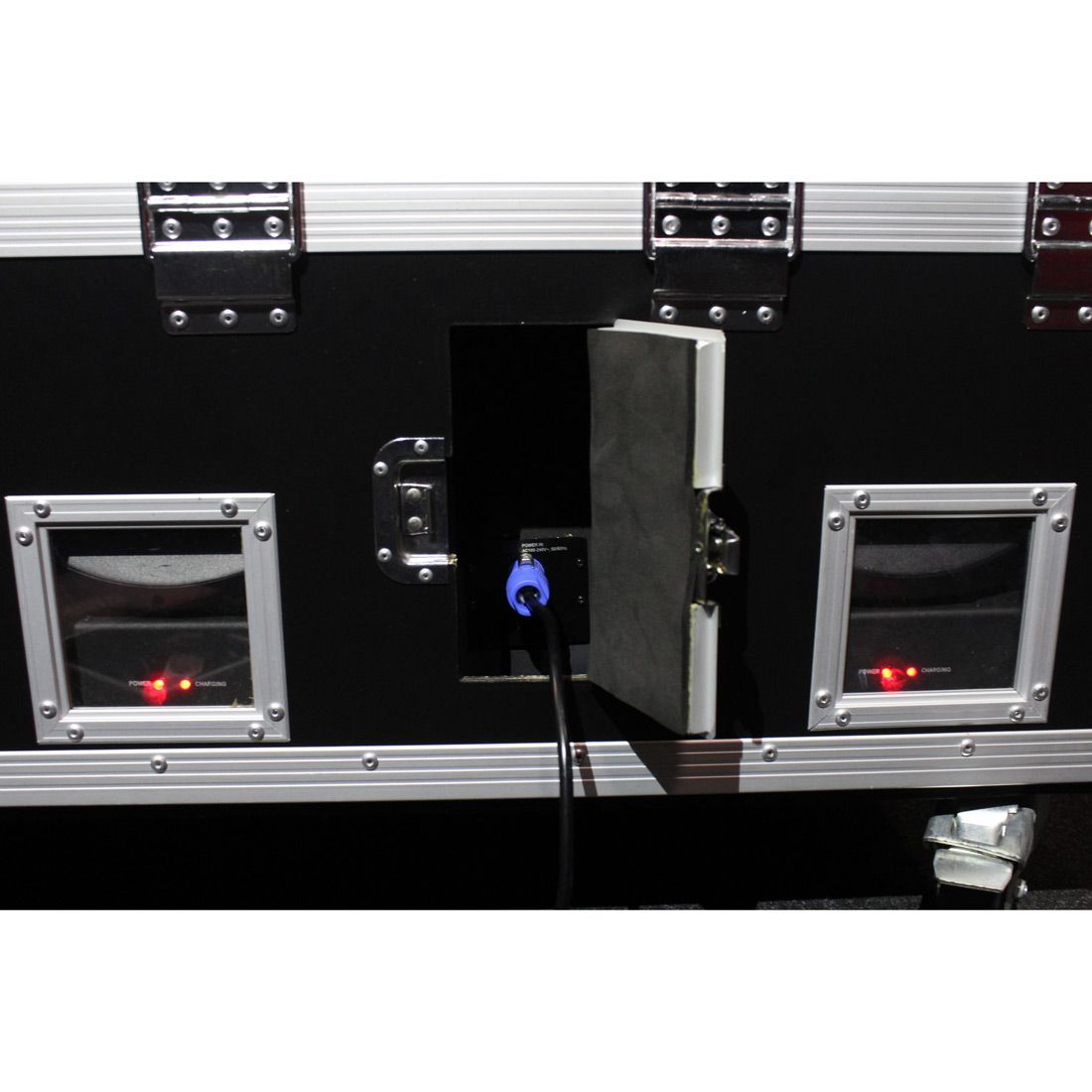

Charge Status Windows for each unit


SIZE / WEIGHT

(loaded case with 6 units)
Length: 44.0” (1118mm)
Width: 22.0” (560mm)
Vertical Height: 21.6” (548mm)
Loaded Weight: 240.0 lbs. (109 kg)

ELECTRICAL / THERMAL


Max Power Consumption: 265 Watts In-Rush Current: 325 Watts
14°F to 113°F (-10°C to 45°C)

INCLUDED ITEMS

(6) Volt Q5E™ Units
(6) DMX to IP Data Input Cables
(6) IP Data Link Cables
(6) Omega Brackets
(6) Safety Cables
(6) Magnetic Frost Filters
(1) Locking Power Cable

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


Specifications and documentation subject to change without notice
