EWDMXII-ip

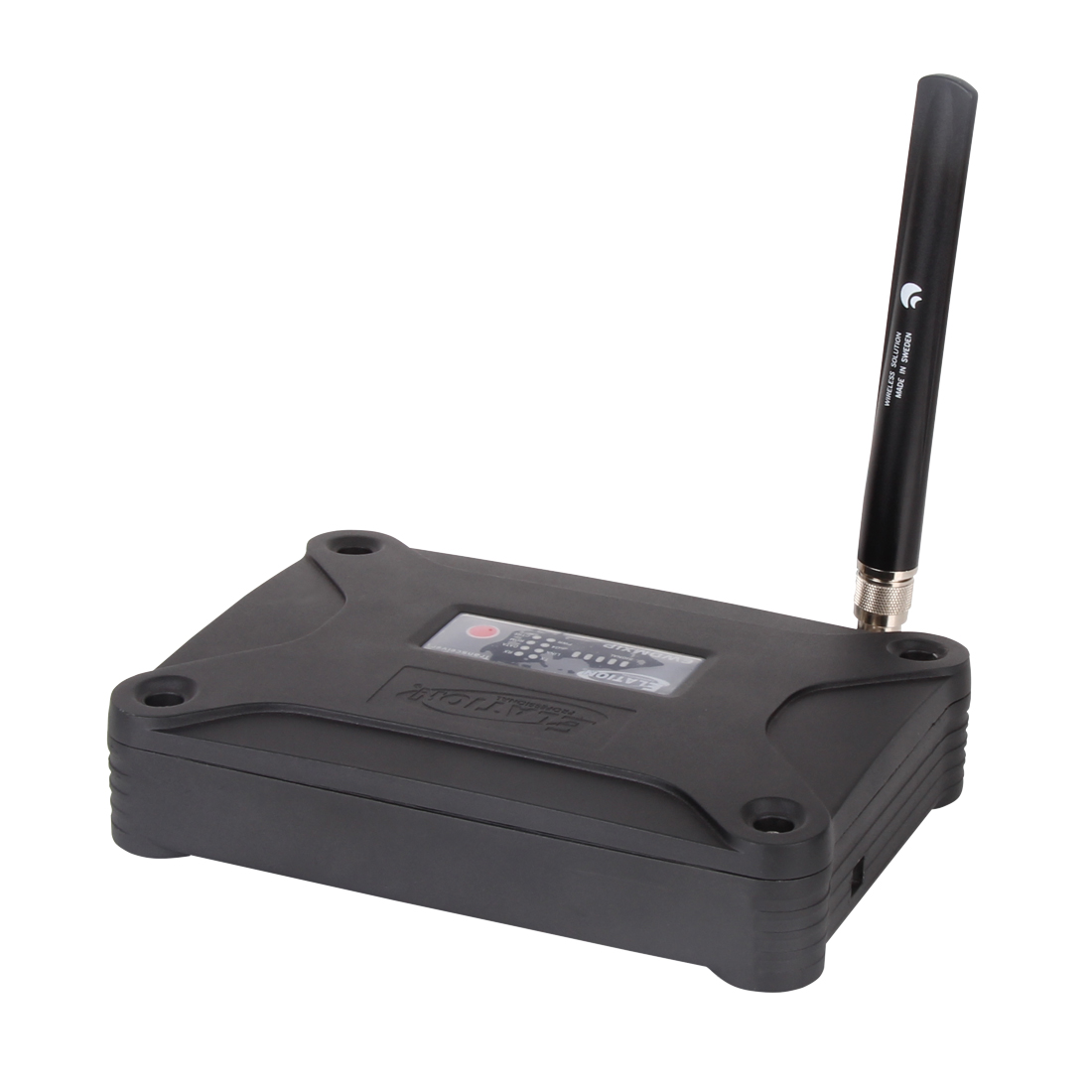

The EWDMXII-ip™ is an IP65 rated wireless DMX transceiver solution featuring a 2dbi outdoor antenna, up to 1,640 ft (500m) wireless DMX range*, FHSS (Frequency Hoping Spread Spectrum) of 1,800 tps, data safe technology providing wireless fidelity and error correction, invisi-wire high-fidelity technology providing input matching output, easy-to-use single push button function/mode control, RDM (Remote Device Management) support, 2.4GHz radio license free worldwide, TDMA (Time Division Multiple Access), W-DMX G4 protocol support, single DMX-512 universe, a rugged hard plastic case and a multi-voltage universal auto switching power supply (100-240v).

Technical Data

FEATURES

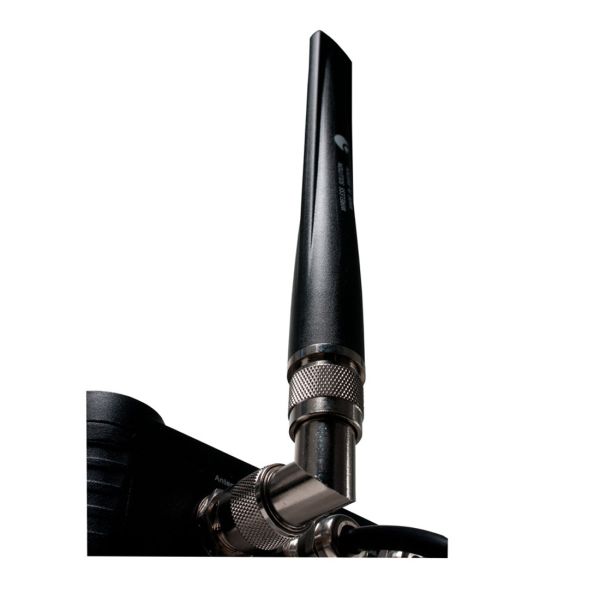

IP65 Wireless DMX Transceiver with 2dbi Outdoor Antenna
Up To 1,640 ft. (500m) Wireless DMX Range*
FHSS (Frequency Hoping Spread Spectrum) 1,800 tps
Datasafe Tech - Wireless Fidelity and Error Correction
Invisi-Wire High-Fidelity Tech - Output Matches Input
Easy-To-Use Single Push Button Function Control
RDM (Remote Device Management) Support
2.4GHz Radio – License Free Worldwide
TDMA (Time Division Multiple Access)
W-DMX G4 Protocol Support
Rugged Hard Plastic Case
Single DMX-512 Universe

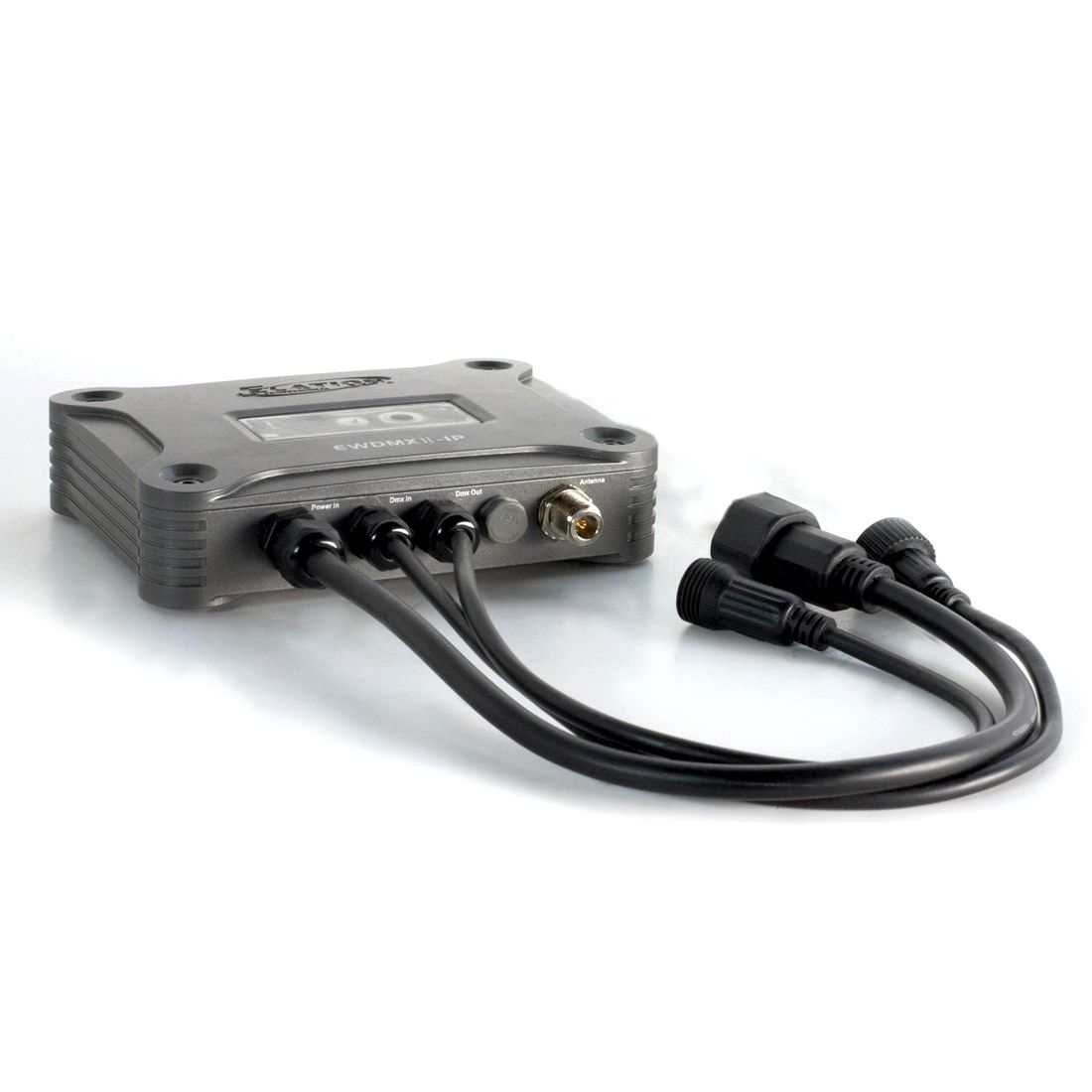

CONTROL / CONNECTIONS

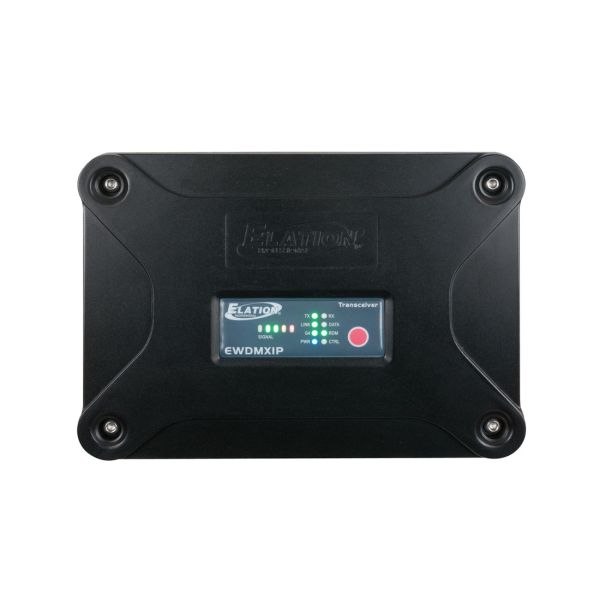

Multi-Function Single Push Button
Antenna Port
3pin IP Data Input
3pin IP Date Output
3pin IP Power Input

WIRELESS RANGE


Up To 1,640 ft (500m)*
*Based on general testing of the EWDMX IP™ in an outdoor urban area with normal interference, installed in a location 9.8 ft. (3m) ABOVE AUDIENCES and/or GROUND LEVEL, with a DIRECT LINE OF SIGHT (Tx Antenna to Rx Antenna), and 80%+ signal strength.

SIZE / WEIGHT

Length: 9.4” (240mm)
Width: 6.7” (170mm)
Vertical Height: 2.2” (56.5mm)
Weight: 4.6 lbs. (2.1kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
3W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

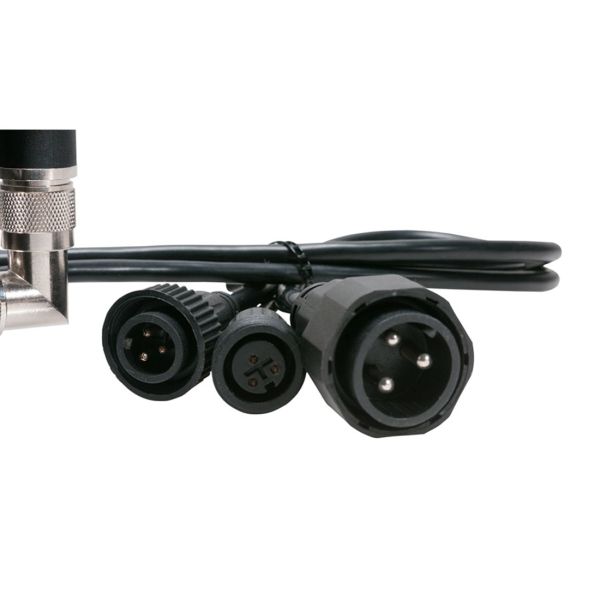

INCLUDED ITEMS

1 IP Rated Power Cable
1 IP Rated 3pin Male DMX Input Cable

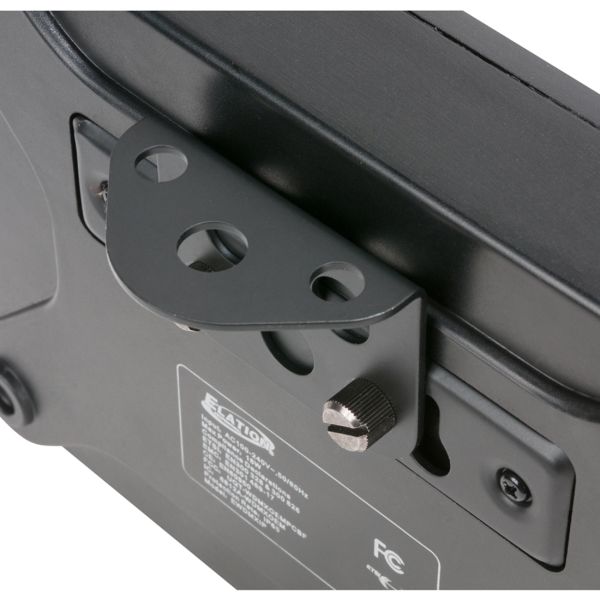

1 Clamp Mounting Bracket & (2) Screws



Specifications and documentation subject to change without notice
