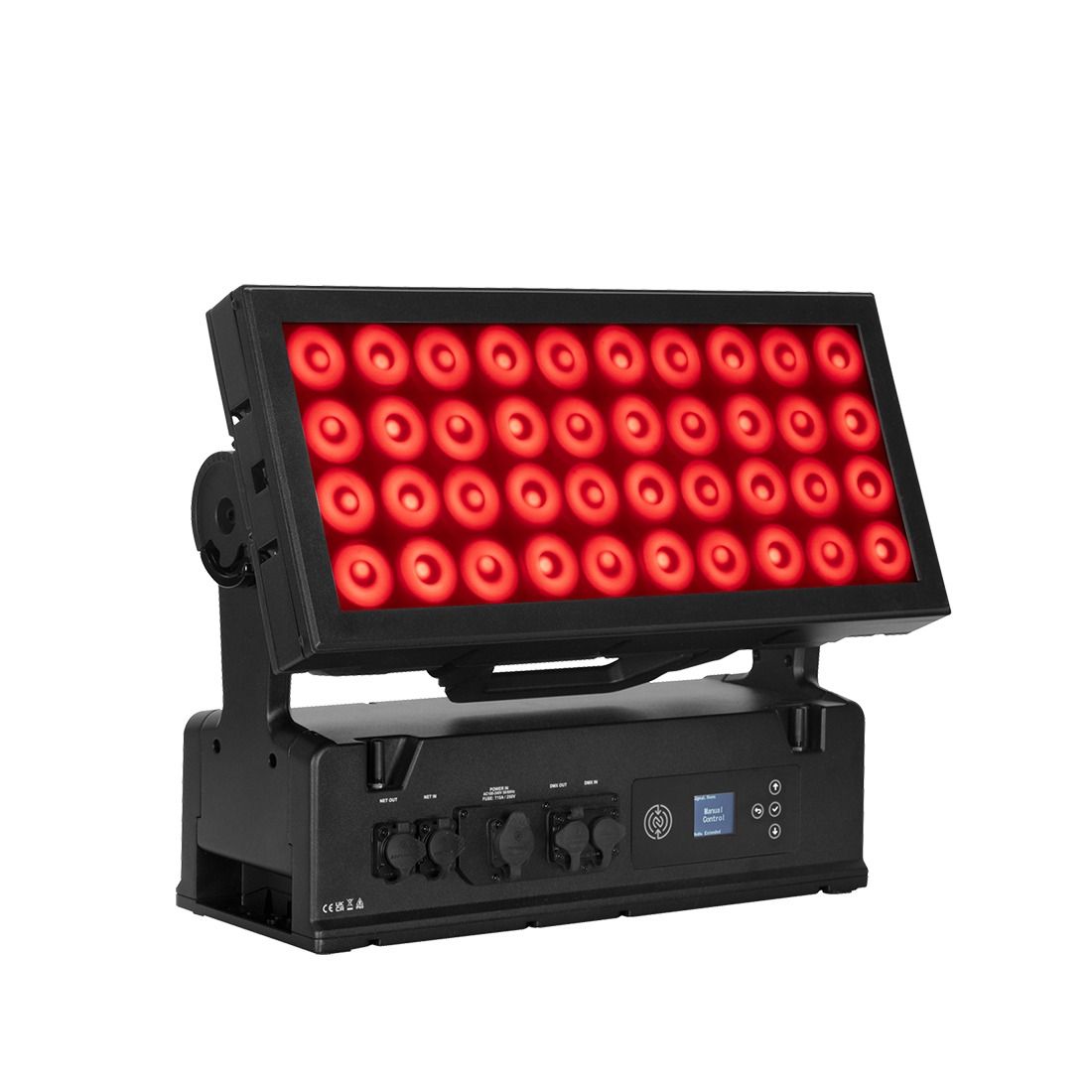

SIX+ PANEL

Designed for modern lighting design, the SIX+ PANEL combines refined color quality, powerful output, and flexible deployment in a single, durable fixture.

Built on the SIX+ Series dynamic color platform, SIX+ PANEL delivers cleaner, richer, and more accurate color that translates confidently across cameras, stages, and mixed lighting environments—from subtle tonal shifts to bold, saturated looks. Its RGBLA+UV 6-color engine with high CRI, precise calibration, and integrated UV produces natural whites, consistent fixture-to-fixture color, and creative depth beyond traditional RGBW or RGBL panels.

Multi-zone control enables pixel-style effects, gradients, and dynamic looks, while still allowing the panel to operate as a smooth, unified wash when needed—adding visual texture without sacrificing color quality or output.

With an output of approximately 46,600 lumens from a high-power array of 40W LED engines, SIX+ PANEL provides intense, focused performance that holds up in large venues, outdoor environments, and high-demand productions. A 15° native beam and optional lenses provide wider coverage options, allowing the fixture to adapt easily as scale, layout, or conditions change.
Built for real-world stages, SIX+ PANEL features durable IP65-rated construction for dependable indoor or outdoor performance.

Optional battery power enables cable-free placement for faster setups and cleaner designs, while quiet fan modes, flexible control options, and Aria X2 wireless management with NFC configuration streamline programming and system management.
Whether subtle or bold, controlled or expressive in color, SIX+ PANEL is ready to shine—wherever the show takes you.

Technical Data

FEATURES

(40) 40W RGBLA+UV LED Array
46,625 Lumens, 92.3 CRI
Beam Angle: 15°
2x5 Cell Pixel Control
Optional 14.4V V-Mount Dual Battery Plate
>8hr Maximum Battery Run Time
NFC & Aria x2 Wireless Device Management
IP65 Rated

SOURCE

(40) x 40W RGBLA+ UV LEDs
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

Total Lumen Output:
46,625 (Integrating Sphere)
TBA (Goniometer)
CRI- 92.3
TLCI- 83

Beam Angle: 15°
Field Angle: 25°


EFFECTS

2x5 Cell Pixel Control
Prebuilt & Custom Standalone Effect Sequences
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR

RGBLA+ UV Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Dim-to-Warm Fade
Virtual Gel Swatch Book

CONTROL / CONNECTIONS

19 DMX Channel Modes (1ch, 3ch, 4ch, 6ch, 6ch, 9ch, 12ch, 16ch, 21ch, 19ch, 27ch, 25ch, 39ch, 43ch, 75ch, 30ch, 73ch, 135ch, 60ch)
4 Button Control Panel, LED Display
Full Color 180° Reversible LCD Menu Display
DMX, RDM, Art-Net & sACN Protocol Support
Aria x2 Wireless Device Management
NFC Configuration
IP65 Locking RJ45 Ethernet In/Out
IP65 5pin DMX In/Out
IP65 Locking Power Cable In

SIZE / WEIGHT

Length: 239mm (9.4")
Length w/ Battery Cover: 314mm (12.4")
Width: 509mm (20")
Vertical Height: 391.5 (15.4")
Weight: 20.4kg (45lb)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
Optional DC 14.4V
1300W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 4433

BATTERY

Optional Battery Plate Requires 2x V-Mount Batteries
Battery Voltage: 14.4V
Battery Life: >8hr

INCLUDED ITEMS

Barndoor
IP65 Locking Power Cable

OPTIONAL ITEMS

SIX+ PANEL BATTERY PLATE

FIRMWARE UPDATES

Current firmware can be found here (login required)







Specifications and documentation subject to change without notice
