Six+ Bar S

Unleash the full potential of LED batten lighting and ignite your creative spark with the new SIX+ BAR S!

The SIX+ BAR S represents an innovative line of creative LED batten solutions that harmonizes the latest in LED color technology with versatile design for greater artistic expression. An upgrade of Elation’s beloved SixBar 500, the SIX+ BAR S raises the bar with more output, a broader color spectrum and an overall superior quality of light.

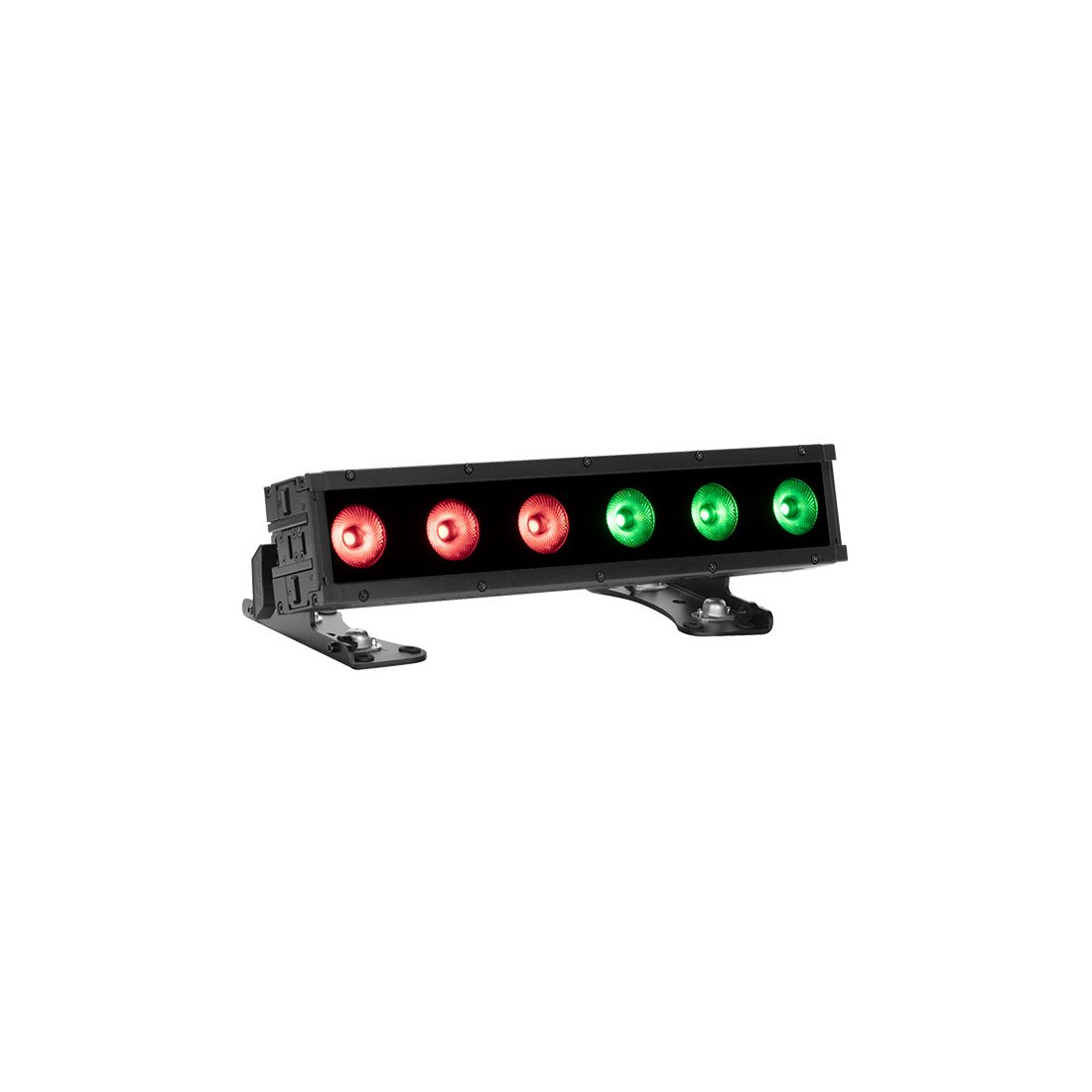

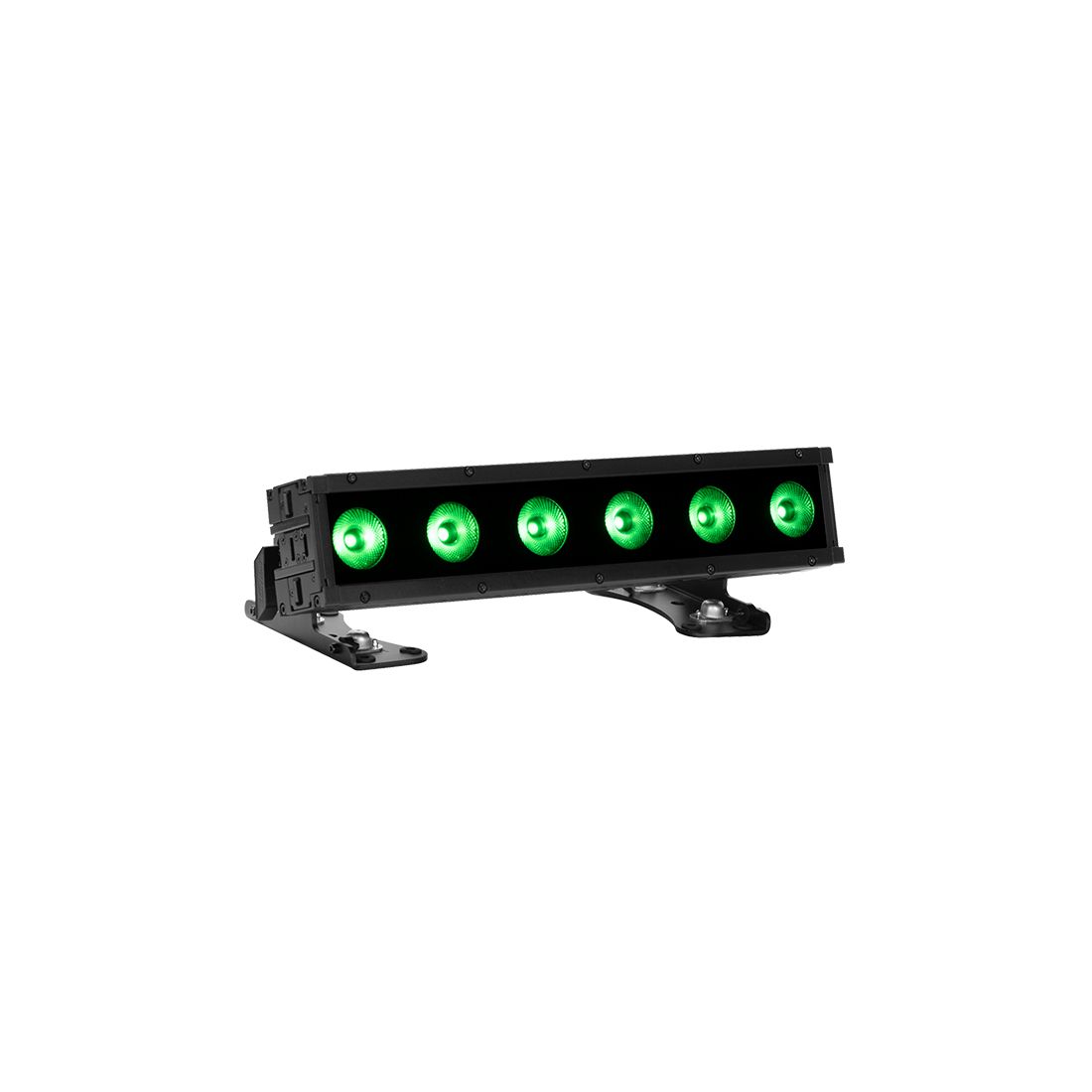

Equipped with 20W RGB+Lime+Amber+UV LEDs and boasting an impressive CRI of 90.9, the SIX+ BAR S offers a stunning array of colors, ensuring a beautifully homogenized wash of light with high-quality color reproduction. Its meticulously engineered optical system ensures even light distribution, and the proprietary RGBLA+UV engine delivers high-fidelity whites and intense primaries with no color fringing. Extra-large 50 mm lenses make it ideal for direct view applications and individual cell control opens up for a myriad of design possibilities.

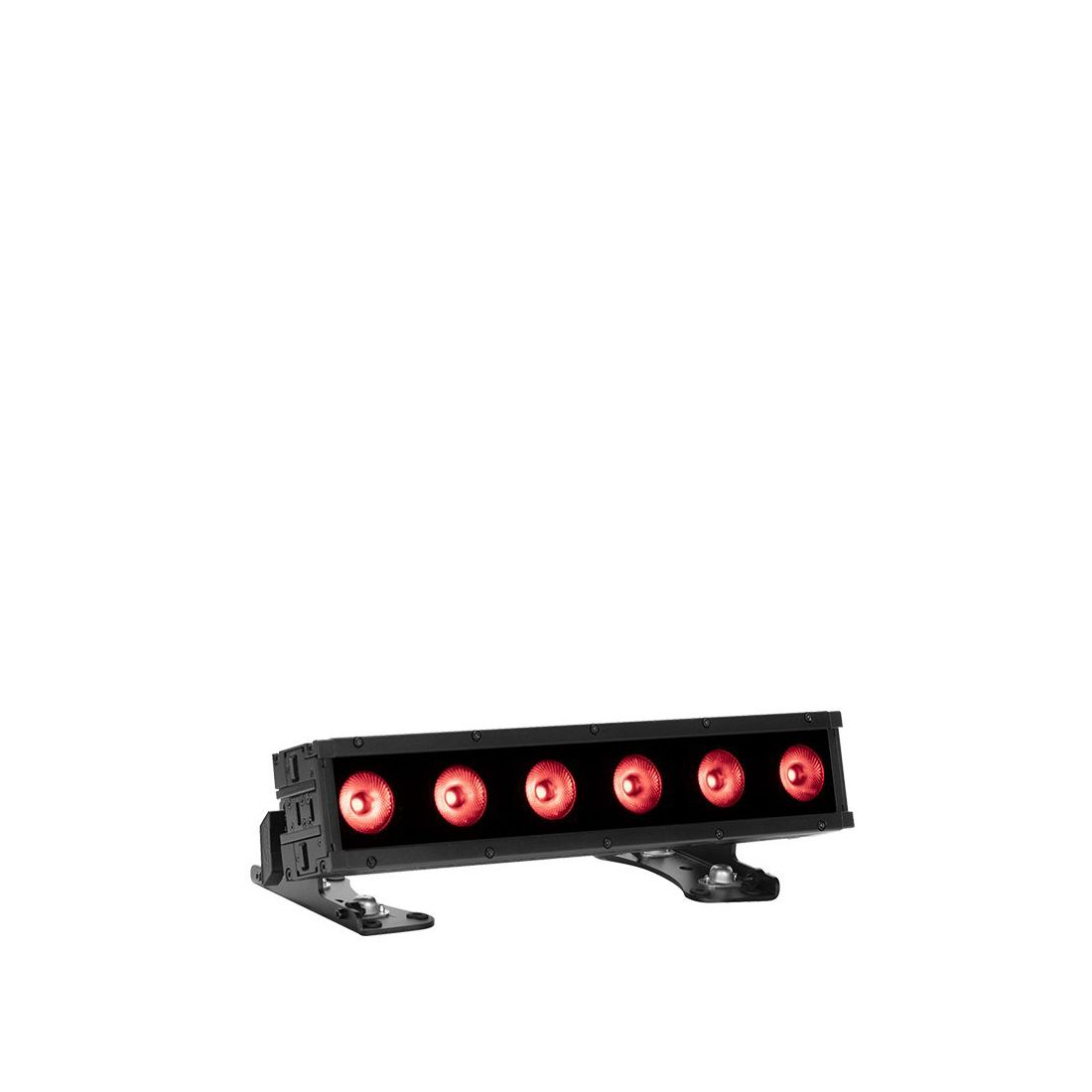

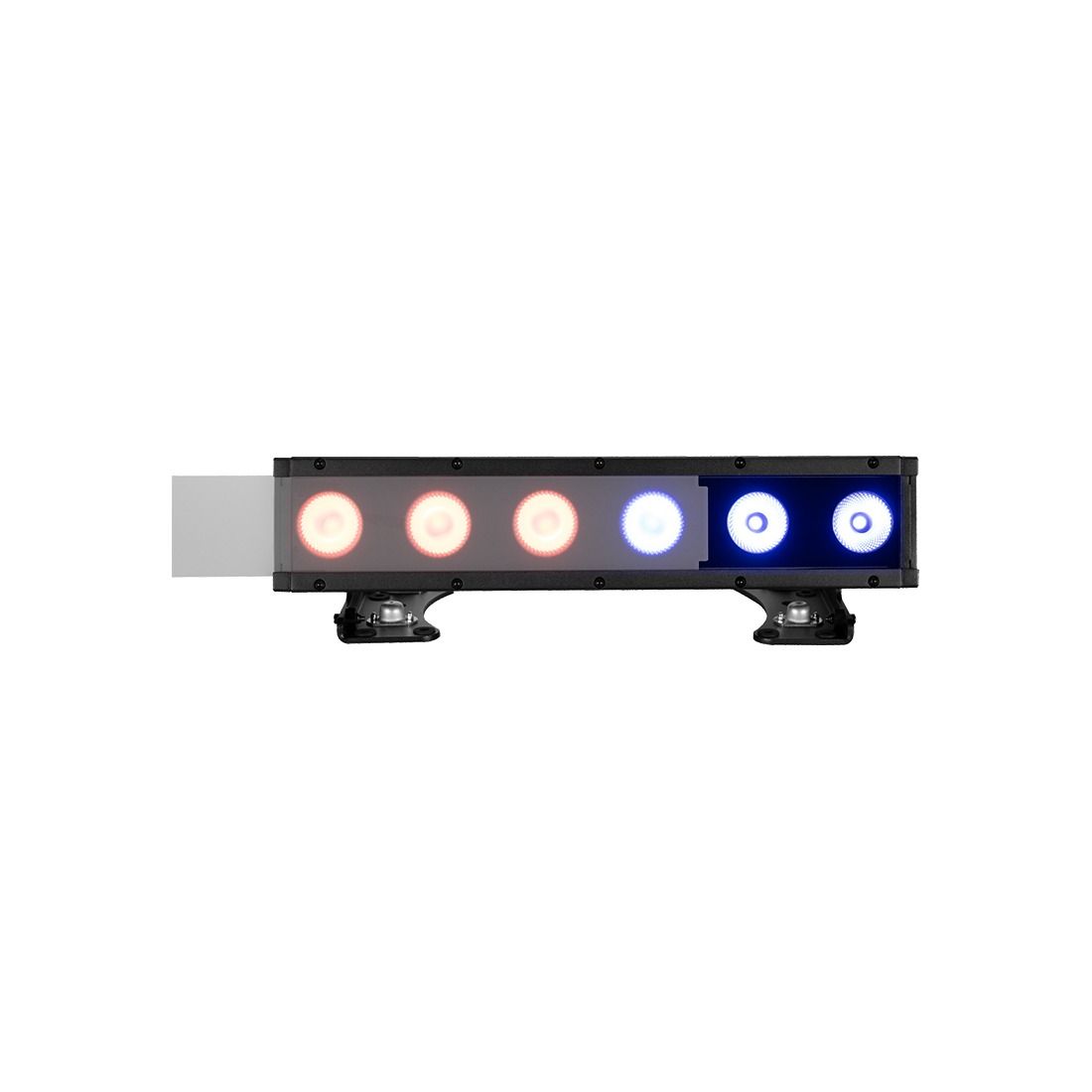

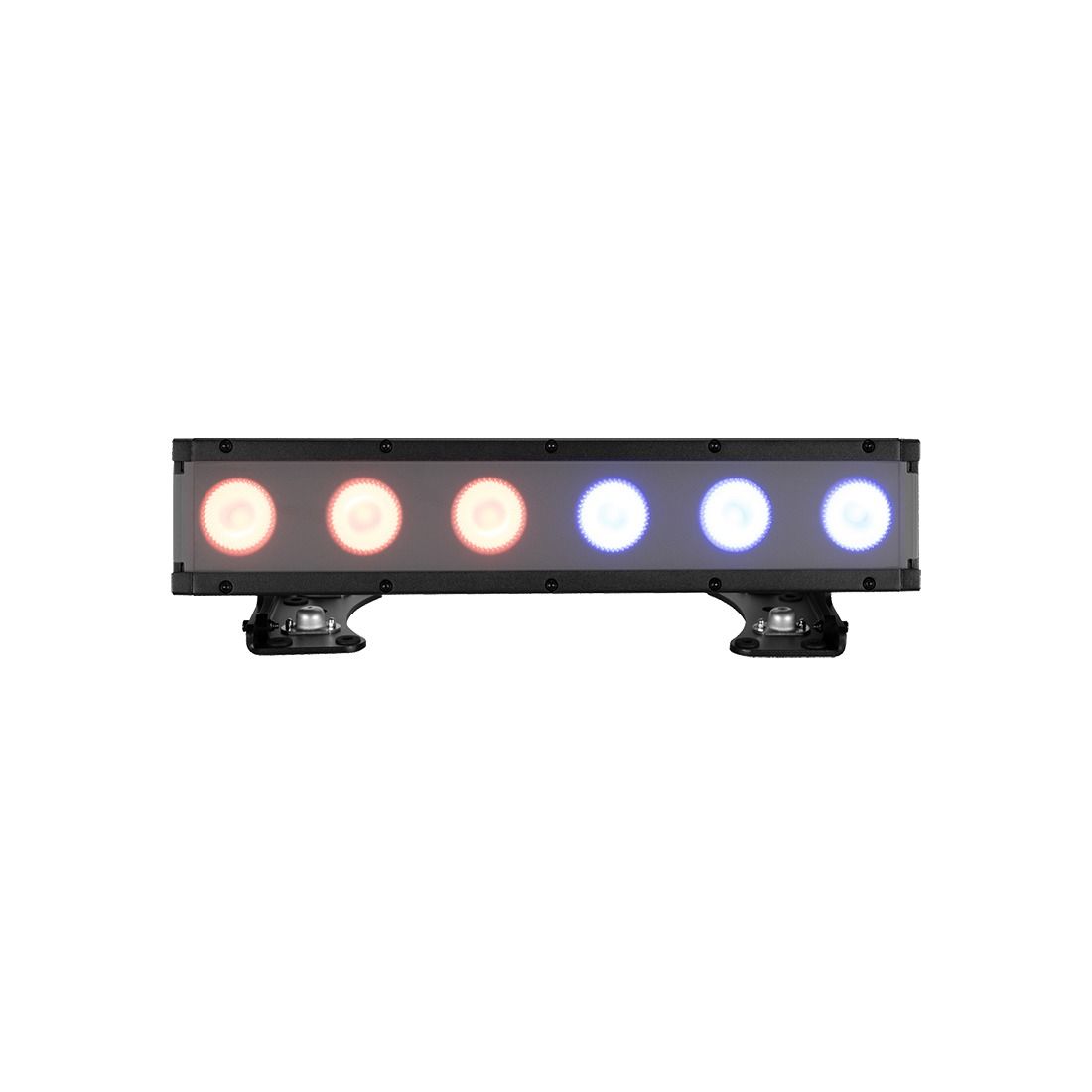

The half-meter-long SIX+ BAR S houses 6 RGBLA+UV LEDs and packs a punch at over 4000 lumens. With fully variable color temperature adjustment (2400K - 8500K), CMY emulation, and a virtual gel library, designers have immediate access to a diverse LED color array, including beautifully mixed whites. A time-efficient SixBar emulation mode ensures perfect color matching and DMX control with existing SixBar fixtures. The integrated accessory slot accommodates the included frost filter, with optional ND filters and other optics available. The fixture also ships with an included glare shield for wall wash applications.

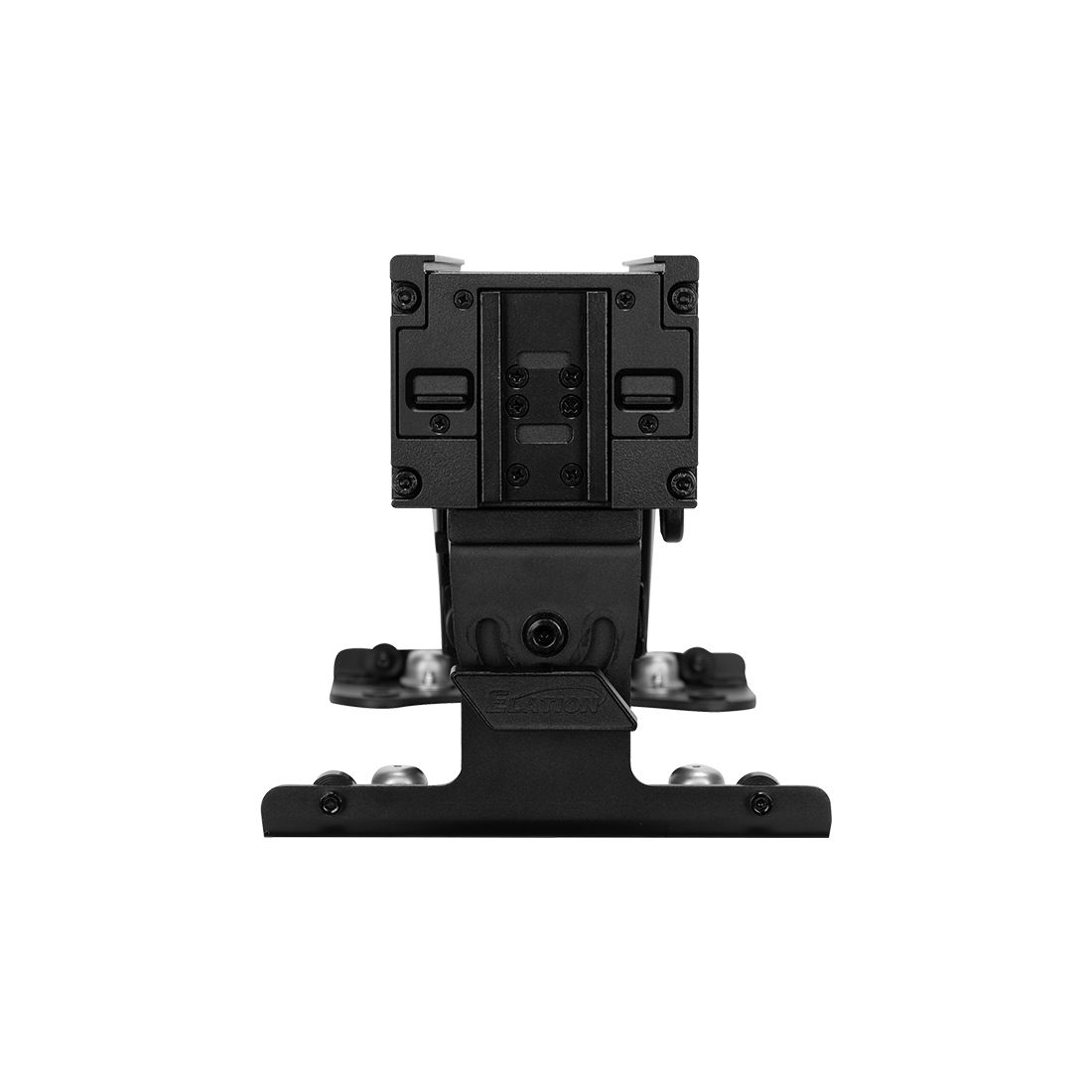

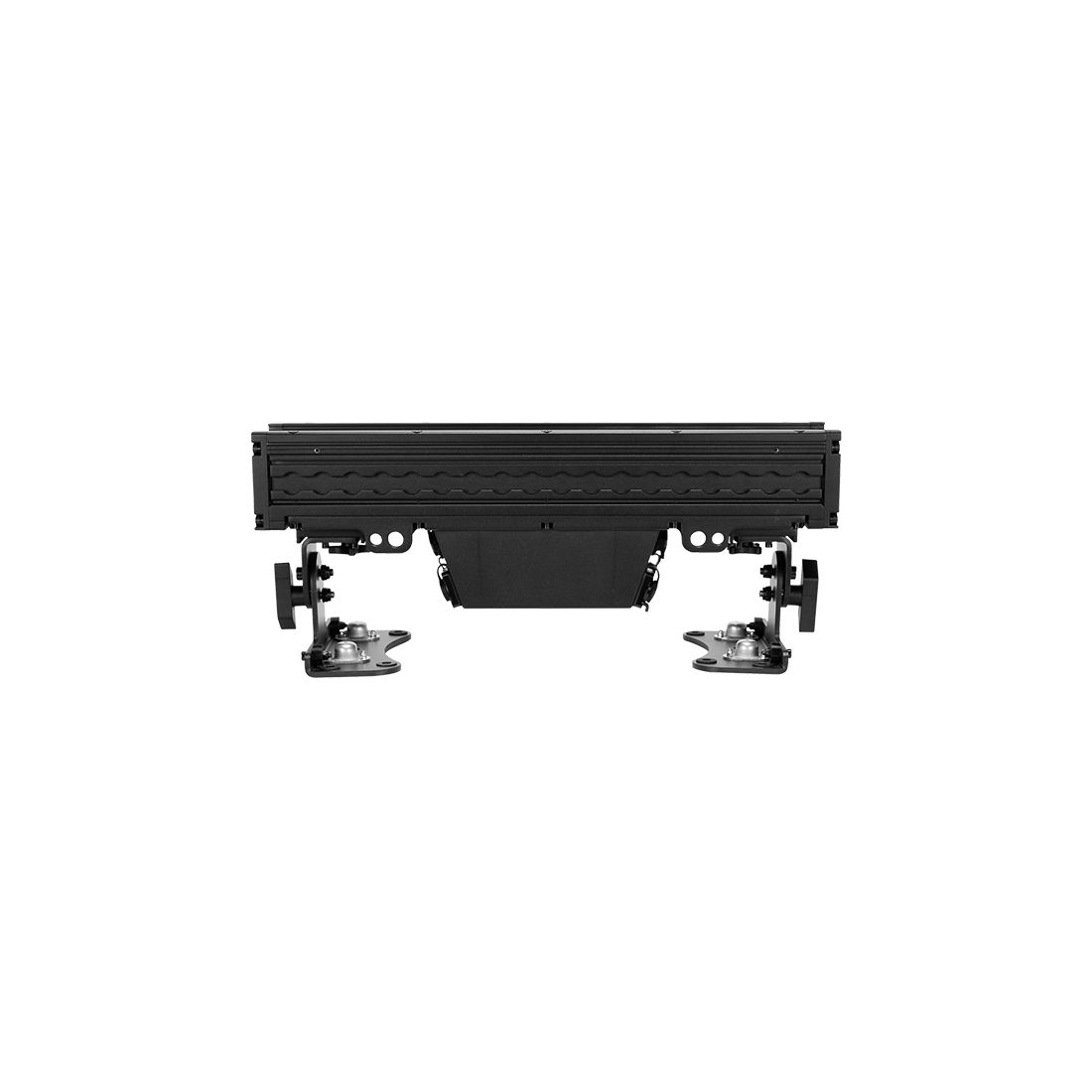

Designed for ultimate flexibility, the SIX+ BAR S's innovative housing allows for end-to-end interconnection and includes integrated L track on three sides for flexible mounting and positioning. Trunnions designed for attachment to the L track can be fixed at multiple points to optimize positioning around objects or obstacles.
Ideal for a large variety of productions and easily integrated into installation applications, the SIX+ BAR S serves as a highly versatile wash light, uplight, wall/cyc wash, accent light, direct view pixel strip and more. Wrapped in a durable, fully IP65-rated housing, the fixture is suitable for any environment, indoors or outdoors, and the C4-M marine grade coating ensures protection against the harshest environments, even salty coastal air. Its fanless convection cooling guarantees silent operation, making it ideal for noise-sensitive environments.
Controllable via DMX/RDM, Art-Net, sACN, and KlingNet protocols, the SIX+ BAR S also features proprietary Aria x2 wireless device management for simplified system setup and maintenance.
Do more with LED batten lighting and set your creative spirit free with the SIX+ BAR S!



Technical Data

FEATURES

(6) 20W RGBLA+UV LED Array
>4000 Lumens, 90.9 CRI
Extra Large 50mm Lenses
Beam Angle: 30°x 14° (Frost Filter Included)
Full Pixel Control
Completely Fanless Cooling
Integrated L Track for Flexible Mounting
Unique End-to-End Interconnection System
Art-Net, sACN and KlingNet Support
IP65 Rated

SOURCE

(6) x 20W RGBLA+ UV LEDs
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

Total Lumen Output:
4,435 (Goniometer)
CRI- 90.9
TLCI- 80

No Lens

Beam Angle: 20°
Field Angle: 33°

Included Frost

Beam Angle: 30°
Field Angle: 60°

EFFECTS

Full Pixel Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR

RGBLA+ UV Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Dim-to-Warm Fade
Virtual Gel Swatch Book



CONTROL / CONNECTIONS

15 DMX Channel Modes (1ch, 3ch, 6ch, 9ch, 13ch, 16ch, 16ch, 22ch, 22ch, 34ch, 34ch, 58ch, 82ch, 154ch, 72ch)
5 Six Bar 1000 Emulation DMX Channel Modes (6ch, 7ch, 11ch, 13ch, 75ch)
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management

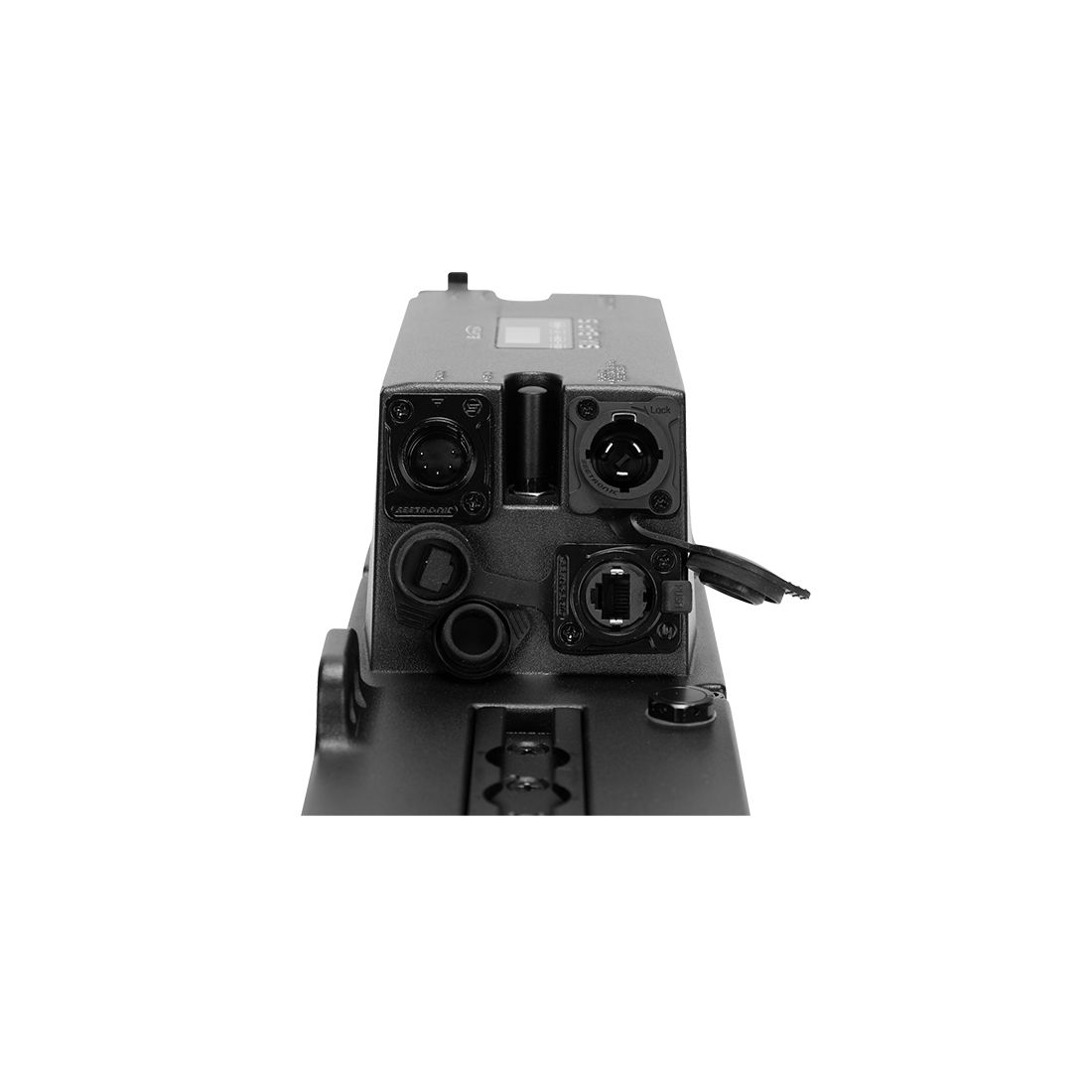

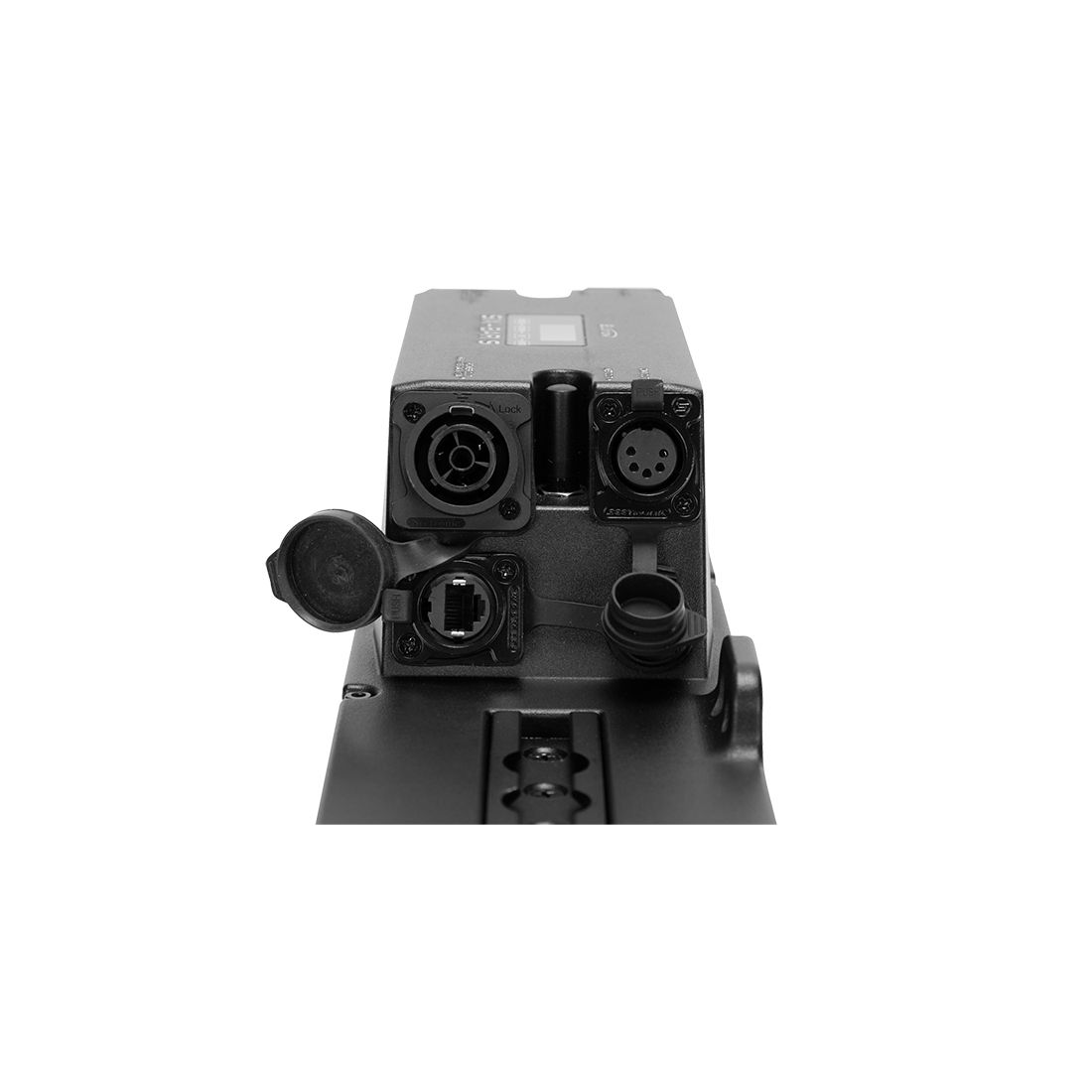

IP65 5pin XLR DMX In/Ou
IP65 RJ45 Ethernet In/Out (Art-Net, sACN, KlingNet
IP65 Locking Power Cable In/Out


SIZE / WEIGHT

Length: 500mm (19.69”)
Width: 105mm (4.13”)
Horizontal Height: 206mm (8.11”)
Weight: 6.75kg (14.88 lbs)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
110W Max Power Consumption
Power Thru Capacity: @110V: 16 Units; @240V: 32 Units
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 375.1

INCLUDED ITEMS

IP65 Locking Power Cable
Frost Filter
Glare Shield
Fixture Interconnect Key

OPTIONAL ITEMS

1223200117 BAR S NSP Lens
1223200108 BAR S WFL Lens
1223200116 BAR S XFL Lens
1223200115 BAR S L140 Lens
1223200114 BAR S L1060 Lens
1236300110 Fixture Interconnect Splice Package (FISP06)
1744000028 L-Track to M10 Adapter,70mm (LTR001)
1744000029 L-Track to M10 Adapter, 44.5mm (LTR008)
1744000030 L Track C-Clamp & Adapter Assembly, 70mm (LTR100)
1744000031 L Track C-Clamp & Adapter Assembly, 44.5mm (LTR112)

FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice
