Six+ Par L

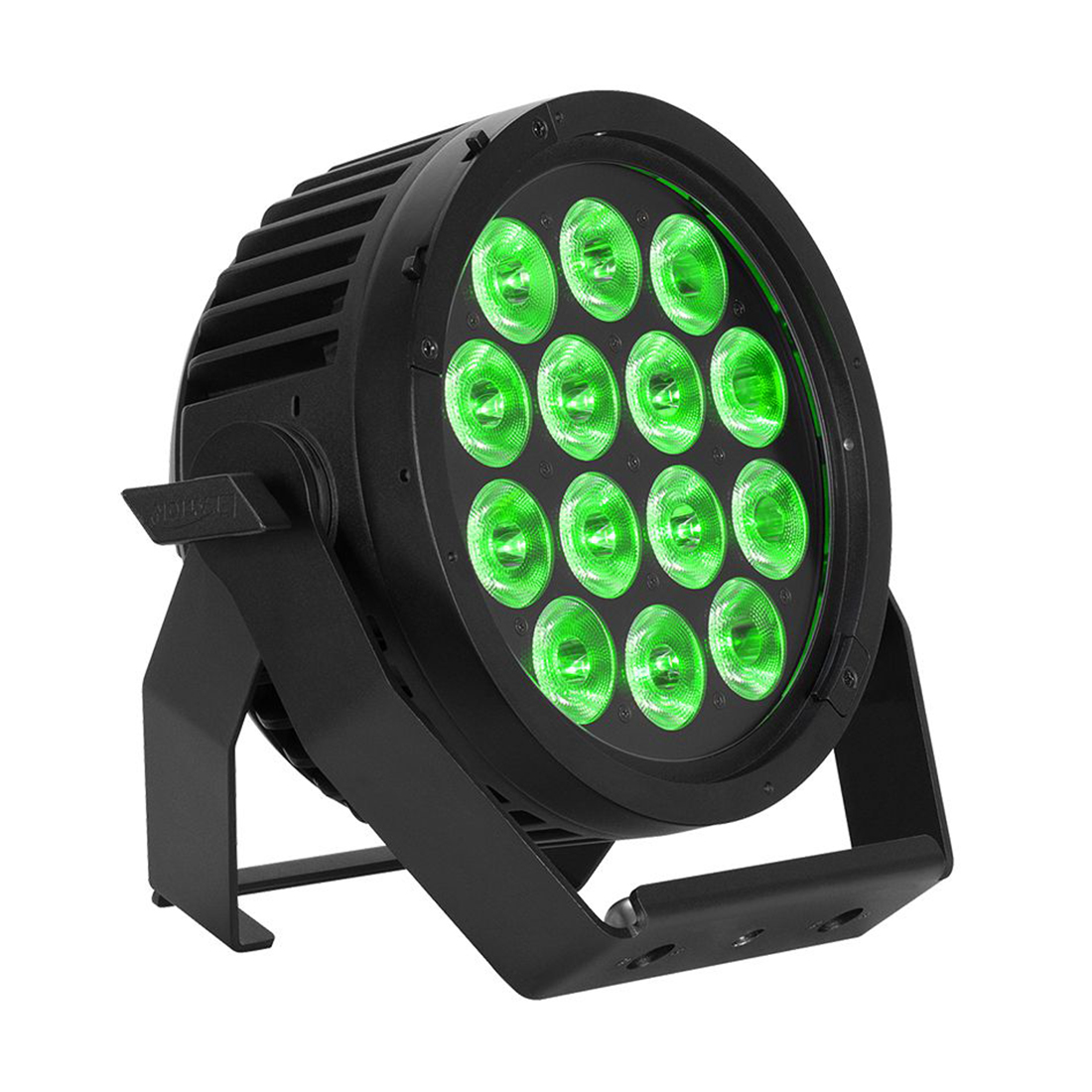

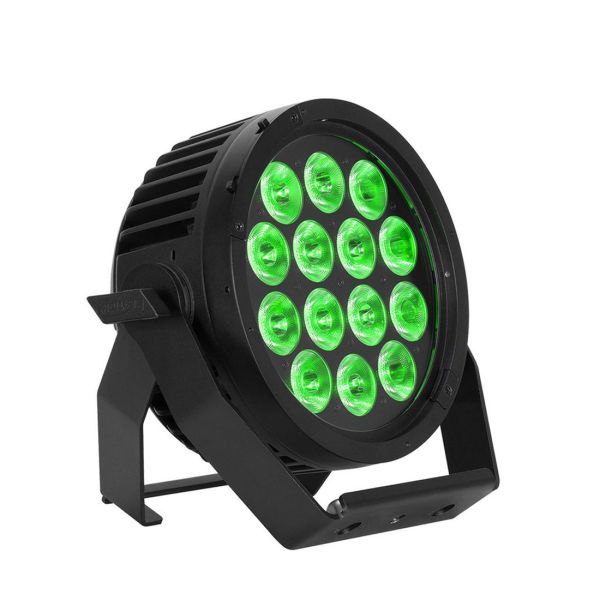

The SIX+ PAR L is a compact and rugged LED fixture that features (14) 20W RGBLA+UV LED’s, which produce an ultra-wide color spectrum and high quality of light while still offering up to 7300 lumens of output. The optical system has been carefully engineered to offer an even distribution of light and color homogenization within the beam. This fixture has been designed to offer ultimate flexibility, use it indoors or out, it’s IP65 rating can handle any environment, and with it's C4-M marine grade coating, it's even safe in harsh costal environments. The fanless cooling system ensures silent operation allowing it to be installed in the most noise sensitive environments.

With a six color LED array, the SIX+ PAR L is able to offer outstanding color rendering capabilities with a high CRI of 91.7. This, paired with its remotely variably LED refresh frequency allows it to be easily integrated into any TV and Film application.
To expand the control capabilities on the SIX+ PAR L, precise color temperature control via a dedicated variable CCT control channel has been integrated. Programming a six-color LED fixture can be complicated so, a CMY emulation mode has been added for users that are more familiar with that color mixing system. Furthermore, an integrated library of calibrated color presets that match the most popular gel filters has been included. This new fixture also includes our new Aria x2 wireless device management system for easy system maintenance and support.

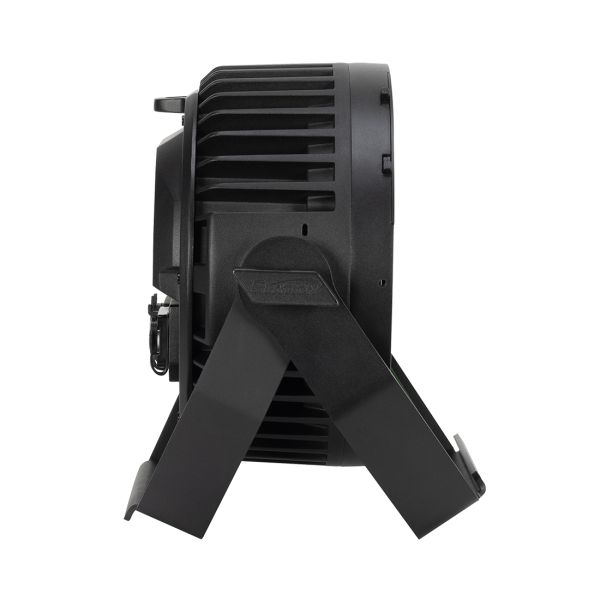

The IP65 housing includes a dedicated diffusion lens holder and the optional gel frame holder can accommodate industry standard 10” accessories. One MFL (20°) lens is included with the fixture, and other optional lenses are also available. The dual yoke design allows the fixture to be mounted on the floor or it can be easily rigged to hang with a c-clamp or by using the included omega bracket receiver.
To ensure the SIX+ PAR L can be integrated seamlessly alongside original SixPar fixtures, great care has been taken to ensure that the new LED array colors match the original. A unique SixPar Emulation DMX mode has been developed, so that the new fixtures can be controlled with the same DMX mapping as the original. The color mixing has also been calibrated to virtually emulate the White LED included in the SixPar array and an output limit master setting has been added so your new lights don’t overpower any older fixtures in the rig.
The SIX+ PAR L is an ideal fixture for Theatre, Houses of Worship, Live Events, Themed Environments, Hospitality or Installations where high output, small form factor, simple design and easy deployability are required.

Technical Data

FEATURES

(14) 20W RGBLA+UV LED Array
7300 Lumens, 91.7 CRI
12° Beam Angle, 20° Lens Included
Completely Fanless Cooling
16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate
Flicker Free Operation for TV and Film
Optional 10” Accessory Holder
IP65 Rated

SOURCE

(14) x 20W RGBLA+ UV LEDs
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

7300 Total Lumen Output
CRI - 91.7

EFFECTS

Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR

RGBLA+ UV Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book

CONTROL / CONNECTIONS

9 DMX Channel Modes (1ch, 3ch, 9ch, 6ch, 9ch, 11ch, 14ch, 14ch, 20ch)
4 SixPar Emulation DMX Channel Modes (6ch, 7ch, 8ch, 12ch)
Manual and DMX Controlled Dimmer and Color
4 Button Control Panel, LED Display
RDM (Remote Device Management)

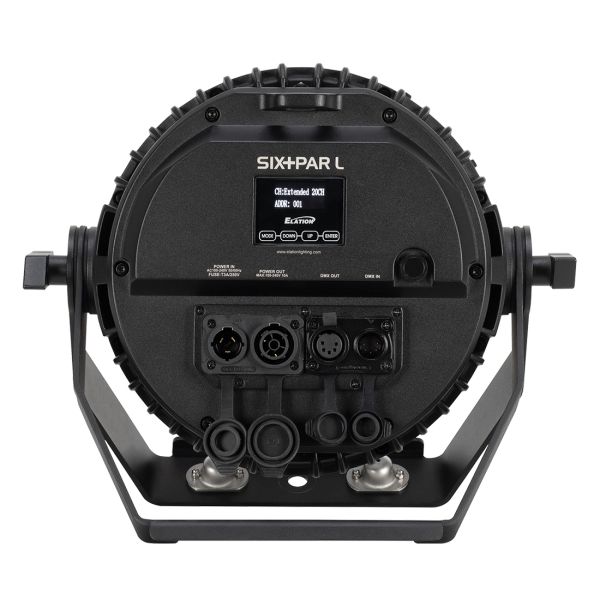

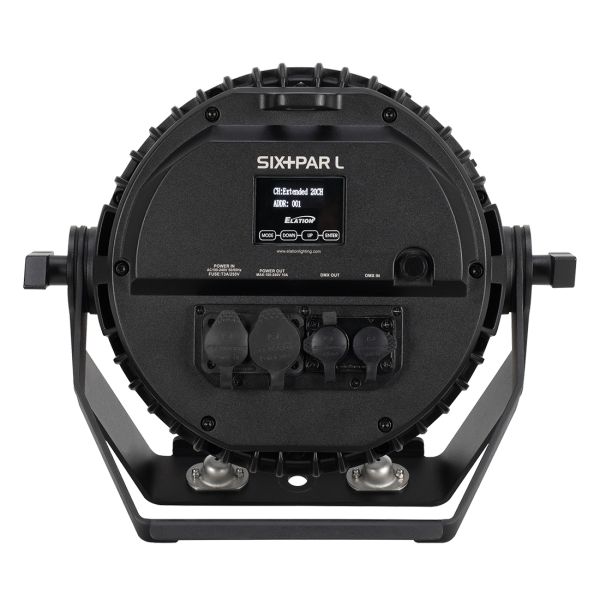

5pin DMX and IP65 Locking Power Cable In/Out

SIZE / WEIGHT

Length: 260mm (10.2”)
Width: 342mm (13.5”)
Vertical Height: 246.5mm (9.7”)
Weight: 7.1kg (15.7lbs)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
165W Max Power Consumption
Power Thru Capacity: 7 Units @110V, 16 Units @240V
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 562.65

INCLUDED ITEMS

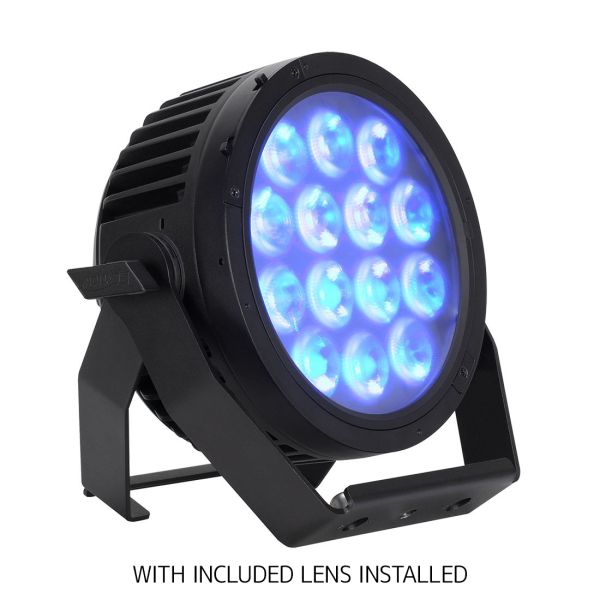

MFL (20°) lens
IP65 Locking Power Cable

OPTIONAL ACCESSORIES

1223200100 60° Lens (SIX+L WFL)
1223200101 100° Lens (SIX+L XFL)
1223200099 1°x 40° Lens (SIX+L L140)
1223200098 10°x 60° Lens (SIX+L L1060)
1621000163 Gel Frame & Holder Kit (SIX+L GFK)
1236300104 HWP404 (4W Hardwire Plate)
1236300105 HWP202 (2W Hardwire Plate)
10" Black Barndoor

FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice
