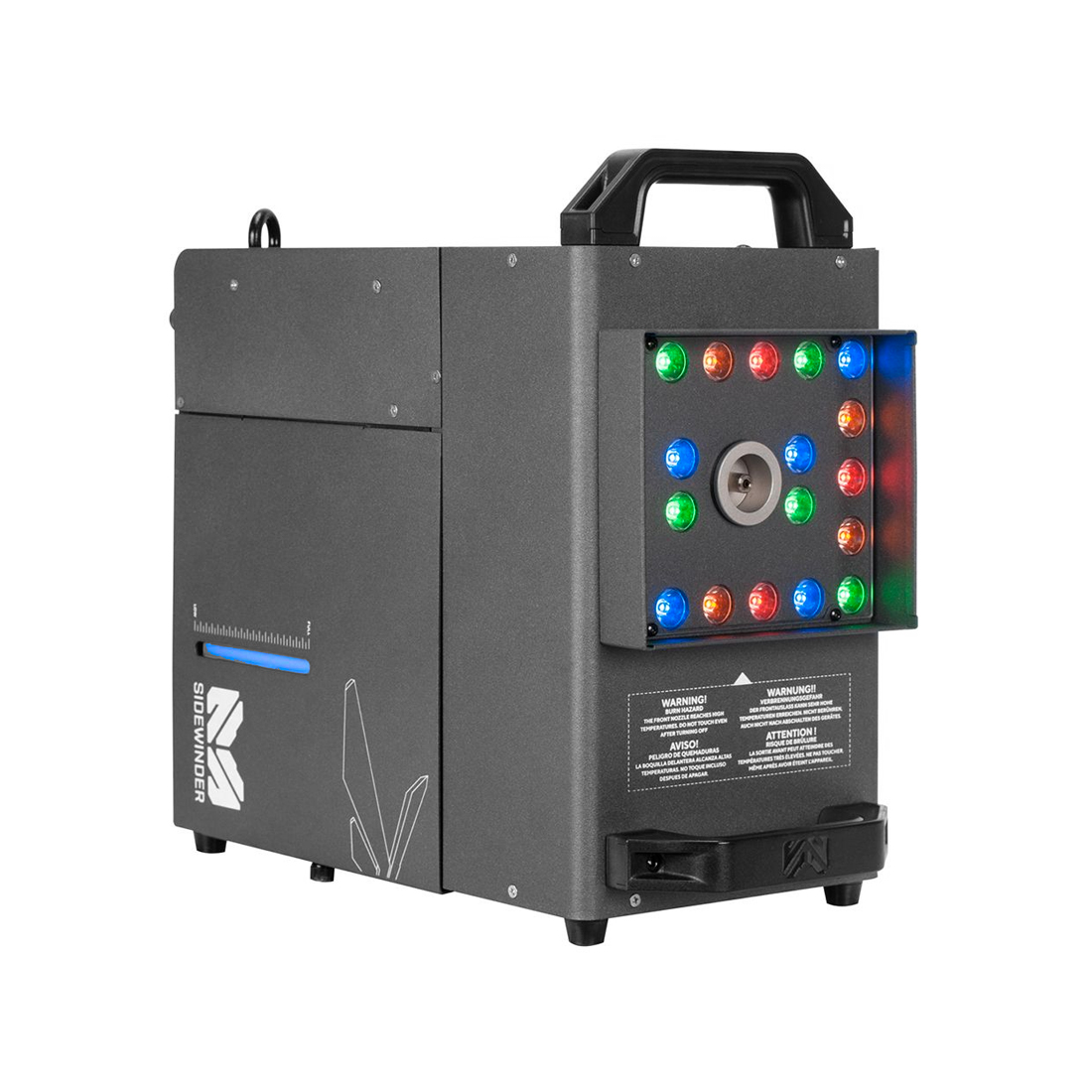

SIDEWINDER

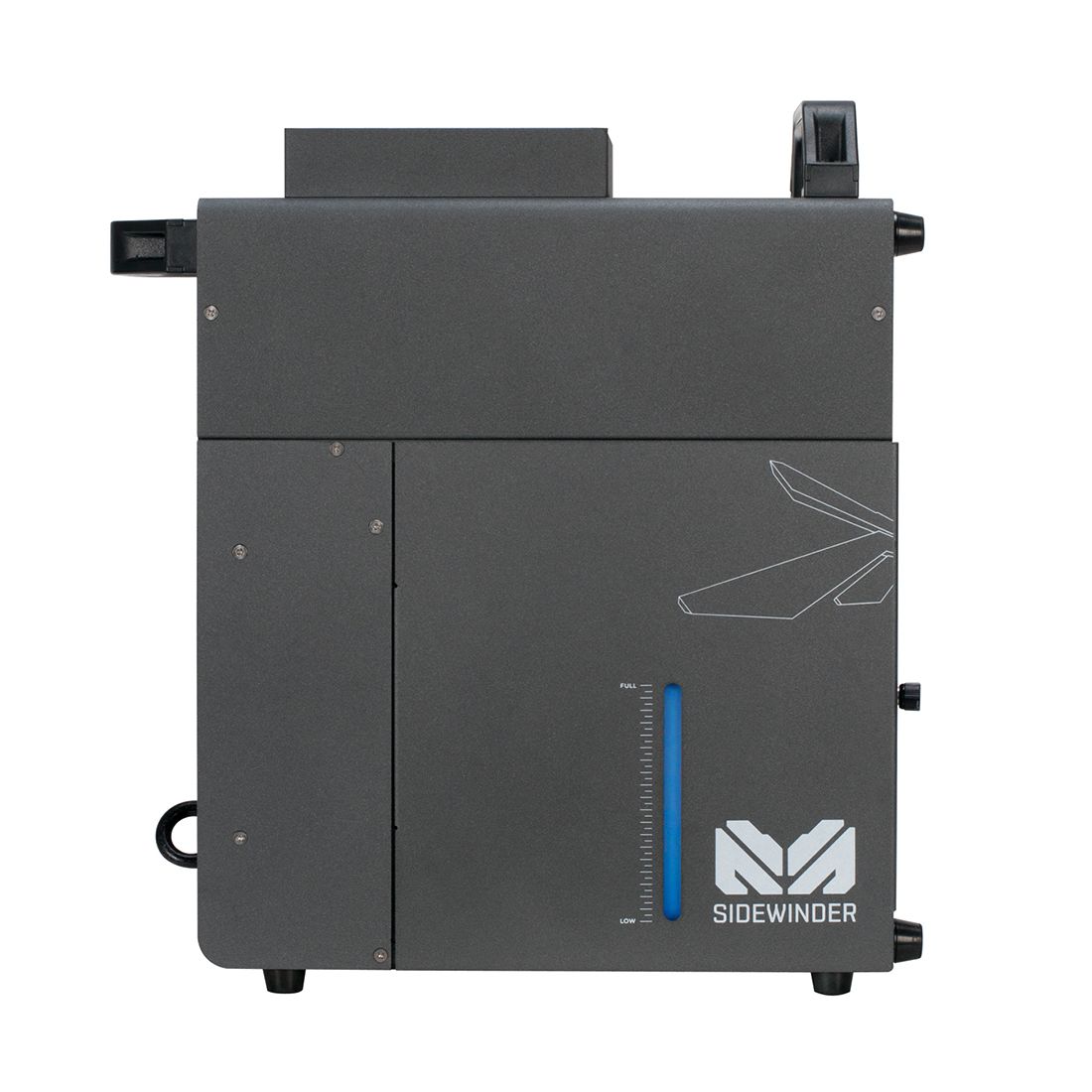

The MAGMATIC SIDEWINDER is a high-velocity CO2 simulator fog machine. Including 22 x 3-watt RGBA LEDs.((Red X5 Green X6 Blue X6 Amber X5)) The Sidewinder can burst fog in multiple positions, rotating 180° degrees. Easy to use onboard LCD touch screen control panel, intuitive DMX-512, RDM control, durable aluminum housing, and optional wired and wireless remote control options.


Technical Data

FEATURES

50,000 cu.ft per minute
Four, 8-second 20-ft bursts
180° multi position fog burst

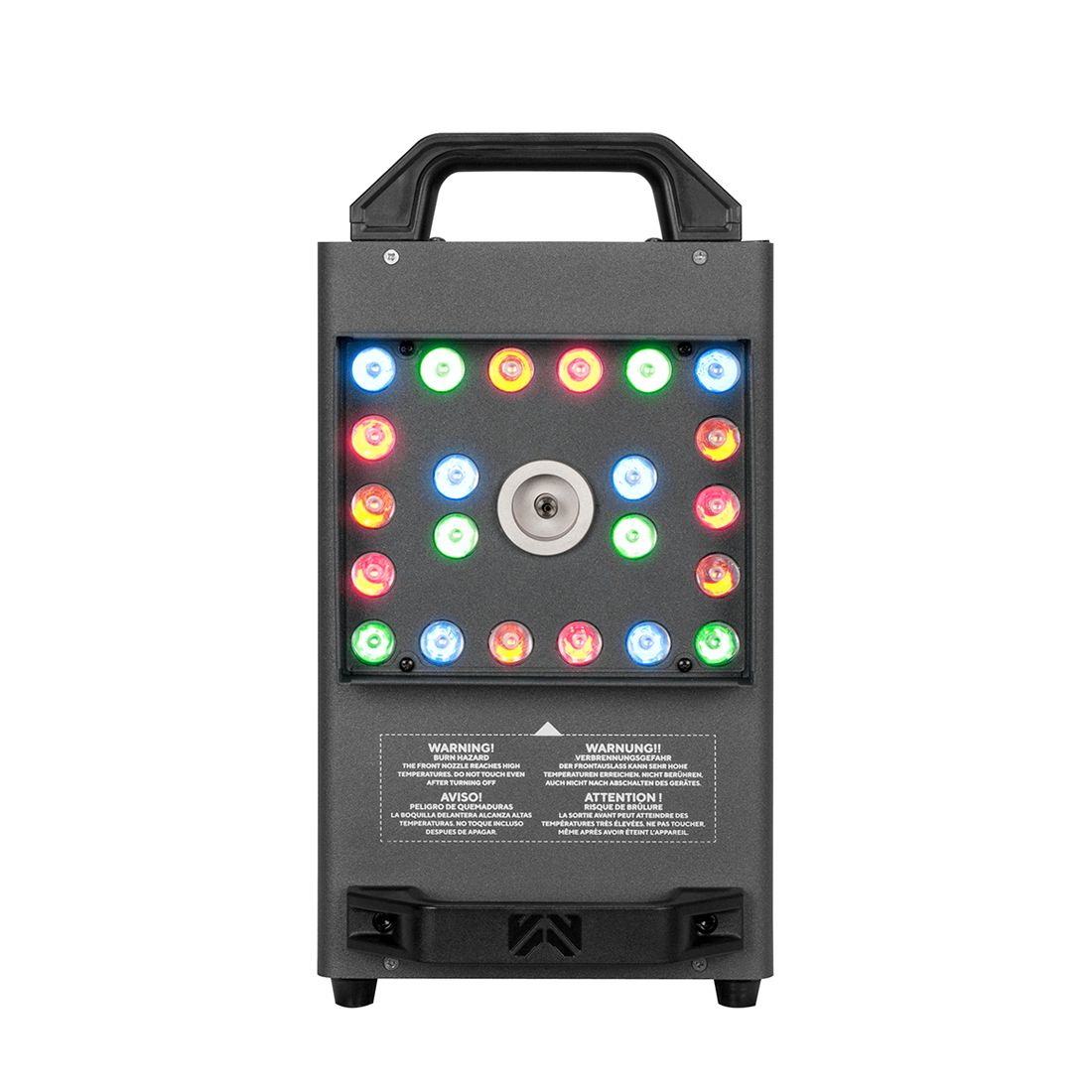

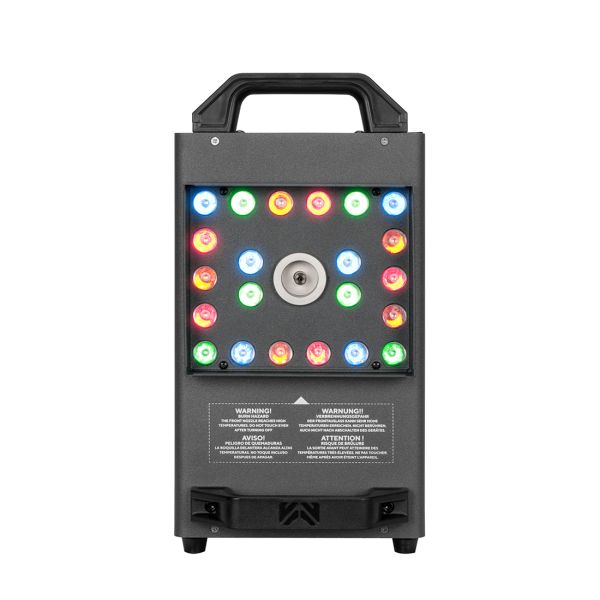

22, 3 watt RGBA LED's (Red X5 Green X6 Blue X6 Amber X5)
Use of LEDs even without the use of Fog
Durable, tour-ready, aluminum housing

SPECIFICATIONS


PERFORMANCE


Rated Power: 1450W
Max Output: 50,000 CFM* (cu ft/min.)
Max Continuous Output Duration: 8 Seconds
Max Throw Distance: 20 Feet
Initial Ready Time: 9 Minutes
Cycling Ready Time: 1 Minute
Fluid Capacity: 2.5L
Fluid Consumption: 180ml/min.

COMPATIBLE FLUID


Atmosity Flash Fog Fluid (AFF, available as a 2, 4 and 20-litre)

CONSTRUCTION


Thermally Protected Heat Exchanger
Advanced HPA (high pressure air) Pump Technology
Energy Saving Mode with Auto-Clean Process

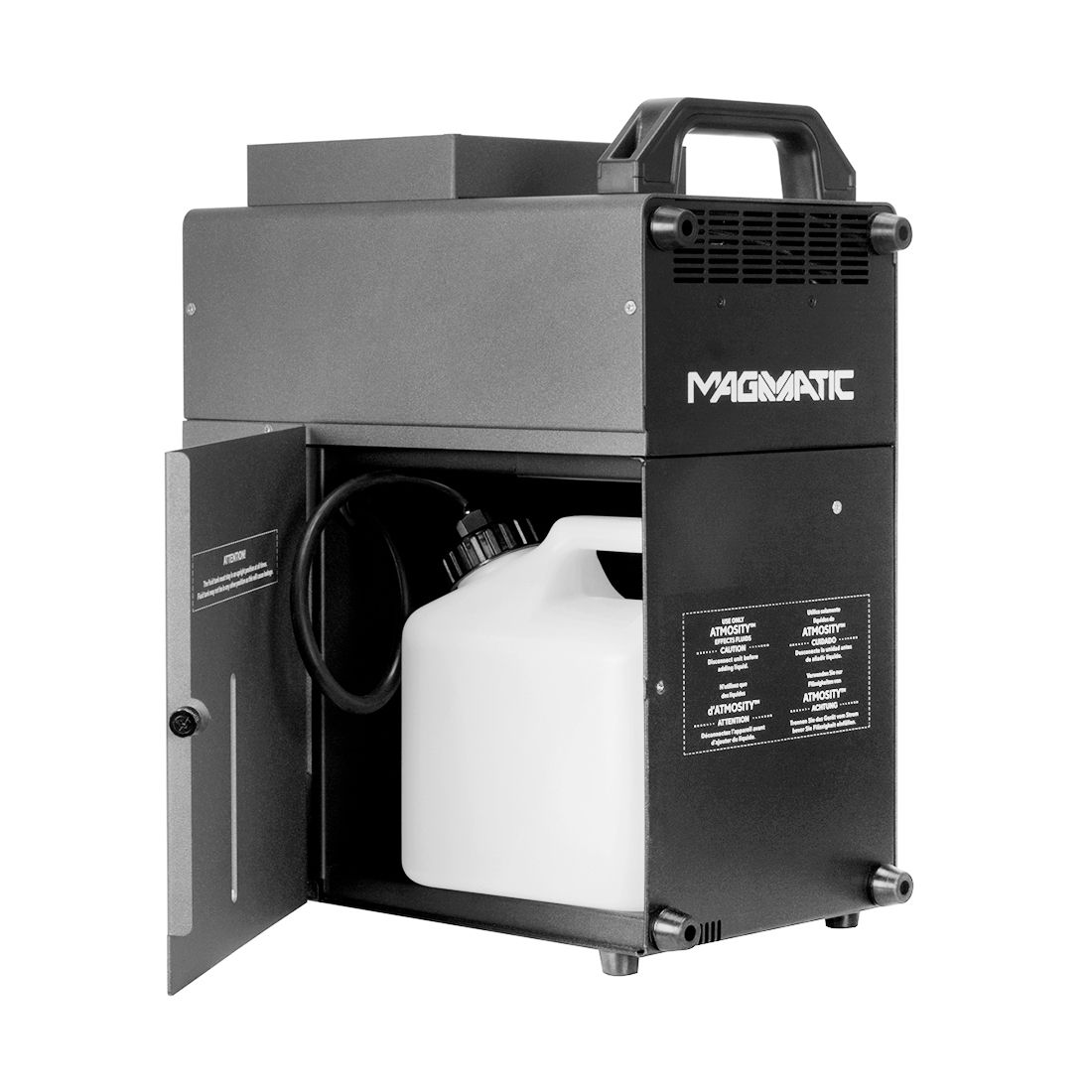

Sealed Fluid Reservoir

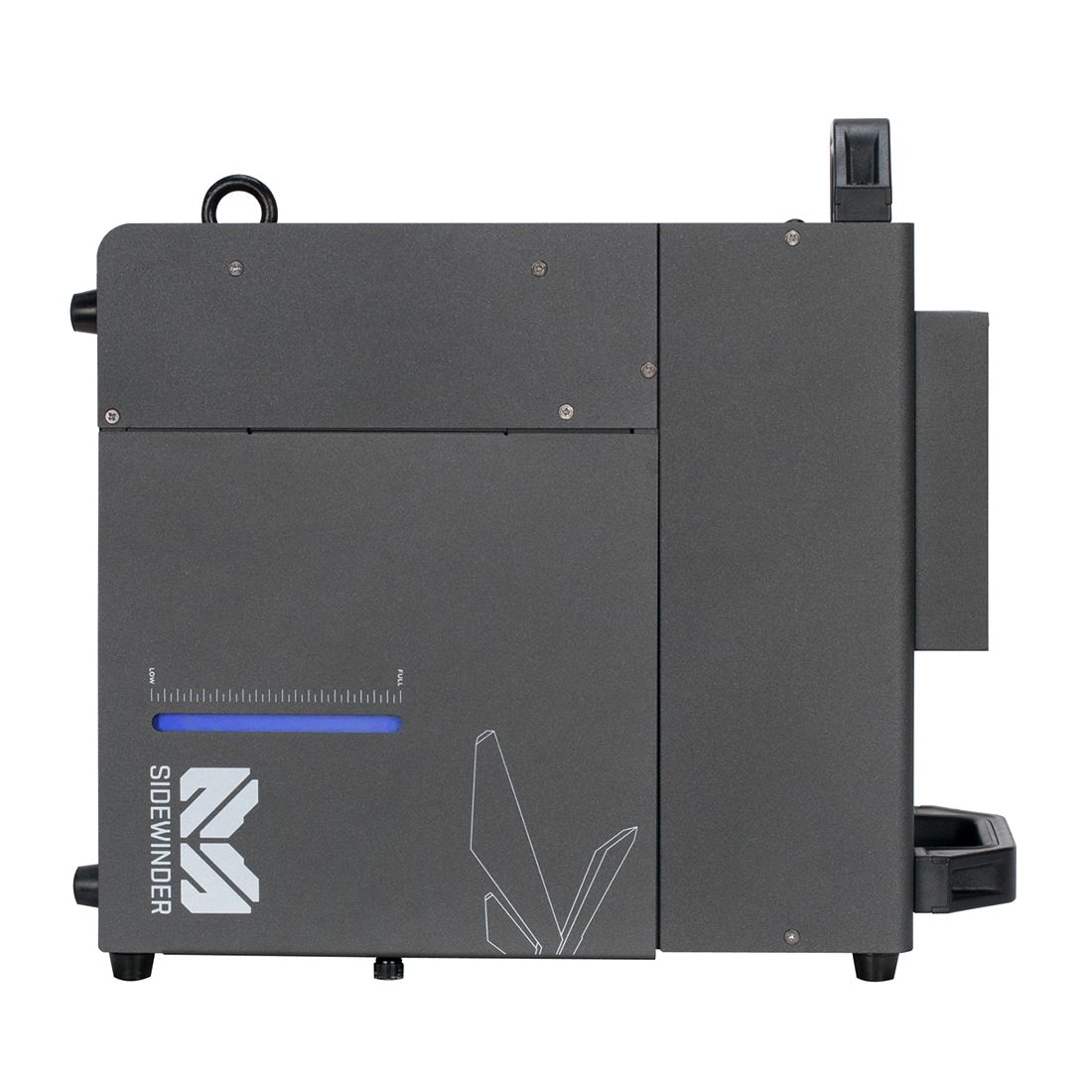

External Visual Fluid Level Detection
Compact Light Weight Mobile Design

CONTROL


3 DMX Channel Modes (1 / 4 / 7)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional E-FLY Wireless DMX Transceiver
Optional RF Wireless and Wired Remotes

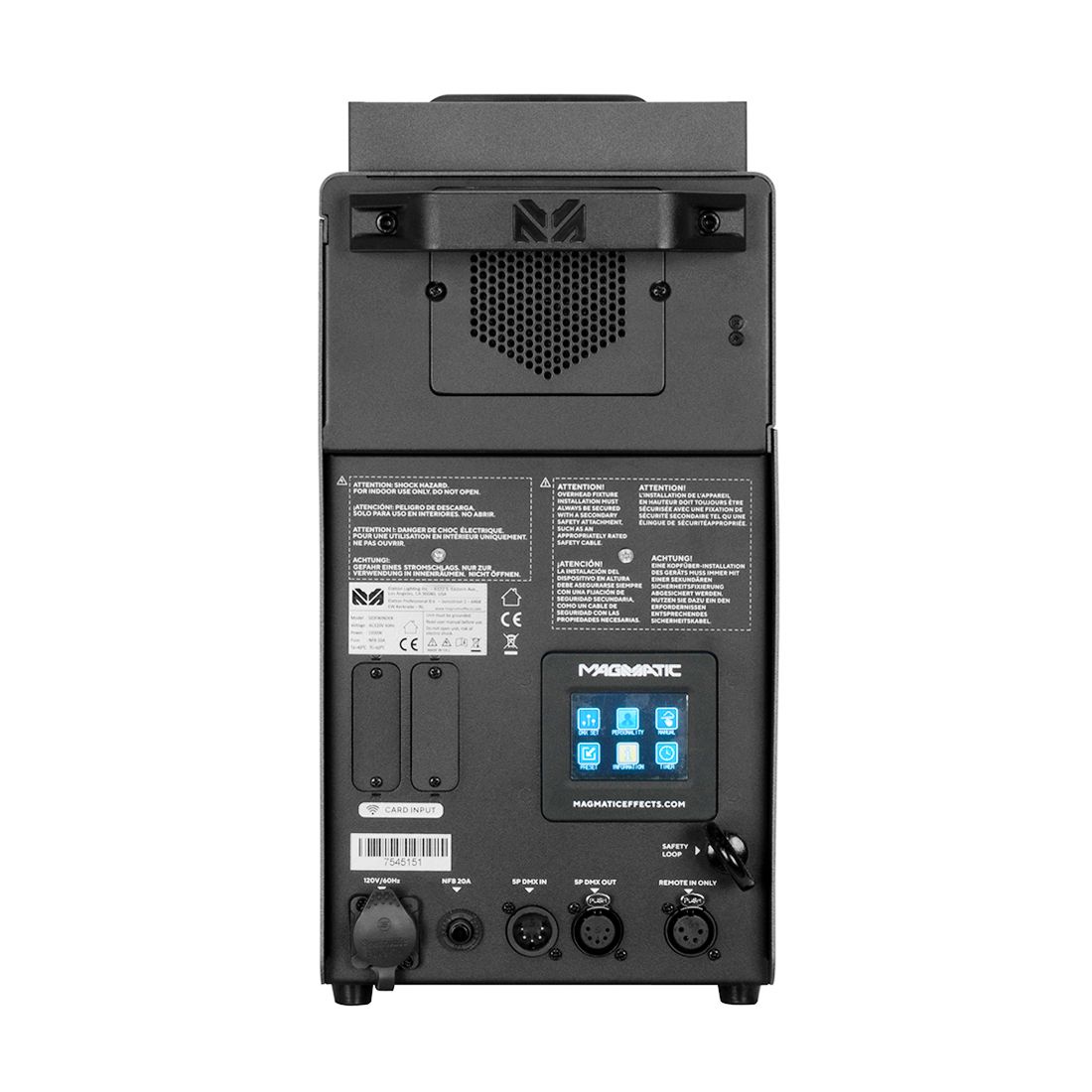

CONNECTIONS


5pin locking XLR In/Out Connectors
IP65 Locking Power Input Connector
With Wired Digital Communication Network

SIZE / WEIGHT


Length: 16.26 in. (413mm)
Width: 7.60 in. (193mm)
Height: 14.80 in. (376mm)
Weight: 29.5 lbs. (13.4kg)

ELECTRICAL


AC 230-240V - 50/60Hz
Breaker Size: 10A
Max Power Consumption: 1560W

THERMAL


Maximum Ambient Temperature (Ta max): 40°C (104°F)
Exterior Surface Temperature, Steady State: 60°C (140°F)

OPTIONAL ACCESSORIES


MagFLY Card
MagAPP Card
MagRF Card
Atmosity Flash Fog Fluid (AFF, available as a 2, 4 and 20-litre)
Atmosity Extreme Filtered Fog Fluid (AEF, available as a 2, 4 and 20-litre)

Specifications and documentation subject to change without notice
