JAVELIN

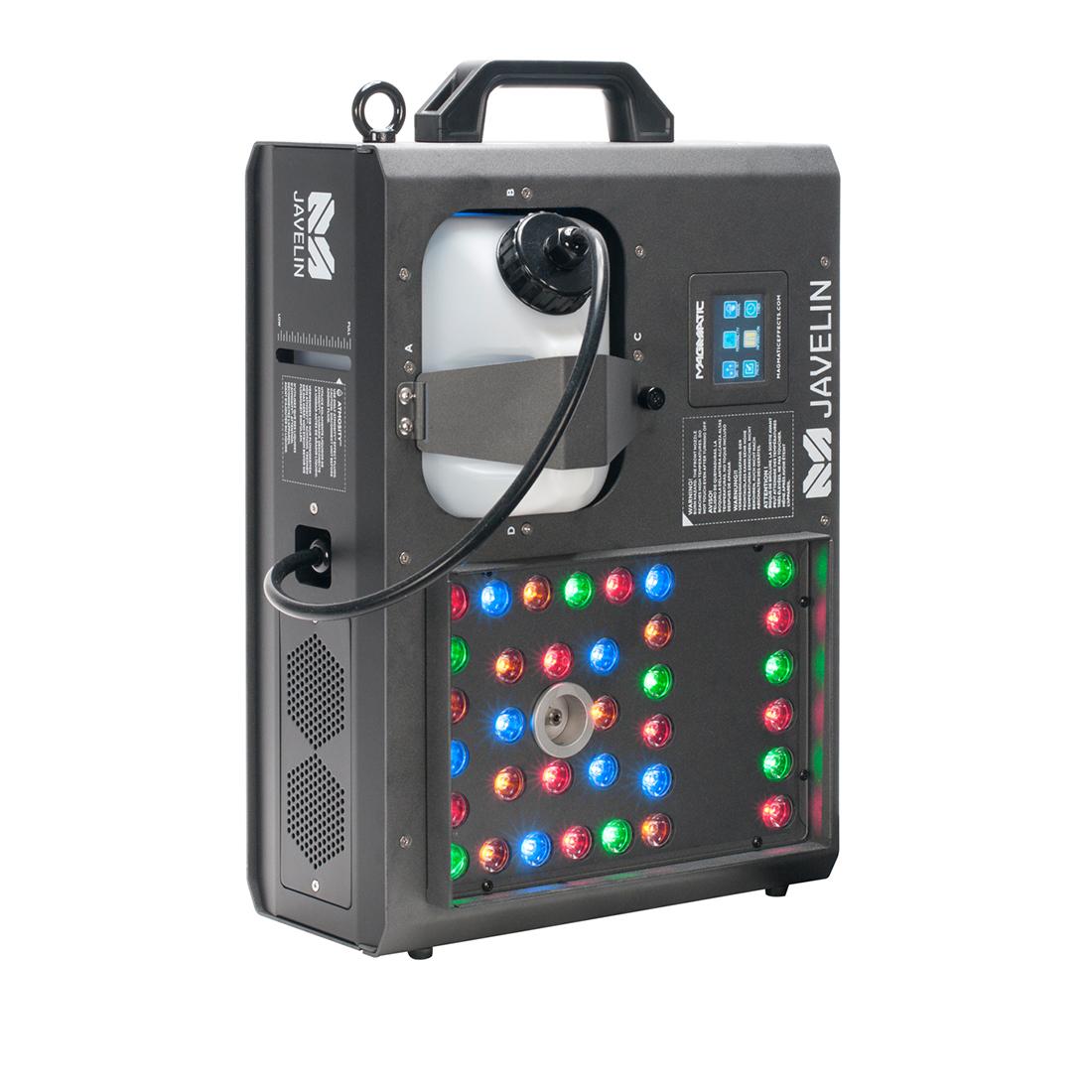

A member of MAGMATIC'S Rocket series of CO2 cryogenic simulation effects, the MAGMATIC JAVELIN™ is a high-velocity CO2 simulator fog machine for high-impact moments. Featuring 34 x 3-watt RGBA (Red X10 Green X8 Blue X8 Amber X8) LEDs for throws of dynamic colored effect, the JAVELIN can rotate 90-degrees for horizontal or vertical bursts of fog. Wrapped in a durable aluminum housing, the JAVELIN is intuitively controllable via DMX-512 and RDM and houses an easy-to-use onboard LCD touch screen control panel. Wired and wireless remote control options are available.

Technical Data

FEATURES


High-velocity CO2 simulator fog machine
Four, 8-second 20-ft bursts
Vertical and horizontal bursts of fog
34 x 3-watt RGBA LEDs (Red X10 Green X8 Blue X8 Amber X8)
Use of LEDs even without the use of Fog
Durable tour-ready aluminum housing

PERFORMANCE


Rated Power: 1450W
Max Output: 50,000 CFM* (cu ft/min.)
Fog Burst (Distance): 5-6m / 3 sec
Ready Time: Initial = 9 Minutes*
Fluid Capacity: 2.5 liters (0.66 gallons)
Fluid Consumption: 180 ml/min (6.09 oz/min)
Max Continuous Output Duration: 8 Seconds
*Approximate

COMPATIBLE FLUID


Atmosity Flash Fog Fluid (AFF, available as a 2, 4 and 20-litre)
Atmosity Extreme Filtered Fog Fluid (AEF, available as a 2, 4 and 20-litre)

CONSTRUCTION


Thermally Protected Heat Exchanger
Removable Fluid Reservoir

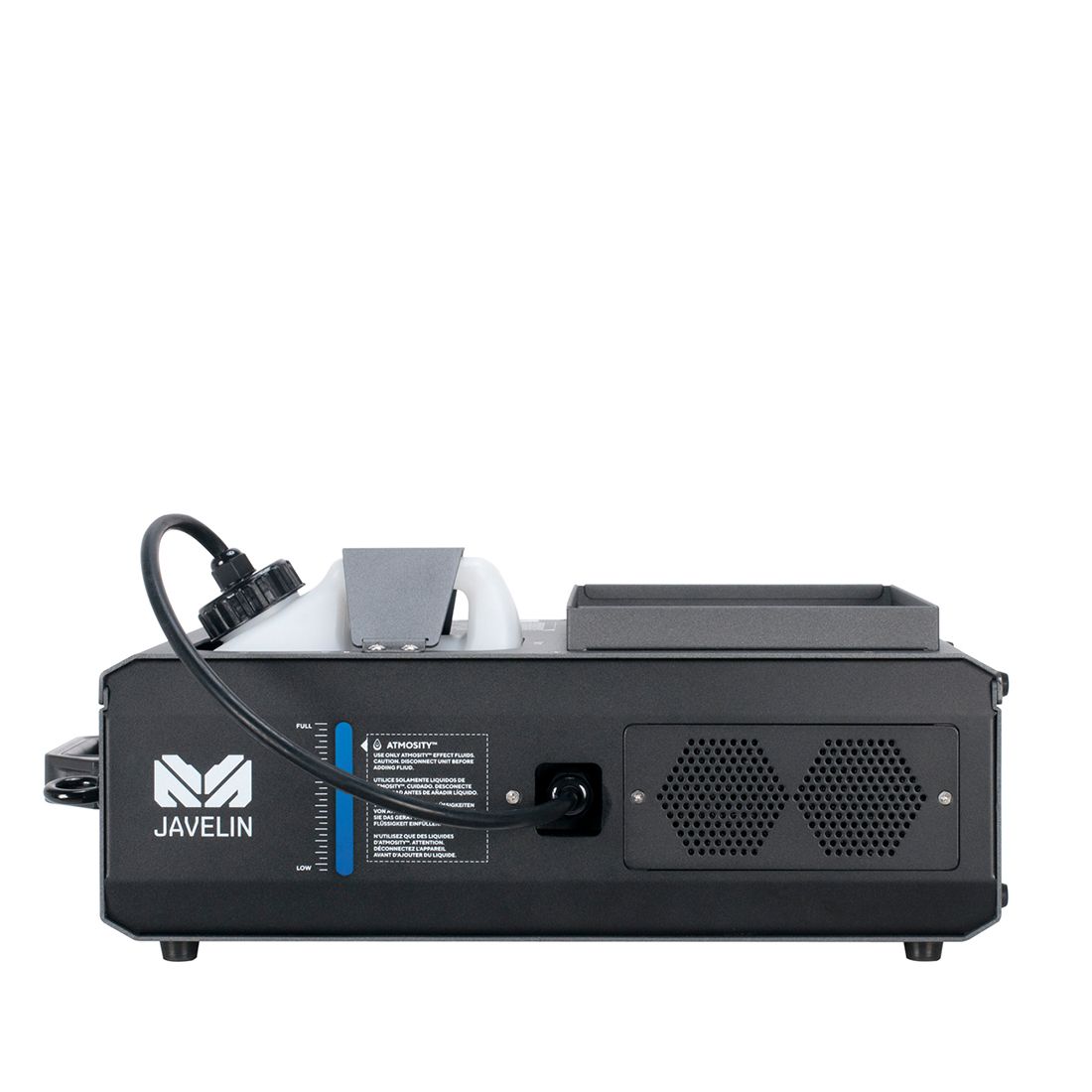

External Visual Fluid Level Detection
Compact Light Weight Mobile Design

CONTROL


4 DMX Channel Modes (1 / 4 / 7 / 12)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MagFLY Wireless Module (See Accessories)
Optional RF Wireless Module and Remote (See Accessories)

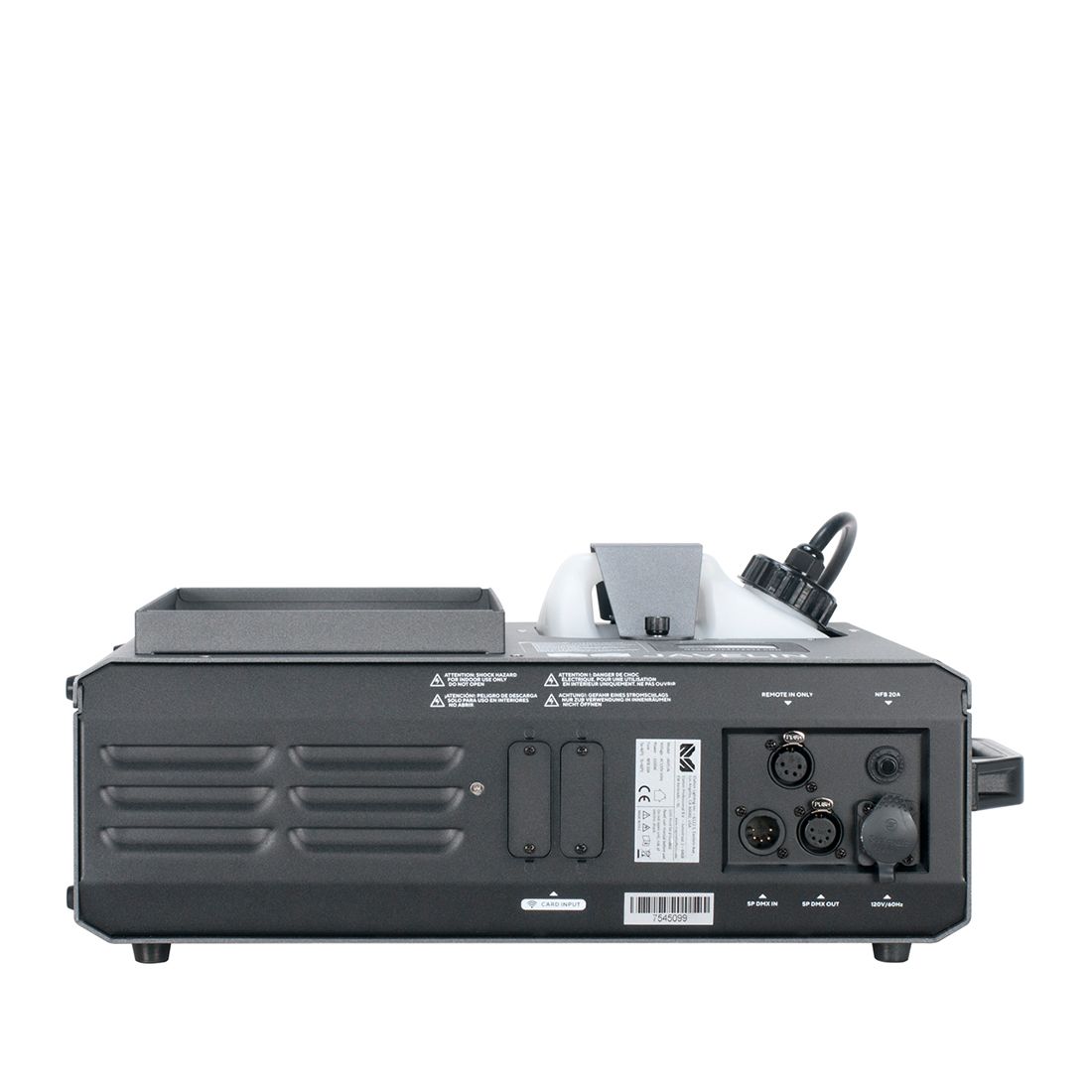

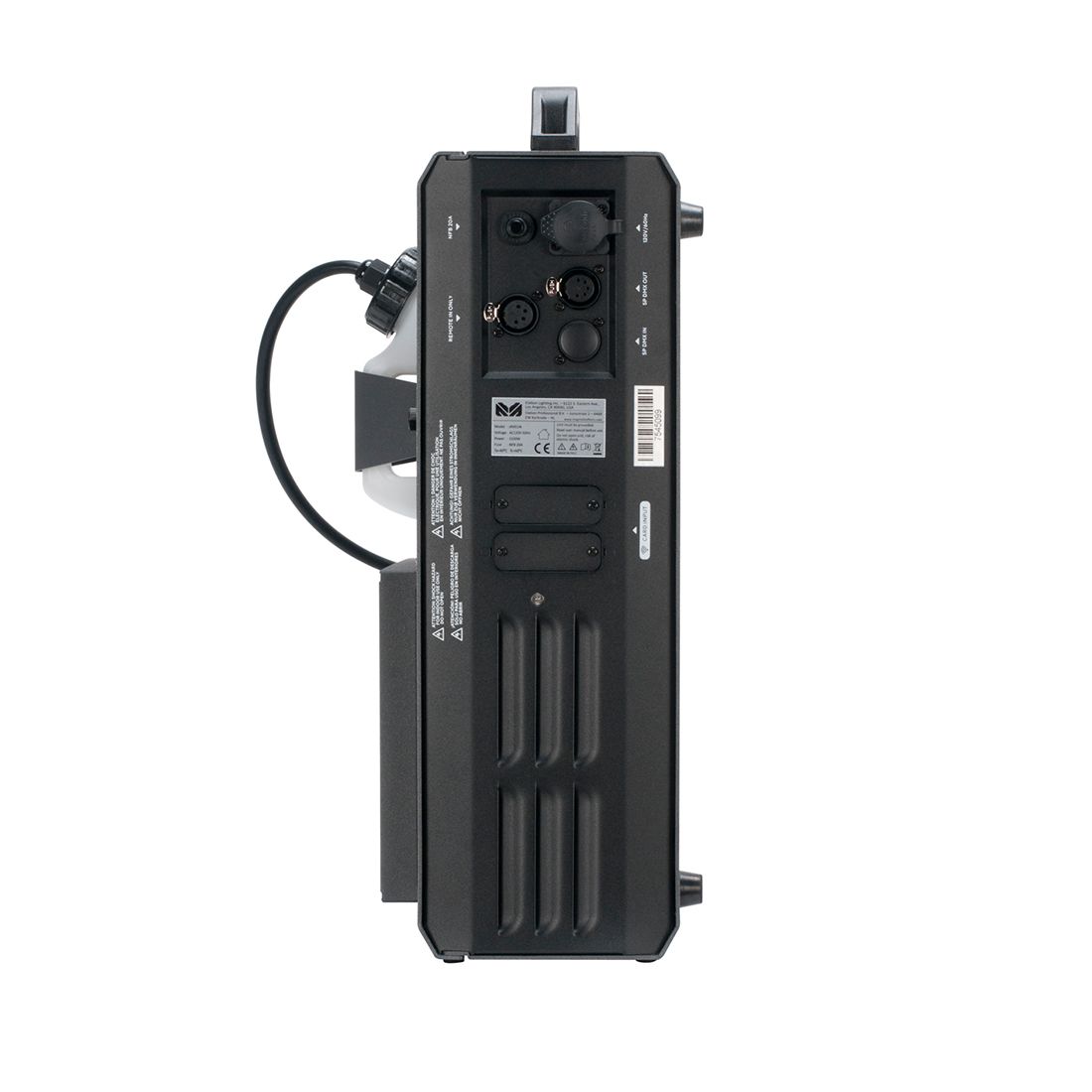

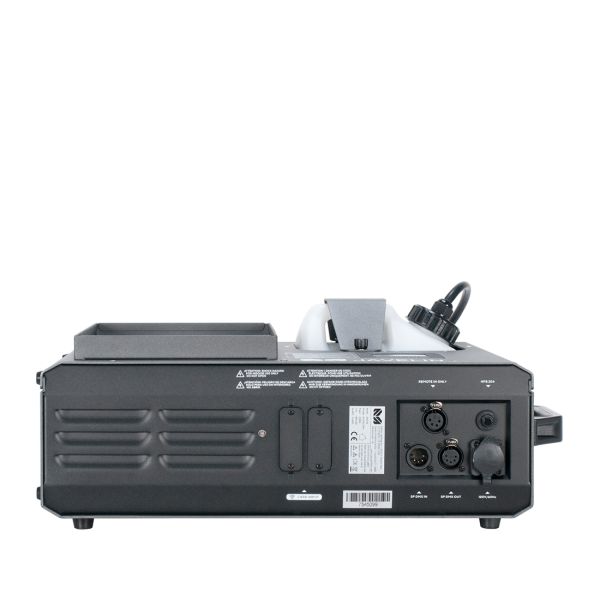

CONNECTIONS


Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT


Length: 380mm (15.0 in.)
Width: 195mm (7.7 in.)
Height: 484mm (19.1 in.)
Weight: 13kg (28.66 lbs.)

ELECTRICAL


AC EU Version:230V 50Hz US Version:120V 60Hz
NFB: EU Version:10A (230/240V Version) US Version:20A (120V Version)
Max Power Consumption: 1500W

THERMAL


Maximum Ambient Temperature (Ta max): 40°C 104°F)
Exterior Surface Temperature, Steady State: 60°C (140°F)

OPTIONAL ACCESSORIES


MagFLY Card
MagAPP Card
MagRF Card

Specifications and documentation subject to change without notice

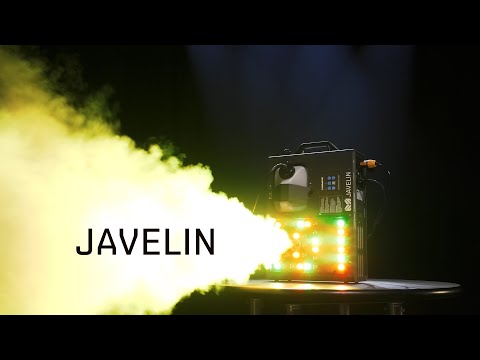

Videos
