MAGFLY

MAGFLY is a wireless DMX receiver card compatible with all Magmatic foggers, hazers, snow machines, CO2 simulators, low lying, and bubble machines. Compatible with Magmatic Magfly and Elation Efly transceiver's.

Technical Data

SPECIFICATIONS

Working Distance: 1,500 feet
Wireless Band: 2.4GHz
Maximum Ambient Temp: 40℃ (104°F)
Maximum Unit Surface Temp: 40℃ (104°F)

Dimensions (LxWxH):
Without antenna: 80x56x21mm (3.1" x 2.2" x 0.8")
With short antenna: 91x56x21mm (3.6" x 2.2" x" 0.8")
With long antenna: 169x56x21mm (6.7" x 2.2" x 0.8")

Weight:
Without antenna: 90g (0.2lbs.)
With short antenna: 93g (0.21lbs.)
With long antenna: 98g (0.22lbs.)

MAGFLY box includes:

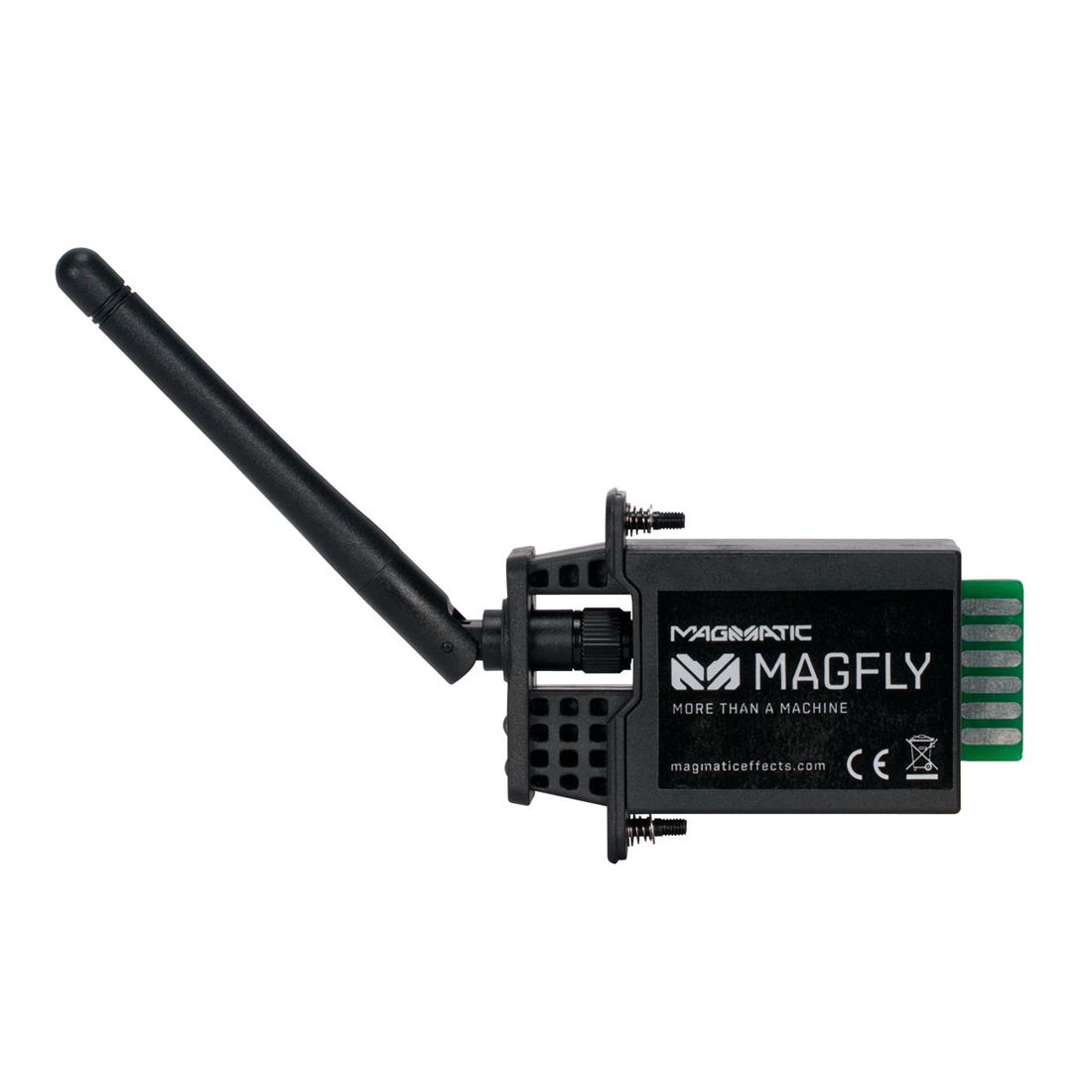

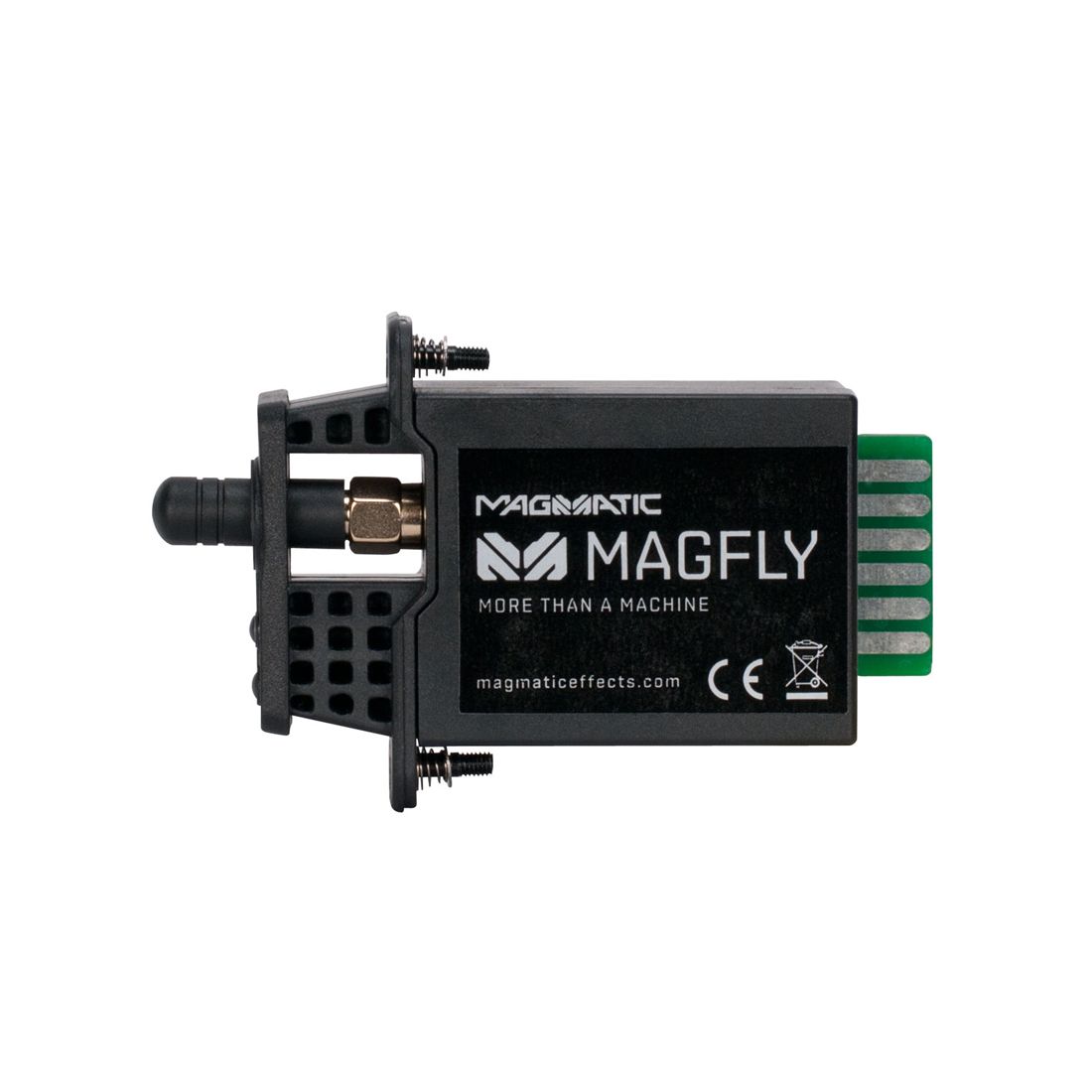

Long and short antennas, (short antenna for Therma Tour series)
Two pair of screw kits.

Specifications and documentation subject to change without notice
