Seven Par 7IP

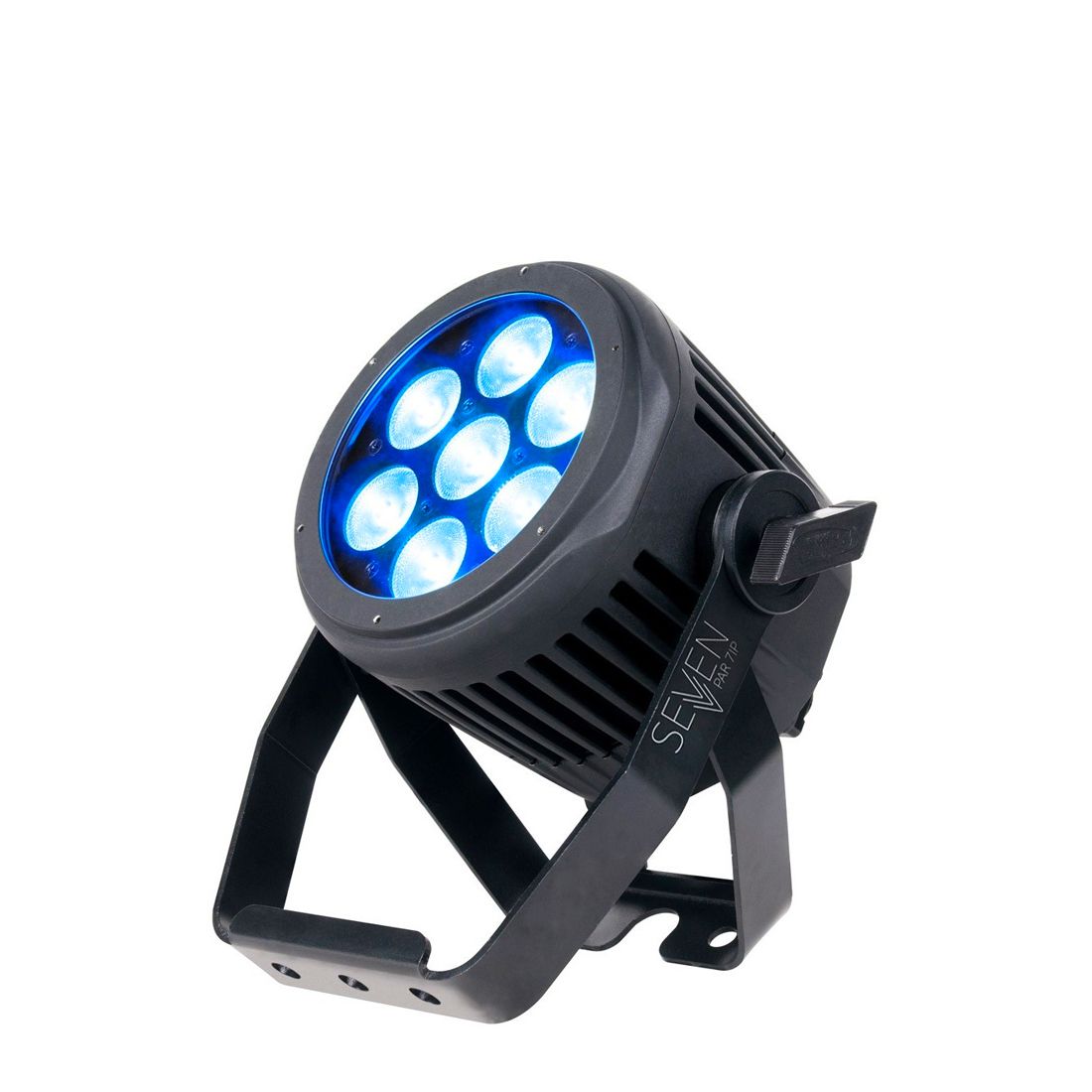

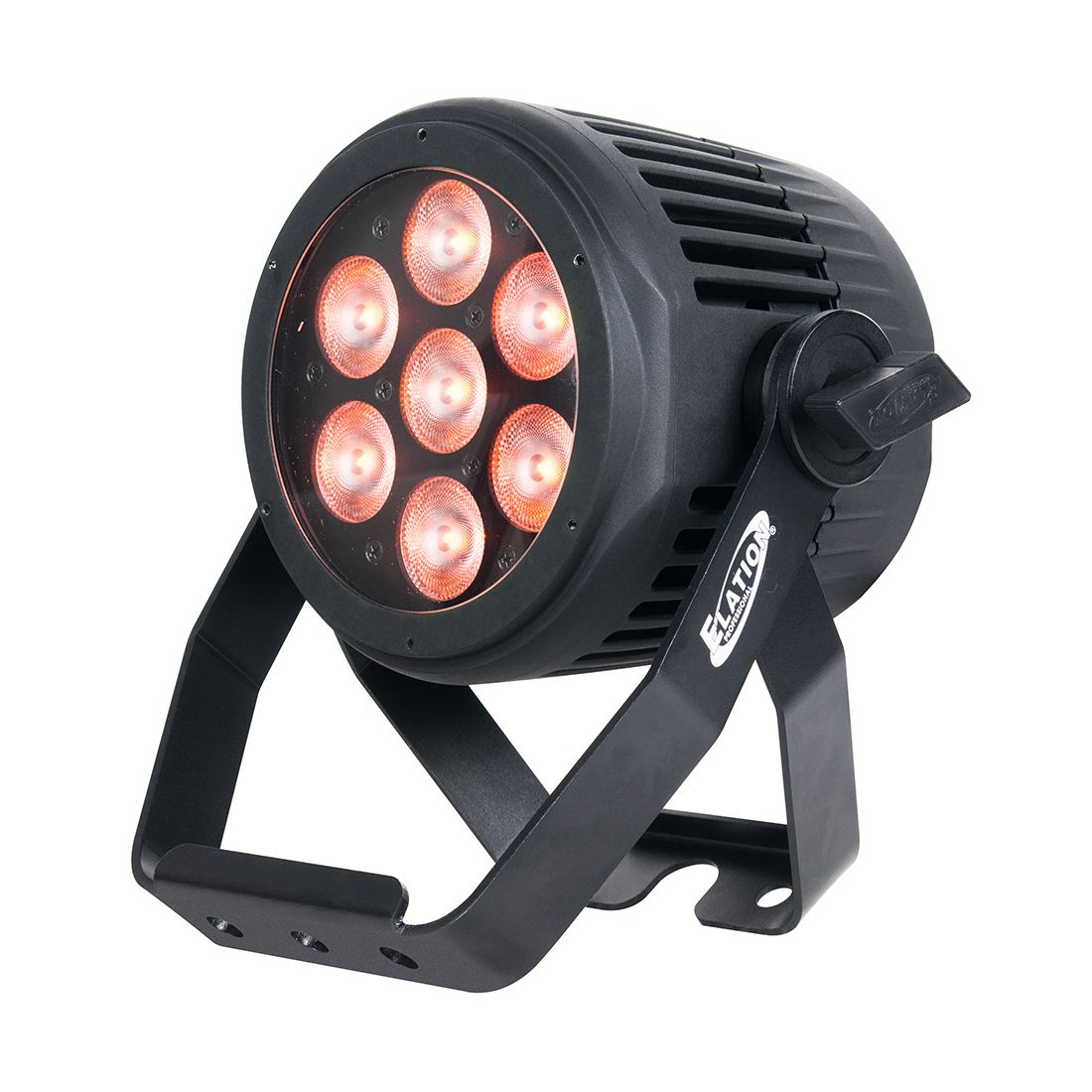

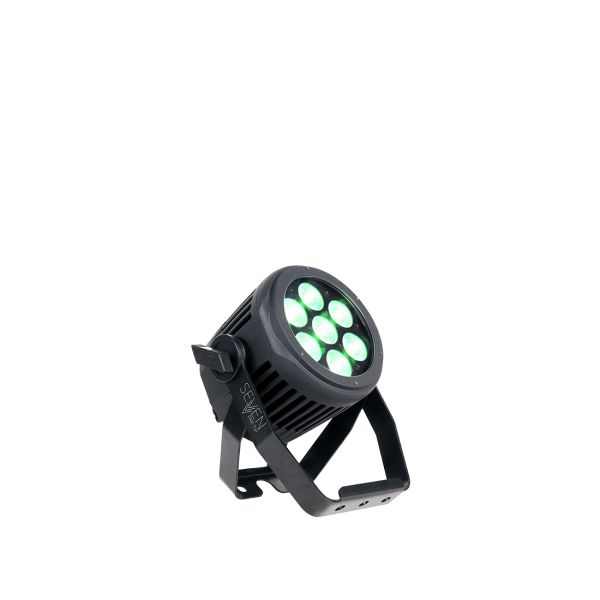

The SEVEN PAR 7IP™ is an IP65 outdoor rated seven color par wash luminaire with (7) 25W 7-in-1 RGBAW + Lime + UV LEDs (Red, Green, Blue, White, Amber, Lime, and a 395nm UV) producing 3,600 total output lumens and 90CRI. Features include individual hue, saturation, and intensity control, RGB + seven color 3 channel DMX mode, 17° beam and 33° field angles, smooth color mixing, 12 internal programs with speed and fade control, 64 unique 7-color macros, selectable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX and RDM (Remote Device Management) protocol support, IP65 rated locking 5pin XLR DMX and power in/out connections, dual adjustable yoke / floor stand, multiple unit power linking, OLED menu display with a 4-button control panel, a multi-voltage universal auto switching power supply (100-240v), and a rugged powder coated die-cast aluminum exterior. Gel frame and gel frame holder included, optional 4-leaf barn door available.

Technical Data

FEATURES

IP65 Outdoor Rated Seven Color Par Wash Luminaire
(7) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs
3,600 Total Output Lumens | 90CRI
Individual Hue, Saturation, and Intensity Control
RGB + Seven Color 3 Channel DMX Mode
17° Beam and 33° Field Angles
Smooth Color Mixing
12 Internal Programs with Speed and Fade Control
64 Unique 7-Color Macros
Selectable Dimming Curve Modes
Adjustable LED Refresh Rate + Gamma Brightness
Flicker Free Operation for TV and FILM
DMX and RDM Protocol Support

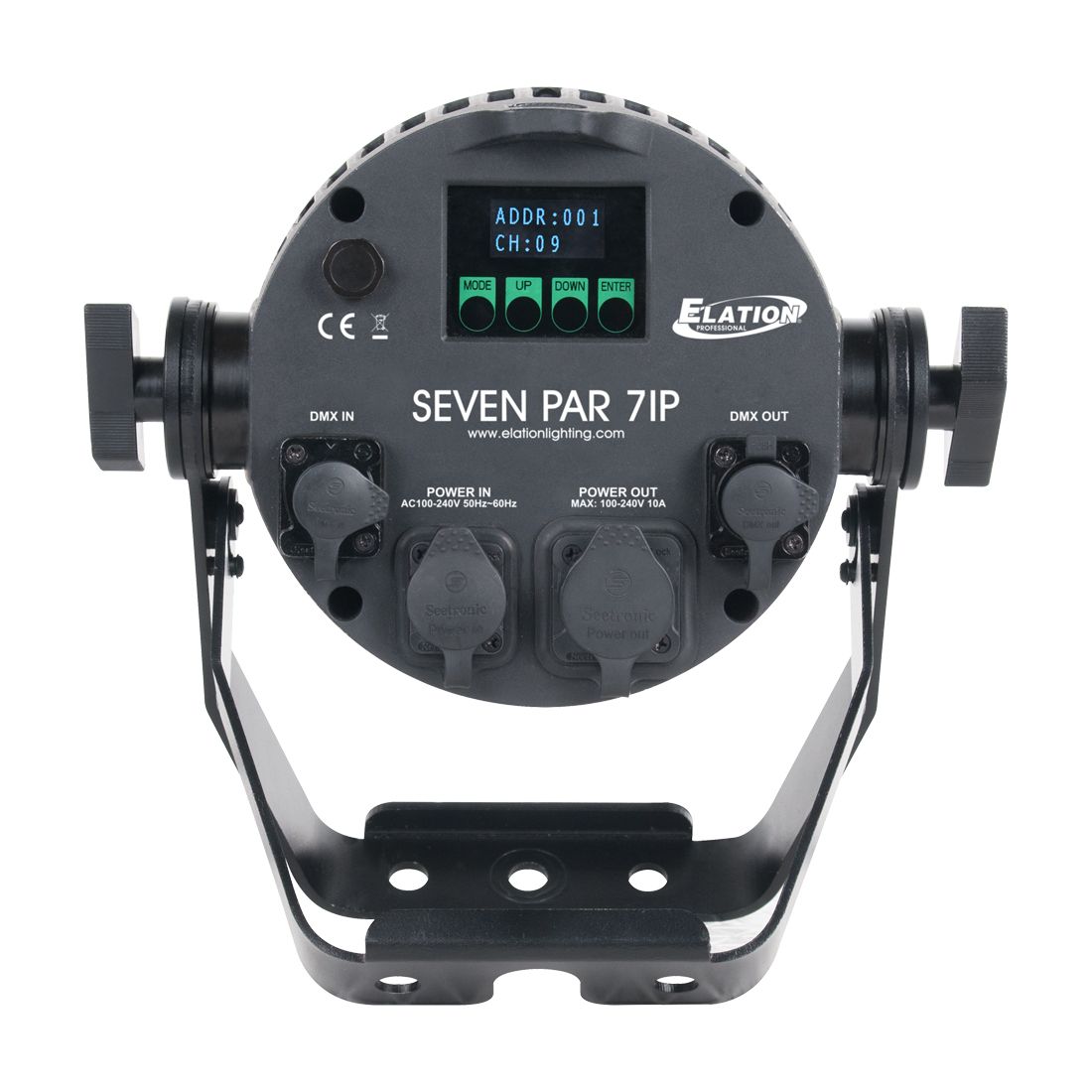

IP65 Rated locking 5pin XLR DMX and Power In/Out

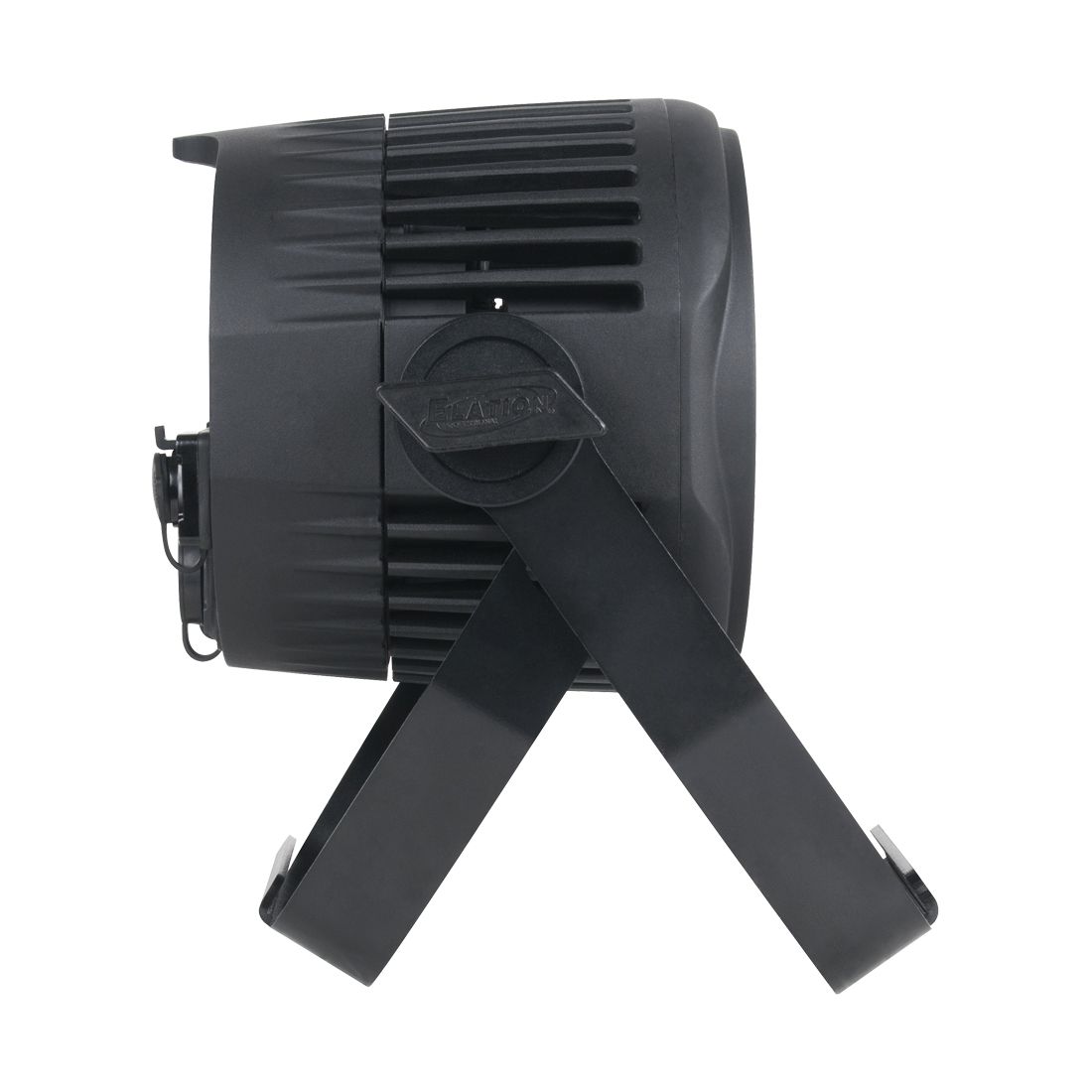

Dual Adjustable Yoke / Floor Stand
Multiple Unit Power Linking
Rugged Powder Coated Die-Cast Aluminum Exterior

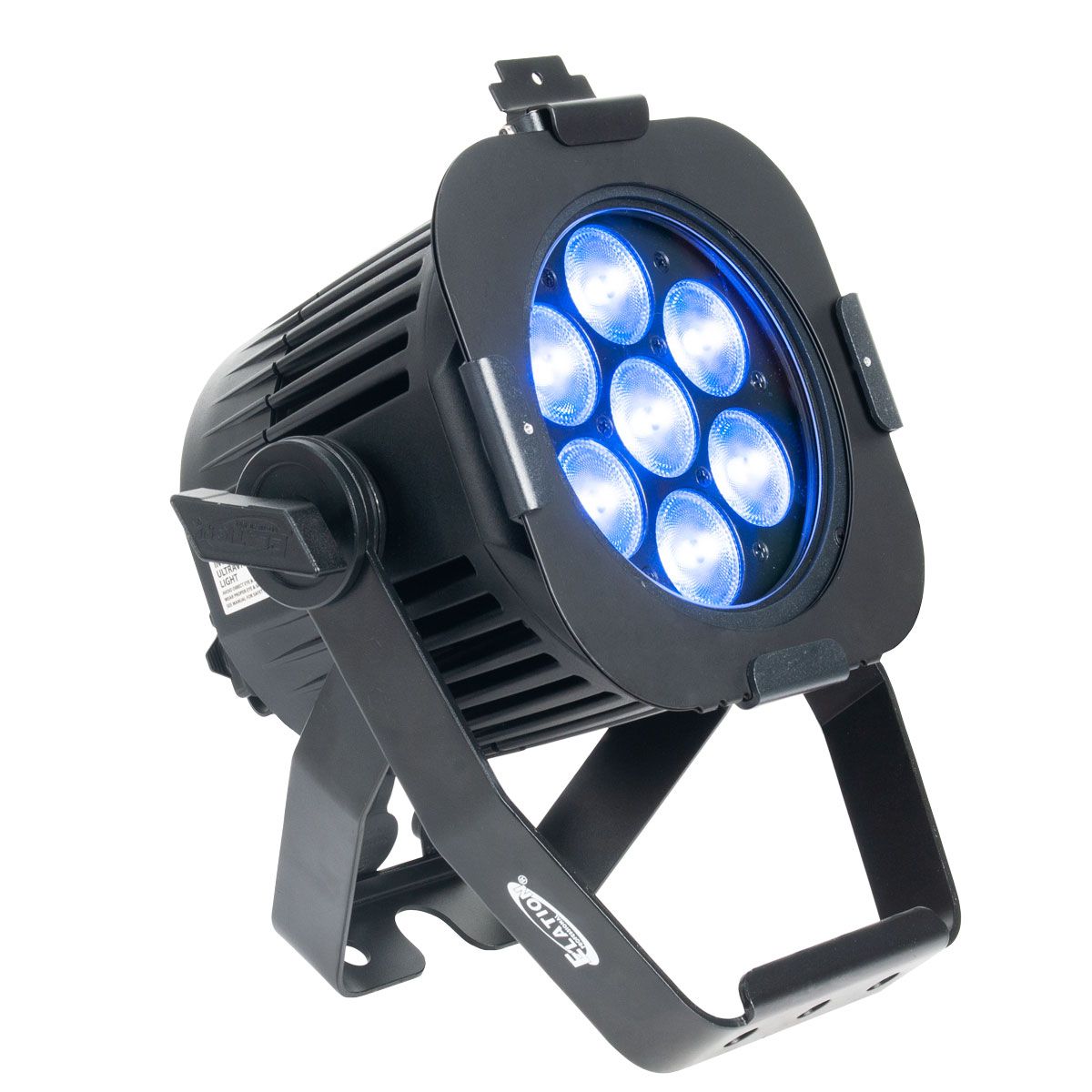

Gel Frame and Gel Frame Holder Included

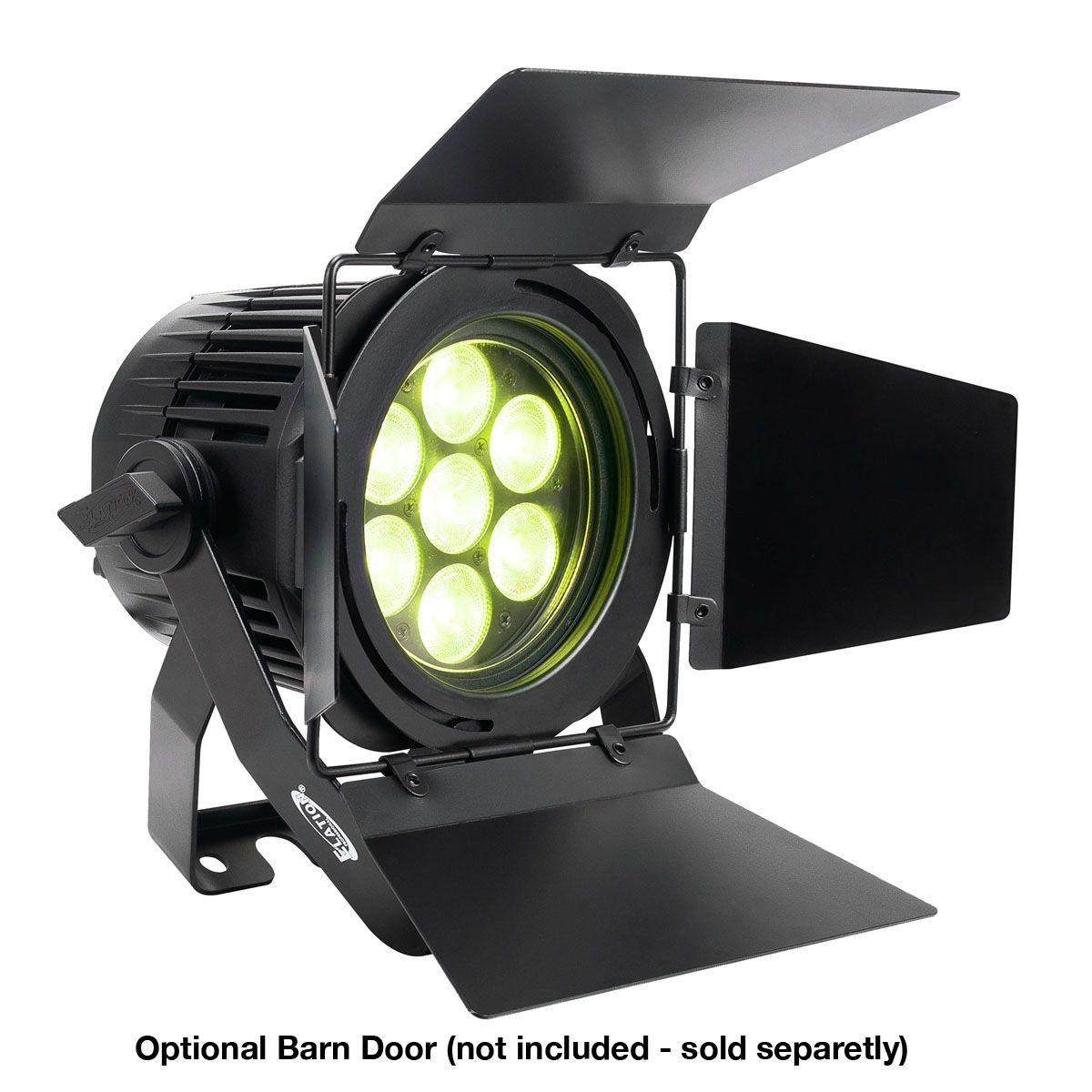

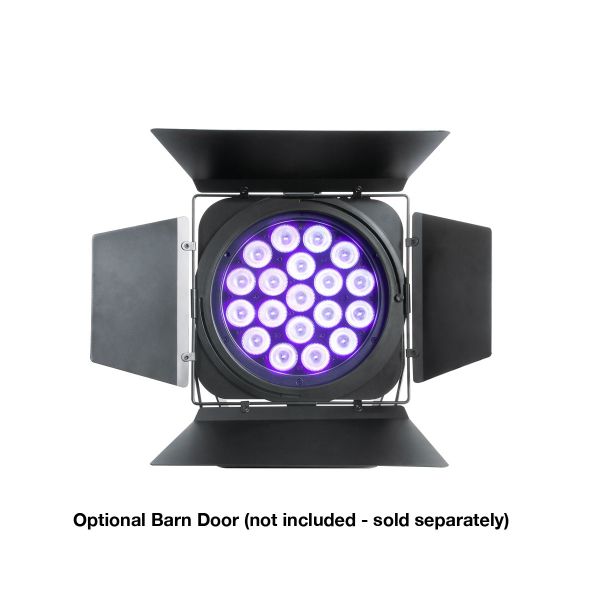

Optional 4-Leaf Barn Door Available

SOURCE

(7) 25W 7-IN-1 RGBAW + Lime + UV (395nm) LEDs
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

3,600 Total Lumen Output | 90CRI
6,819 LUX 634 FC @6.6’ (2m) (Full ON)

EFFECTS

Individual Hue, Saturation, and Intensity Control
RGB + Seven Color 3 Channel DMX Mode
12 Internal Program Macros with Speed and Fade Control
64 Unique 7-Color Macros
Selectable Dimming Curve Effects

COLOR

RGBAW + Lime + UV (395nm)

CONTROL / CONNECTIONS

(7) DMX Channel Modes (15 total channels)
DMX and Manual Control
4 Button Control Panel
180° Reversible OLED Menu Display
Adjustable Refresh Rate (900-28,800 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
RDM (Remote Device Management) Protocol Support
IP Rated locking 5pin XLR DMX and Power In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 11.24” (286mm)
Width: 10.71” (272mm)
Vertical Height: 7.36” (187mm)
Weight: 11.0 lbs. (5.0kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
185W Max Power Consumption
5°F to 113°F (-15°C to 45°C)

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
