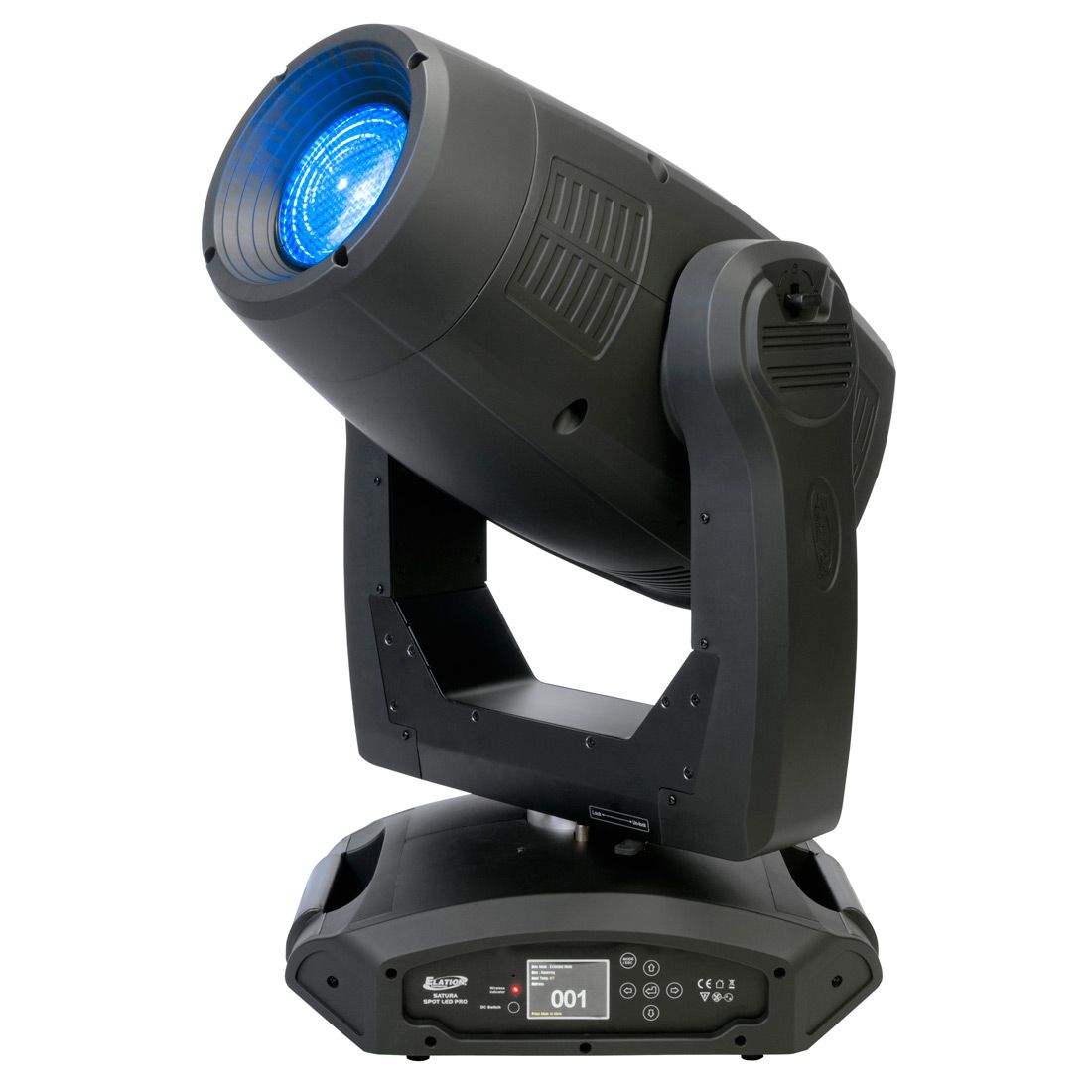

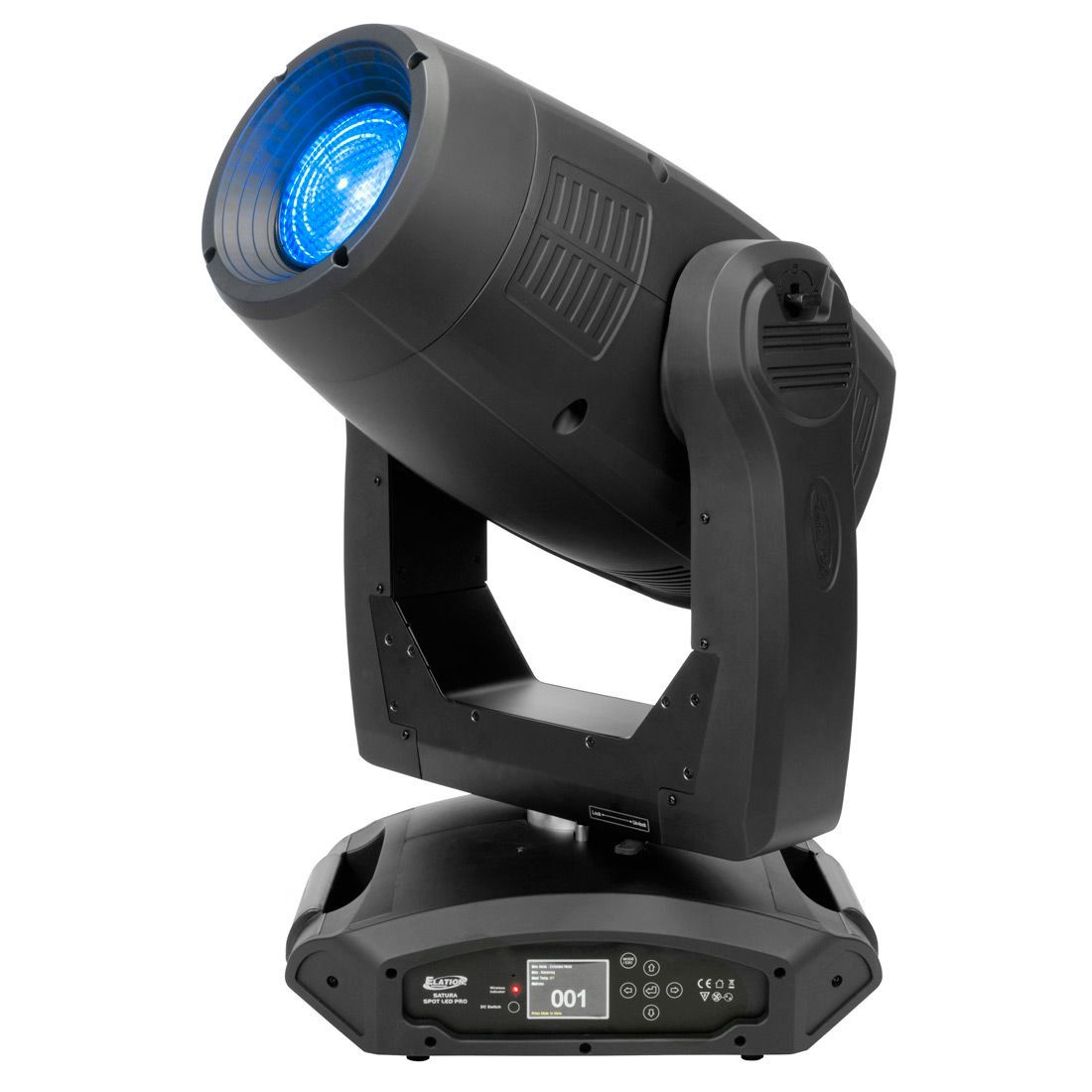

Satura Spot LED PRO

The new Satura Spot LED PRO™ is a powerful moving head luminaire featuring a dynamic 300W RGBW LED engine with output comparable to a 575W discharge fixture. It features RGBW mixing and color macros, variable color temperatures (2,700K - 8,000K) and dimming curve modes, motorized 14° to 32° zoom and focus, high speed shutter and iris, 6 rotating, interchangeable glass & metal gobos and 7 static-stamped metal gobos, 3-facet rotating and indexing prism and frost filter, 16bit 3-phase motors, pan/tilt lock, internal EWDMX wireless DMX receiver, locking 3/5pin DMX and locking power connections, flicker free operation for TV and Film, (6) button control full color 180° reversible menu display, 450W max power consumption and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

High Powered 300W RGBW LED Spot Luminaire
Comparable Output to 575W Fixtures
Motorized 14° - 32° Zoom and Focus
RGBW Color Mixing and Color Macros
Variable Color Temperatures and Dimming Curve Modes
Flicker Free Operation for TV and Film
3-Facet Rotating Prism
Pan/Tilt Lock
Internal EWDMX Wireless DMX Receiver
RDM - Remote Device Management


SOURCE

300W RGBW LED Engine
60,000 Hour Average LED Life


PHOTOMETRIC DATA

14,780 LUX @ 2.5m (14° Min. Zoom)
3,411 LUX @ 2.5m (32° Max. Zoom)


EFFECTS

3-Facet Rotating Prism
Frost Filter
Strobe: 1-18fps
Dimming: 0% - 100%
(5) Variable Dimming Curve Modes


COLOR

Full RGBW Color Mixing and Color Macros
Variable Color Temperatures (2,700K - 8,000K)


GOBOS

(2) Gobo Wheels
(6) Interchangeable / Rotating / Indexing Glass & Metal Gobos
(7) Static-Stamped / Indexing Metal Gobos
Size: OD 29mm / ID 24mm


CONTROL / CONNECTIONS

(3) DMX Channel Modes (22 / 24 / 32)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

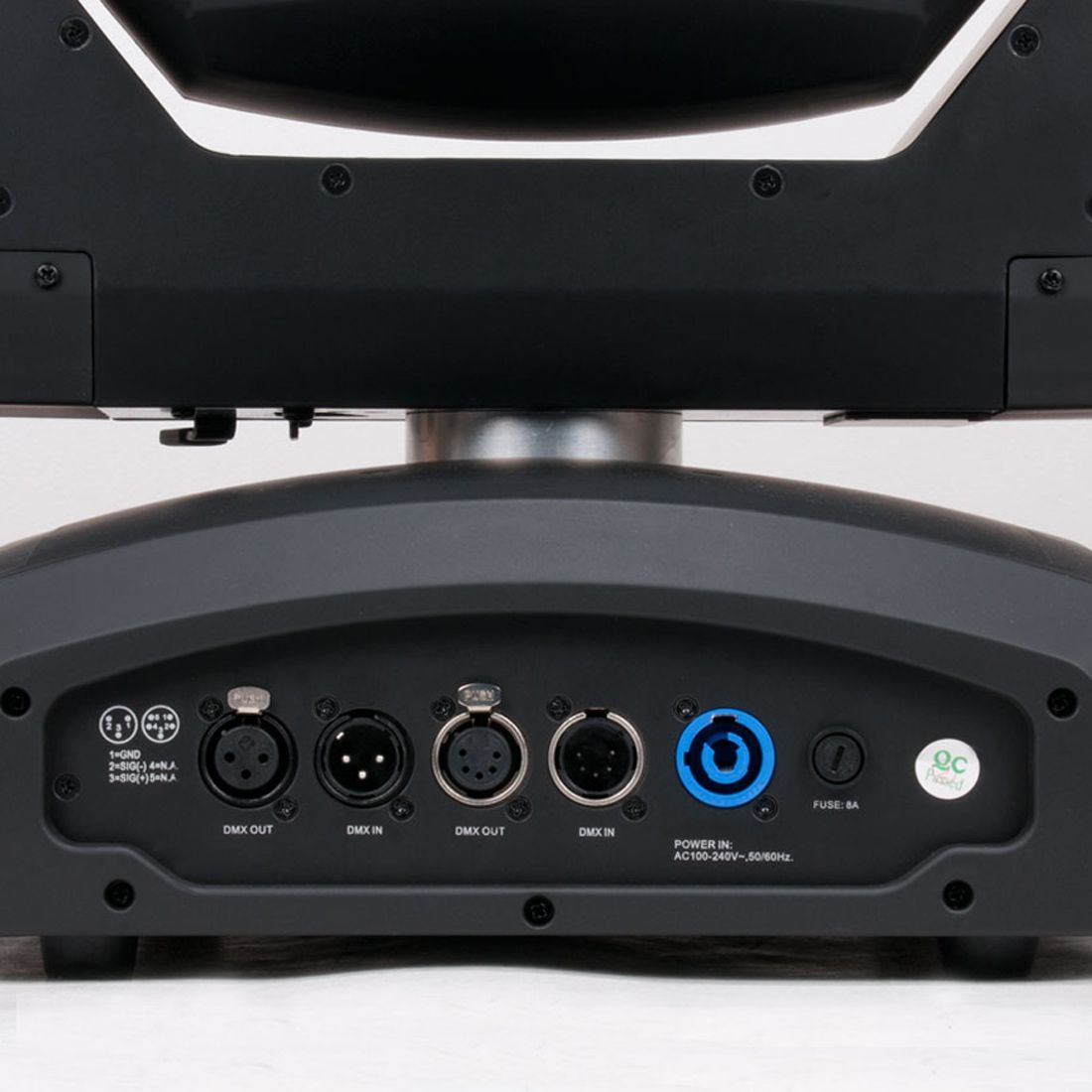

Locking 3/5pin DMX In/Out
Locking power connector In
Internal EWDMX Wireless DMX Receiver


SIZE / WEIGHT

Length: 16.9” (430mm)
Width: 20.0” (508mm)
Vertical Height: 28.4” (721mm)
Weight: 65.0 lbs. (29.5 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
450W Max Power Consumption
14°F to 113°F (-10°C to 45°C)


Specifications and documentation subject to change without notice
