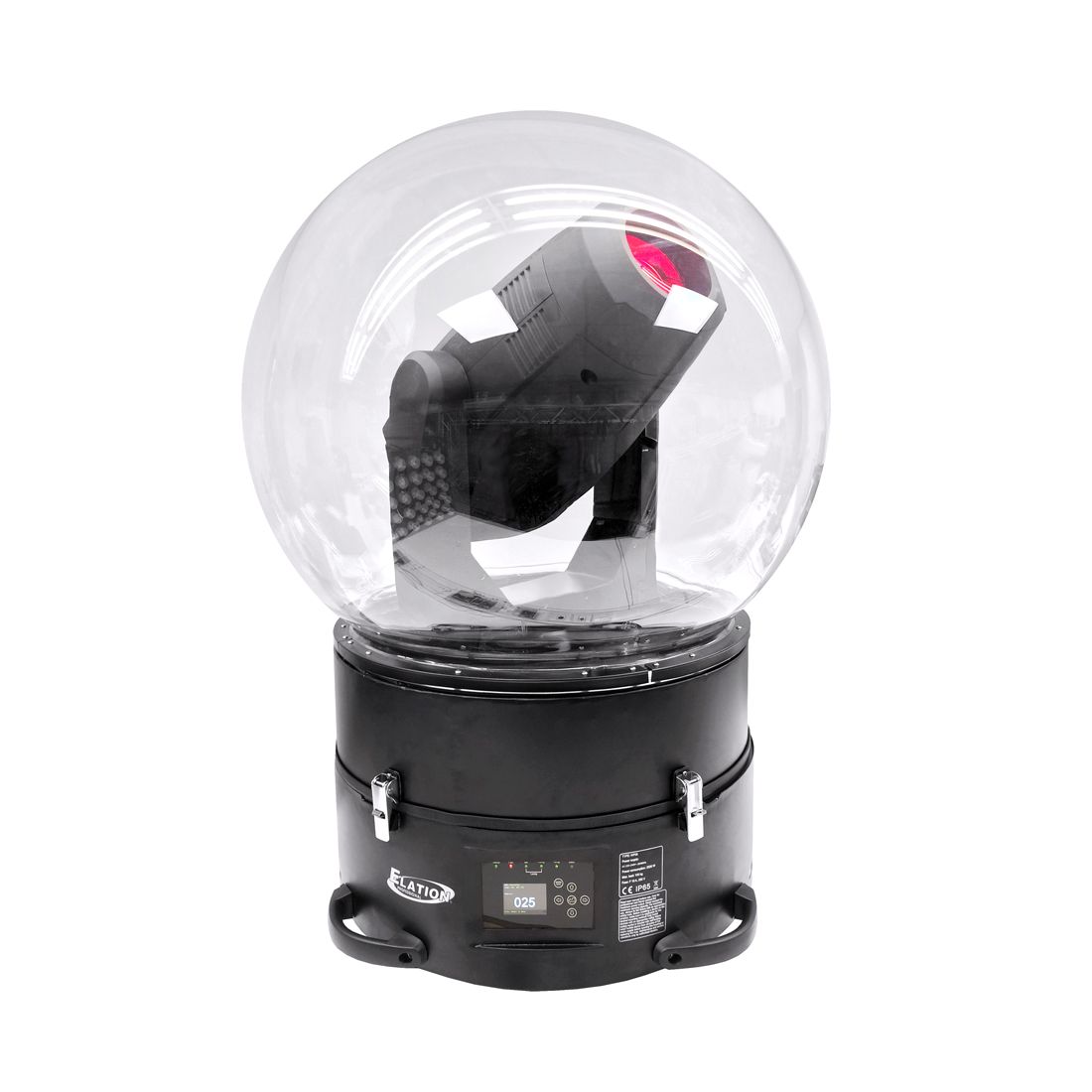

WP-06

WP-06

Code 1227000018

If it's an installation or an event, whenever it's outdoors, there's a chance of rain. To make sure the gear is protected, outdoor domes come into use. When extra protection regarding heat and humidity is needed, the WP-06 is the right tool for the job.

Code 1227000018

WP-06

Technical Data

FEATURES

IP54 Rated

Heat Sensor

Humidity Sensor

For fixtures with 680mm height or smaller

Power over DMX

Position: Hanging, Side Hanging, Standing

CONTROL/CONNECTIONS

6 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

Inside

3pin and 5pin DMX in/out

CEE 7/7 power out

Outside

IP DMX in/out

IP Power in

SIZE/WEIGHT

Width: 29.9" (760mm)

Height: 45.9" (1168mm)

Weight: 70.5 lbs (32kg)

ELECTRICAL/THERMAL

Input: 240V / 50Hz

Max. Power Consumption: 650W

Max Ambient Temperature: 113°F/45°C

Specifications and documentation subject to change without notice
