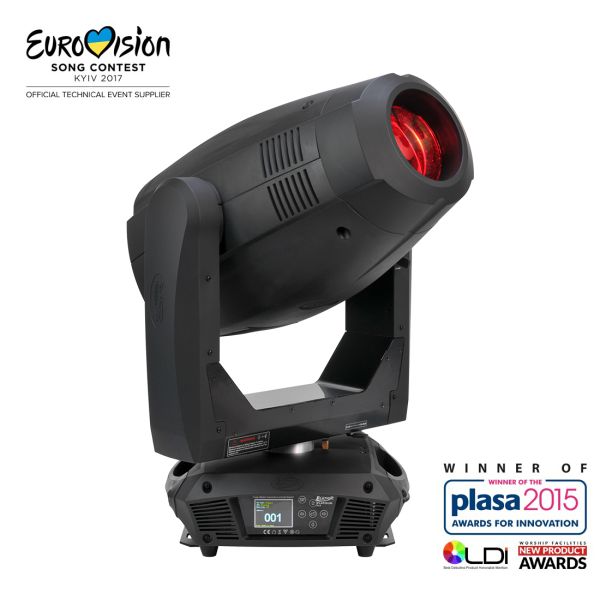

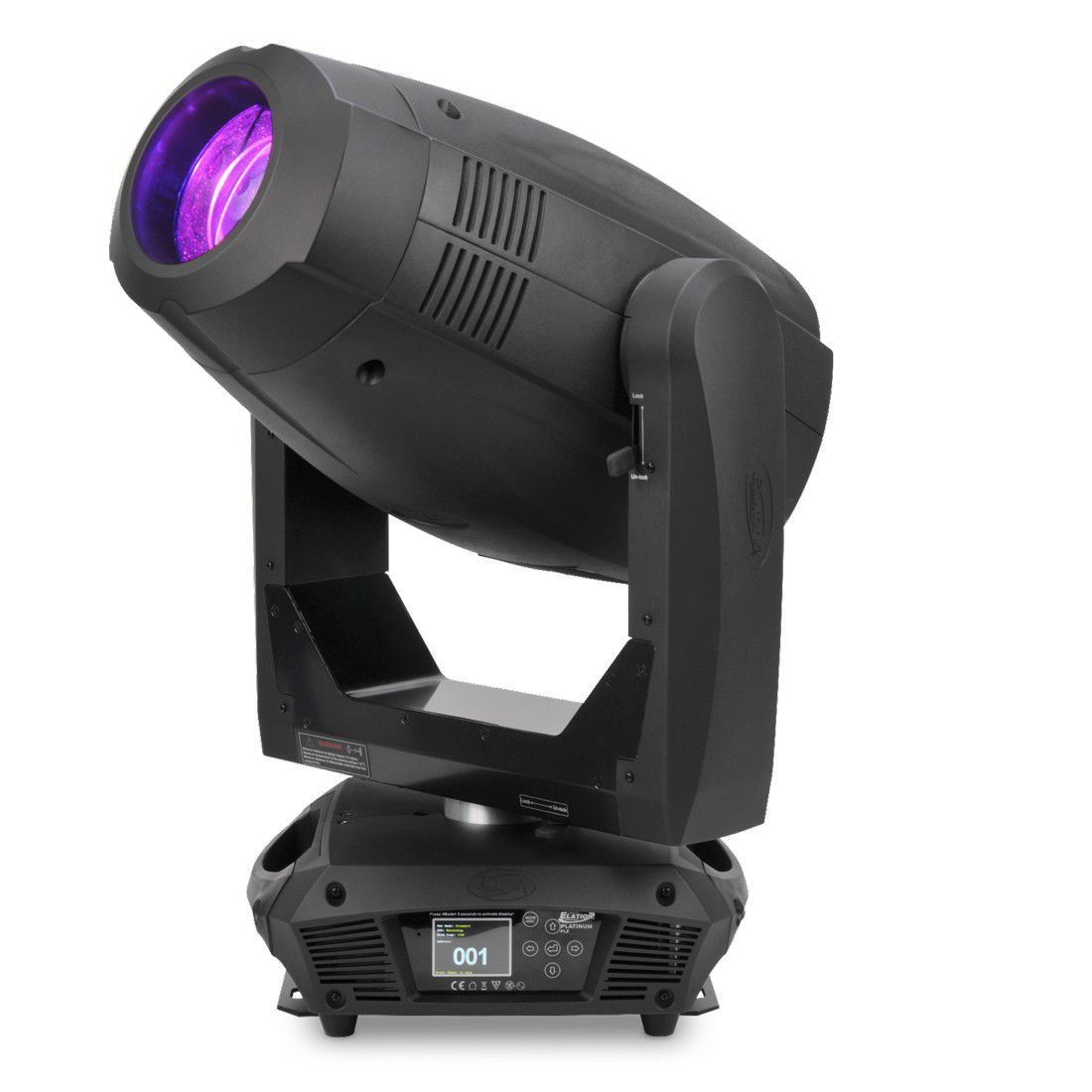

Platinum FLX

The award-winning Platinum FLX™ is an innovative full featured patent pending design 3-in-1 luminaire which can be utilized as a spot, beam or wash fixture. It features the Philips™ MSD Platinum 20R 470W 80CRI lamp, 7,800K, 23,000 lumen, 2.9° to 25° zoom in spot mode, 1.8° to 18° zoom in beam mode and 6° to 42° zoom in wash mode, true CMY color mixing plus linear CTO color correction, 10 dichroic colors including UV, CTO, CTB and white (open), 8 rotating, interchangeable glass & metal gobos and 6 static-stamped gobos, 6-facet linear and 8-facet rotating prisms, bi-directional animation effects, DMX, RDM (Remote Device Management), Art-NET and sACN (DMX over Ethernet) support, locking 5pin DMX in/out, RJ45 ethernet in/out and power in connections, 6 button control full color 180° reversible menu display, 740W max power consumption and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

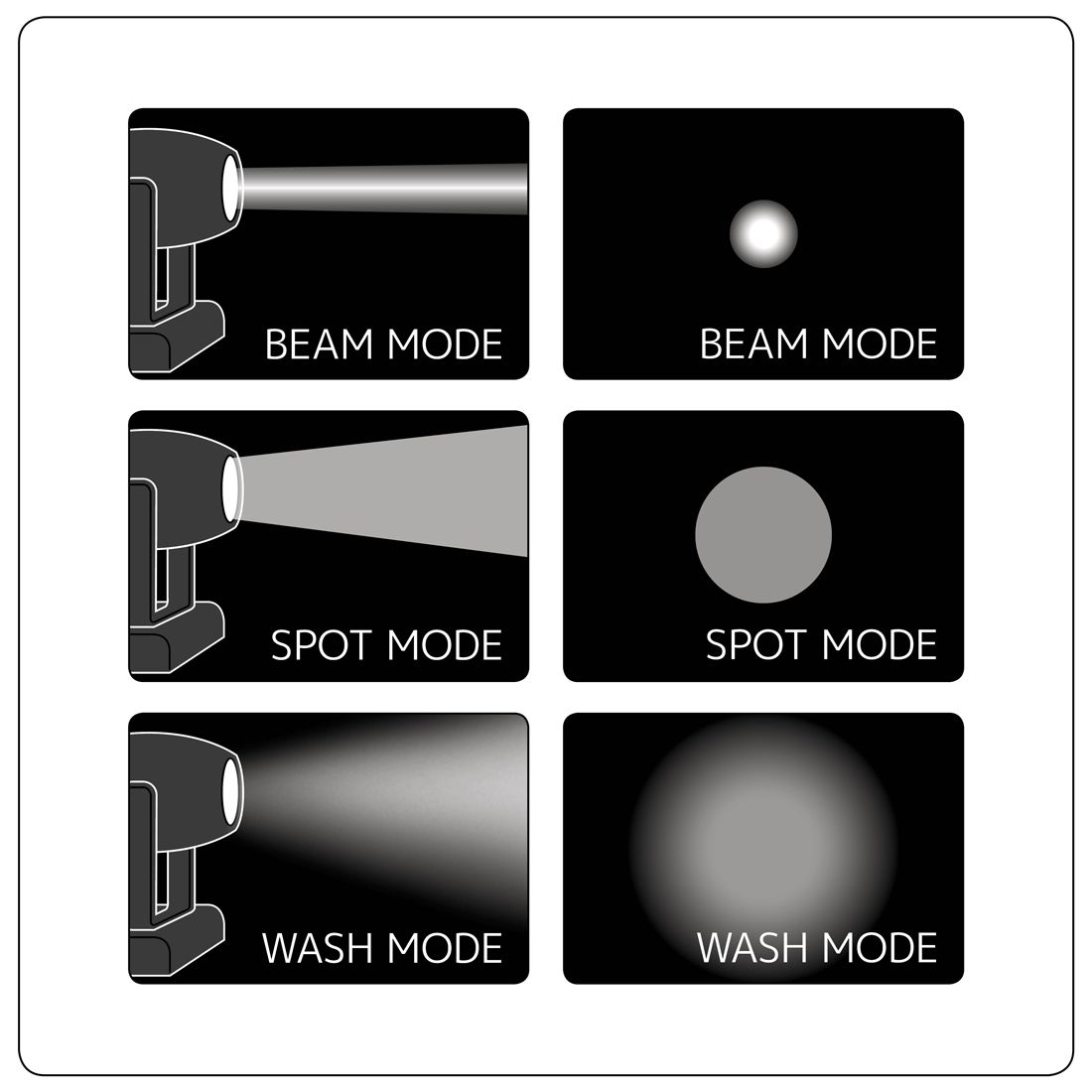

Patent Pending 3-in-1 Spot, Beam and Wash Luminaire
Independent Optical Systems without Compromising Performance
Innovative Auto Focus Function
Minimal Lux Loss in Spot Mode
2.9° - 25° Spot, 1.8° - 18° Beam and 6° - 42° Wash Zoom Range
6-Facet Linear and 8-Facet Rotating Prisms
Bi-Directional Animation Effects
Full CMY Color Mixing and Linear CTO Color Correction
Pan/Tilt Lock
Art-NET and sACN (DMX over Ethernet) Support
RDM – Remote Device Management

SOURCE

Philips™ MSD Platinum 20R 470W Lamp
23,000 Lumens, 7,800K, 80CRI
1,500 Hour Average Lamp Life*

PHOTOMETRIC DATA

11,262 Lumens Spot Mode / 19,133 Lumens Beam Mode
165,500 LUX 15,375 FC @ 32.8’ (10m) (Spot)
360,000 LUX 33,444 FC @ 32.8’ (10m) (Beam)

EFFECTS

6-Facet Linear and 8-Facet Rotating Prisms
Bi-Directional Animation Effect
Strobe: 1-18fps
Dimming: 0% - 100%

COLOR

True CMY-Flag Color Mixing
Linear CTO Color Correction
10 Dichroic Colors Including UV, CTO, CTB + White

GOBOS

(2) Gobo Wheels
(8) Interchangeable / Rotating / Indexing Glass & Metal Gobos
Size: OD 16.1mm / ID 10.0mm**
(6) Static-Stamped / Indexing Metal Gobos

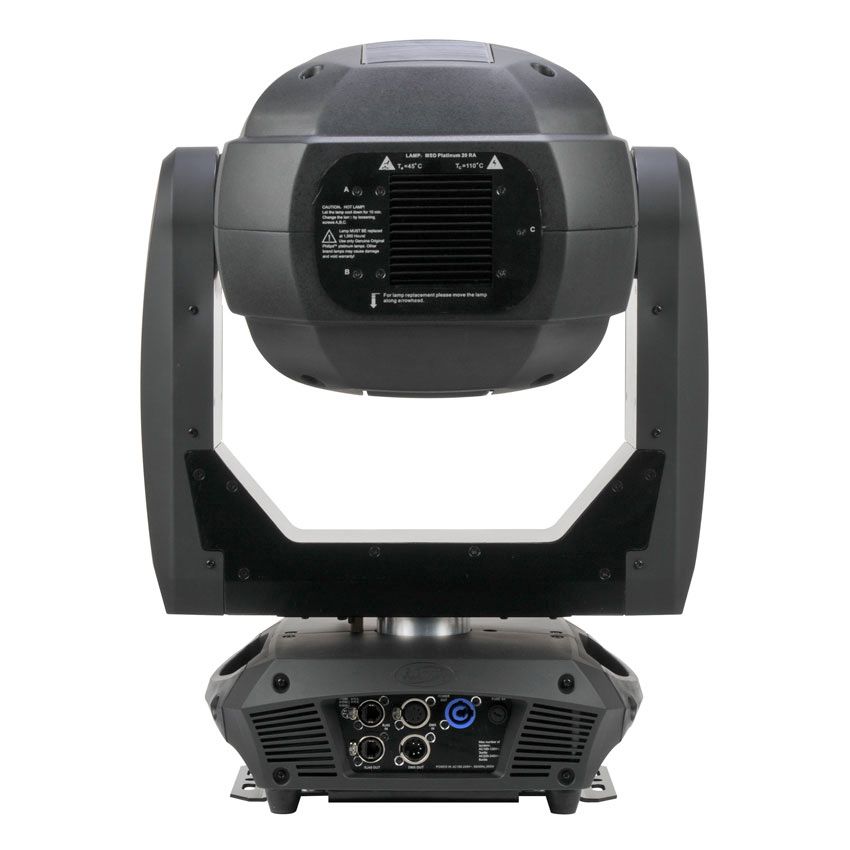

CONTROL / CONNECTIONS

(3) DMX Channel Modes (24 / 26 / 37)
RDM (Remote Device Management)
6 Button Touch Control Panel

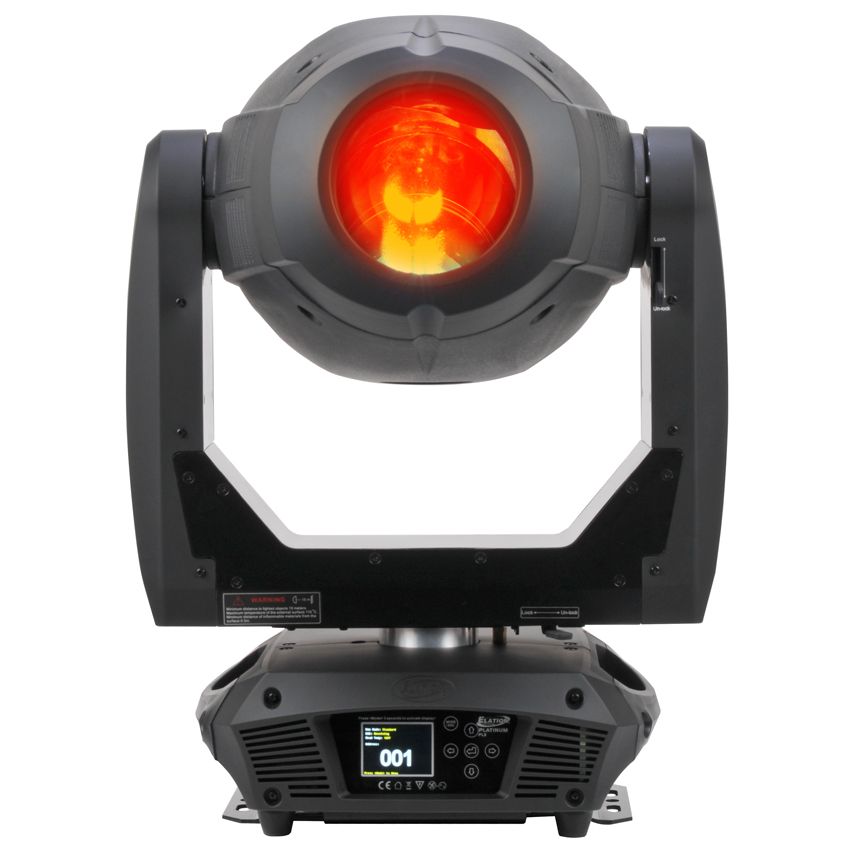

Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement
5pin XLR In/Out
RJ45 Ethernet In/Out (Art-NET, sACN)
Locking Power Cable In

SIZE / WEIGHT

Length: 18.3” (466mm)
Width: 13.2” (335mm)
Vertical Height: 30.0” (762mm)
Weight: 75.0 lbs. (34.0 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
700W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

INCLUDED ITEMS

Locking Power Connector to CEE 7/7 Cable

OPTIONAL ACCESSORIES

1227000013 WP-02 Outdoor Dome
1227000018 WP-06 Outdoor Dome
1322000054 E Loader III

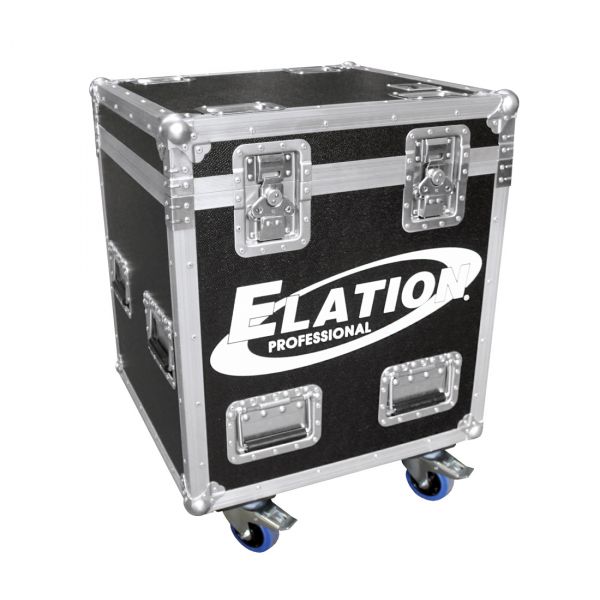

1521000236 Touring Case 2x Platinum FLX
1521000237 PRO Case 2x Platinum FLX

AWARDS

Plasa Award 2015 for Innovation
LDI Award 2015 Best Debuting Lighting Product
WFX Award 2015 New Product Award

FIRMWARE UPDATES

Current firmware can be found here (login required)


*Lamp Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing.

Specifications and documentation subject to change without notice

COLORS AND GOBOS

Color Flags
Cyan Cyan
 Magenta Magenta
 Yellow Yellow
 C.T.O. C.T.O.
Color Wheel
Green Green
 Red Red
 Blue Blue
 Orange Orange
 UV UV
 Yellow Yellow
 Magenta Magenta
 C.T.O. C.T.O.
 CTB CTB
 Light Blue Light Blue
Gobo Wheel 1
Gobo 1
 Gobo 2
 Gobo 3
 Gobo 4
 Gobo 5
 Gobo 6
 Gobo 7
 Gobo 22
Gobo Wheel 2
Gobo 10
 Gobo 39
 Gobo 40
 Gobo 56
 Gobo 68
 Gobo 70
Animation Wheel
Animation Wheel 1
