Pixel Bar 120 IP

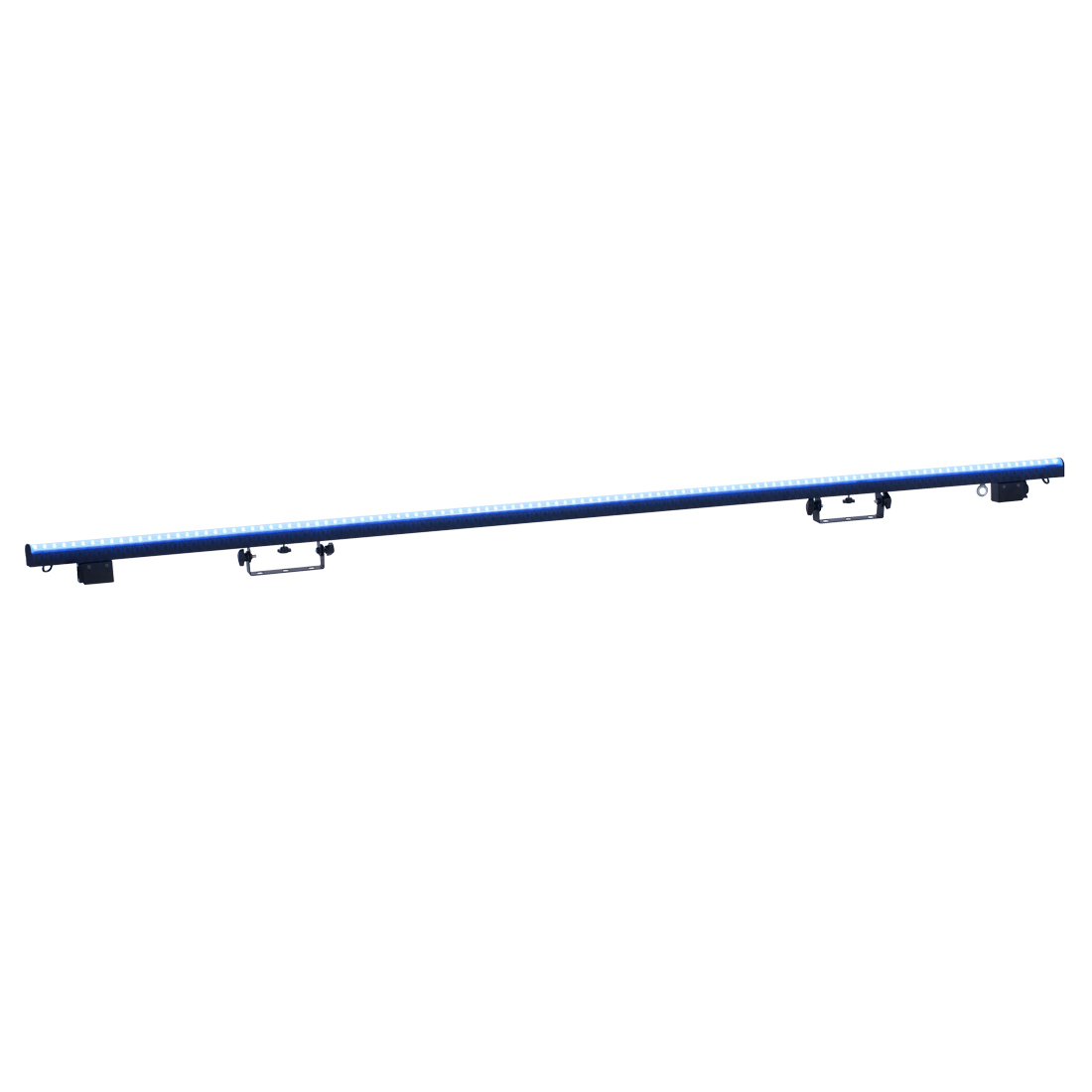

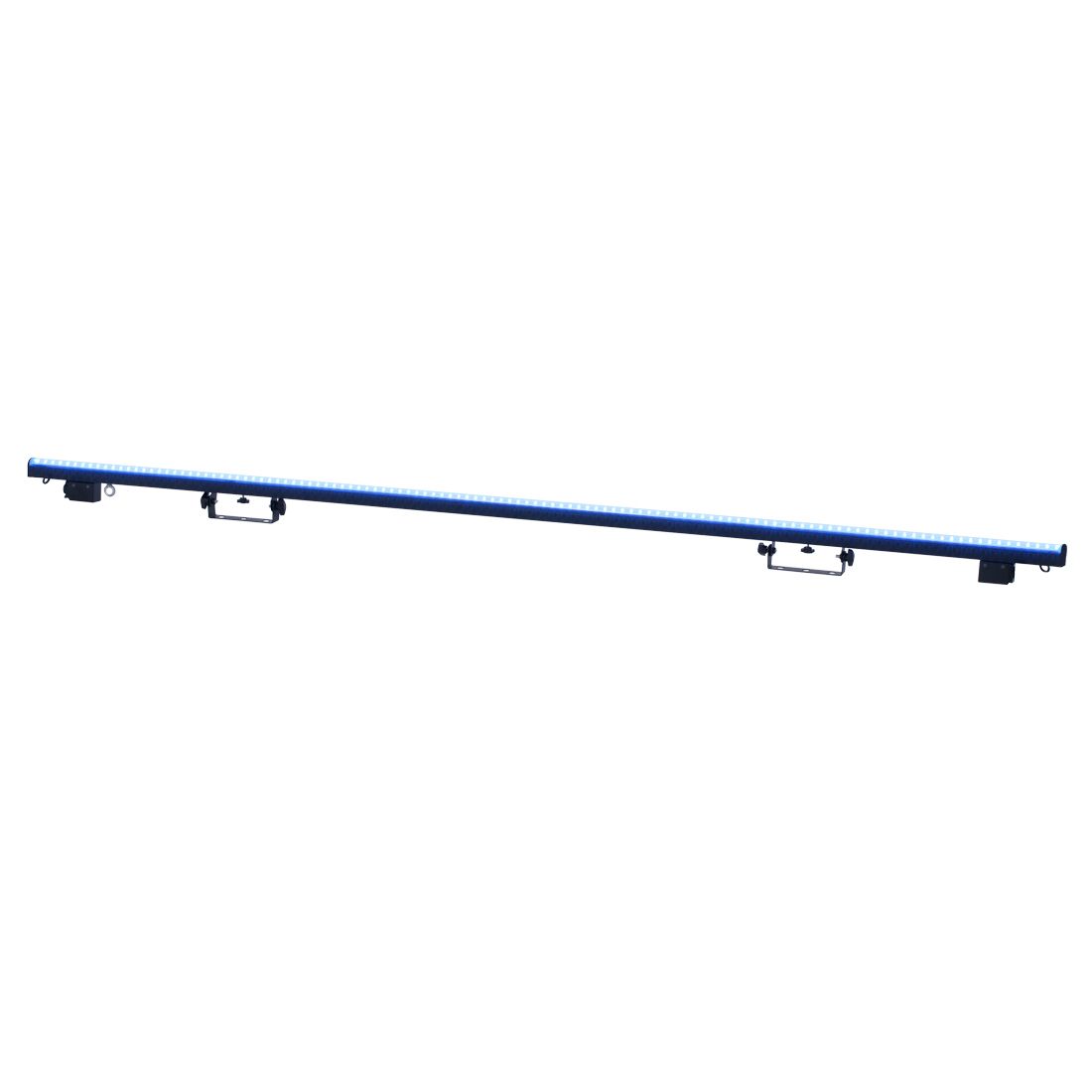

The PIXEL BAR 120IP™ is an outdoor IP65 rated LED pixel bar featuring (120) tri-color RGB SMD LEDs with a 16mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 2 meter (6.6 feet) in length. Each pixel bar is housed in a lightweight IP65 rated aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, an integrated adjustable mounting bracket, a safety cable loop, and includes square and rounded frosted lens attachments.

Easy and versatile control options are handled by the Pixel Driver 4000™ V2 and Pixel Driver 1000IP™ (sold separately) which provides simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels via Kling-Net and 680 max pixels via Art-Net and sACN (streaming ACN) protocols. Power and data are supplied via proprietary IP rated 4pin combo cables (sold separately) which are available in lengths from 0.6 to 15 meters.

Technical Data

FEATURES

Outdoor IP65 Rated
(120) RGB SMD LEDs | 2 meter / 6.6 feet
16mm Pixel Pitch | 44,000Hz PWM
Flicker Free Operation for Broadcast TV and FILM

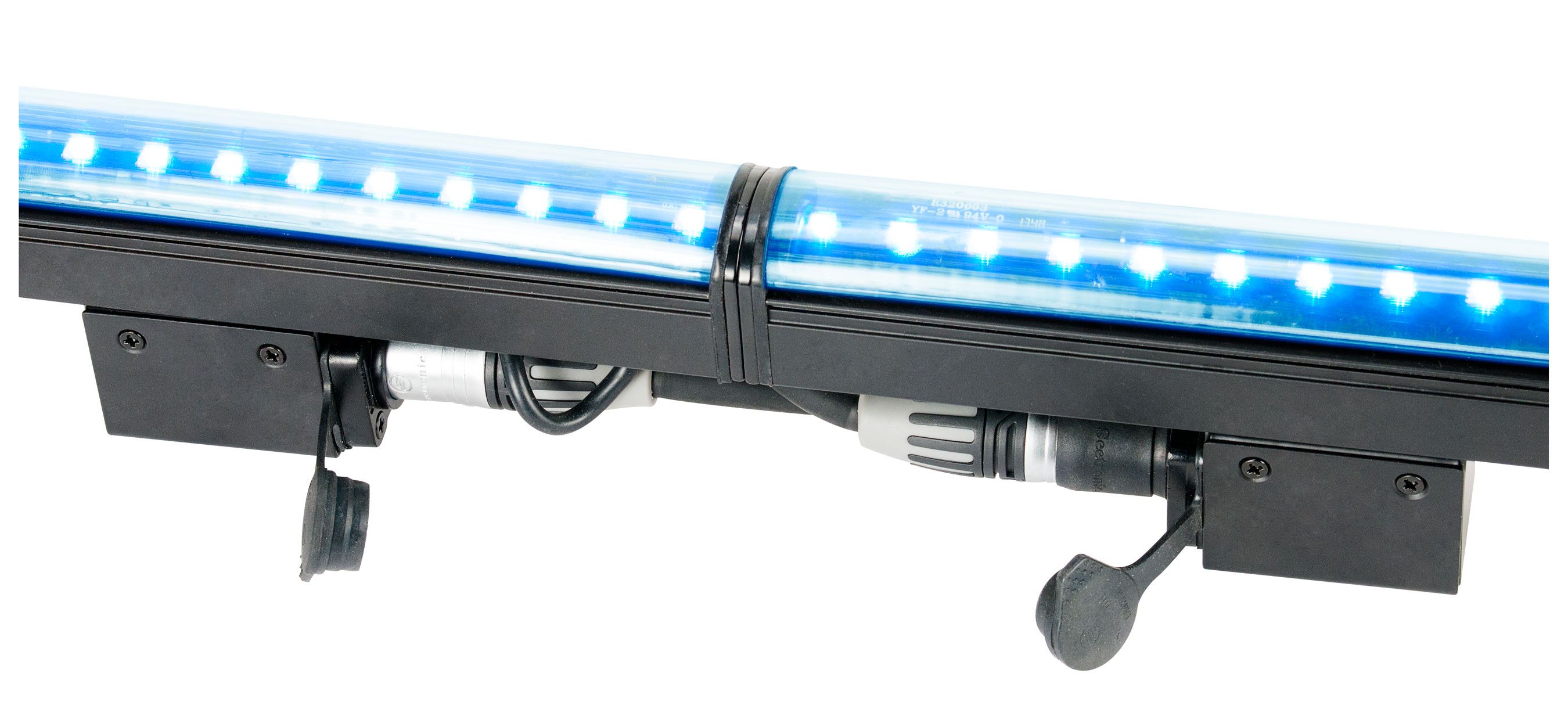

Magnetic End Caps - Seamless End-to-End Spacing
Integrated Adjustable Mounting Brackets (x2)

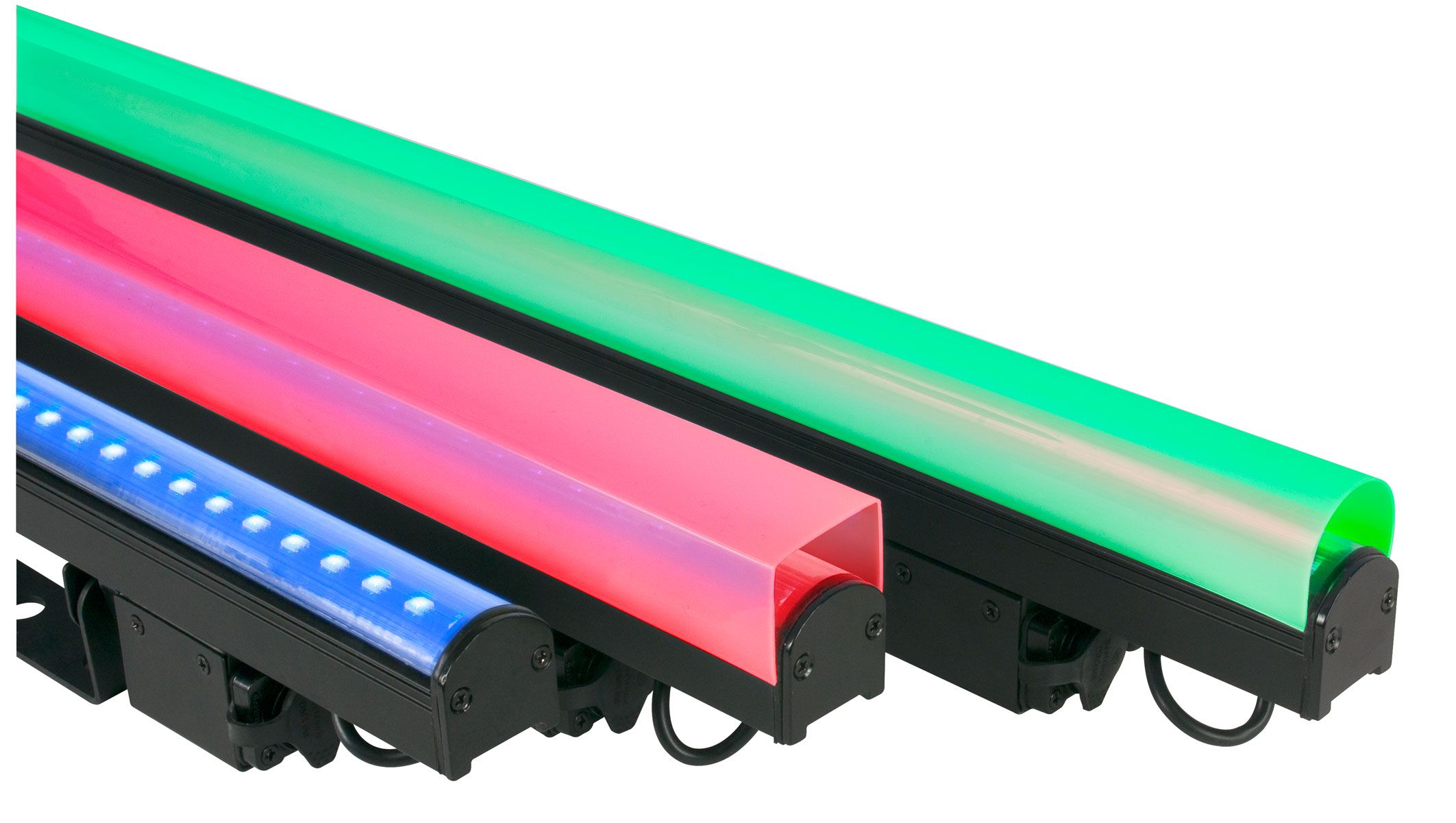

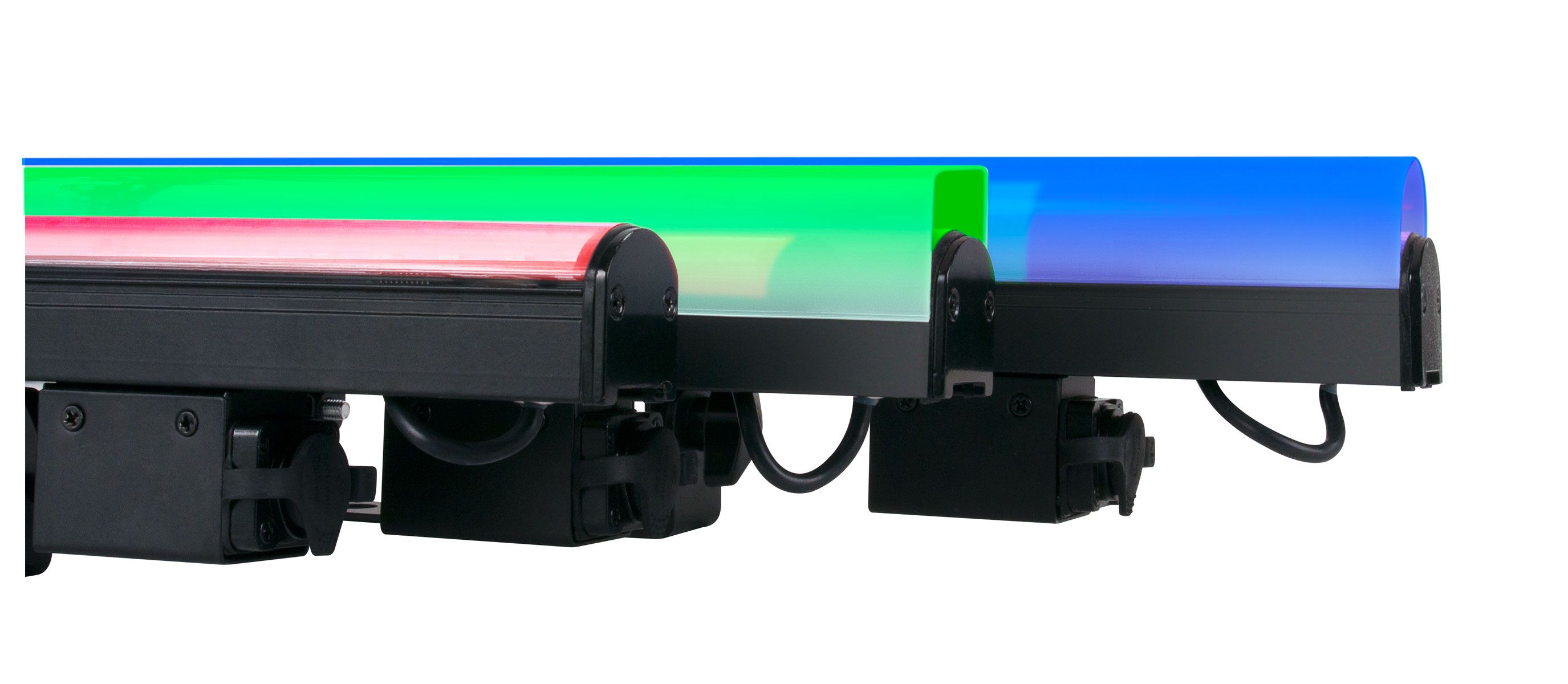

Square and Rounded Frosted Lens Included
2ft (0.6m) Power/Data Jumper Cable included

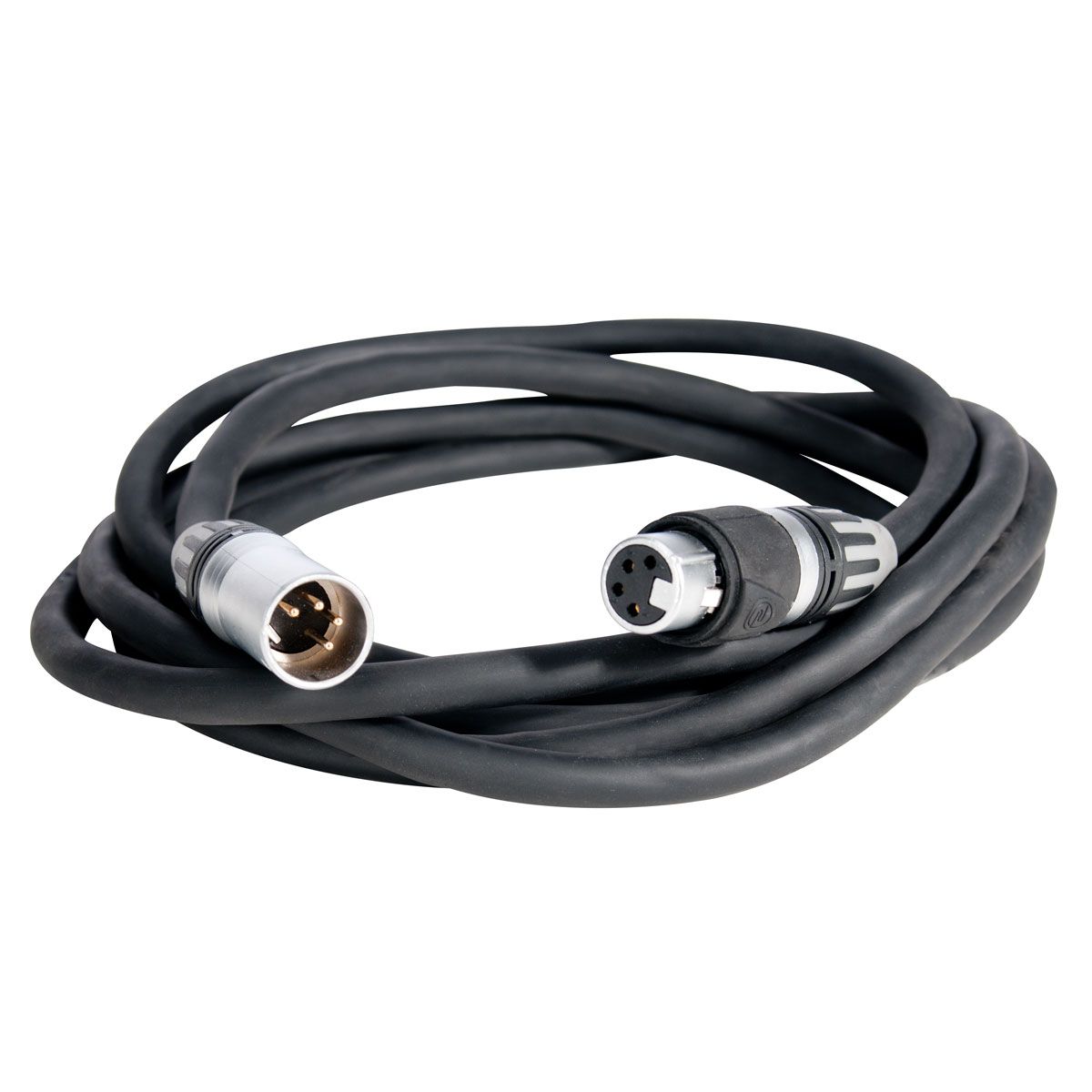

Proprietary IP Rated Power/Data Combo Cables*
*Available in 0.6 to 15 metre Lengths

Pixel Driver 4000™ V2 Controller (sold separately)
Pixel Driver 1000IP™ Controller (sold separately)
Manual Dimming and Strobe Control
Full Pixel Mapping Control
4,080 Pixels via Kling-Net
680 Pixels via Art-Net and sACN (streaming ACN)

SOURCE

0.2 SMD RGB 3-in-1 LEDs
Color Resolution: 8 bits per color (24 bits per pixel)
Viewing Angle: 120 x 120 degrees
Pixels Per Meter: 60 pixels
Pixel Pitch (pixel center-to-center) 16mm
PWM (Pulse Width Modulation): 44,000Hz

CONTROL / CONNECTIONS

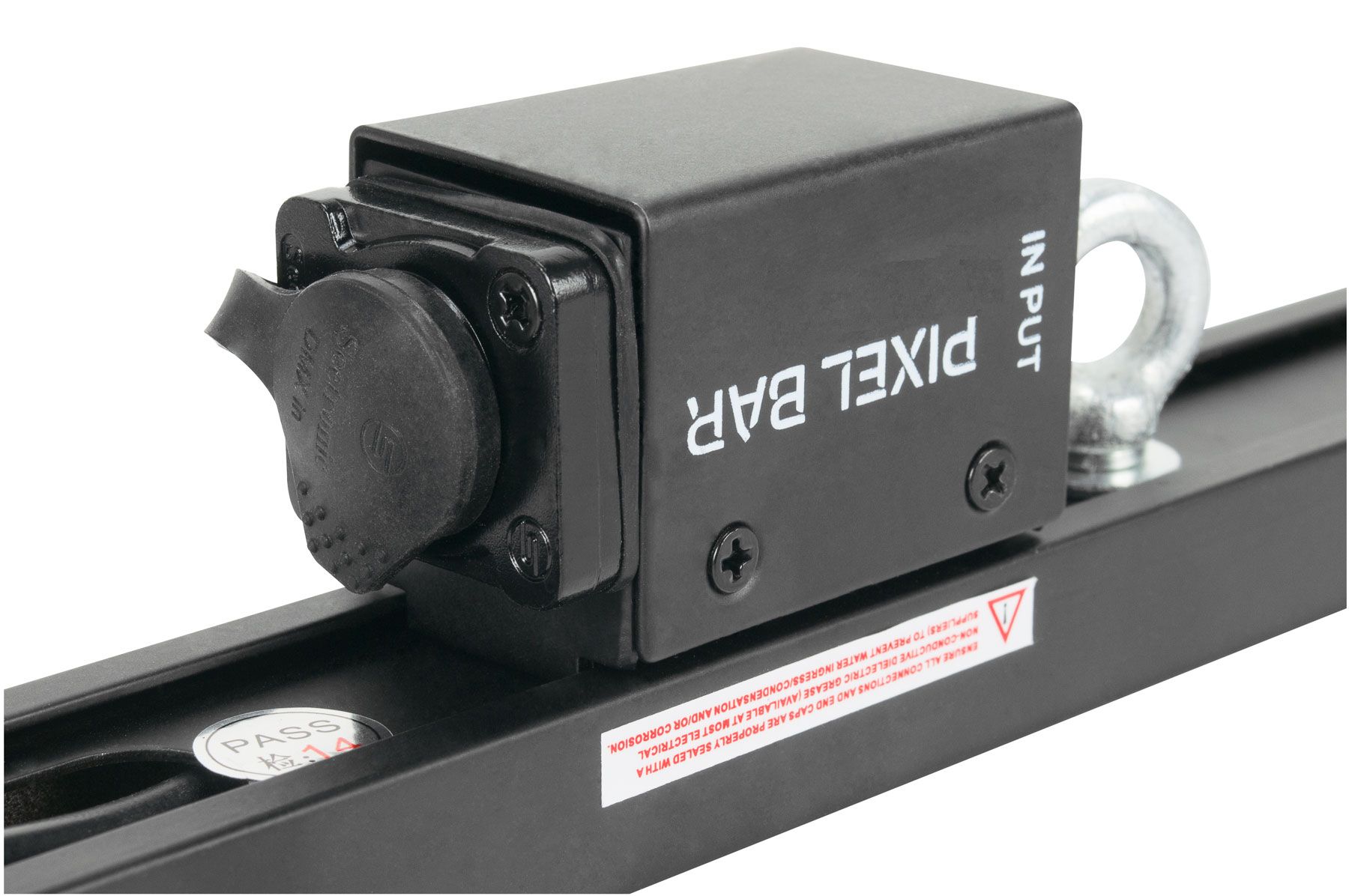

4pin Power/Data In/Out

SIZE / WEIGHT

Length: 75.9” (1928mm)
Width: 1.3” (34mm)
Height: 3.3” (83mm)
Weight: 4.4 lbs. (2.0kg)

ELECTRICAL / THERMAL

Max Power Consumption 24W

Specifications and documentation subject to change without notice
