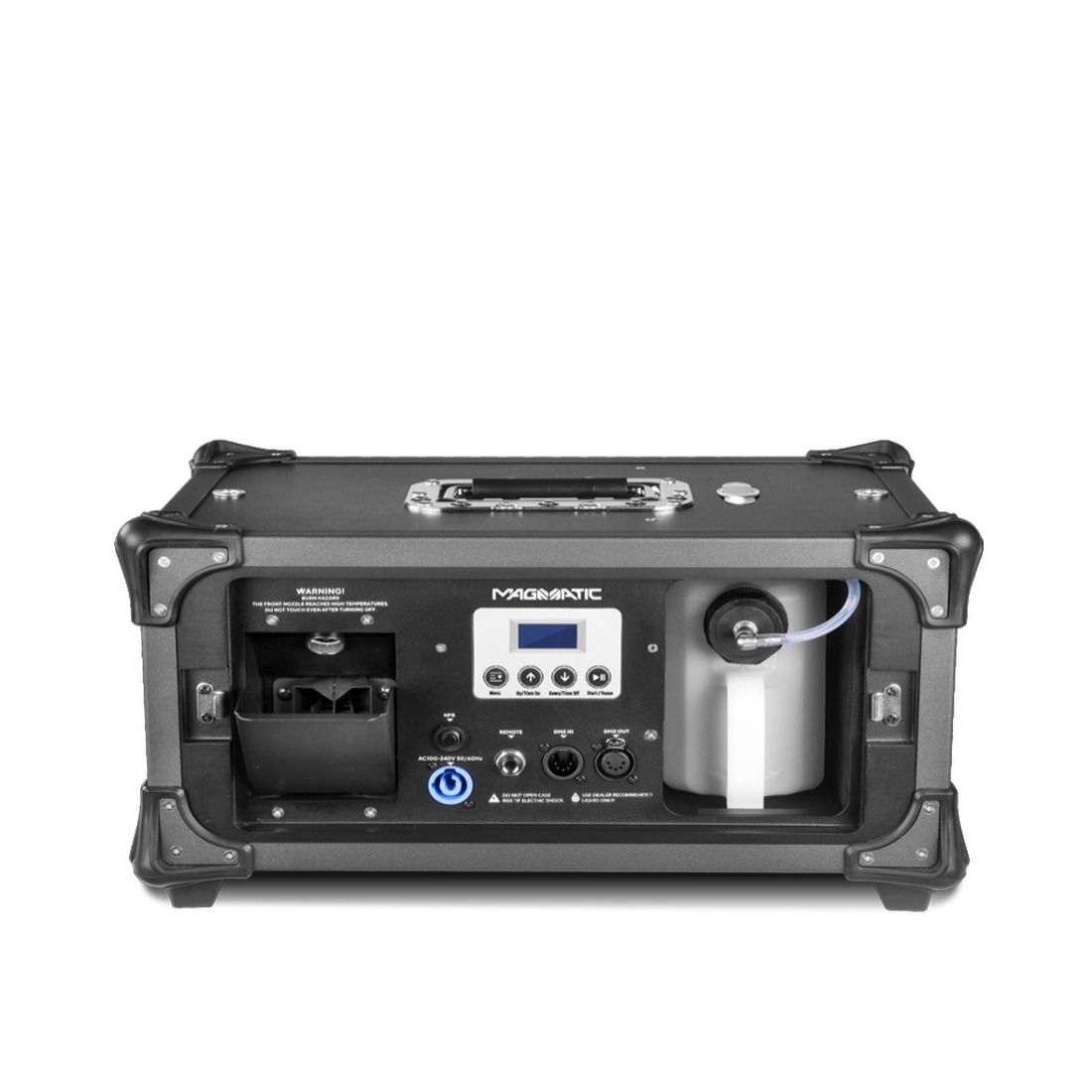

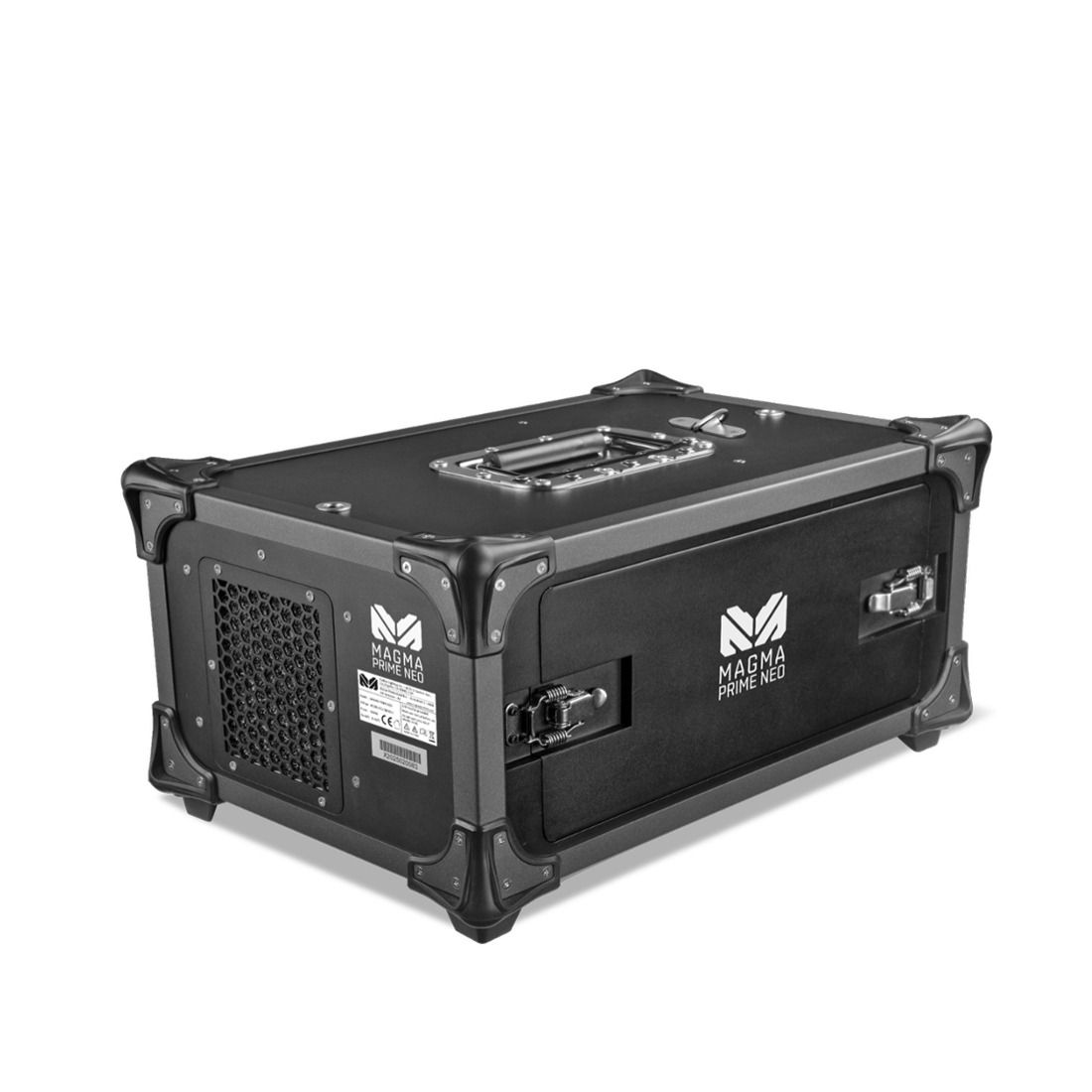

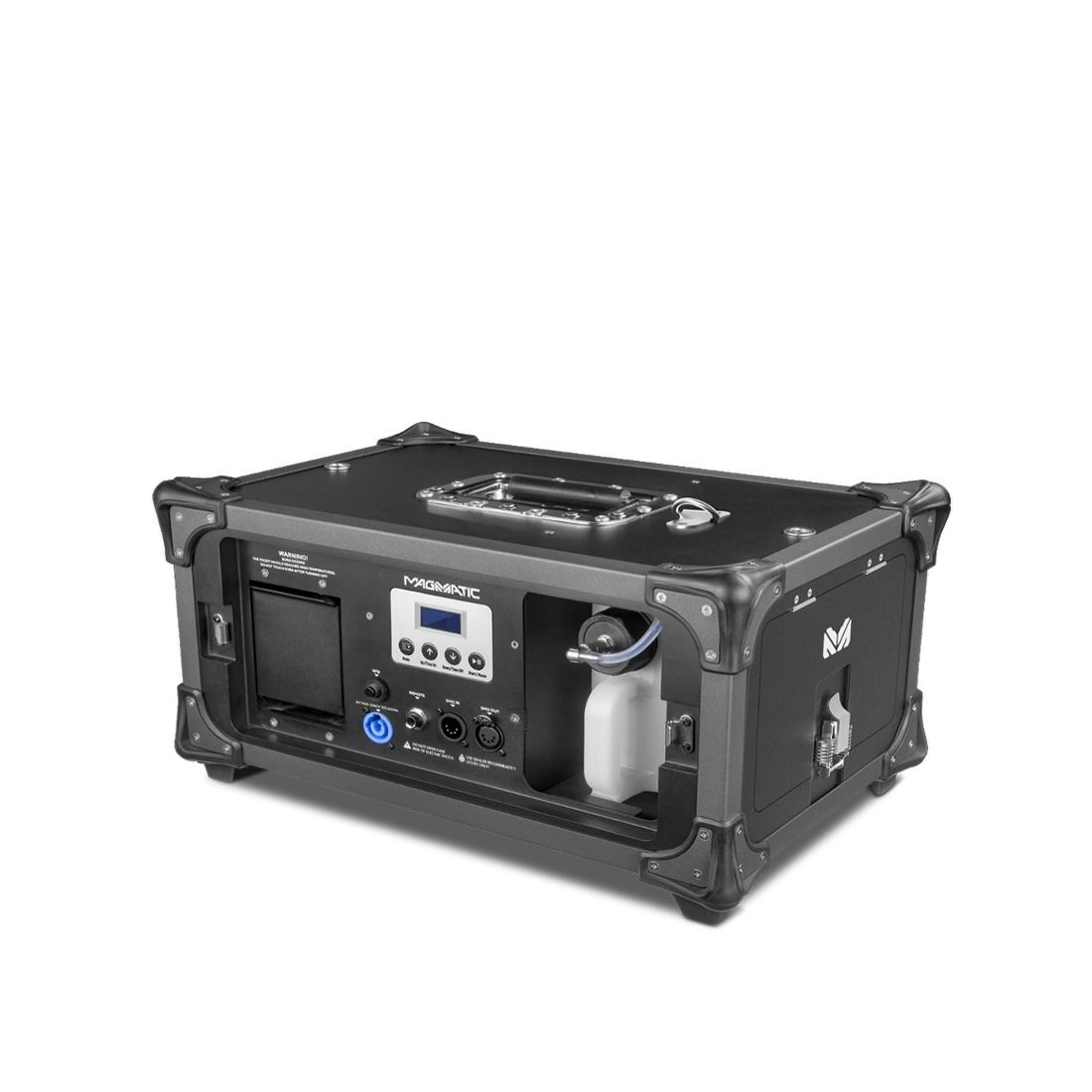

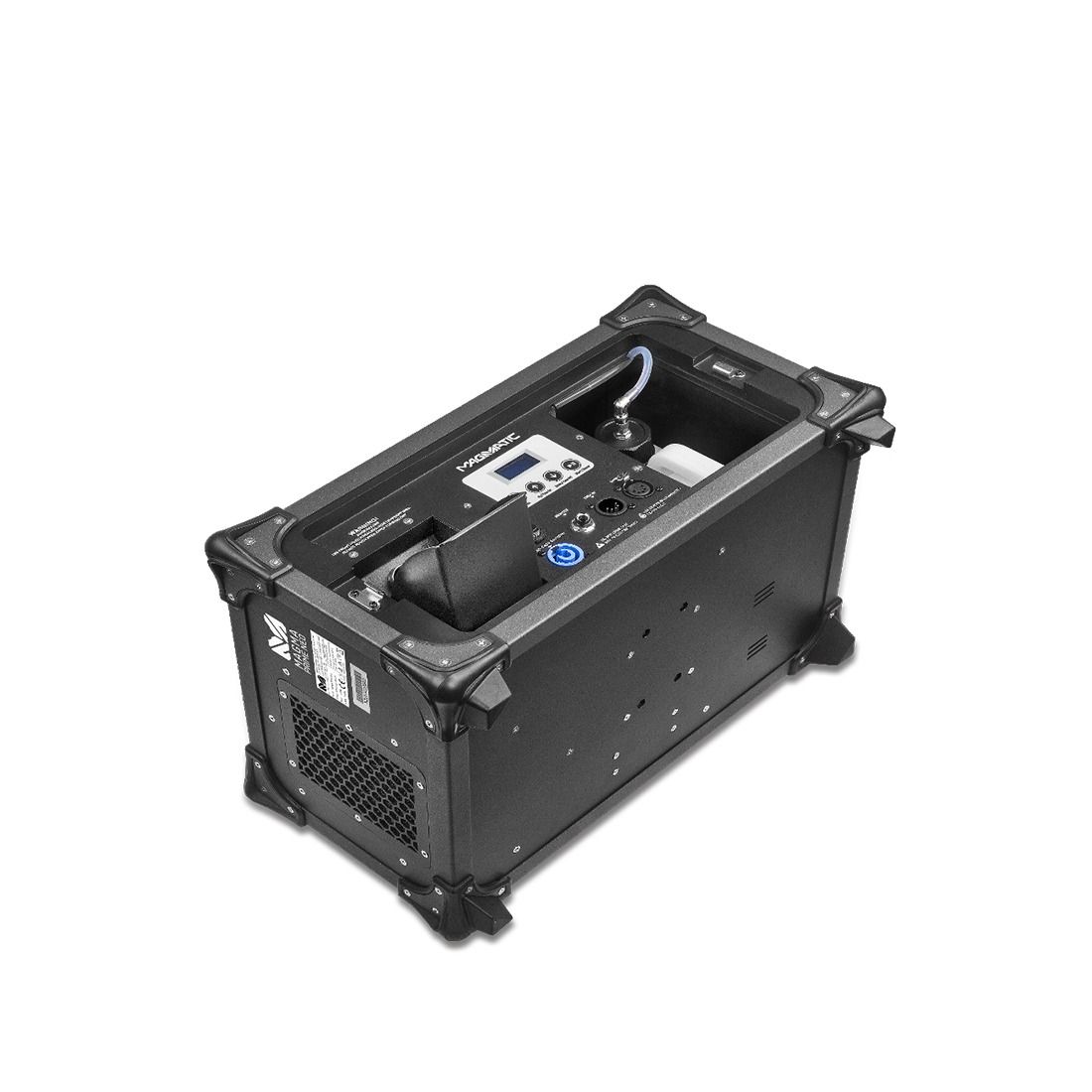

MAGMA PRIME NEO

The Magma Prime Neo is a high-performance compact fazer engineered for professional lighting and atmospheric applications. With an output of 10,000 cubic feet per minute, it delivers an even, fine haze ideal for enhancing light beams and stage effects without overwhelming the environment. A fast 60-second warm-up time ensures the unit is ready when needed, while adjustable output from 5–100% allows precise control for a wide range of venues and applications.

The Magma Prime Neo supports DMX control with multiple channel modes, as well as stand-alone operation with onboard LCD control for continuous or timed fogging. Manual fogging, external controller support, and a built-in self-cleaning function further enhance usability and reliability. Efficient fluid consumption and a 2-liter internal tank allow for extended operation with minimal refills.

Housed in an Obsidian gray enclosure with integrated handle, the Magma Prime Neo is designed for durability and ease of transport. Air-cooled operation, integrated safety warnings, and wide-range power compatibility make it a dependable solution for touring productions, houses of worship, theaters, clubs, and permanent installations.

Technical Data

SPECIFICATIONS


EFFECT

Fog Output: 10,000 cu.ft/min
Output Adjustment: 5–100%
Fluid Consumption Rate: 6 ml/min

CONTROL

DMX Channels: 1 / 2 / 4
DMX Modes: 3
DMX Connectors: 5-pin XLR In / Out
Stand-Alone Operation: Yes
Onboard Control: Continuous fogging, timed fogging
Display: LCD
Warm-Up Time: 60 seconds
Warnings: Low fluid, overheat, no heating
External Controller Support: Yes
Remote Connector: 1/4" jack
Manual Fogging: Yes
Self-Clean Function: Yes (60 seconds)

POWER

Input Voltage: 100–240VAC
Frequency: 50/60 Hz.
Heater Power: 1350 W
Power Consumption: 1500 W
Power Input: Indoor, IP20 locking power input

FIXTURE

Cooling: Air cooled
Max Ambient Temperature: 40°C (104°F)
Surface Temperature: 60°C (140°F)
Handle: Yes
Fluid Tank Capacity: 2 liters (0.53 gal)
Deflector Angle: -14° to 42°
Housing Color: Obsidian gray

DIMENSIONS & WEIGHT

Dimensions (L × W × H): 446 × 297 × 242 mm (17.6 × 11.7 × 9.5 in)
Weight: 12.5kg (27.6 lbs)

Specifications and documentation subject to change without notice
