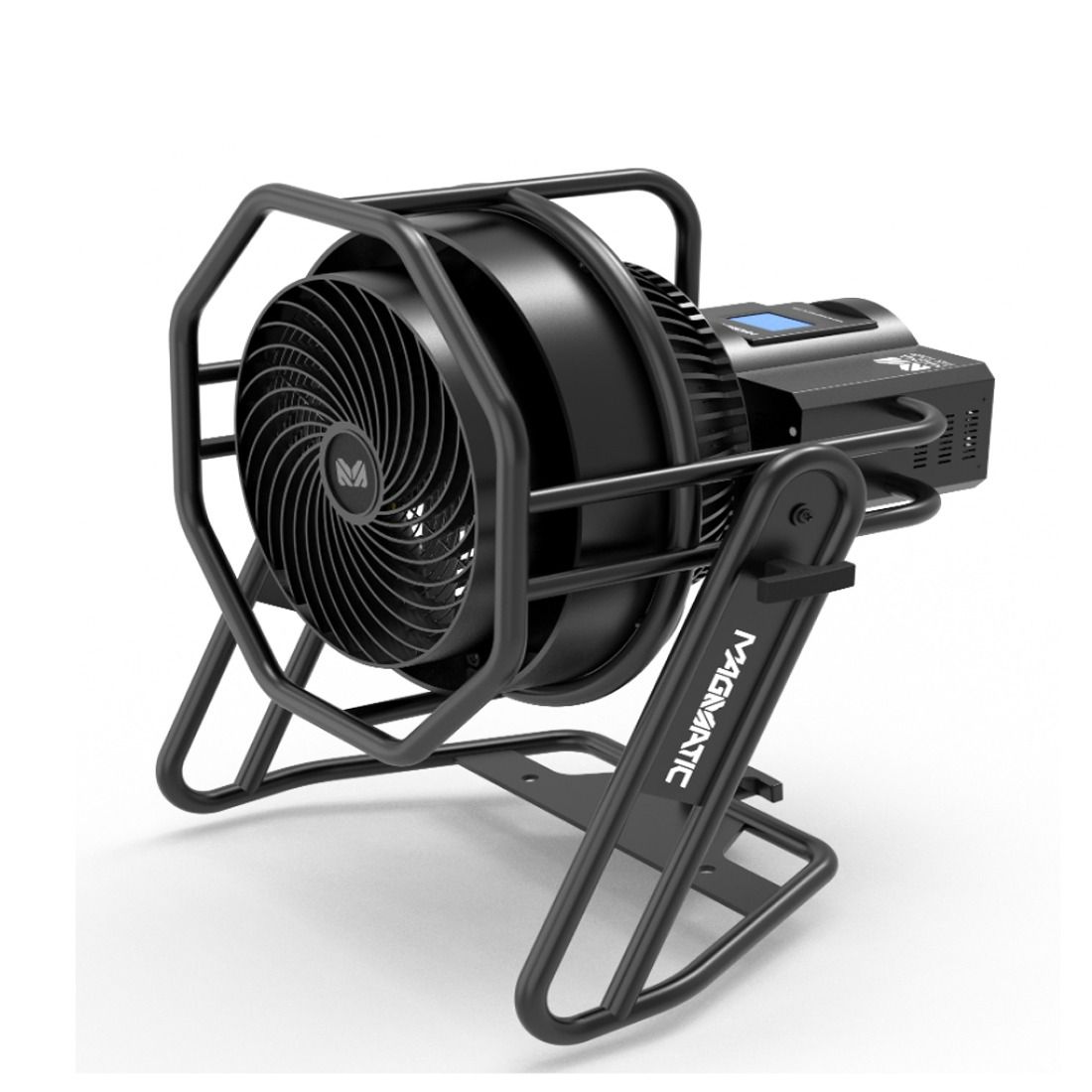

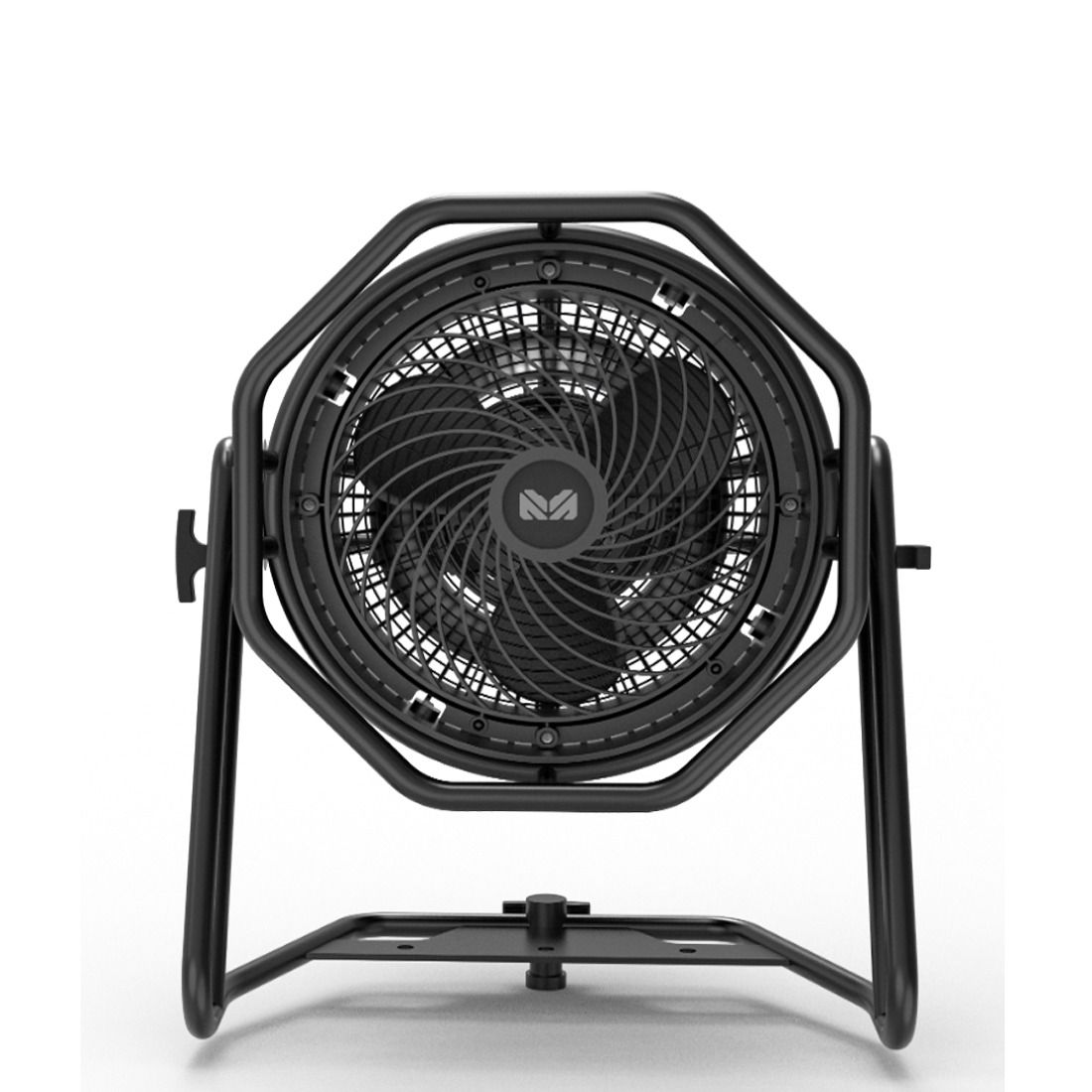

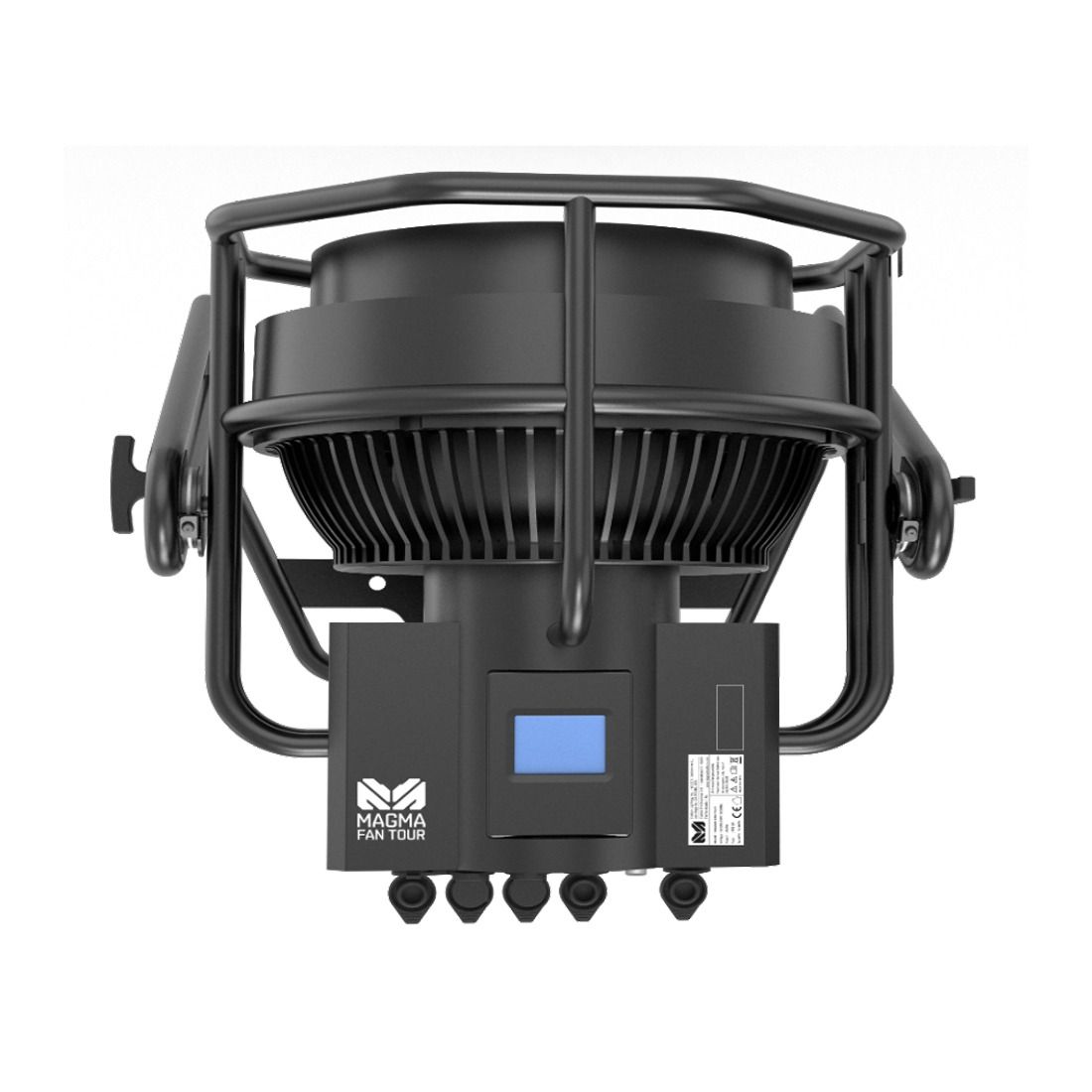

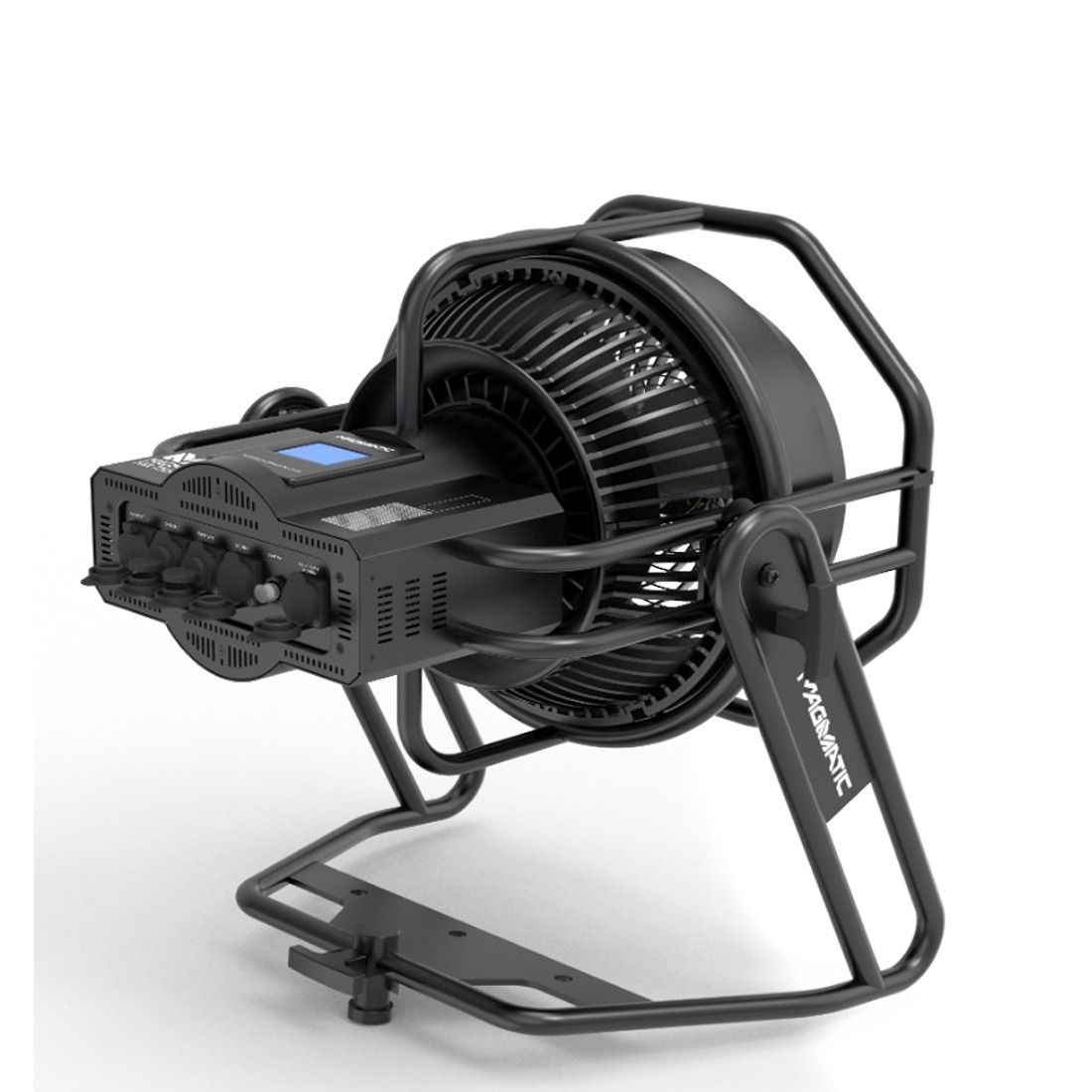

MAGMA FAN TOUR

The Magma Fan Tour is a rugged, professional-grade wind machine engineered for touring, outdoor events, and permanent installations where reliability and control are critical. Capable of producing up to 5,400 m³/h of airflow with wind speeds reaching 78 km/h, it delivers powerful and consistent wind effects suitable for haze dispersion, scenic effects, and atmospheric control.

Designed with versatility in mind, the Magma Fan Tour features adjustable fan speeds, DMX control, and RDM support for seamless integration into modern lighting and FX systems. Stand-alone operation with a waterproof touchscreen interface allows quick configuration directly on the unit, while remote control and manual speed adjustment provide additional flexibility.

Built for demanding environments, the IP65-rated housing protects against dust and water, making it ideal for outdoor stages and touring applications. With a durable obsidian gray enclosure, integrated handle, and efficient air-cooled design, the Magma Fan Tour is a dependable solution for professional productions requiring controlled, high-powered wind effects.

Technical Data

SPECIFICATIONS

EFFECT

Maximum Fan Volume: 5,400 m³/h (≈ 3,180 CFM)
Average Wind Speed (before net protection): 78 km/h (48.5 mph)
Fan Speed Range: 1,500–3,600 rpm
Fan Speed Adjustment: Yes
Motor Power: 0.612 HP
Wind Direction Angle: 36°

CONTROL

DMX Channels: 2
DMX Modes: 1
DMX Connectors: 5-pin
RDM: Yes
Stand-Alone Operation: Yes
Onboard Control: On/Off, Fan Speed, DMX Address Setting, Battery Status
Remote Controller Connection: 4-pin XLR
Display: Waterproof touchscreen
Manual Speed Control: Yes
External Battery Support: Yes

POWER

Input Voltage: 100–240V
Frequency: 50/60 Hz
Power Consumption: 450 W
Maximum Starting Power: 550 W
Outdoor, IP65, power locking power input

FIXTURE

IP Rating: IP65
Cooling: Air cooled
Max Ambient Temperature: 40°C (104°F)
Surface Temperature: 40°C (104°F)
Handle: Yes
Fan Material: Plastic
Housing Color: Obsidian gray

DIMENSIONS & WEIGHT

Dimensions (L × W × H): 510 X 456.5 X 562mm (20.1 × 18.0 × 22.1 in)
Weight: 15.8kg (34.8 lbs)

Specifications and documentation subject to change without notice
