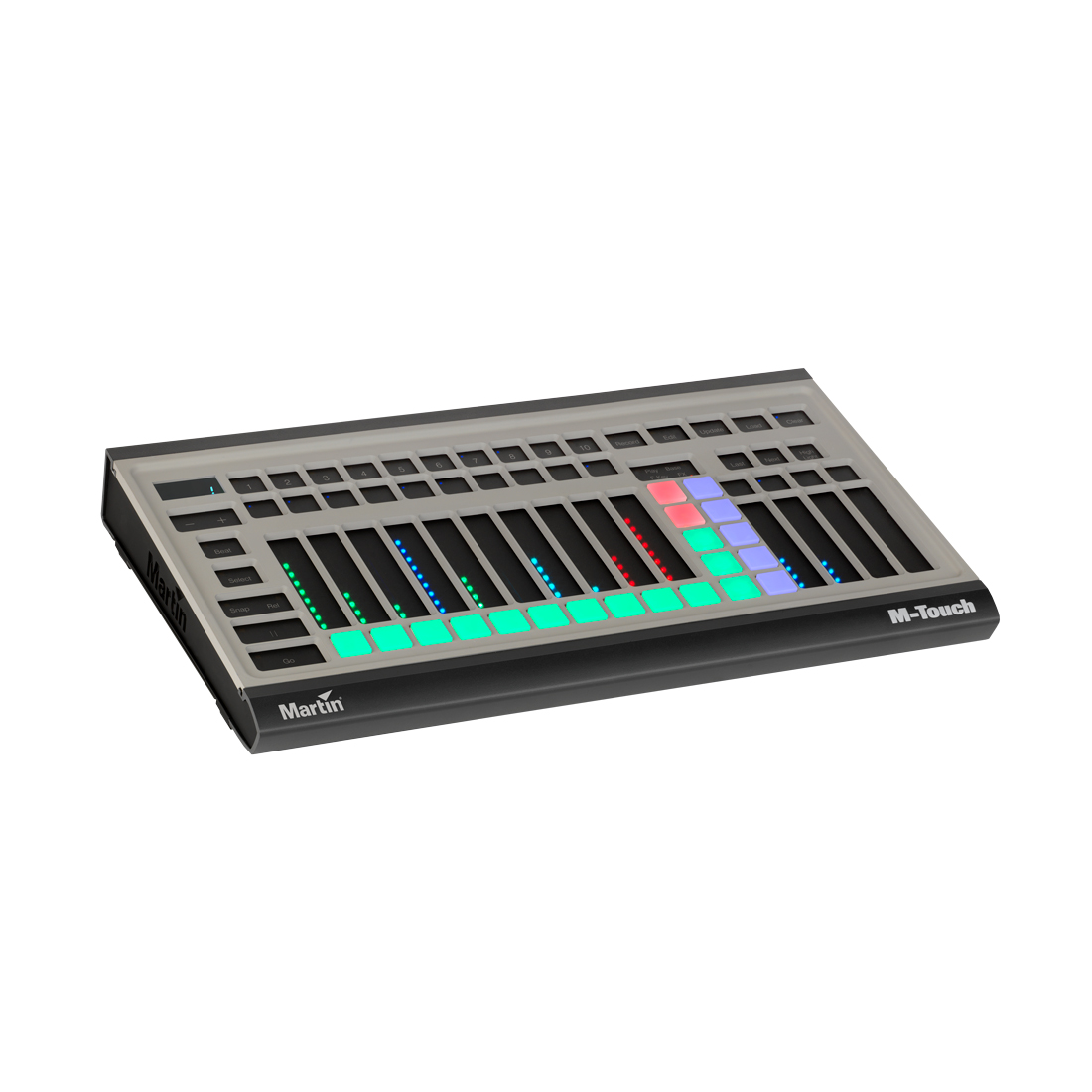

M-TOUCH

M-Touch is a powerful yet simple control surface for the M-Series controllers, the most affordable professional lighting solutions on the market. Fully compatible with all M-Series consoles and M-PC software, M-Touch is a plug-and-play solution with an innovative control surface like no other lighting console.

14 touch faders allow control of playbacks and fixture parameters while 20 velocity-controlled pads allow for new types of effects. Additional programming buttons such as Record, Edit, Update, Load and Clear are accessible directly from the M-Touch control panel. M-Touch includes one DMX port for direct control of any compatible DMX device.

M-Series Licensing
1 DMX 5pin XLR ports
M-PC Free 4 Universes (Artnet, sACN)
M-PC Pro - 64 Universes (Artnet, sACN) (optional M-PC kit required)
Please Note - This product has been superceded by the NX Touch, please click here for more details

Technical Data

FEATURES

Truly affordable control surface for both smaller applications and professional use
Combined playback and programming surface with innovative touch fader technology
Pressure sensitive flash buttons
10 Playbacks, 10 multi-purpose function keys, 4 digital encoders
Portable, rugged and lightweight design
USB connection for M-PC or as expansion wing for all M-Series consoles
Integrated DMX output, expandable up to 64 Universes
Plug and Play USB device without external power supply
Rackmount option


PHYSICAL

Length: 394 mm (15.5 in.)
Width: 218.5 mm (8.6 in.)
Height: 46.5 mm (1.8 in.)
Weight: 1.5 kg (3.3 lbs.)


CONTROL/USER INTERFACE

Bank Navigation Up/Down with numerical display
Main Go section: Snap, Release, Pause and Go buttons
Command Buttons: Record, Edit, Update, Load, Clear
Multifunction Mode Select button
Fixture Selection buttons: Last, Next, Highlight
4 x Parameter Select buttons
4 x Parameter Adjust touch faders
10 x Function velocity pads


PLAYBACK

10 x Playback touch faders with 3 buttons
(2 x touch pad, 1 x velocity pad)


SYSTEM INTEGRATION

Unlocks 1 x DMX universe when connected to M-PC™


CONSTRUCTION

Housing: Aluminum, steel, plastic
Mounting: VESA 75x75, 100x100
Security: K-Lock locking slot
IP Rating: IP20


MINIMUM SYSTEM REQUIREMENTS

Windows 7 or higher
Dual-core processor, 2.0 GHz (Intel i5 or better recommended)
4 GB RAM
2 GB available disk space (SSD recommended)
Widescreen monitor, minimum 1280x800 (capacitive touchscreen recommended)
USB 2.0 port for M-Touch surface
10/100 Ethernet port for Art-Net or sACN output
100/1000 Ethernet port for MAXNET and Remote operation
Full administrator rights on PC


CONNECTIONS

DMX data link: 1 x 5-pin locking XLR
Windows PC: USB 2.0


ELECTRICAL

Power source: 5 VDC over USB
Maximum current: 500 mA


THERMAL

Operating temperature: 0° – 50° C (32° – 122° F)


INCLUDED ITEMS

USB cable 1.5m (4.9 ft.)

Specifications and documentation subject to change without notice
