Code 1330000023

Fully compatible with all M-Series consoles and M-PC software, M-Touch, M-Play is a plug-and-play solution with an innovative control surface like no other lighting console. Featuring a truly innovative control surface with 12 touch faders that let you control playbacks, while 48 velocity-controlled pads let you access playbacks and any function key. M-Play includes one DMX port for direct control of any compatible DMX...

Code 1330000023

M-PLAY

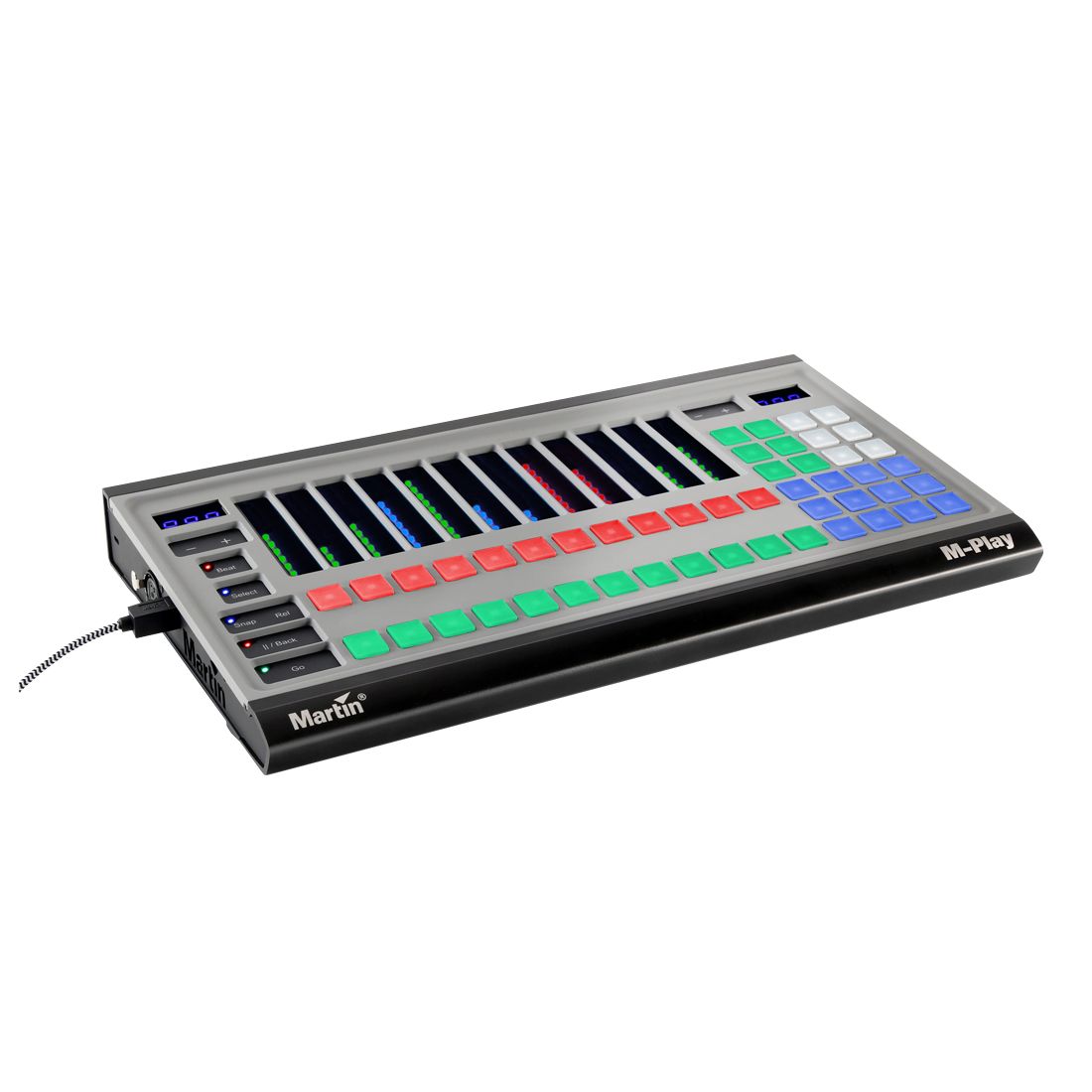

Fully compatible with all M-Series consoles and M-PC software, M-Touch, M-Play is a plug-and-play solution with an innovative control surface like no other lighting console.

Featuring a truly innovative control surface with 12 touch faders that let you control playbacks, while 48 velocity-controlled pads let you access playbacks and any function key. M-Play includes one DMX port for direct control of any compatible DMX device.

M-Series Licensing

1 DMX 5pin XLR port

M-PC Free 4 Universes (Artnet, sACN)

M-PC Pro - 64 Universes (Artnet, sACN) (optional M-PC kit required)

Please note - This product has been superceded by the forthcoming NX Play, click here for more details

Technical Data

Support and Downloads

FEATURES

Compact playback surface for both smaller applications and professional use

Playback and Function button surface with innovative touch fader technology

Pressure sensitive flash buttons

24 Playbacks, 24 multi-purpose function keys. Numerical keypad mode.

Portable, rugged and lightweight design

USB connection for M-PC or as expansion wing for all M-Series consoles

Integrated DMX output, expandable up to 64 Universes

Plug and Play USB device without external power supply

Rackmount option

PHYSICAL

Length: 394 mm (15.5 in.)

Width: 219 mm (8.6 in.)

Height: 47 mm (1.9 in.)

Weight: 1.8 kg (4.0 lbs.)

CONTROL/USER INTERFACE

Bank navigation: Up/Down with numerical display (Section 1)

Bank navigation: Up/Down with numerical display (Section 2)

Main Go section: Snap, Release, Pause and Go buttons

Beat and Select button

PLAYBACK

12 Playback Touch faders with 1 button (Velocity Pad), Playback section 1

12 Playback buttons (Velocity Pad), Playback section 1

24 Playback buttons (Velocity Pad), Playback section 2

MINIMUM SYSTEM REQUIREMENTS

Windows 7 or higher

Dual-core processor, 2.0 GHz (Intel i5 or better recommended)

4 GB RAM

2 GB available disk space (SSD recommended)

Widescreen monitor, minimum 1280x800 (capacitive touchscreen recommended)

USB 2.0 port for M-Play surface

10/100 Ethernet port for Art-Net or sACN output

100/1000 Ethernet port for MAXNET and Remote operation

Full administrator rights on PC

CONSTRUCTION

IP Rating: IP20

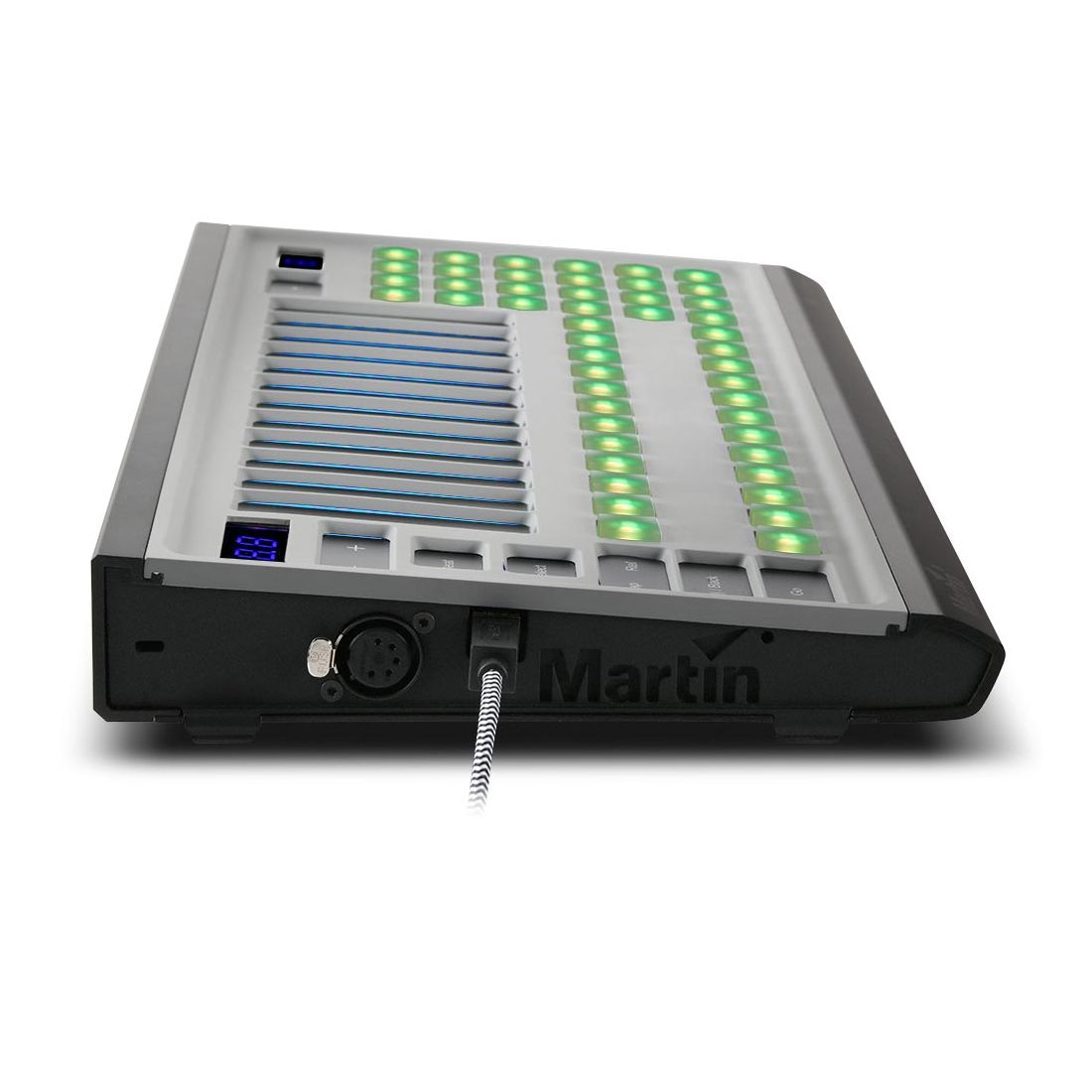

CONNECTIONS

1 x DMX universe output: 5-pin locking XLR

1 x USB 2.0 input

ELECTRICAL

Power: 5 VDC over USB

Maximum current: 500 mA

THERMAL

Maximum ambient temperature (Ta Max.): 40° C (104° F)

Minimum ambient temperature (Ta min.): 0° C (32° F)

INCLUDED ITEMS

USB cable 1.5 m (4.9 ft.)

Specifications and documentation subject to change without notice
