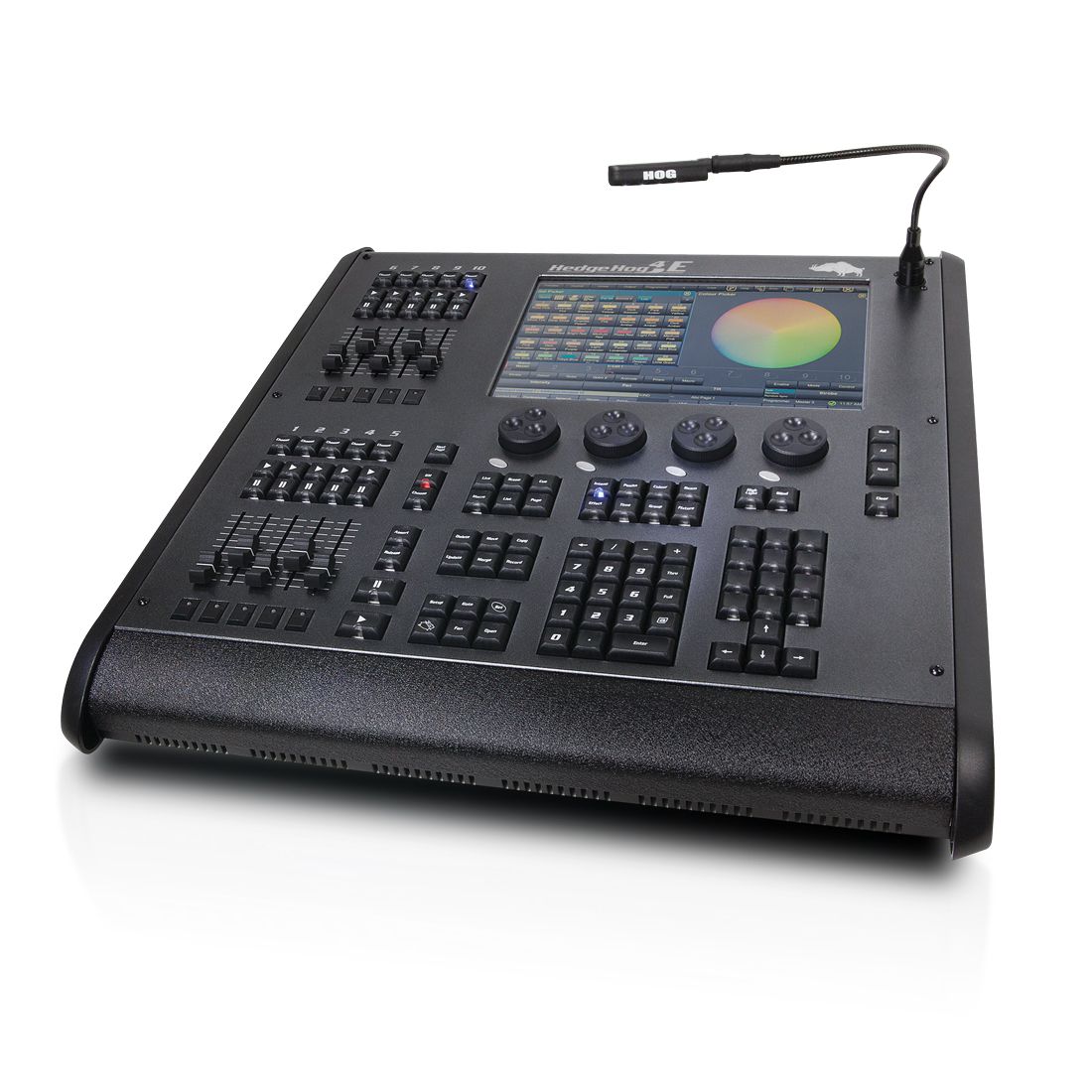

HedgeHog 4E

The new HedgeHog4E is a professional lighting controller which comes with ArtNet and CITP capabilities and are designed for small to mid-level shows. It’s compact, lightweight and easy to take on a plane! Running on Linux, they are fast, stable and ready to Hog.

Perfect consoles for use in school theaters, nightclubs, corporate events, medium scale rental jobs or churches. Retaining the same programming layout as their larger brother, the Road Hog 4, as well as being able to load show files from any of the range (and vice versa) means that this compact console range is extremely flexible and easy to use.



Technical Data

FEATURES Hedge Hog 4E

Robust Hog 4 Operating Software
With Newest V3.0 Software including Pixel Mapper and Plot View
Unlimited Number of Simultaneous Crossfades
MIDI Input and Output, MIDI Show Control and MIDI Time Code via Optional External Widget
Supports USB Playback and Master Wings
Dust cover Included
Optional Custom Road Case

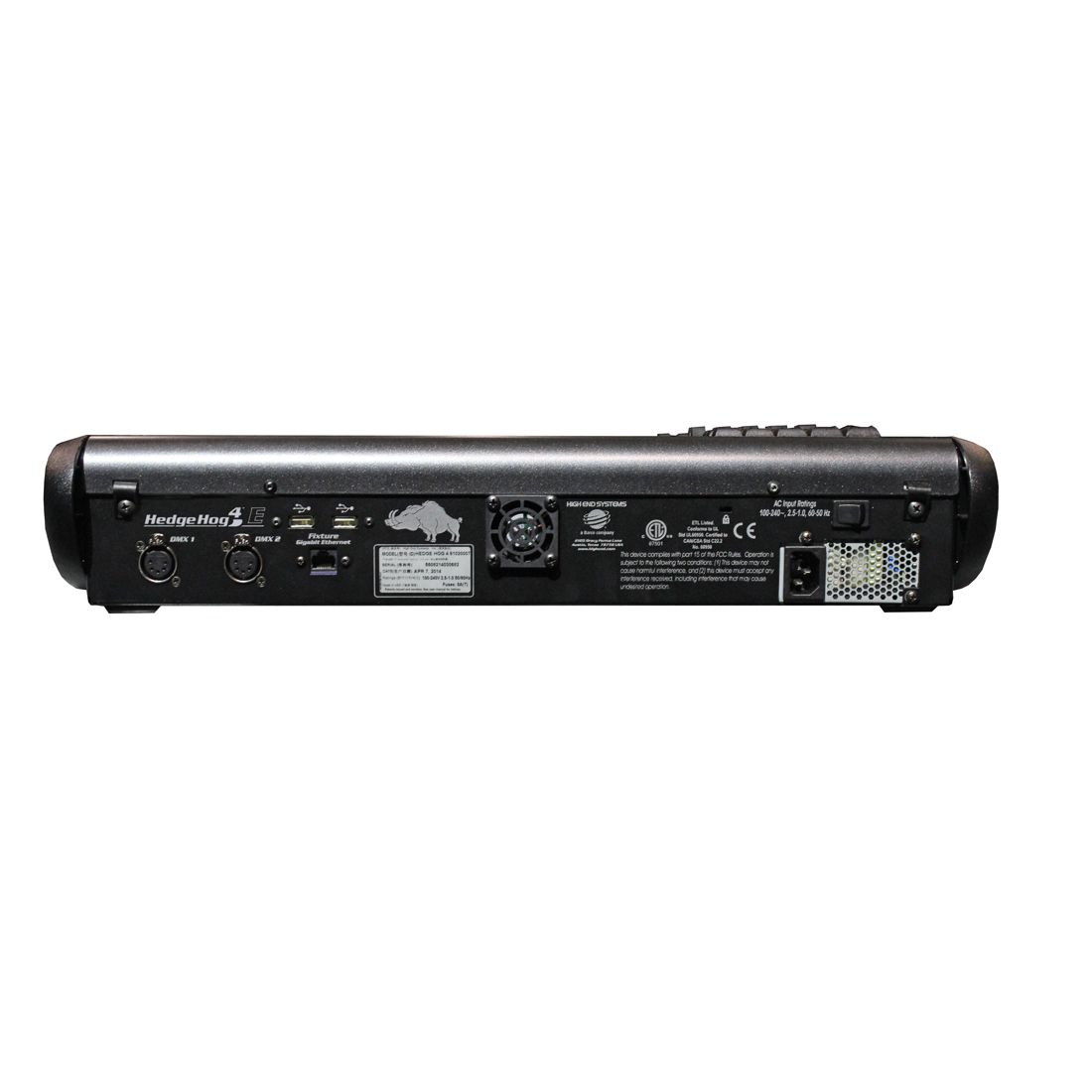

CONTROL / CONNECTIONS


(1) Internal 12” Wide Touch Screen
(4) Encoders for an Expanded Wheelset
(12) User Keys
(10) Playback Faders
(2) Fixed Universes of DMX 512
(4) Universes of DMX 512 over ArtNet or sACN
Fixture-Net Ethernet Connector
Internal Hard Disk Drive
(2) USB Ports

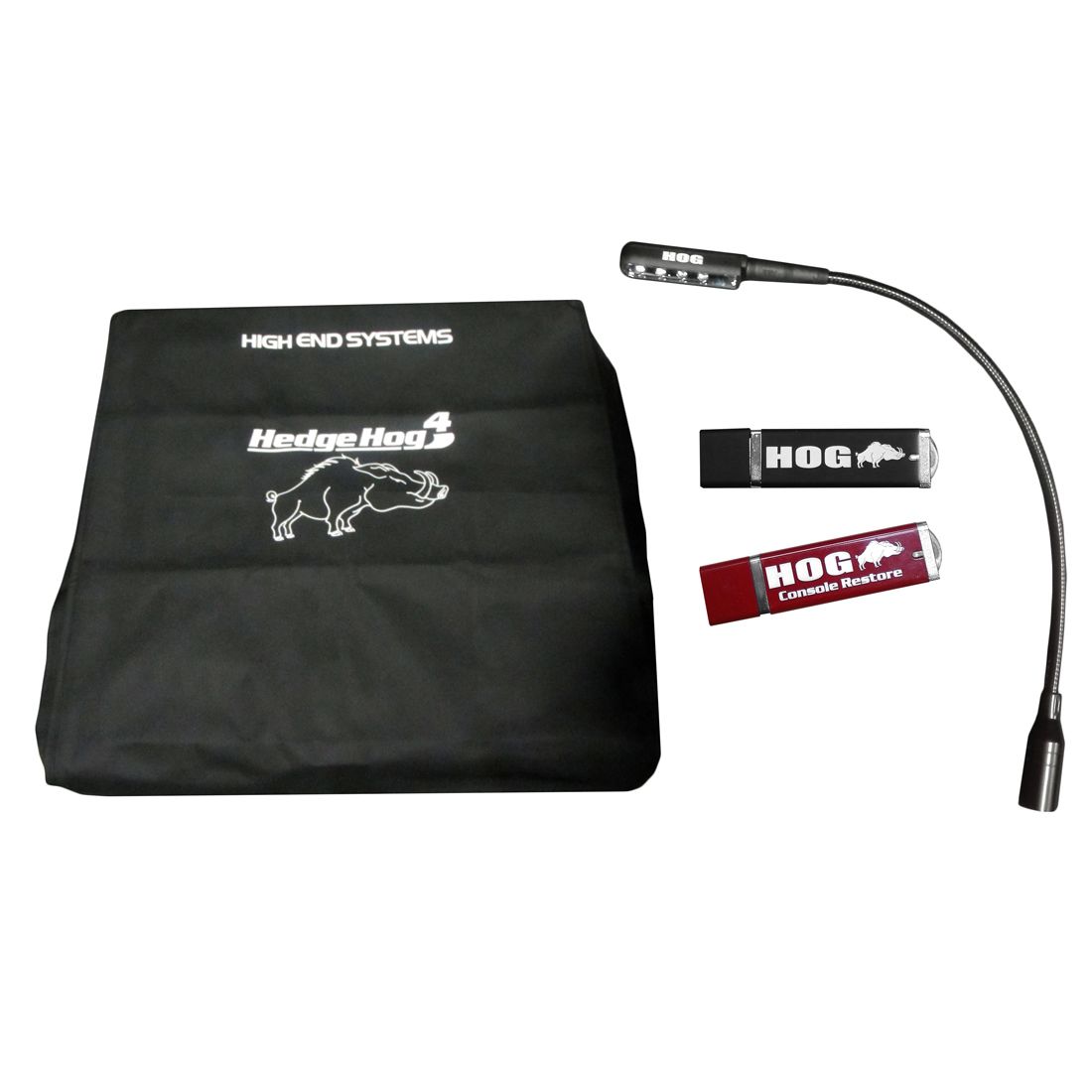

INCLUDED ITEMS

(1) IEC Power Cable
(1) Dust Cover
(1) Dimmable LED Desklight
(2) USB Thumb Drives (Storage & Recovery)


SIZE / WEIGHT

Length: 20.74” (526.8mm)
Width: 21.83” (554.37mm)
Height: 3.97” (100.78mm)
Weight: 17 lbs. (7.7 kg)


ELECTRICAL / THERMAL

AC 90-250V - 50/60Hz




Specifications and documentation subject to change without notice

Related Products

Hog DMX Widget

Hog DMX Widget

Midicon PRO

Midicon PRO

eNode 4

eNode 4

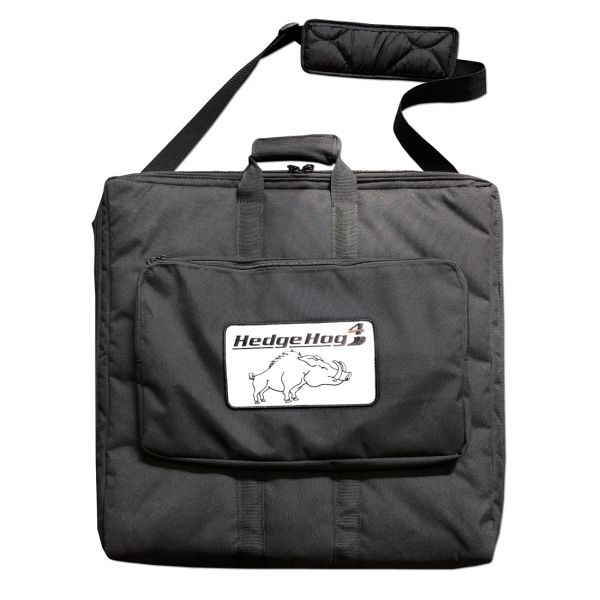

HedgeHog 4E Softbag
