Midicon 2

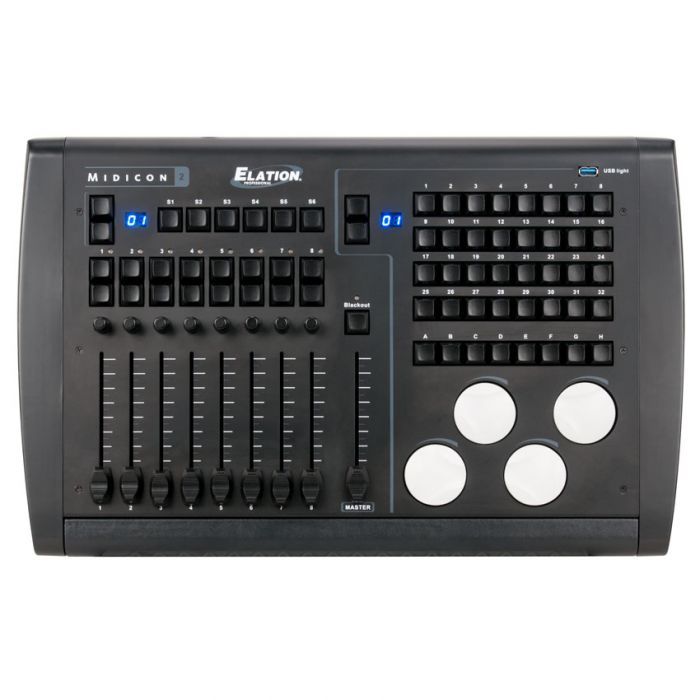

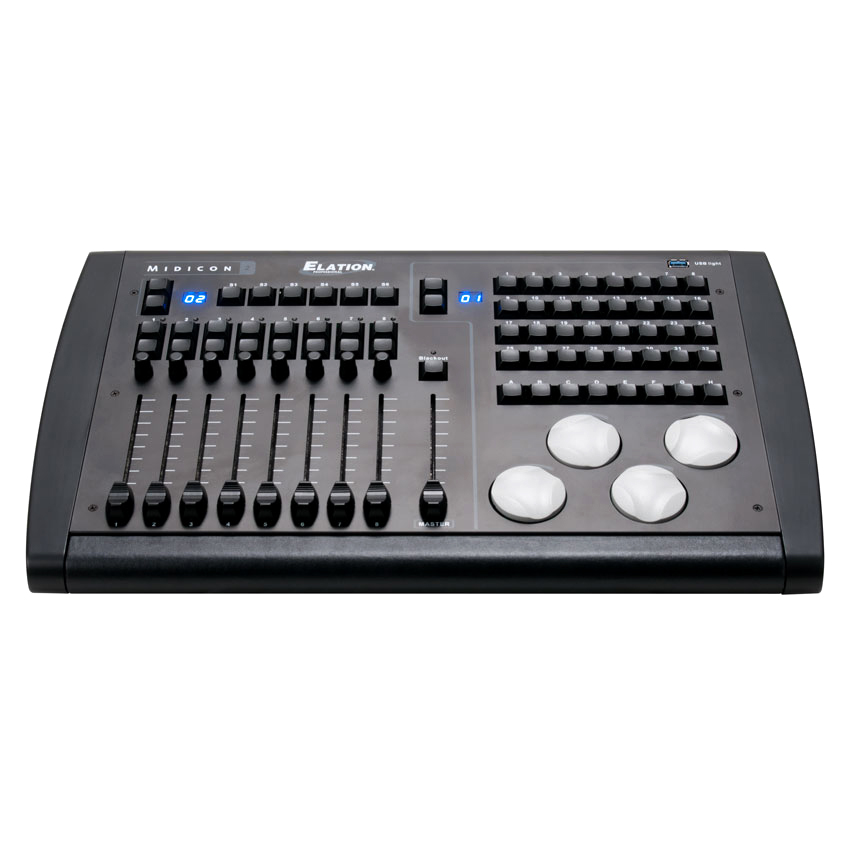

MIDICON-2™ is a professional USB powered controller which can be used to control lighting, video or audio software and/or hardware using Midi protocol. A Midi Mapper Software is provided, to assign Midi channels and notes to each button, fader or encoder. An updated design from the original MIDICON™ controller, the MIDICON-2™ features tactile spring loaded buttons, 1 master and 8 control 100mm faders, 16 playback page buttons above faders, 8 rotary dials with push-in selection above faders, a bank of 32 instant effects or scene calling buttons, 1 blackout button, 6 general purpose buttons for often used functions, (8) bump/momentary effect buttons, 4 rotary encoder wheels with push-in selection, USB input for a gooseneck work light (not included), removable outer case for 6U rack mounting (rack mount kit included), and a Kensington™ security device slot.

Technical Data

FEATURES

USB Powered
Tactile Spring Loaded Buttons
Midi Mapper Software
Works with Many Different Lighting/Video Hardware and Software Controllers
USB Input for Gooseneck Work Light (not included)

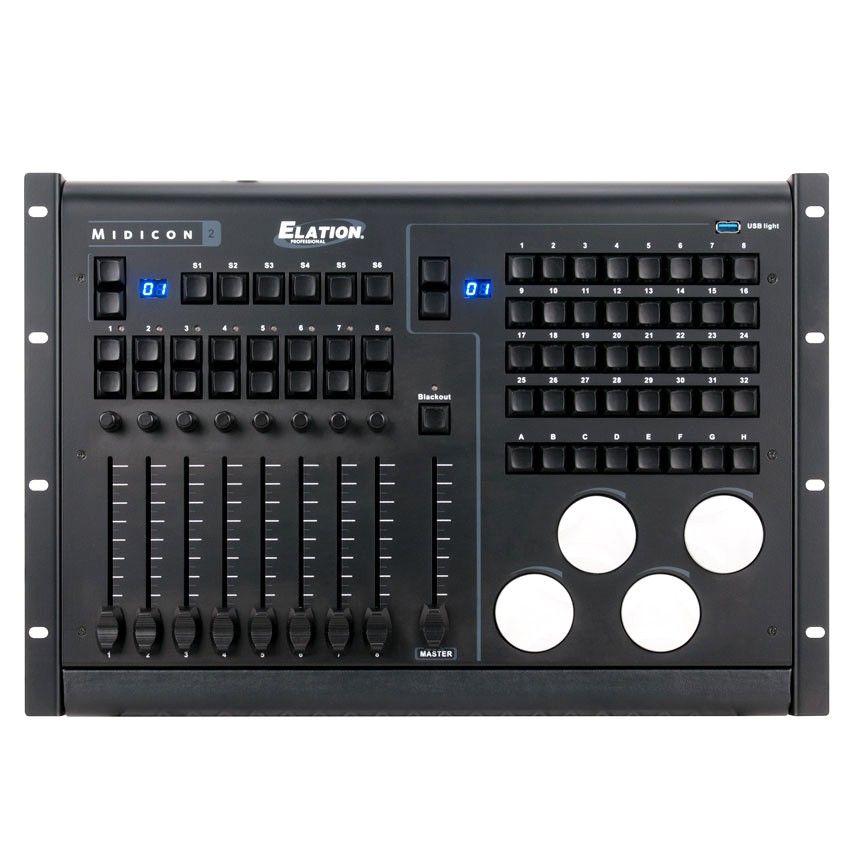

Removable Outer Case for 6U Rack Mounting
6U Rack Mount Kit Included
Kensington™ Security Device Slot

CONTROL / CONNECTIONS

6 General Purpose Buttons
1 Master and 8 Control 100mm Faders
16 Page Playback Buttons Above Faders
8 Rotary Dials with Push-In Selection Above Faders
8 Dual Color Feedback LEDs Above Faders
1 Blackout Button
32 Instant Effect or Scene Calling Buttons
8 Bump / Momentary Effect Buttons
4 Rotary Encoder Wheels with Push-In Selection

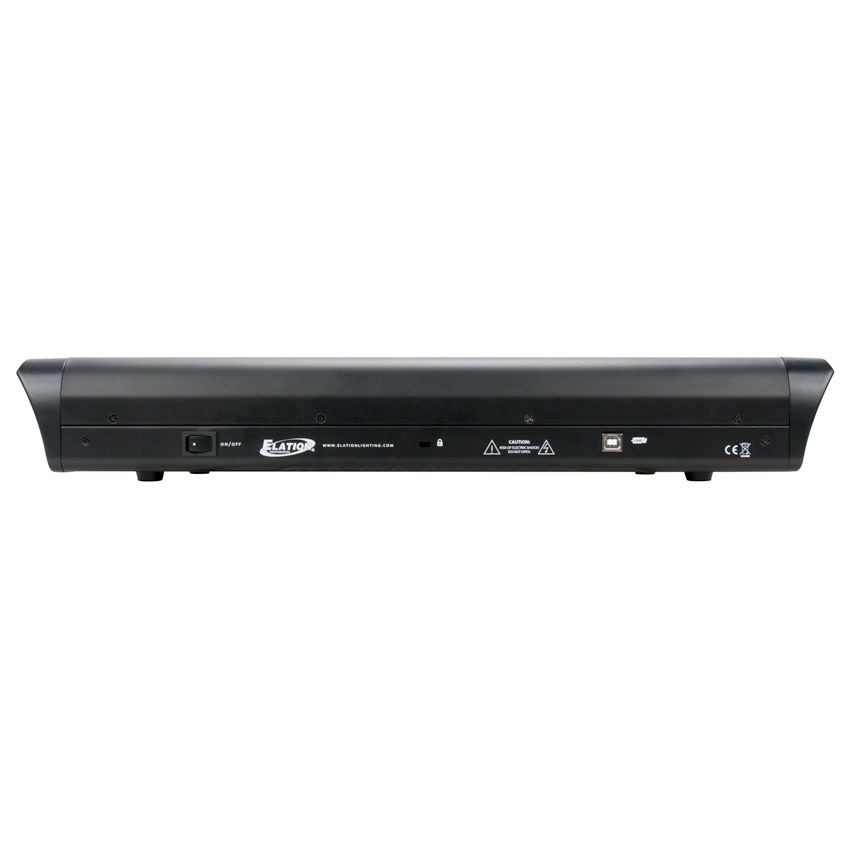

USB 2.0 Type “B” Port

SIZE / WEIGHT

Length: 20.2” (514mm)
Width: 12.9” (328mm)
Vertical Height: 3.6” (91mm)
Weight: 15.0 lbs. (6.8 kg)

INSTALLATION

Any Flat Surface
6U Rack Mount with included kit
Kensington™ Security Device Slot

INCLUDED ITEMS

1 USB Cable
1 6U Rack Mount Kit

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
