eNode 4

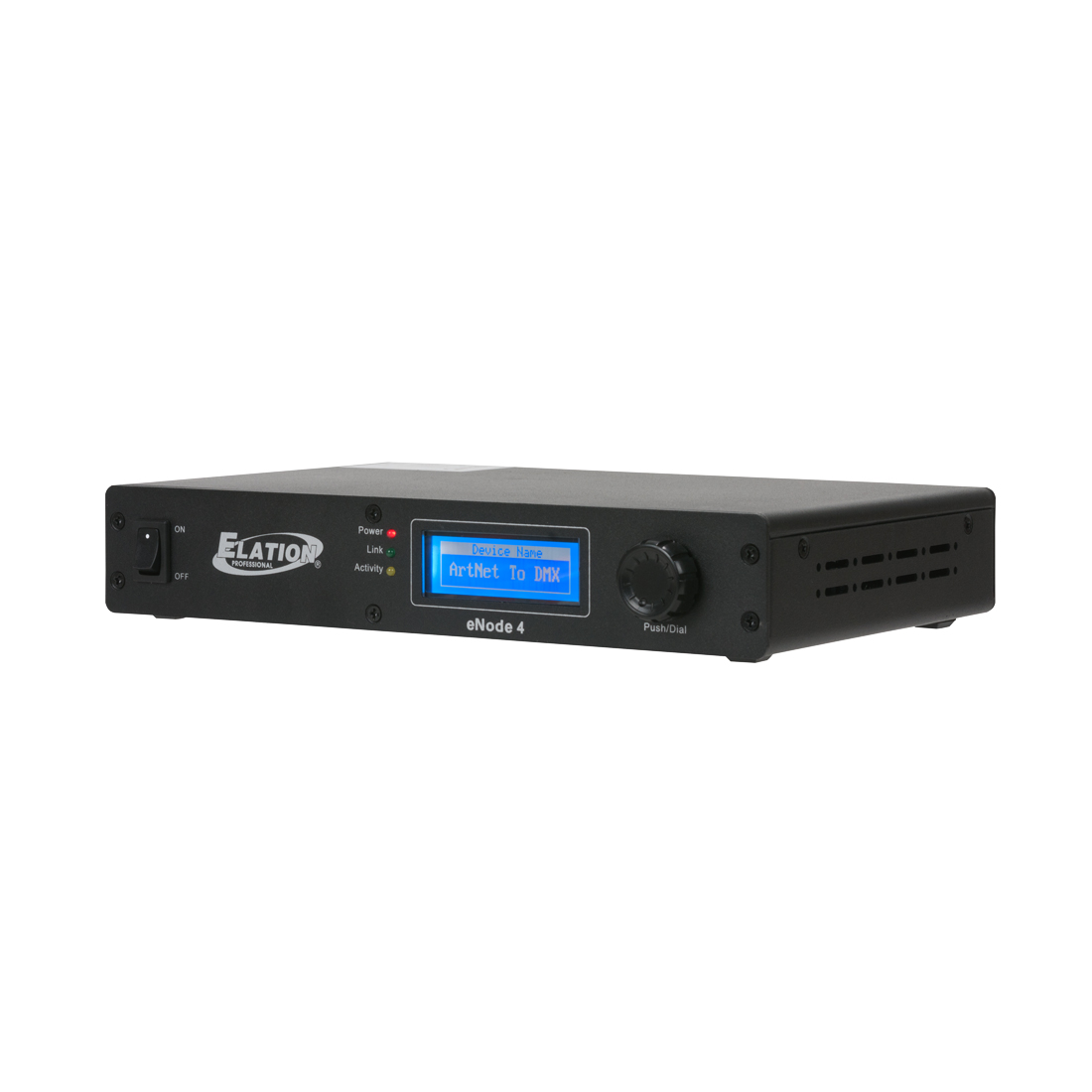

The eNode4™ is 4-universe Ethernet-DMX node which supports Art-Net, sACN, and RDM compatible DMX control systems utilizing 2 locking RJ45 ethernet auto-switching 10/100Mbps inputs and 4 locking 5pin XLR DMX ports which can be configured as inputs or outputs. Features include DMX bilateral conversion support, sACN auto-detection, variable MAC address assignable, auto MDI/MDIX, DMX splitter function (1 input / 3 outputs), broadcast and backup modes, built-in Ethernet repeater switch, an LCD control menu display and LED indicators, push button configuration encoder wheel, a lightweight die-cast aluminum housing, and includes a mini omega bracket for clamp mounting. (clamp not included)

Technical Data

FEATURES

4-Universe Ethernet-DMX Node
Art-Net,sACN, and RDM Compatible DMX Control Systems Support
DMX Bilateral Conversion Support Compact
sACN Auto-Detection
Variable MAC Address Assignable
Auto MDI/MDIX
DMX Splitter Function (1 Input / 3 Outputs)
Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
Backup Mode

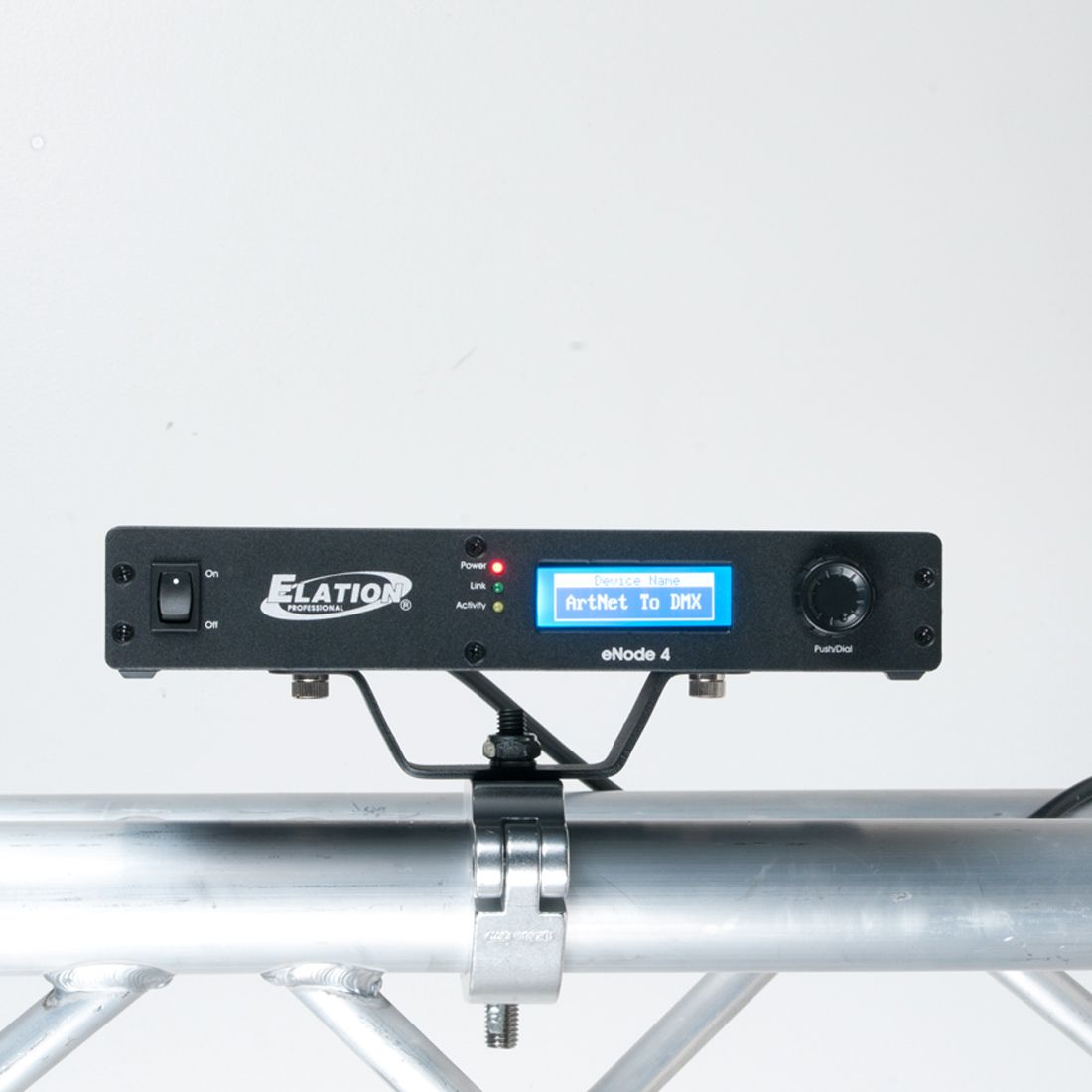

Omega Bracket Included for Clamp Mounting

CONTROL / CONNECTIONS

4-Universes
Art-Net, sACN, and RDM Compatible DMX Control Systems
DMX Bilateral Conversion
sACN Auto-Detection
Auto MDI/MDIX
DMX Splitter Function (1 Input / 3 Outputs)
Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
Backup Mode
Push Button Configuration Encoder Wheel
LCD Control Menu Display & LED Indicators

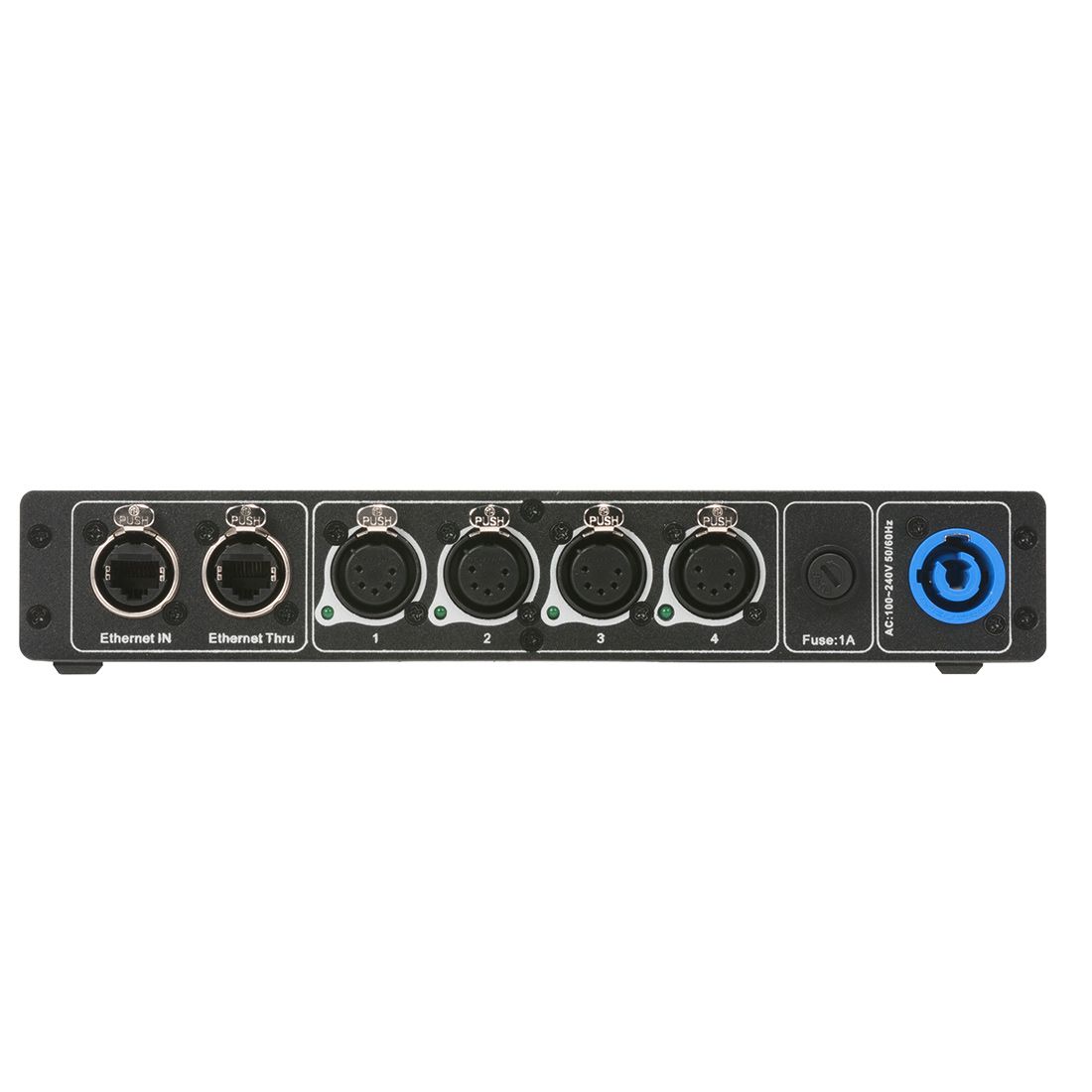

(2) locking RJ45 ethernet TCP/IP 10/100M Inputs
(4) locking Universal 5pin XLR DMX Ports (can be set as Input or Output)
Locking Power In

SIZE / WEIGHT

Length: 10.0” (255mm)
Width: 6.8” (173mm)
Vertical Height: 1.7” (43mm)
Weight: 3.5 lbs. (1.6kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
5W Max Power Consumption
35.6°F (2°C) to 113°F (45°C)

INCLUDED ITEMS

Mounting Bracket

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
