eNode 8 Pro

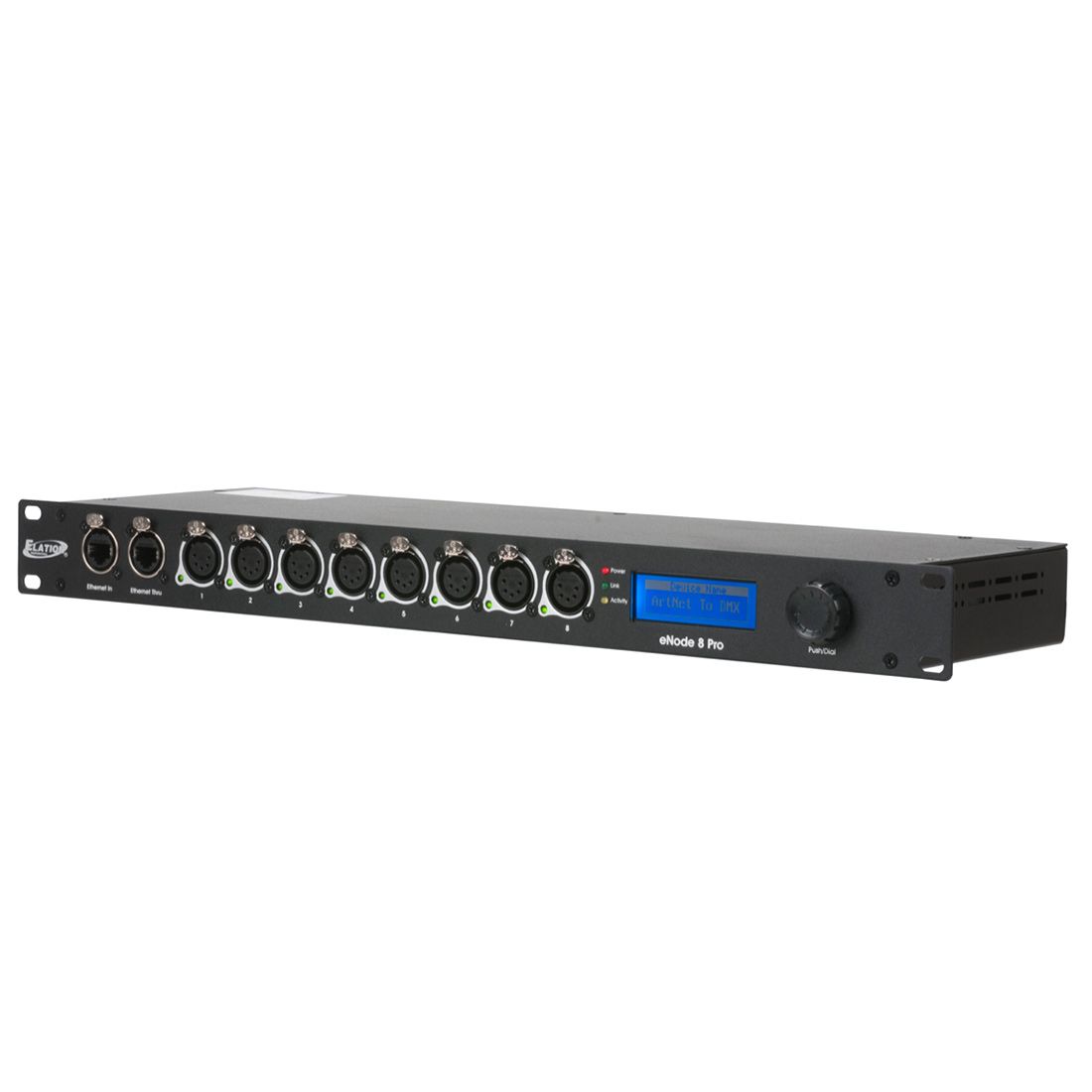

The eNode8 PRO™ is a 1U rack space 8-universe Ethernet-DMX node which supports Art-Net, sACN, and RDM compatible DMX control systems utilizing 2 locking RJ45 ethernet auto-switching 10/100Mbps inputs and 8 locking 5pin XLR DMX ports which can be configured as inputs or outputs. Features include DMX bilateral conversion support, sACN auto-detection, variable MAC address assignable, auto MDI/MDIX, DMX splitter function (1 input / 3 outputs or 1A input / 3A outputs and 1B input / 3B outputs), broadcast and backup modes, built-in Ethernet repeater switch, an LCD control menu display and LED indicators, push button configuration encoder wheel, a lightweight die-cast aluminum housing, and includes standard 19-inch rack mount ears.

Technical Data

FEATURES

8-Universe Ethernet-DMX Node
DMX, RDM, Art-Net, and sACN Protocol Support
DMX Bilateral Conversion Support Compact
sACN Auto-Detection
Variable MAC Address Assignable
Auto MDI/MDIX
DMX Splitter Function (1 Input / 3 Outputs)
Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
Backup Mode
1U Rack Space Mountable (rack ears included)

CONTROL / CONNECTIONS

8-Universes
DMX, RDM, Art-Net, and sACN Protocol Support
DMX Bilateral Conversion
sACN Auto-Detection
Auto MDI/MDIX
DMX Splitter Function (1 Input / 3 Outputs)
Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
Backup Mode
Push Button Configuration Encoder Wheel
LCD Control Menu Display & LED Indicators
(2) locking RJ45 ethernet TCP/IP 10/100M Inputs
(8) locking Universal 5pin XLR DMX Ports (can be set as Input or Output)

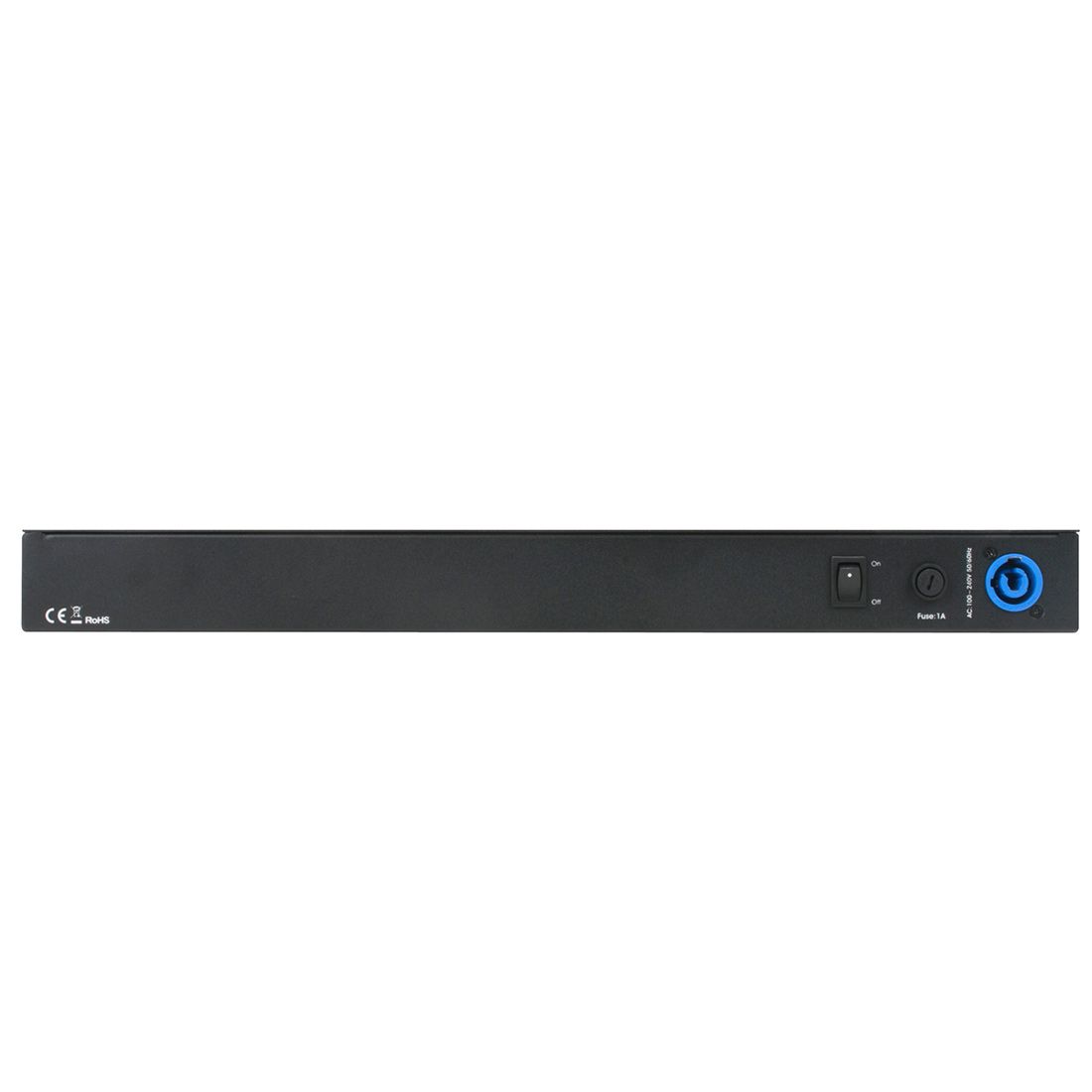

Locking power In

SIZE / WEIGHT

Length: 19.0” (482mm)
Width: 6.3” (160mm)
Vertical Height: 1.7” (44mm)
Weight: 4.6 lbs. (2.1kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
7W Max Power Consumption
35.6°F (2°C) to 113°F (45°C)

FIRMWARE UPDATES

Current firmware can be found here (loging required)



Specifications and documentation subject to change without notice
