eNode 2 POE

The eNode 2 POE™ is a compact 2-universe Ethernet-DMX node powered over Ethernet (POE), no external power supply or cord is needed. Supports Art-Net compatible DMX control systems utilizing a single locking RJ45 auto-switching 10/100Mbps locking power input and two multi-configuration 5pin XLR DMX data outputs. Features include DMX bilateral conversion support, a 4-button control panel, an OLED system menu display, 3 LED status indicators, compact and lightweight die-cast aluminum housing, and a mini omega bracket for easy clamp/truss mounting.

Technical Data

FEATURES

Compact 2-Universe Ethernet-DMX Node
POE (Power over Ethernet)
DMX, RDM, Art-Net, and sACN Protocol Support
DMX Bilateral Conversion Support Compact
sACN Auto-Detection
Variable MAC Address Assignable
Compact Lightweight Die-Cast Aluminum Housing

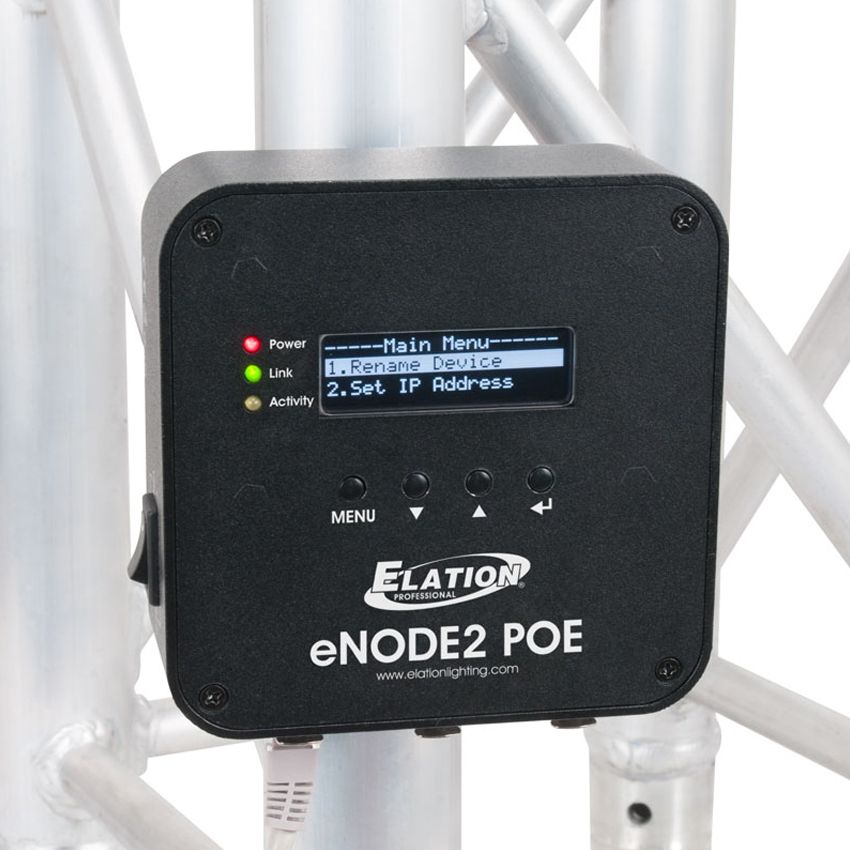

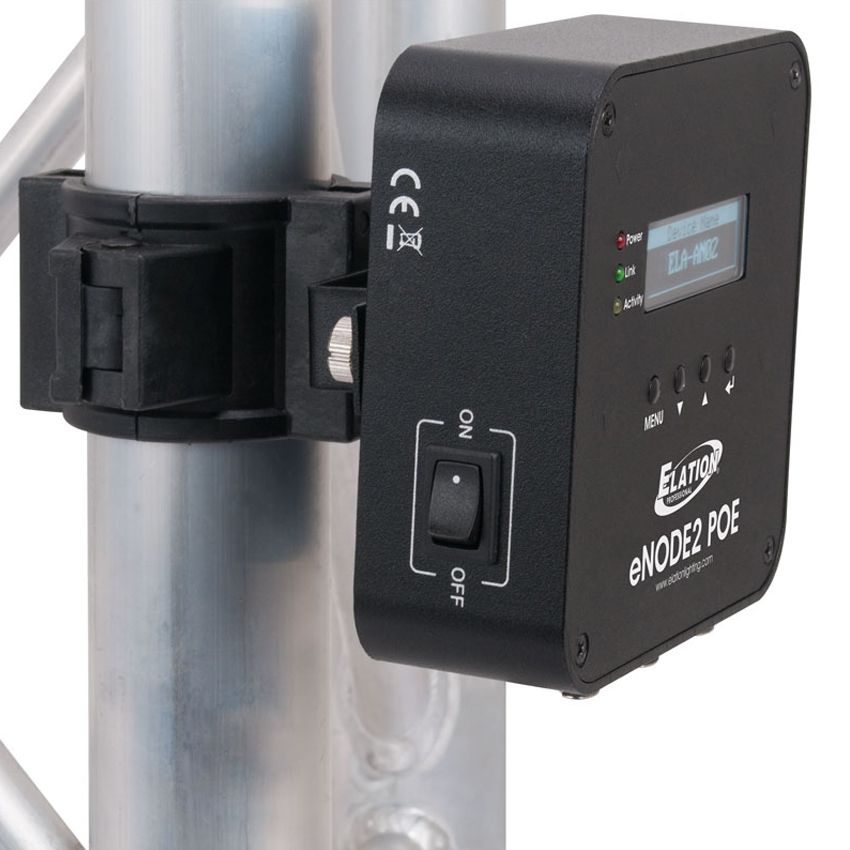

Easy Clamp/Truss Mounting

CONTROL / CONNECTIONS

2-Universe Support
DMX, RDM, Art-Net, and sACN Protocol Support
DMX Bilateral Conversion
sACN Auto-Detection

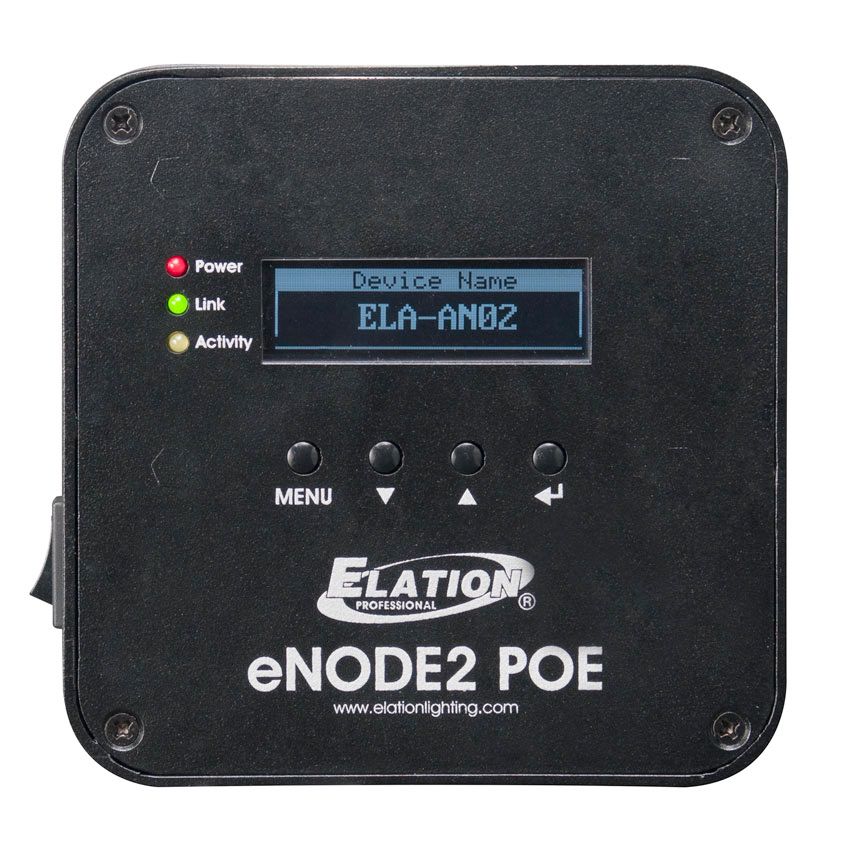

4-Button Control Panel

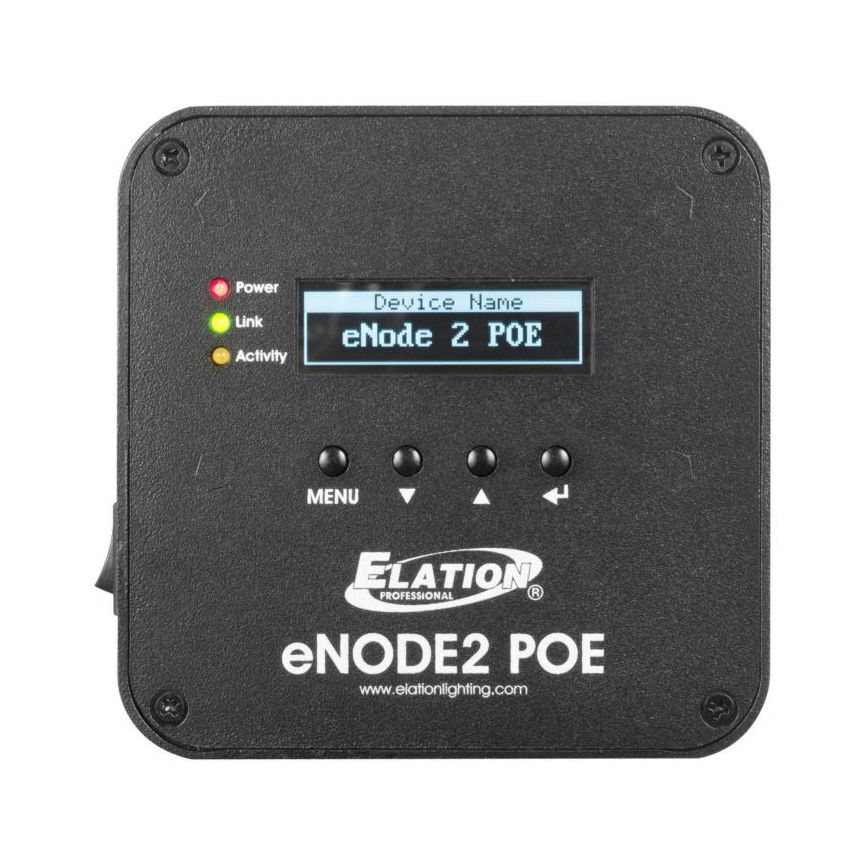

OLED System Menu Display
(3) LED Status Indicators

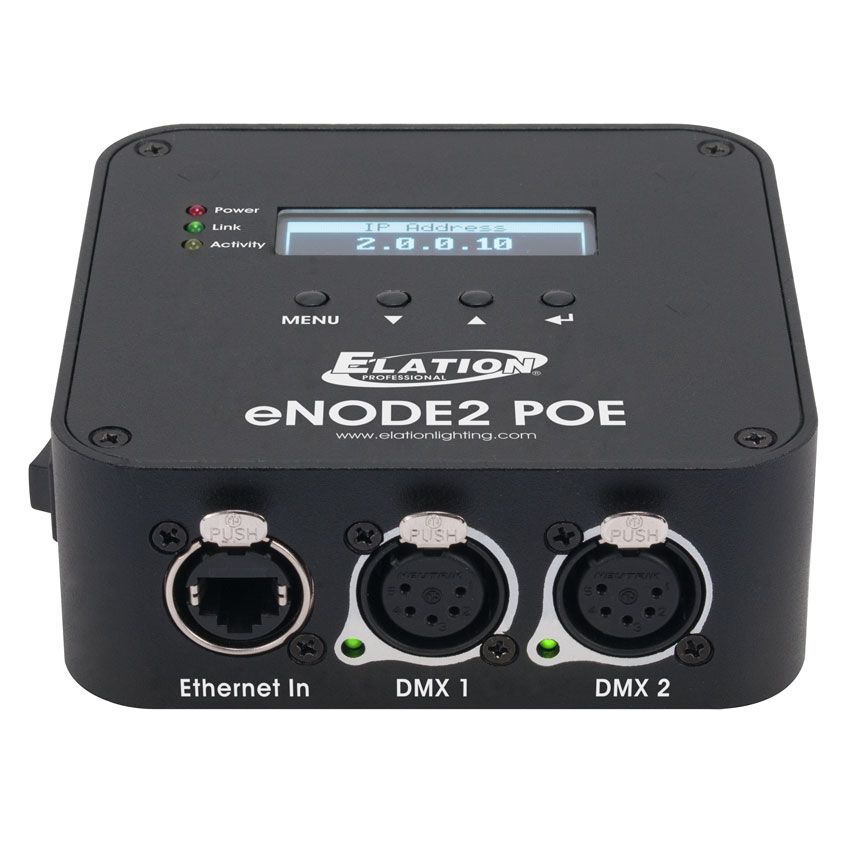

(1) Auto-Switching 10/100Mbps locking RJ45 Ethernet Input
(2) Multi-Configuration locking 5pin XLR DMX Data Outputs

SIZE / WEIGHT

Length: 10" (255mm)
Width: 6.8" (173mm)
Vertical Height: 1.7" (43mm)
Weight: 3.5 lbs. (1.6kg)

ELECTRICAL / THERMAL

POE (Power over Ethernet)
2.6W Max Power Consumption

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
