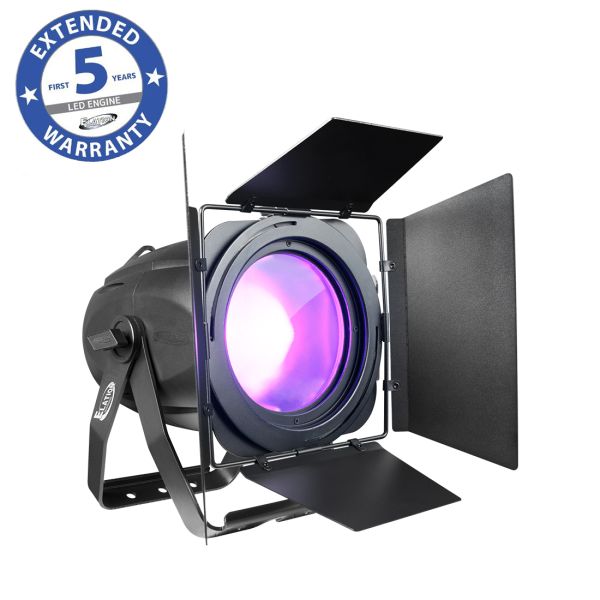

FUZE PAR Z175

The FUZE PAR Z175™ is a single source par with zoom. Featuring a 175W RGBW COB LED engine, 8° to 35° motorized zoom, an advanced cooling system, smooth RGBW color mixing, 64 color presets and 14 unique color macros, electronic strobe and 16-bit variable dimming curve modes, flicker free operation for TV and FILM, 3/5pin DMX and IP65 Locking Power Cable in/out connections, (4) button LCD control display panel, integrated dual rigging yokes, and a multi-voltage universal auto switching power supply (100-240v). Gel frame and barn doors included.

Technical Data

FEATURES

Single Source Par
175W RGBW COB LED Engine
8° to 35° Motorized Zoom
Advanced Cooling System
Smooth RGBW Color Mixing
Variable 16-Bit Dimming Curve Modes
Flicker Free Operation for TV and FILM

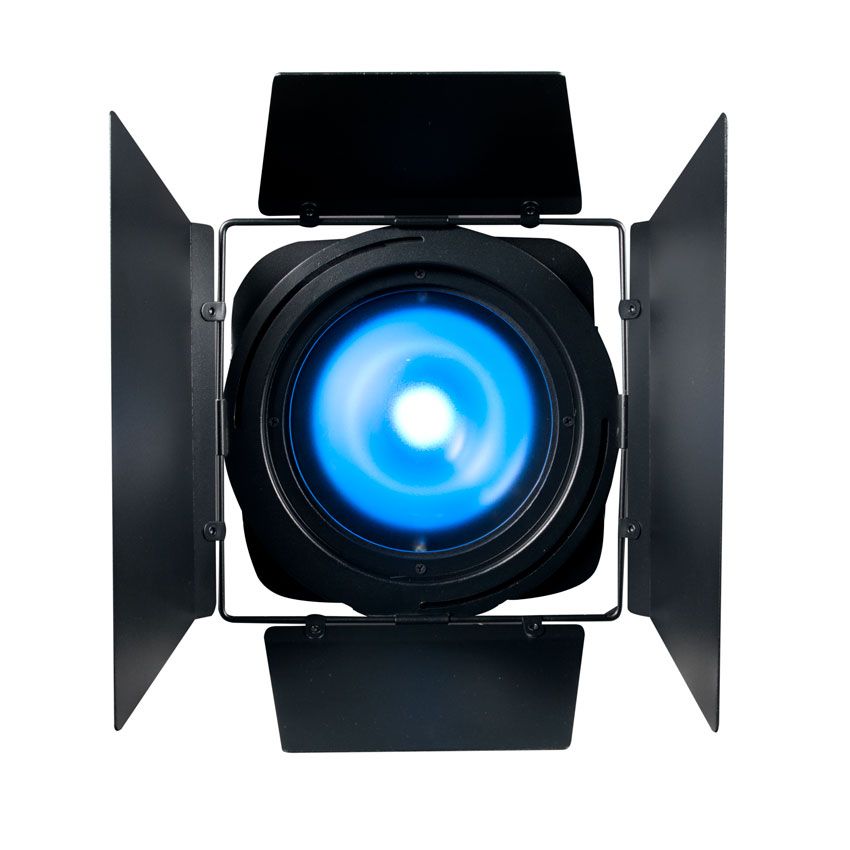

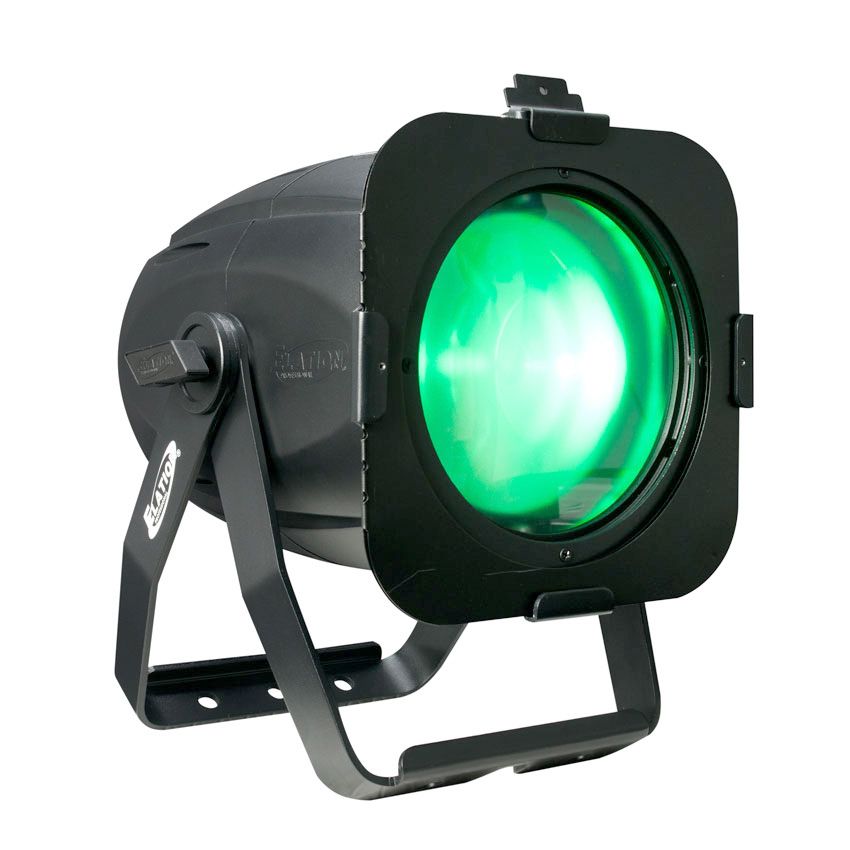

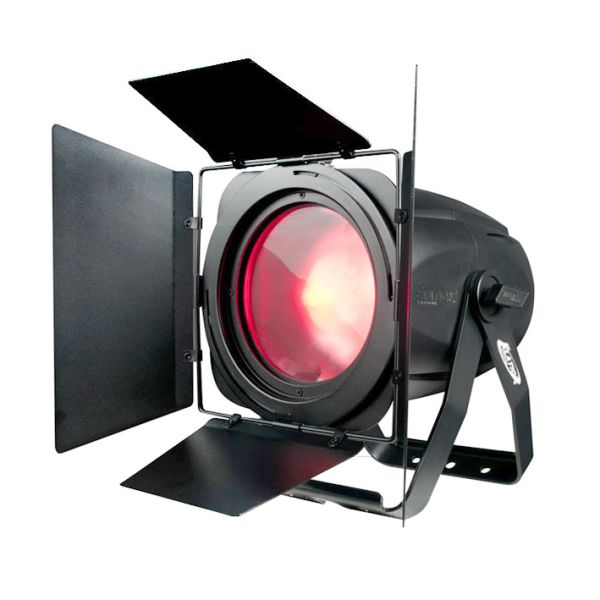

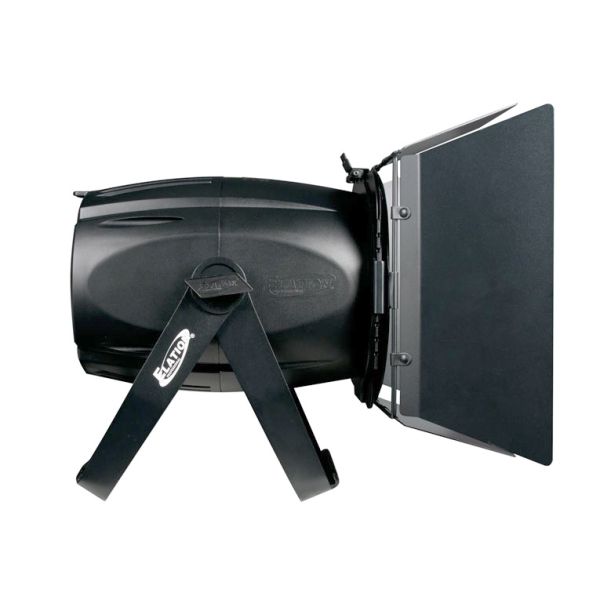

Gel Frame and Barn Doors Included

SOURCE

175W RGBW COB LED
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

15,026 LUX 1396 FC @2m (6.6 ft) (Full ON 8°)
3,481 LUX 323 FC @2m (6.6 ft) (Full ON 35°)

EFFECTS

8° - 35° Motorized Zoom
64 Color Presets and Color Macro Programs
Electronic Strobe
16-bit Variable Dimming Curve Modes

COLOR

RGBW

CONTROL / CONNECTIONS

12 DMX Channel Modes (14 Total Channels)

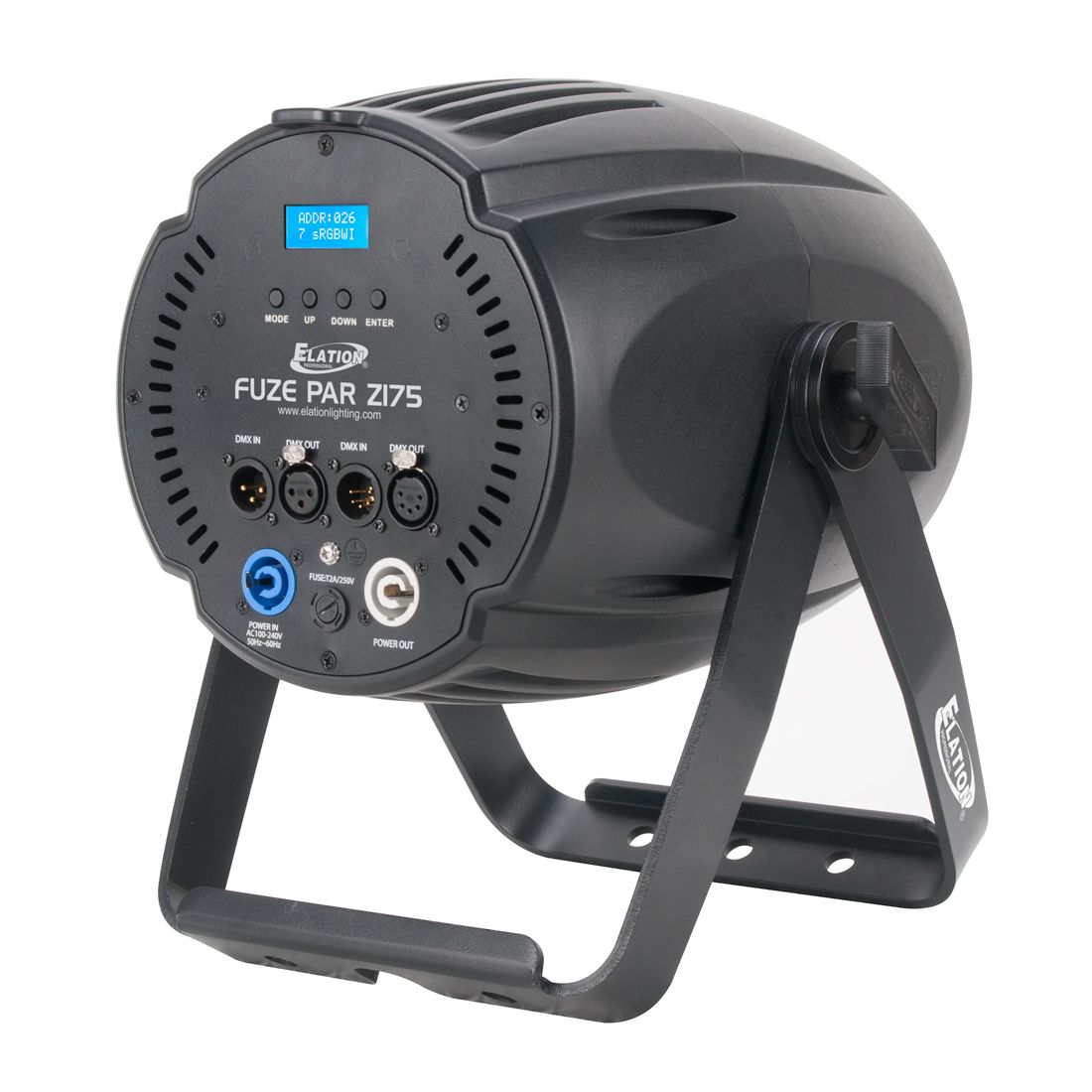

4 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
5pin DMX and Locking Power Cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 463mm (18.2”)
Width: 411mm (16.2”)
Vertical Height: 431mm (17.0”)
Weight: 9.07kg (20.0 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
200W Max Power Consumption
Multiple Unit Power Linking
-15°C to 45°C (5°F to 113°F)

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
